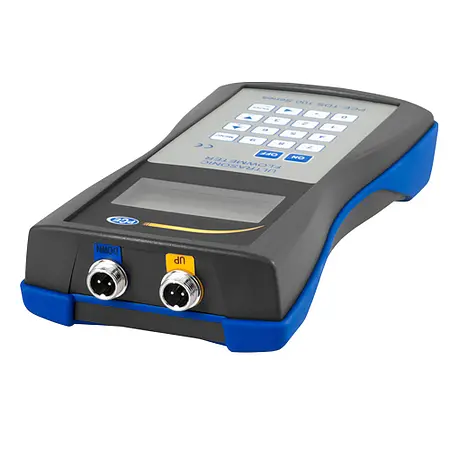

Clamp-on Ultrasonic Flow Meter PCE-TDS 100HS+ incl. Thermometer

Order no.: PCE-TDS 100HS+
US$ 3,069.00
4250348722706
PCE-TDS 100HS+
ex. VAT, ex. delivery costs
Available in: 1-2 working days

Clamp-on Ultrasonic Flow Meter incl. Temperature data logger
according to the transit time difference method / For determining flow velocity and flow / Measurement method for liquids that are as homogeneous as possible

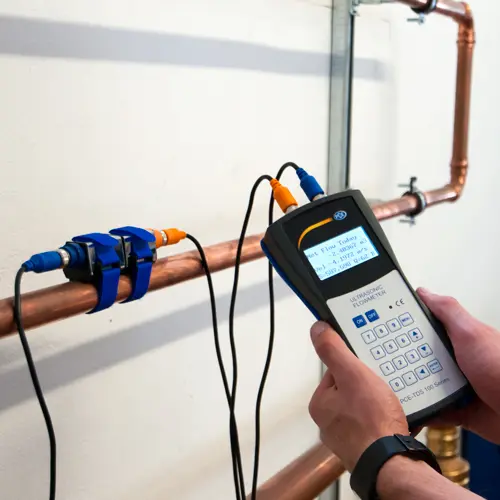

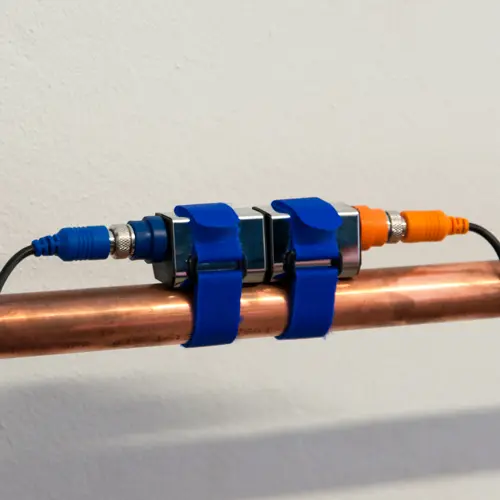

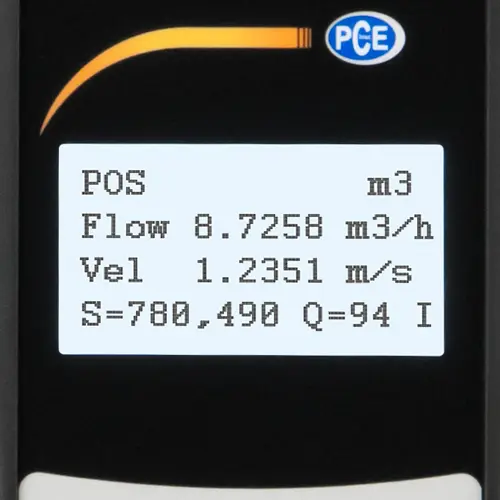

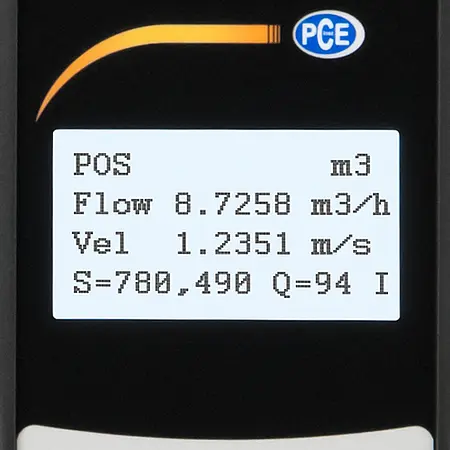

This is a portable handheld clamp-on Clamp-on Ultrasonic Flow Meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 108 mm / approx. 3/4 ... 4 in. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this Clamp-on Ultrasonic Flow Meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.

Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.

Calculation of flow velocity according to the transit-time principle follows the equation:

v = measured velocity
T1 = run time of the ultrasonic signal in the flow direction
T2 = run time of the ultrasonic signal against the flow direction
L = length of the ultrasonic wave
α = ultrasonic signal angle to the flow

The transit-time principle requires pipes to be full and have no bubbles and no particles.

Each PCE-TDS series meter is assembled by PCE Instruments in Germany and and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter's measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.


- ideal for retrofitting
- installation without process interruption
- easy assembly
- accurate and reliable
- no pressure loss
- maintenance-free, no moving parts
- wear-free
- portable devices for control measurements

Technical Data Ultrasonic Flow Meter PCE-TDS 100
Handheld measuring range -32 ... +32 m/s
Resolution 0.0001 m/s
Accuracy for DN ≥ 50 mm:
for DN < 50 mm:
 ±1.5 % of measured value
±3.5 % of measured value
Reproducibility ±1.0 % of measured value
Media

All liquids with an impurity
  <5% and a flow >0.03 m³/h

Flow units Cubic meter [m³]
  Liter [l]
  Gallon (USA) [gal]
  Imperial gallon (UK) [igl]
  Million USA gallon [mgl]
  Cubic foot [cf]

Barrel (USA) [bal]
  Imperial barrel (UK) [ib]


Oil barrel [ob]

Time settings per day [/d]

per hour [/h]
  per minute  [/m]
  and per second [/s]

Data logger 60,000 measurements
Interface USB (for online measurement and reading of the internal memory)
Protection IP 52
Power supply 3 x AA NiMH rechargeable battery / 2100 mAh
  (at full charge 12h running time) 100 … 240 V AC 50/60 Hz
Dimensions 214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"
Weight 450 g / 15 oz
Sensor nominal width DN 15 … 100, 20 … 108 mm / approx. 3/4 ... 4"
Temperature of liquid -30 … 160 °C / -22 ... 320 °F
Dimensions 50 x 45 x 45 mm / 1.9 x 1.7 x 1.7"
Weight 260 g / 9oz

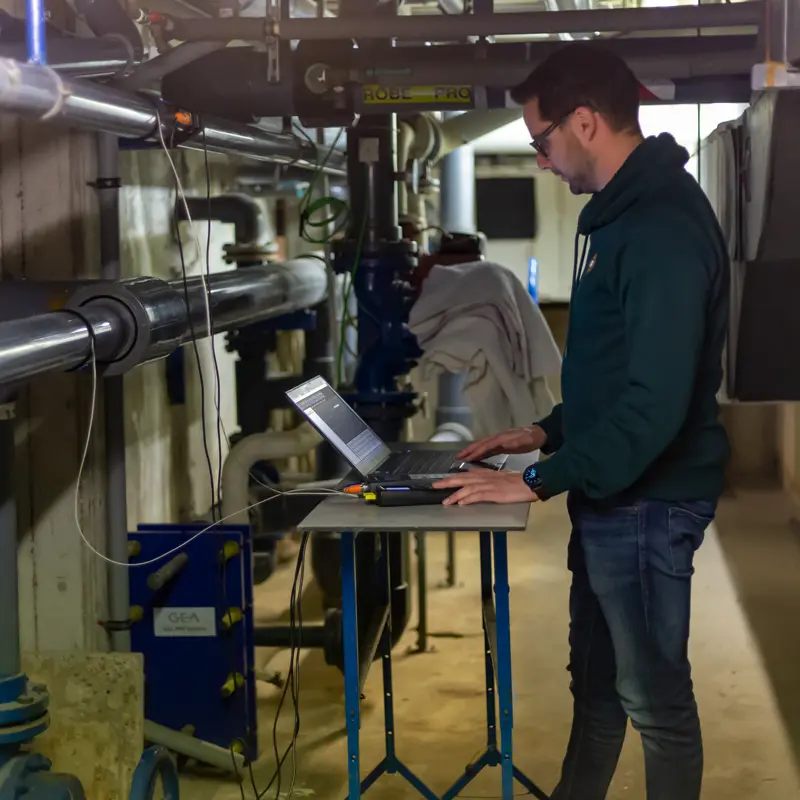

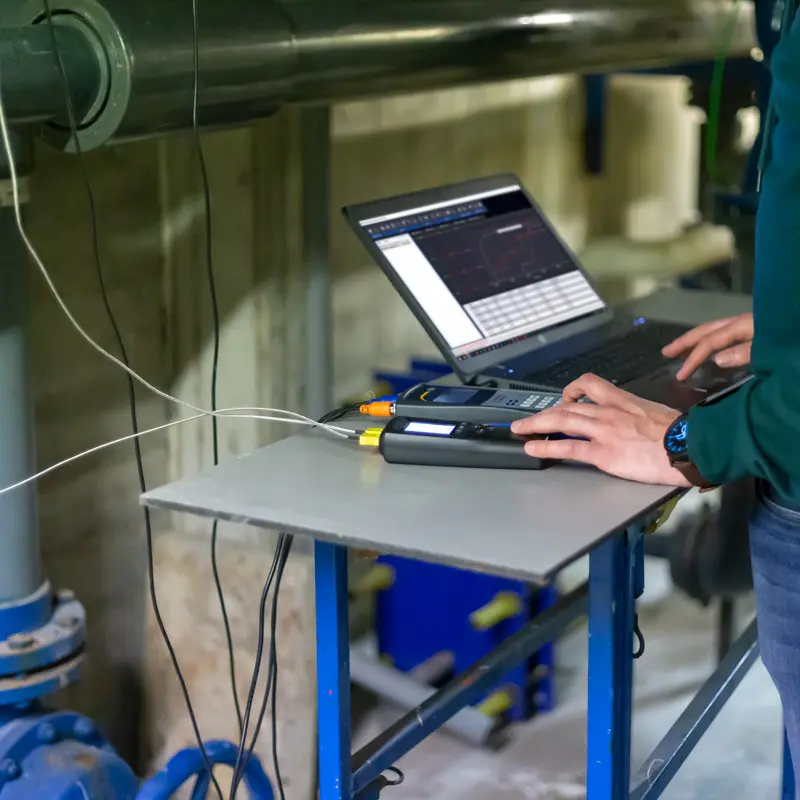

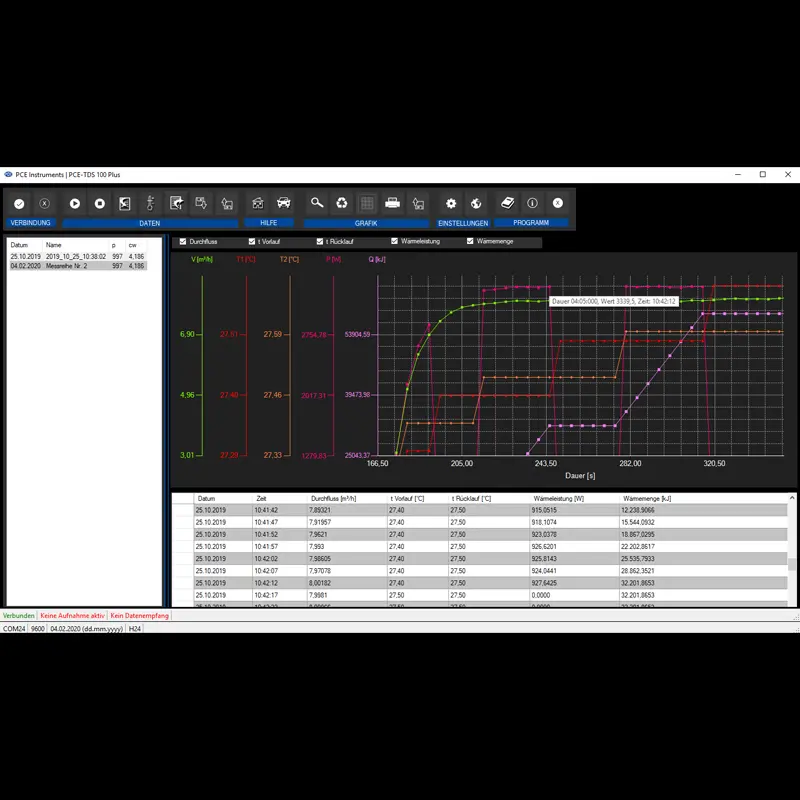

Technical data evaluation software
- Units of power W, kW, MW, J/h, kJ/h, MJ/h, Btu/h, kBtu/h, MBtu/h
- Units of energy J, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu
- Graphical representation of flow, flow temperature,
  return temperature, heat output and heat quantity
- Tabular representation of flow, flow temperature,
  return temperature, heat output and heat quantity
- Mobile and stationary measurement mode
- Real-time data logger with unlimited runtime (only limited by PC memory capacity)
- Data export function
- User-guided software operation with step-by-step instructions for
  device and software configuration

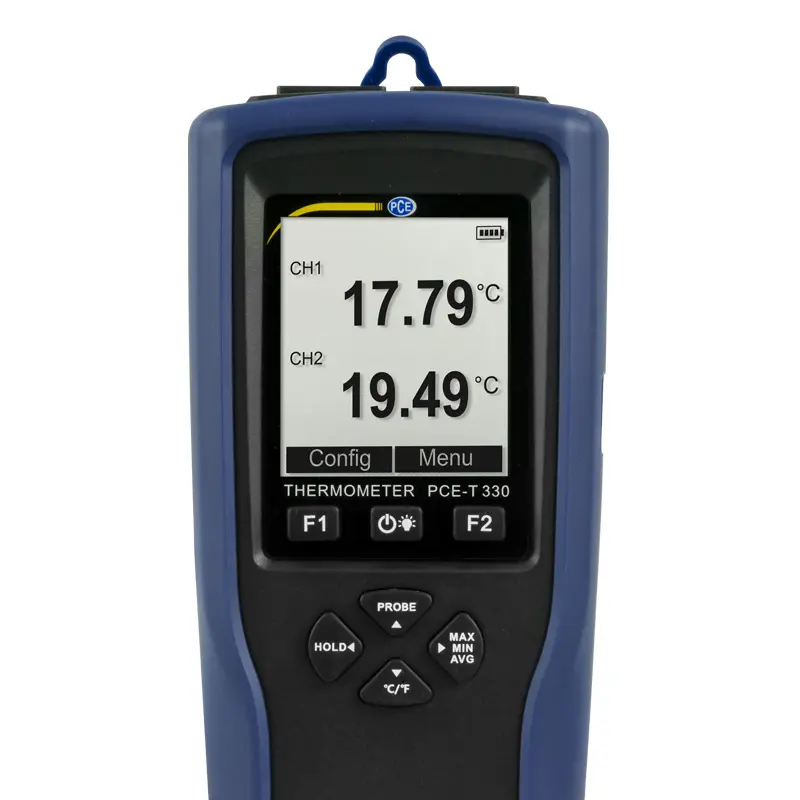

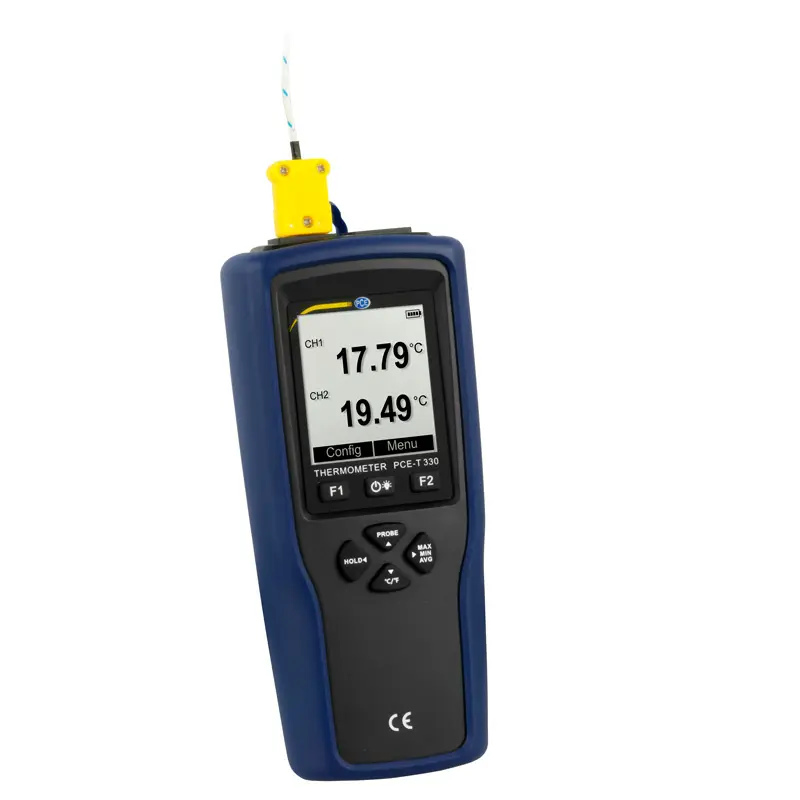

Technical Data Temperature Datalogger PCE-T 330
Measuring range thermocouple Type K   -200 … +1370 °C / -328 ... 2498 °F
Resolution 0.01 °C
Accuracy* ±(0.3 % of rdg. +0.40) °C*

Measuring range thermocouple Type T --200 … +400 °C / -328 ... 752 °F
Resolution 00.01 °C
Accuracy* ±±(0.3 % of rdg. +0.40) °C*

Measuring range thermocouple Type J --200 … +1200 °C /  -328 ... 2192 °F
Resolution 00.01 °C
Accuracy*±±(0.3 % of rdg. +0.40) °C*

Measuring rate 2/s
Operating temperature -10 … +50 °C / 14 ... 122 °F
Storage temperature -20 … +60 °C (without batteries) / -4 ... 140 °F
Power supply 3 x AAA batteries / 1.2 V battery
Battery life ca. 190 h
  (without backlight, battery capacity 1200 mAh,
  ambient temperature 25 °C)
Protection class IP52 (with protective cover and connected sensor)
Norm/ certification CE/EMC ROHS

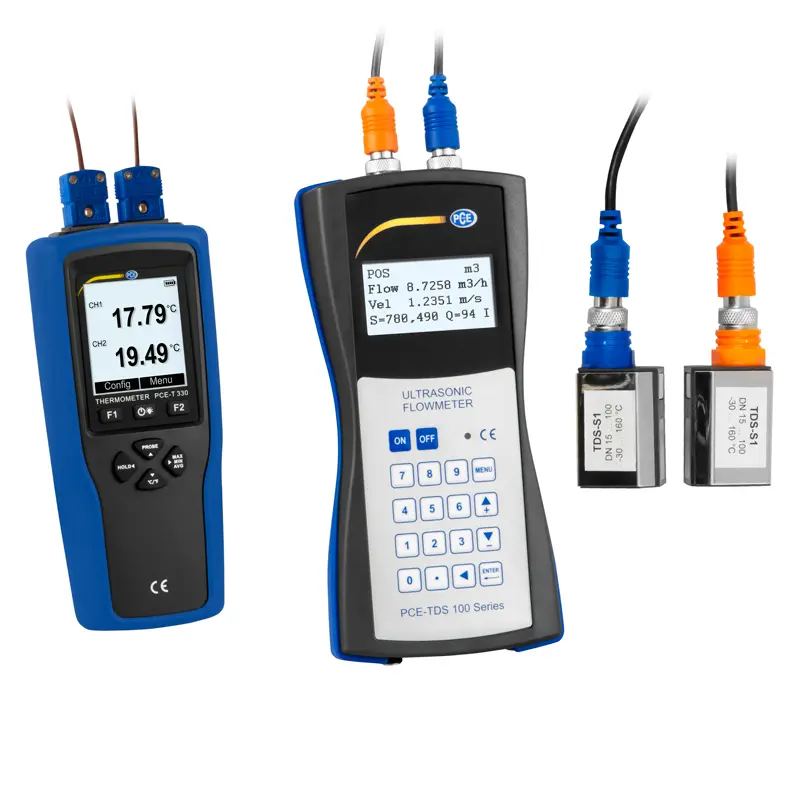

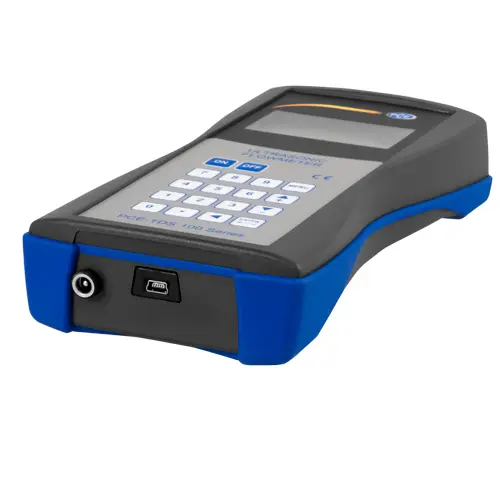

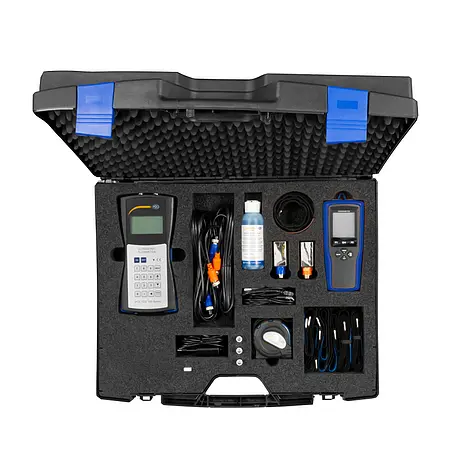

1 x Clamp-on Ultrasonic Flow Meter PCE-TDS 100HS+
1 x 2-Channel Datalogger-Thermometer PCE-T 330
1 x Evaluation software for calculation of heat quantity and heat output

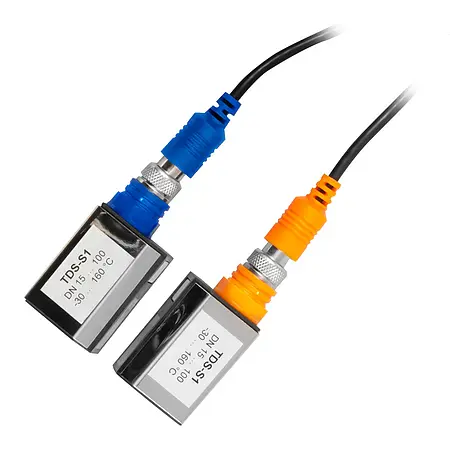

2 x Sensor TDS-S1

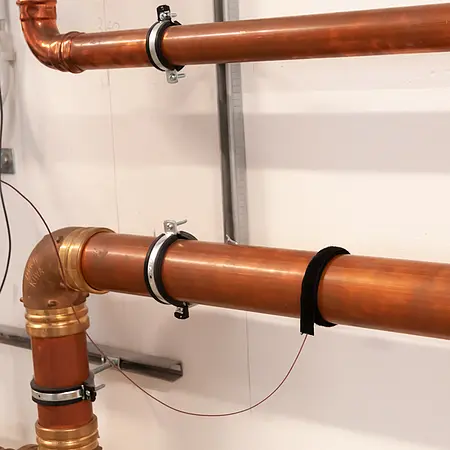

2 x Temperature pipe contact sensor TF-RA330 (Standard 1 m)
2 x 5 m / 16.4 ft connection cables
2 x Velcro cable ties
1 x Power adapter
1 x Ultrasound contact gel
1 x PCE tape measure
1 x Transport case
1 x User manual

Accessories

Order no.: TT-GEL
Ultrasonic Contact Gel (100 ml)
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The moderate temperature contact gel can be used at temperatures of -10 to 80°C / -14 to 176°F.

- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS
US$ 26.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: CAL-PCE-TDS-ISO
ISO Calibration Certificate CAL-PCE-TDS-ISO

ISO calibration certificate for the flow meter, certifies traceability to test standards and is required to comply with ISO 9000 requirements.

- 2 different pipe diameters, each 1x speed


The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

Manufacturer: PCE Instruments
US$ 450.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: K-Gel
K-Gel High Temperature Coupling Gel
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.

- Usable up to 350°C / 662°F
- Content: 100 ml
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
Manufacturer: PCE Instruments
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: SOFT-PCE-TDS
Software for PCE-TDS 100H / PCE-TDS 100HS
Software for programming, reading, and archiving the measurement data. The software kit consists of the interface cable and the software CD.

- Software includes data cable for PCE-TDS 100H and PCE-TDS 100HS
- Software license usable on 1 PC only
Manufacturer: PCE Instruments
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: Sensorkabel PCE-TDS 100 Series
Sensor Cables PCE-TDS 100 Series
5-meter sensor cables for PCE-TDS 100H and PCE-TDS 100HS
Manufacturer: PCE Instruments
US$ 108.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-L1
Flow meter sensors TDS-L1
Flow sensor for DN300 ... DN6000 / media temperature -30 ... 160 °C suitable for ultrasonic flow meter PCE-TDS 100H

- For pipe sizes: 300 mm ... 6000 mm
- Media temperature: -30 ... 160 °C
- Dimensions: 91 x 52 x 44 mm
- Magnetic
- Splashproof: IP65
Manufacturer: PCE Instruments
US$ 424.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HM
On-rail flow sensors TDS-HM
On-rail flow sensor for 50 ... 720 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 50 ... 720 mm / approx. 2 ... 28"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 628.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HS
On-rail flow sensors TDS-HS
On-rail flow sensor for 20 ... 108 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 20 ... 108 mm / approx. 0.8 ... 4"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 523.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-S1

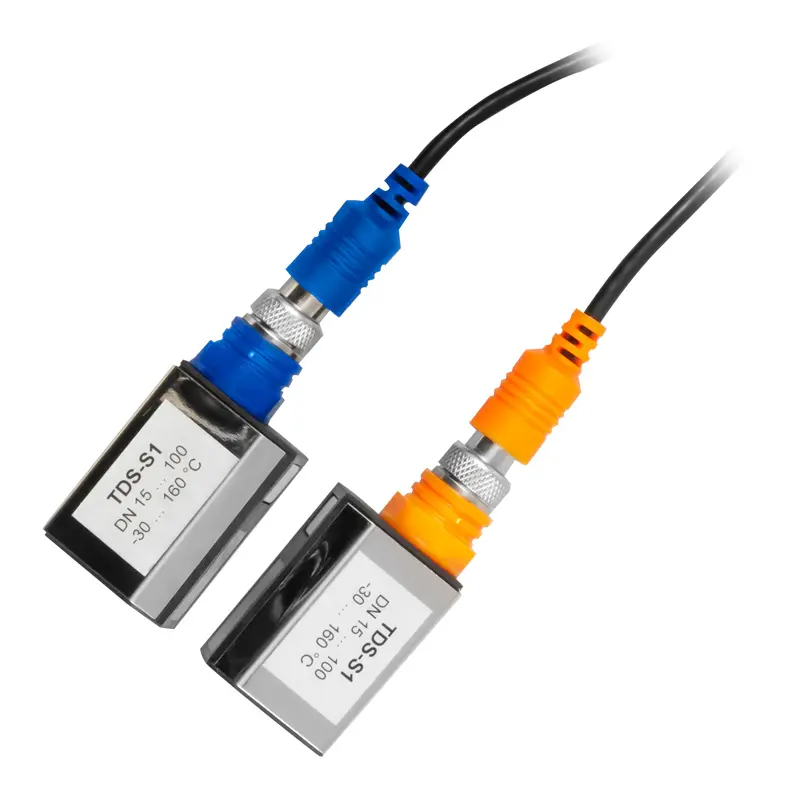

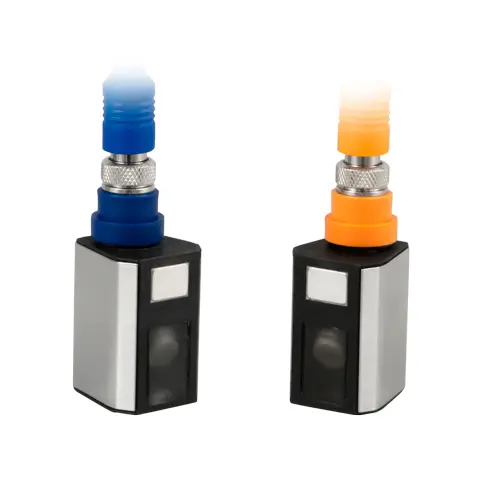

Replacement Transducers TDS-S1
TDS-S1 is a set of replacement transducers for PCE-TDS 100HS but can also be used be used with the PCE-TDS 100H for smaller pipes. Temperatures from 0 ... 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 15 … 100, 20 … 100 mm / approx. 3/4 ... 4"
- Transducer dimensions: 45 x 31 x 31 mm / 1.8 x 2.2 x 1.2 in
- Type S1 head
Manufacturer: PCE Instruments
US$ 311.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-M1
Replacement Transducers TDS-M1
TDS-M1 is a set of replacement transducers for PCE-TDS 100H but can also be ordered for the PCE-TDS 100HS for larger pipes. Temperatures from 0 to 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 50 … 700, 57 … 720 mm / approx. 2 ... 28"
- Transducer dimensions: 71 x 43 x 38 mm / 2.8 x 1.7 x 1.5 in
- Type M1 head
Manufacturer: PCE Instruments
US$ 264.00

ex. VAT, ex. delivery costs
