Clamp-on Ultrasonic Flow Meter PCE-TDS 100HMHS-ICA incl. ISO Calibration Certificate

Order no.: PCE-TDS 100HMHS-ICA
ISO Calibration
US$ 3,419.00
PCE-TDS 100HMHS-ICA
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Clamp-on Ultrasonic Flow Meter PCE-TDS 100HMHS-ICA incl. ISO Calibration Certificate
According to the transit time difference method / To determine flow velocity and flow rate / Measuring method for liquids as homogeneous as possible
The Clamp-on Ultrasonic Flow Meter is required as part of a control measurement or to quickly determine the flow in a pipeline and is therefore a portable / easy-to-install measuring system. The Clamp-on Ultrasonic Flow Meter works according to the transit time difference method. The measuring principle of the flow meter is quite simple. Measuring a pipe at an angle with the flow takes less time than measuring against the flow.

The stronger the current gets, the longer you need against it and the faster you get with it. The difference between the flow times with the flow or against it therefore depends directly on the flow speed of the river. The flow meter uses this effect to determine flow velocity and flow. Electro-acoustic transducers ("Piëzo effect") send and receive short ultrasonic pulses through the medium flowing in the pipe.

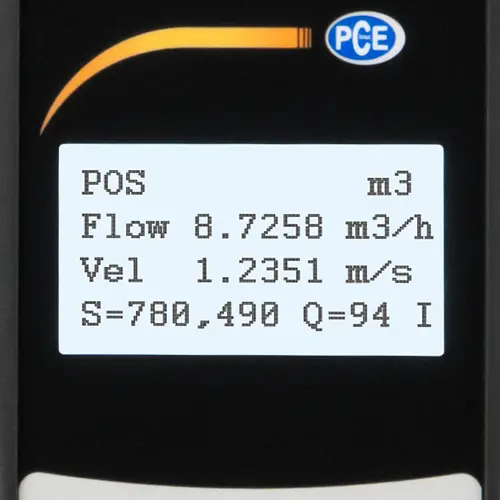

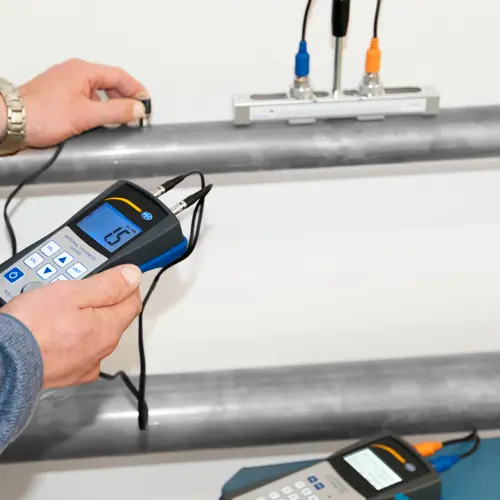

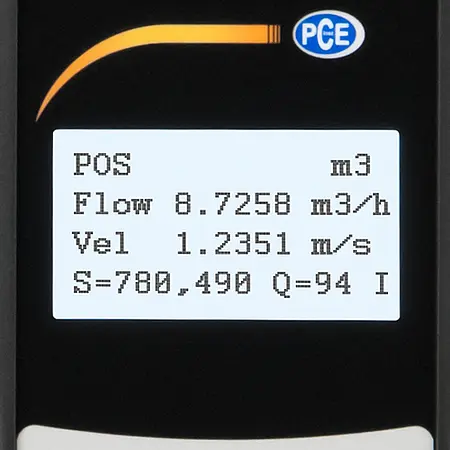

The transducers are offset in the longitudinal direction on both sides of the measuring pipe. The non-destructive working sensors are placed on the pipe and fastened e.g. by means of a cable tie. The display shows the flow rate within a short time. The Clamp-on Ultrasonic Flow Meter can be used for measurements on metallic pipes, plastic pipes or rubber pipes.

Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.

- Ideal for retrofitting
- Installation without process interruption
- Easy construction
- Accurate and reliable
- No pressure loss
- Maintenance-free, no moving parts
- Wear-free
- Portable devices for control measurements
- incl. ISO Calibration Certificate

Note: To transfer data to a computer, SOFT-PCE-TDS software is required. SOFT-PCE-TDS software sold separately - see accessories for details.
Hand-held device measuring range   -32 ... +32 m/s
Resolution 0.0001 m/s, 0.00033 ft/s
Accuracy for DN ≥ 50 mm:
for DN < 50 mm:
±1.5% of the measured value
±3.5% of the measured value
Reproducibility ±1.0% of the measured value
Media

All liquids with an impurity < 5% and a flow rate >0.03 m³/h


Units of flow

Cubic meter [m³]
Liter [l]
Gallon (USA) [gal]
Imperial Gallon (UK) [igl]
Million USA Gallons [mgl]
Cubic feet [cf]
Barrel (USA) [bal]
Imperial Barrel (UK) [ib]
Oil Barrel [ob]


Time setting

per day [/d]
per hour [/h]
per minute [/m]
and per second [/s]


Data logger 60,000 measuring points

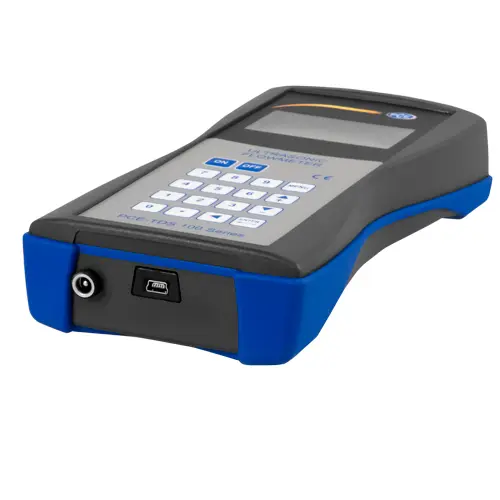

Interface USB (for online measurement and readout of the internal memory)
Protection class IP 52
Power supply 3 x AA NiMH batteries/ 2100 mAh (12 h running time when fully charged)
100 … 240 V AC 50/60 Hz
Dimensions 214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"
Weight 450 g / 15.9 oz
Sensor              nominal width DN 20 ... 108, 50 ... 720 mm / 0.8 ... 4.2, 1.9 ... 28.3"
Liquid temperature -30 … 160 °C / -22 … 320 °F
Dimensions 50 x 45 x 45 mm / 1.97 x 1.77 x 1.77"
Weight 260 g / 9.2 oz

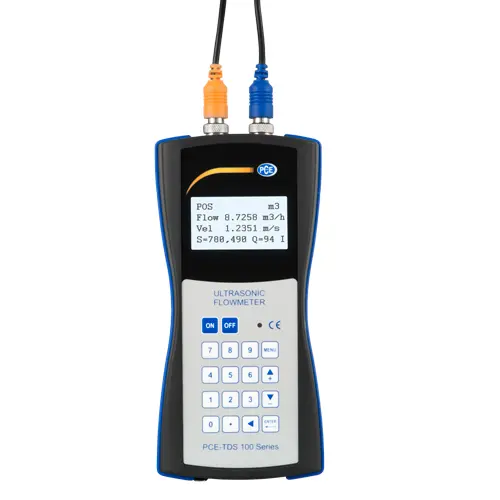

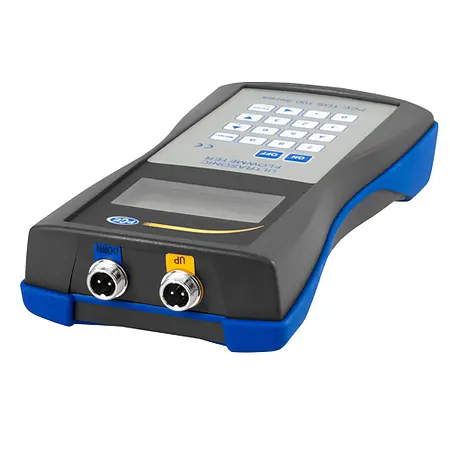

1 x Clamp-on Ultrasonic Flow Meter PCE-TDS 100HMHS

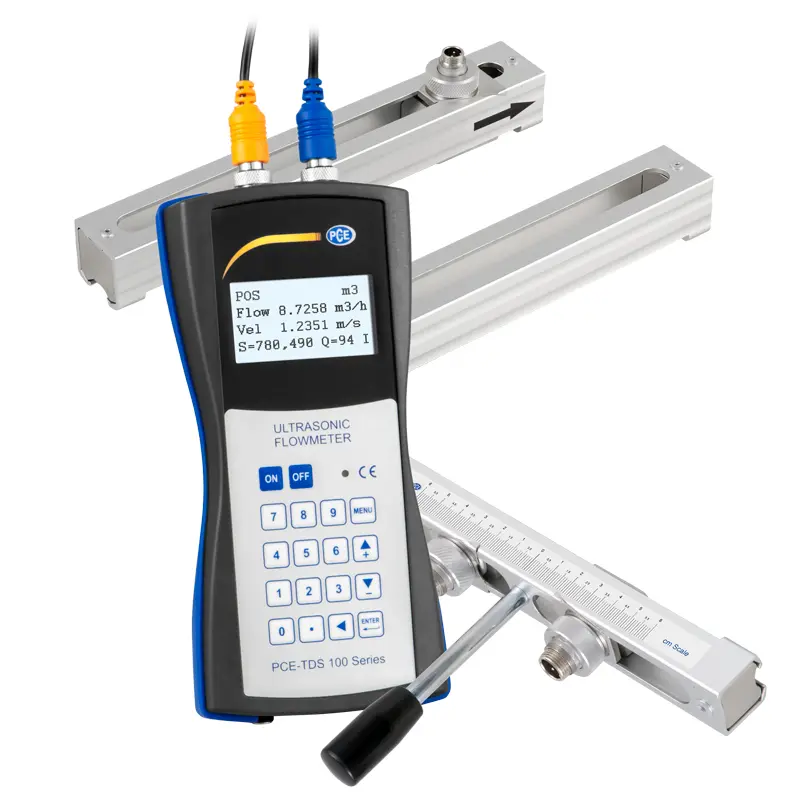

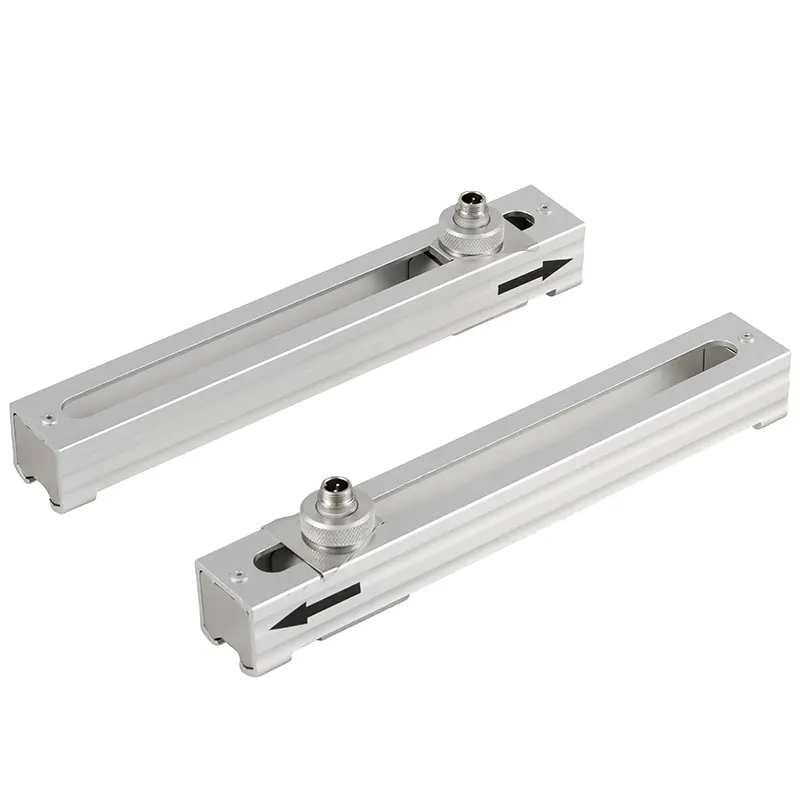

1 x TDS-HM on-rail sensor set (50 ... 720 mm /  0.8 ... 4.2" pipe diameter)

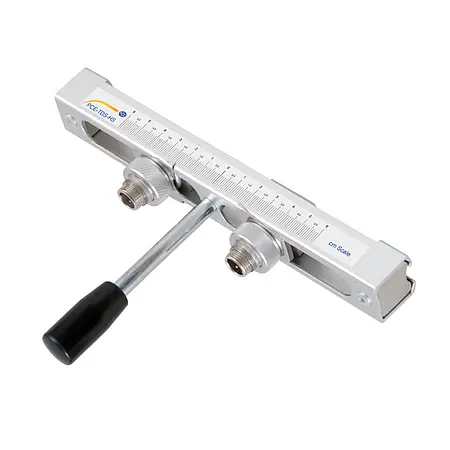

1 x TDS-HS on-rail sensor set (20 ... 108 mm / 1.9 ... 28.3" pipe diameter)
2 x 5 m / 16.4 ft connection cables
2 x Velcro cable ties
1 x Mains power adapter
1 x Ultrasonic contact gel
1 x PCE tape measure

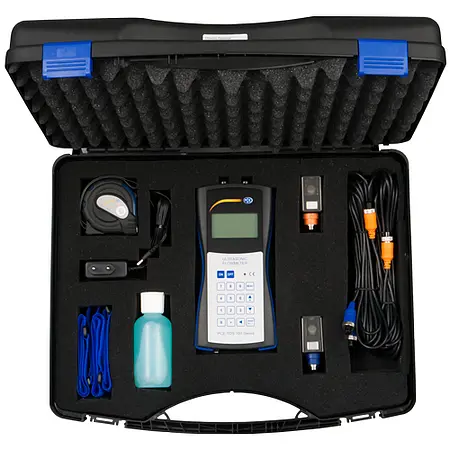

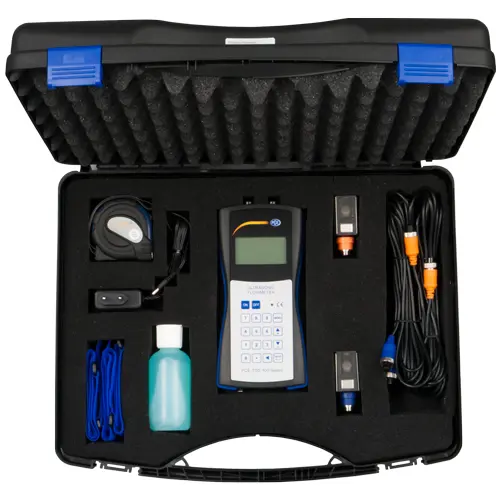

1 x Plastic case
1 x Instruction manual

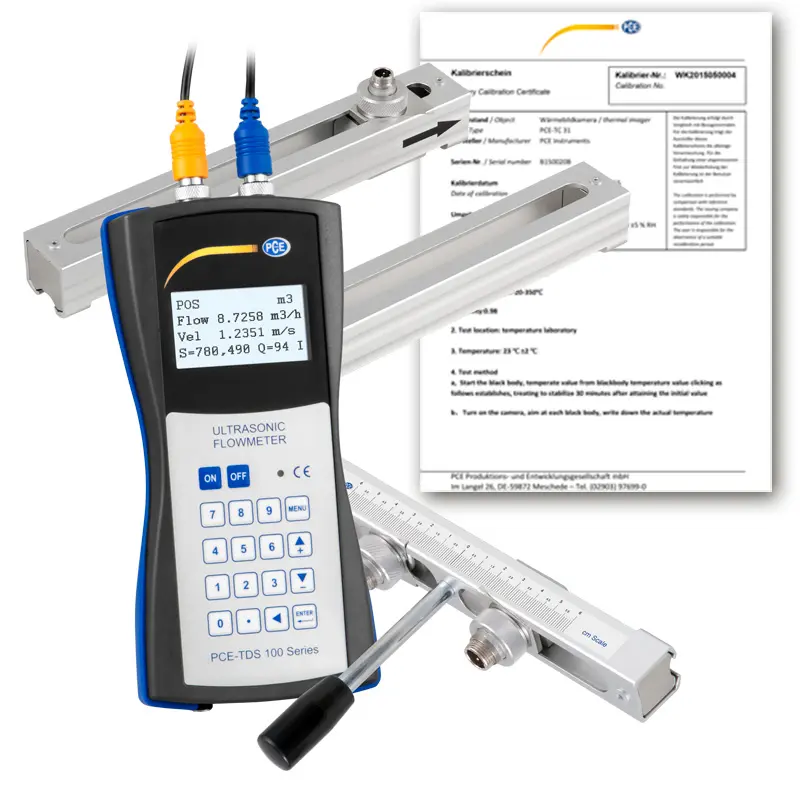

1 x ISO Calibration Certificate

Note: To transfer data to a computer, SOFT-PCE-TDS software is required. SOFT-PCE-TDS software sold separately - see accessories for details.

Note: Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Accessories

Order no.: TT-GEL
Ultrasonic Contact Gel (100 ml)
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The moderate temperature contact gel can be used at temperatures of -10 to 80°C / -14 to 176°F.

- Usable up to 80°C / 176°F
- Improves contact between the transducer head and the material to be measured
- Protects material surfaces from the transducer head
- 100 ml size
- See downloads for MSDS
US$ 26.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: CAL-PCE-TDS-ISO
ISO Calibration Certificate CAL-PCE-TDS-ISO

ISO calibration certificate for the flow meter, certifies traceability to test standards and is required to comply with ISO 9000 requirements.

- 2 different pipe diameters, each 1x speed


The calibration certificate is issued especially for the customer and therefore is exempt from the right of return.

Manufacturer: PCE Instruments
US$ 450.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: K-Gel
K-Gel High Temperature Coupling Gel
The contact gel is used in ultrasonic material thickness measurements. The gel ensures good contact between the measuring head and the workpiece. The high temperature contact gel can be used at temperatures up to 350°C / 662°F.

- Usable up to 350°C / 662°F
- Content: 100 ml
Catalogue: Measuring Instruments / Test Meters / Thickness Gauge
Manufacturer: PCE Instruments
US$ 131.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: Sensorkabel PCE-TDS 100 Series
Sensor Cables PCE-TDS 100 Series
5-meter sensor cables for PCE-TDS 100H and PCE-TDS 100HS
Manufacturer: PCE Instruments
US$ 108.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: SOFT-PCE-TDS
Software for PCE-TDS 100H / PCE-TDS 100HS
Software for programming, reading, and archiving the measurement data. The software kit consists of the interface cable and the software CD.

- Software includes data cable for PCE-TDS 100H and PCE-TDS 100HS
- Software license usable on 1 PC only
Manufacturer: PCE Instruments
US$ 105.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-L1
Flow meter sensors TDS-L1
Flow sensor for DN300 ... DN6000 / media temperature -30 ... 160 °C suitable for ultrasonic flow meter PCE-TDS 100H

- For pipe sizes: 300 mm ... 6000 mm
- Media temperature: -30 ... 160 °C
- Dimensions: 91 x 52 x 44 mm
- Magnetic
- Splashproof: IP65
Manufacturer: PCE Instruments
US$ 424.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HM
On-rail flow sensors TDS-HM
On-rail flow sensor for 50 ... 720 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 50 ... 720 mm / approx. 2 ... 28"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 628.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-HS
On-rail flow sensors TDS-HS
On-rail flow sensor for 20 ... 108 mm pipe diameter / temperatures up to 160°C / suitable for PCE-TDS 100H and PCE-TDS 100HS.

- For pipe sizes 20 ... 108 mm / approx. 0.8 ... 4"
- Medium temperature 0 ... 160 °C / 32 ... 320 °F
- Important. If you order the sensor later, we require the PCE-TDS 100 hand-held unit,
   in order to match the sensor to the hand-held unit.
Manufacturer: PCE Instruments
US$ 523.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-S1
Replacement Transducers TDS-S1
TDS-S1 is a set of replacement transducers for PCE-TDS 100HS but can also be used be used with the PCE-TDS 100H for smaller pipes. Temperatures from 0 ... 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 15 … 100, 20 … 100 mm / approx. 3/4 ... 4"
- Transducer dimensions: 45 x 31 x 31 mm / 1.8 x 2.2 x 1.2 in
- Type S1 head
Manufacturer: PCE Instruments
US$ 311.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
Order no.: TDS-M1
Replacement Transducers TDS-M1
TDS-M1 is a set of replacement transducers for PCE-TDS 100H but can also be ordered for the PCE-TDS 100HS for larger pipes. Temperatures from 0 to 160°C / 32 ... 320°F.

- For pipe and tube diameters of DN 50 … 700, 57 … 720 mm / approx. 2 ... 28"
- Transducer dimensions: 71 x 43 x 38 mm / 2.8 x 1.7 x 1.5 in
- Type M1 head
Manufacturer: PCE Instruments
US$ 264.00

ex. VAT, ex. delivery costs

Test Instruments manufacturer
