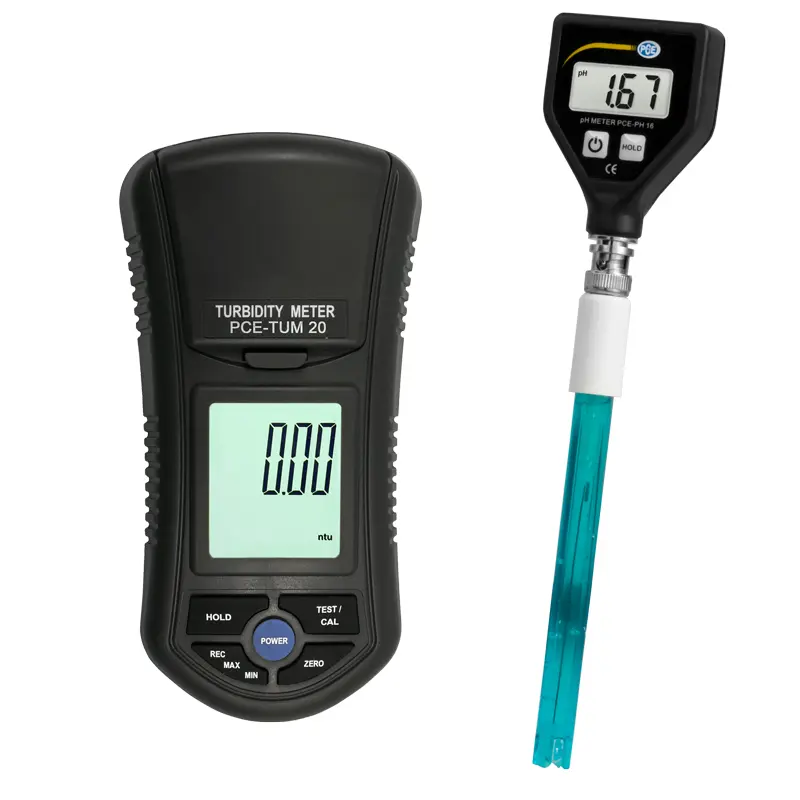

Swimming Pool pH Meter Kit PCE-PH 16-TUM 20-KIT

Order no.: PCE-PH 16-TUM 20-KIT
US$ 759.00
ex. VAT, ex. delivery costs
Available in: 1-2 days
Swimming Pool pH Meter Kit
pH meter / Turbidity meter / Easy operation / Various parameters

A neutral pH value is a basic requirement for good water quality in swimming pools and pools. If the pH value of the water is incorrect, this can lead to skin and eye irritation, among other things. Regular checks of the pool water for its pH value are therefore essential. This is particularly easy, precise and comfortable with the user-friendly pool pH meter from PCE Instruments, which is suitable for use in swimming pools and pools. With an accuracy of ± 0.1 pH and a resolution of 0.01 pH, exact measurements can be made with the Pool pH meter. Failure to regularly check the pH value with the pool pH meter can damage fittings and other metallic materials. An inadequate pH value also has an impaired effect of the pool chemicals.

Using the pool pH meter makes determining the pH value particularly easy. In order to carry out a measurement with the pool pH meter, the protective cap of the electrode must first be removed.Pool pH meter in use.The electrode can be cleaned quickly and thoroughly. After cleaning the electrode with a pH-neutral liquid, the pool pH meter is immediately ready for use. The pool pH meter can be activated quickly and easily at the push of a button. Now the electrode can be immersed in the pool water. Within a few seconds, the display of the pool pH meter shows the measurement results clearly legible. The practical data hold function of the pool pH meter enables the measured values ​​to be saved. To freeze the measured value, a single push of the “Hold” button is sufficient. The manufacturer recommends cleaning the electrode of the pool pH meter with a pH-neutral liquid after each measurement. Alternative electrodes can also be connected to the pool pH meter using the BNC connector. Thanks to the ease of use, the pH meter can be easily adjusted to another electrode.

Pool pH meter in use.

In order to ensure long-term precise measurement results, the pool pH meter should be adjusted or calibrated at regular intervals. The pool pH meter can be adjusted manually at any time without great effort. It is sufficient to immerse the measuring electrode of the pool pH meter in a pH 7 solution. When the value has stabilized, the correct measured value can be set using the calibration screw on the top of the display using the screwdriver supplied. The user can check the result himself using other calibration solutions (e.g. pH 4 and pH 10).

Applications pool pH meter
The pool pH meter is the ideal measuring instrument for every swimming pool owner who values ​​optimal water quality. The pool pH meter for monitoring swimming pool water.Unstable pH levels can unbalance pool water, cause skin and eye irritation, damage fittings and affect the way pool chemicals work. The pool pH meter from PCE Instruments combines ease of use and reliability with a compact design. The battery-operated pool pH meter is small, handy and robust and therefore ideally suited for mobile use. Thanks to its properties and easy handling, the pool pH meter is also suitable for inexperienced users. The pool pH meter guarantees maximum reliability and precise measurement results.


Since pH electrodes can drift over time, measurement errors may occur. To ensure high measurement accuracy, the pool pH meter should be recalibrated regularly with the calibration solution available from PCE Instruments (pH 4.01 and pH 7.01). In addition to the pH meter, PCE Instruments offers the CAL-PCE-PH ISO calibration certificate for pH meters. Calibration certificates are issued specifically for customers; the annual recalibration can also be carried out at PCE Instruments. The measurement accuracy of the pH tester can be verified and documented with the calibration certificate. For optimal cleaning of the pool pH meter, the cleaning solution pepsin / hydrochloric acid PCE-GCS-500 (500ml) is also available from PCE Instruments. The electrode should be cleaned regularly with the cleaning solution, ideally after each use, in order to permanently avoid contamination and the measurement inaccuracies caused by it.

The pool pH meter for monitoring swimming pool water.

- Small and handy measuring device
- Ideally suited for mobile use
- Exchangeable electrode through BNC connection
- 3 x 1.5V (LR44 AG-13 battery)
- Accuracy of ± 0.1 pH

- Large LCD display 41 mm x 34 mm / 1.6 x 1.3 in
- Real time clock
- High precision
- ISO 7027 compliant
- Infrared - turbidity measurement method
- Scattered and transmitted light measurement
- Data hold
- Max and Min memory
- 0 NTU and 100 NTU calibration
- Compact, impact-resistant housing
- Automatic shutdown (after 5 min)

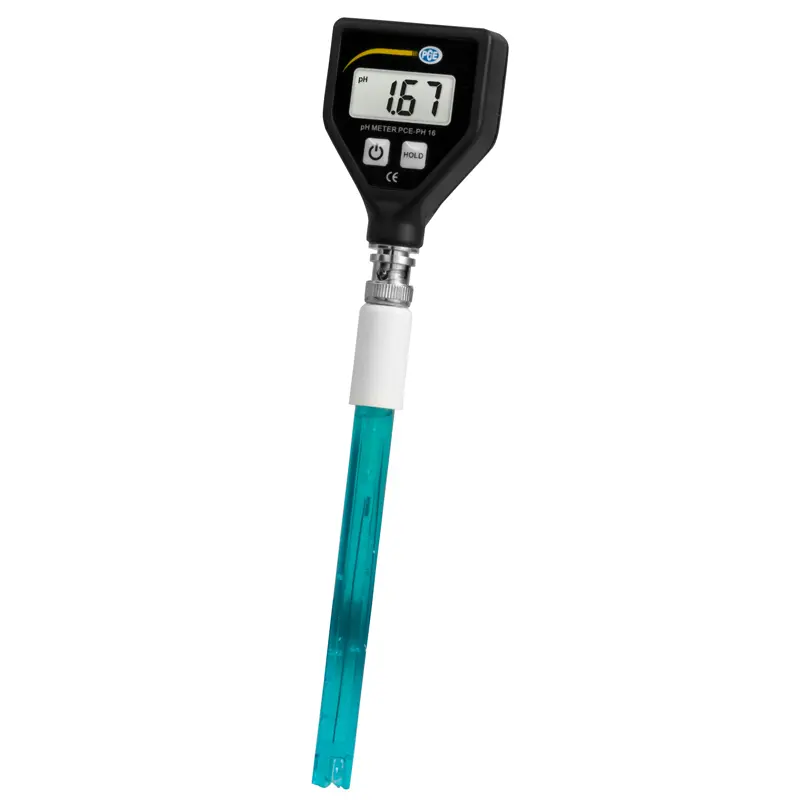

PCE-PH 16
Measuring range 0.00 ... 14.00 pH
Measurement accuracy ± 0.1 pH (at 20°C / 68°F), ± 0.2 pH
Resolution 0.01 pH
Adjustment Manual one-point adjustment
Power supply    3 x 1.5 V (LR44 AG-13 battery)
Working environment 0 ... 50°C / 32 ... 122°F
Dimensions 175 x 51 x 25 mm / 6.9 x 2 x 1 in
Weight Approx. 57 g / < 1 lb

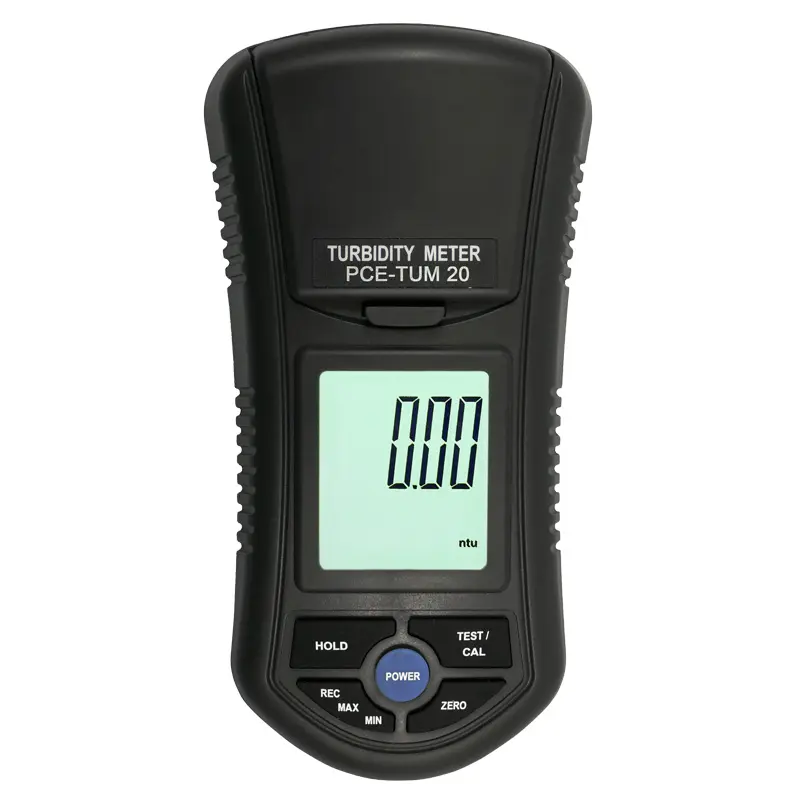

PCE-TUM 20
Measuring range 0.00 to 50.0 NTU and 50 to 1000 NTU
Resolution 0.01 and 1 NTU
Accuracy ± 5% of meas. Measuring range or ± 0.5 NTU
Light source LED, infrared at 850 nm
Lifespan Almost unlimited
Light detector Photodiode
Measurement time < 10 sec.
Battery 6 x 1.5V AAA batteries
Environmental conditions       Max. 50°C / 122°F, max. 85% RH
Dimensions (HxWxD) 155 x 76 x 62 mm / 6.1 x 3 x 2.4 in
Weight 320 g / < 1 lb

1 x PCE-PH 16-TUM 20-KIT
1 x PCE-TUM 20 turbidity meter
1 x Screwdriver
1 x Calibration standard 0 NTU
1 x Calibration standard 100 NTU
2 x Measuring cuvettes
1 x Cleaning solution
1 x Cleaning cloth
3 x 1.5V LR44 AG-13 batteries
6 x 1.5V AAA batteries
1 x Carrying case
1 x Operating instructions
