Industrial Borescope PCE-VE 200UV

Order no.: PCE-VE 200UV
US$ 1,209.00
ex. VAT, ex. delivery costs
4.5 mm
1 m
640 x 480 / 1600 x 1200 pixels
Image, Video
Yes (Micro SD)
Yes (Micro USB, TV out)
Available in: 1-2 days
UV Industrial Borescope PCE-VE 200UV for non-destructive machine diagnostics /
Camera head diameter: 10 mm / 3.5" LC Display / 2600 mAh battery / Cable length 1 m /
Front and side view / Card slot for micro SD card

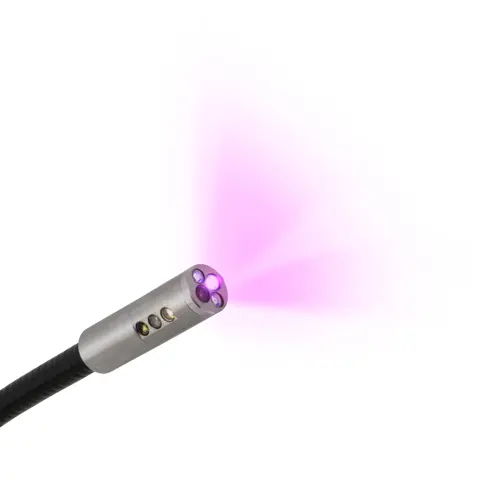

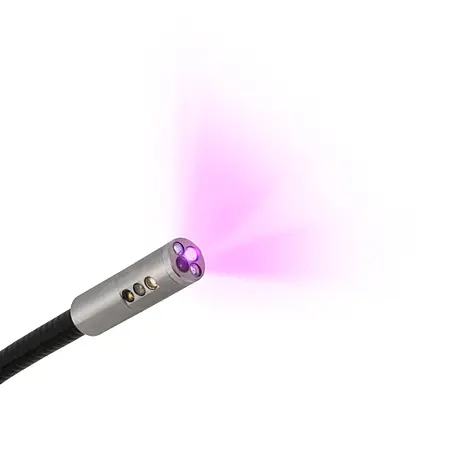

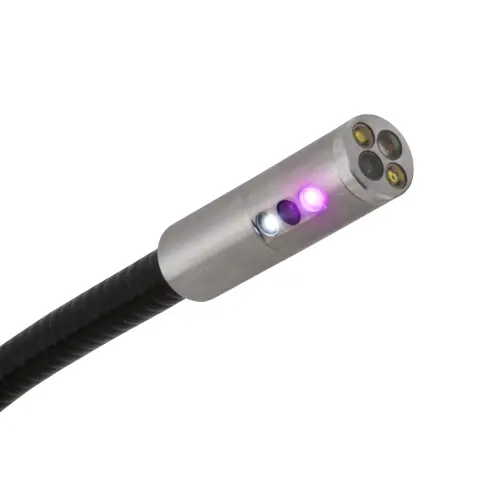

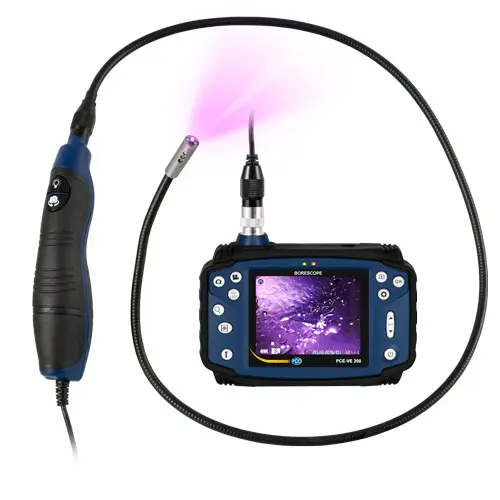

The Industrial BorescopePCE-VE 200UV has a dual LED illumination with UV light source and white light LED. The wavelength of the UV LED is in the UV-A range at 365 nm. Due to the switchable light source between UV light and white light LED as well as the possibility to use both light sources combined, the UV videoscope PCE-VE 200UV can be used very flexibly. The possibility to switch between front and side camera expands the range of applications, since not only the frontal, but also the lateral field of view can be illuminated with UV light and white light. The 1m long, semi-flexible camera tube with a diameter of 10 mm is guided by a handle which also offers the possibility to switch between front and side camera by pressing a button and to dim the light source depending on the ambient conditions.

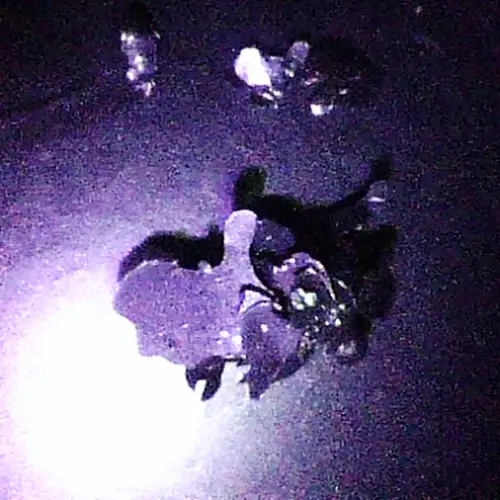

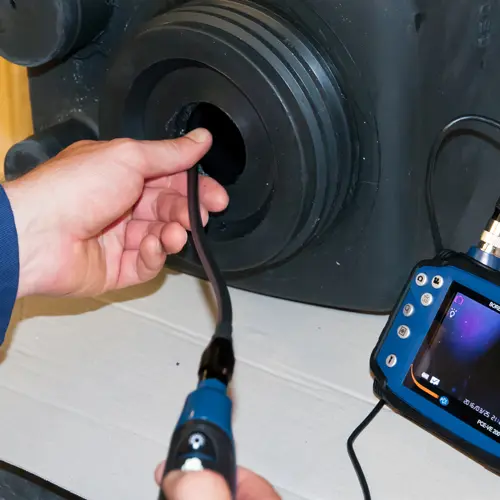

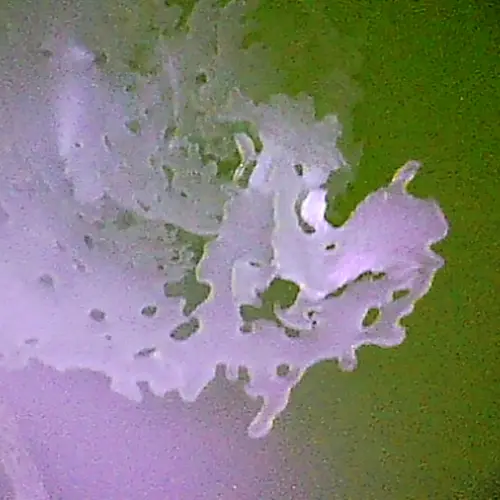

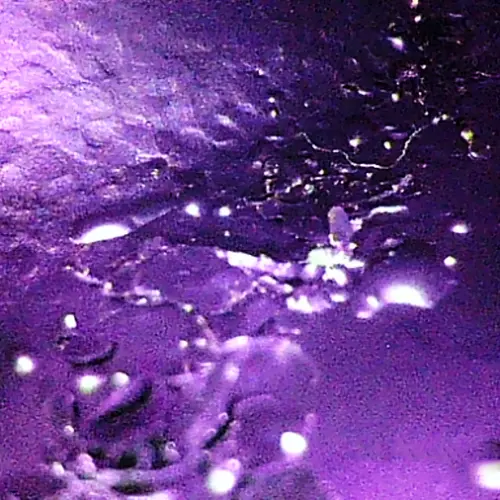

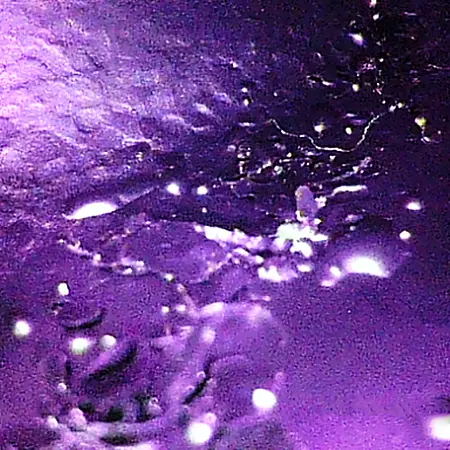

A digital zoom and image rotation function is also integrated in the UV Industrial Borescope . With the UV-Industrial Borescope, both images and video sequences can be recorded and stored on an SD card. The subsequent evaluation of the recorded data is possible at any time. The UV Industrial Borescope is therefore excellently suited for use in non-destructive testing (NDT) in test methods such as the fluorescent penetrant test or the fluorescent dye penetrant test to visualize defects or grinding cracks, hot or cold cracks or even stress cracks on surfaces. Crack tests in engine cylinders, combustion chambers or turbines are thus possible. Deposits and organic residues in the area of criminalistics as well as oils adhering to component surfaces with autofluorescence can thus be visualized in hard-to-reach areas with the UV Industrial Borescope.

- Wavelength of the UV light source: 365 nm
- Camera head diameter: 10 mm / 0.39"
- 3.5" LC Display
- 2600 mAh battery
- Cable length: 1m / 3ft 3"
- Card slot for micro SD card
- Camera: front and side view

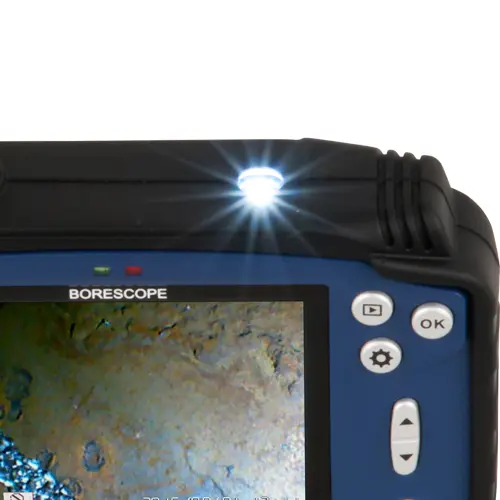

Display 3.5" LCD
Resolution video function AVI (640 x 480)
Resolution image function JPEG (1600 x 1200)
Image rotation 180° rotation and mirror function
Freeze function yes
Zoom up to 4-times
Storage medium Micro SD card
Menu languages German, English, Spanish, French, Russian, Japanese,
Simplified Chinese, Traditional Chinese
Interfaces Micro USB 2.0, TV output, Micro SD card slot
TV output PAL
Power supply rechargeable Li-ion battery
Battery capacity 2600 mAh
Operating conditions -10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 %
Cable diameter 10 mm / 0.39"
Image sensor 1/8" CMOS chip
Camera resolution 640 x 480 pixel
Camera lighting 6 white LEDs (intensity can be set)
Field of view / angle of view front and side view
Field of view depth 15 ... 100 mm / 0.59 ... 3.93"
Length of camera cable 1 m / 3ft 3"
Push cable semi-flexible

Ambient conditions of the camera cable

Operating temperature probe in air: -10 … +50 °C / 14 ... 122 °F
in water: +5 … +50 °C / 41 ... 122 °F

Operating temperature main unit

in air: -10 … +50 °C / 14 ... 122 °F

Relative humidity
probe and main unit

15 ... 90%

Fluid resistance
probe and main unit

machine oil, light oil or saline solution 5%

protection against penetration

water, oil and dust, according to protection class IP67

Main unit
protection against penetration

rain and wind (battery compartment must be closed)
not under water

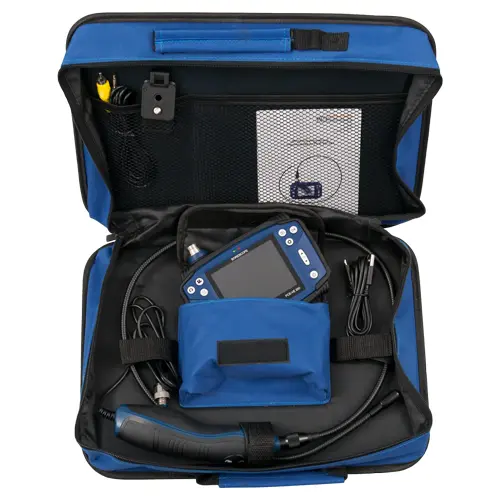

1 x Industrial Borescope PCE-VE 200UV
1 x PCE-VE 200-SCUV
1 x USB cable
1 x USB adapter
1 x user manual
