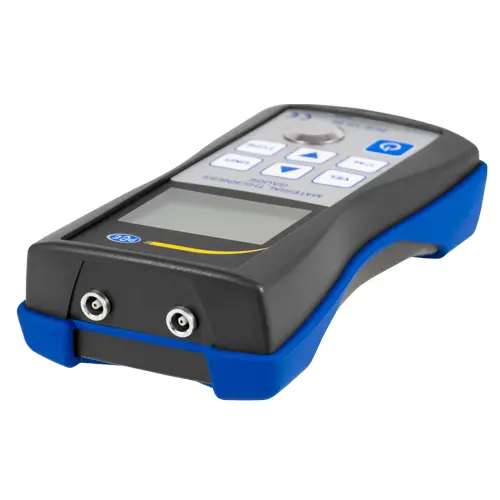

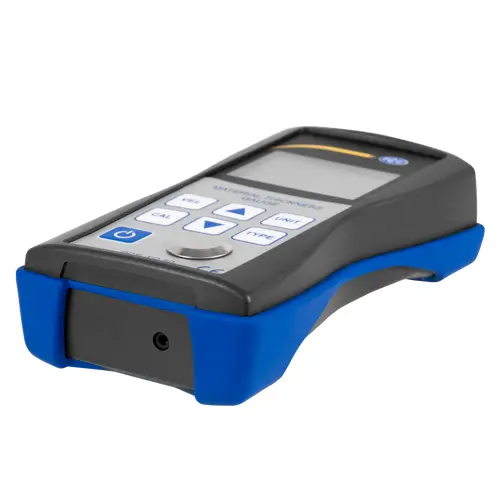

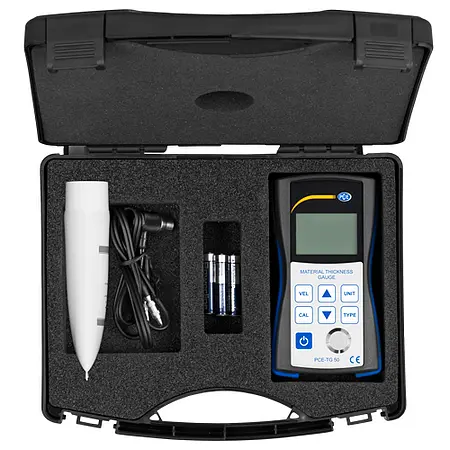

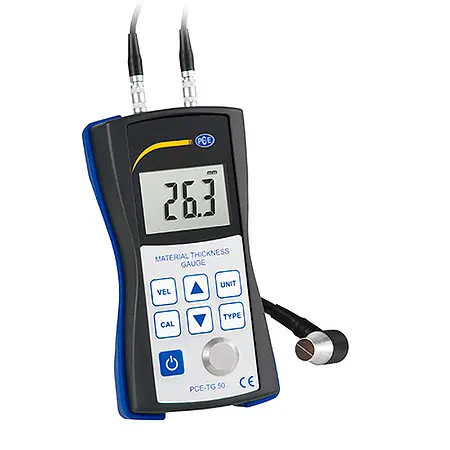

Portable HVAC Meter with a measuring range of 1.2 ... 200.0 mm / 0.05 ... 7.87 inches (steel) and adjustable ultrasound speed / velocity

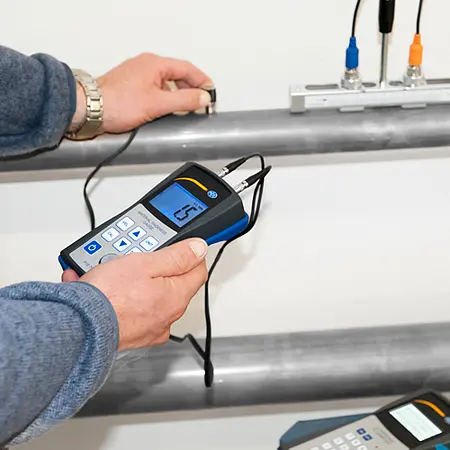

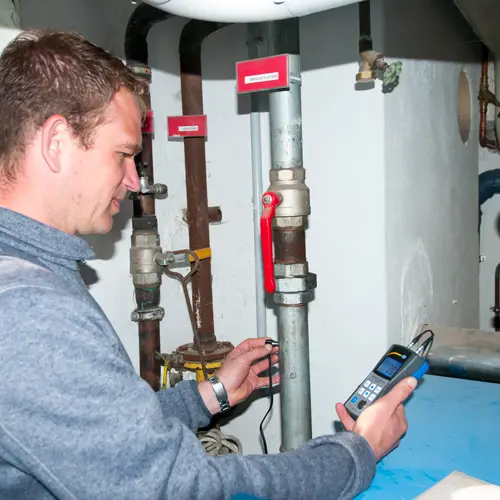

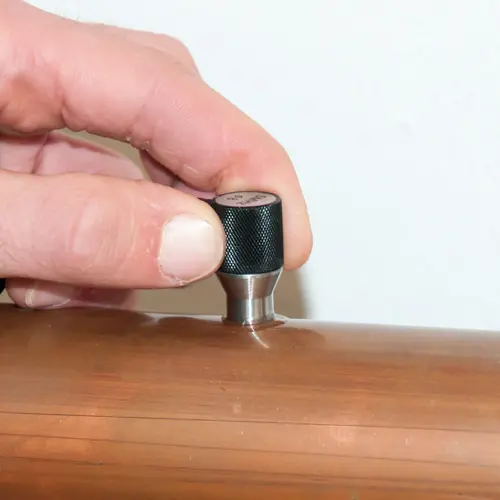

This is a compact ultrasonic HVAC meter or gauge used to measure the thickness of metal, glass, plastic and other homogeneous materials. This portable handheld HVAC meter operates with an external ultrasonic contact transducer sensor probe and requires the use of coupling gel or paste. The probe directs ultrasonic waves through the coupling gel into the material to be tested. Since different materials conduct ultrasound at different speeds or velocities, the HVAC meter allows for ultrasound velocity adjustments to accommodate a wide variety of material testing applications.
With the ultrasonic HVAC meter, you can determine the thickness of metal, glass, plastic and other homogeneous materials in seconds. Operation of the HVAC meter is easily carried out via the seven-button interface. Using the integrated calibration block, the measuring device can be calibrated onsite or in the field with minimal effort. Measured values can be transferred to a PC using the optional software and connection cable (sold separately - see accessories for details). The software also offers the possibility to export the data into Microsoft Excel.
- Measurement range: 1.2 ... 200.0 mm / 0.05 ... 7.87 in (steel)
- Accuracy: ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in
- Resolution: 0.1 mm / 0.001 in
- Ultrasound velocity (adjustable): 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s
- Adjustable ultrasound velocity (for thickness measurements of different materials)
- Requires use of contact gel or paste
- Features an integrated steel calibration block and user-friendly DIY calibration procedure
- Optional software and connection cable (sold separately) for data transfer to a PC - see accessories for details
|
| |
| Measurement range | 1.2 ... 200 mm / 0.05 ... 7.87 in (steel) |
| Accuracy | ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in |
| Transducer | 5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in |
| Resolution | 0.1 mm / 0.001 in |
| Ultrasound velocity | 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable) |
| Display | 4-digit LCD |
| Operating conditions | -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH |
| Calibration block | 5.0 mm / 0.2 in steel (integrated) |
| Measuring units | mm or in (adjustable) |
| Material temperature | 0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F) |
| Data interface | RS-232 port |
| Power supply | 3 x 1.5V AAA batteries (approx. 250 hours of battery life) |
| Dimensions | Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset) |
| Weight | Approx. 265 g / < 1 lb (handset with batteries and probe) |
ISO re-calibration incl. certificate for material thickness meter. This is often required to comply with DIN ISO 9000.
- Calibration points are: 5; 10; 20; 50 and 100 mm
If your calibration certificate expires, you can easily return your meter for re-calibration.
We carry out the calibration and send you the device with a new calibration certificate.
Calibration certificates are issued specifically for the customer and are excluded from the right of return
ex. VAT, ex. delivery costs
High temperature probe as optional accessory for PCE-TG series. Probe for use at high temperatures.
- Measuring range: 4 .. 100 mm / 0.15 ... 3.93"
- Operating temperature: -10 ... +300 °C / 14 ... 572 °F
ex. VAT, ex. delivery costs
Miniature probe as optional accessory for PCE-TG series. Angled probe.
- Measuring range: 1.0 .. 50.0 mm / 0.03 ... 1.96"
- Operating temperature: -10 ... +60 °C / 14 ... 140 °F
ex. VAT, ex. delivery costs

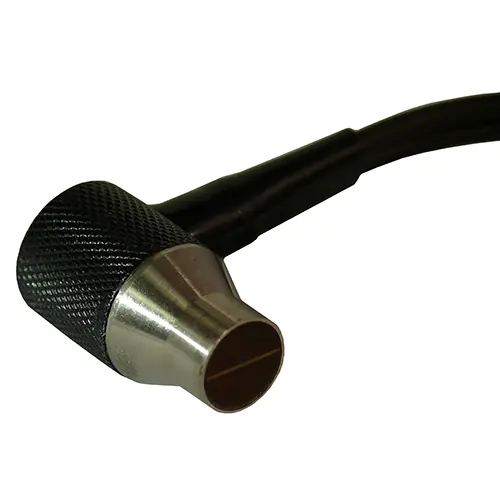

Standard probe as optional accessory for PCE-TG series. Angled probe.
- Measurement range 1.2 ... 200 mm / 0.05 ... 7.87 in (steel)
- Operating conditions -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs
