Formaldehyde Meter PCE-FGD series

Order no.: PCE-FGD

Price

US$ 659.00

Order no.

PCE-FGD

ex. VAT, ex. delivery costs

Toxic gases / electrochemical sensors

* IR sensors have lower cross sensitivity to other gases

Order

Question / Callback

Available in: 1-2 days

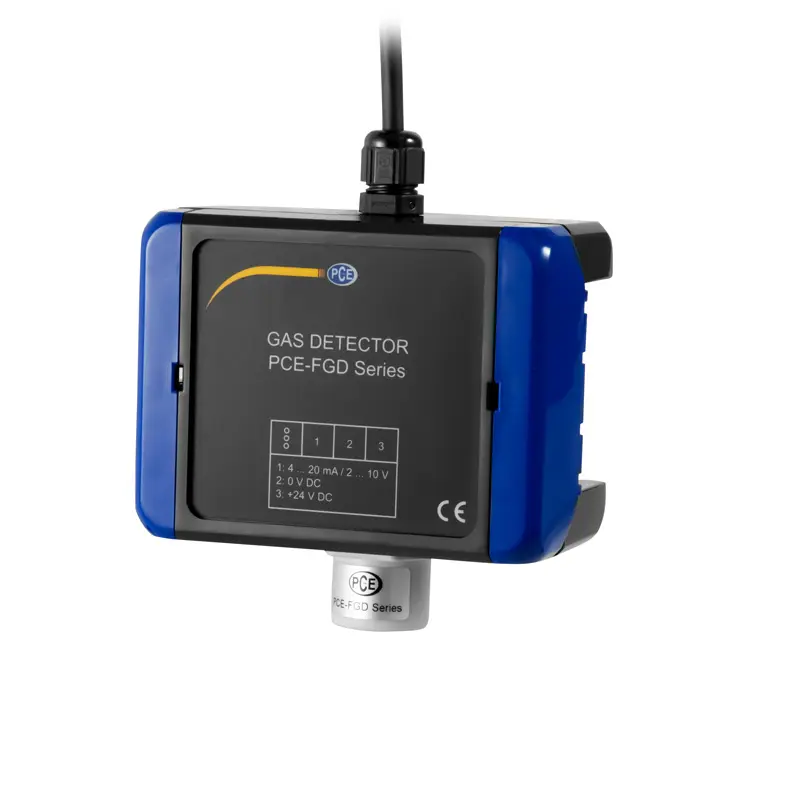

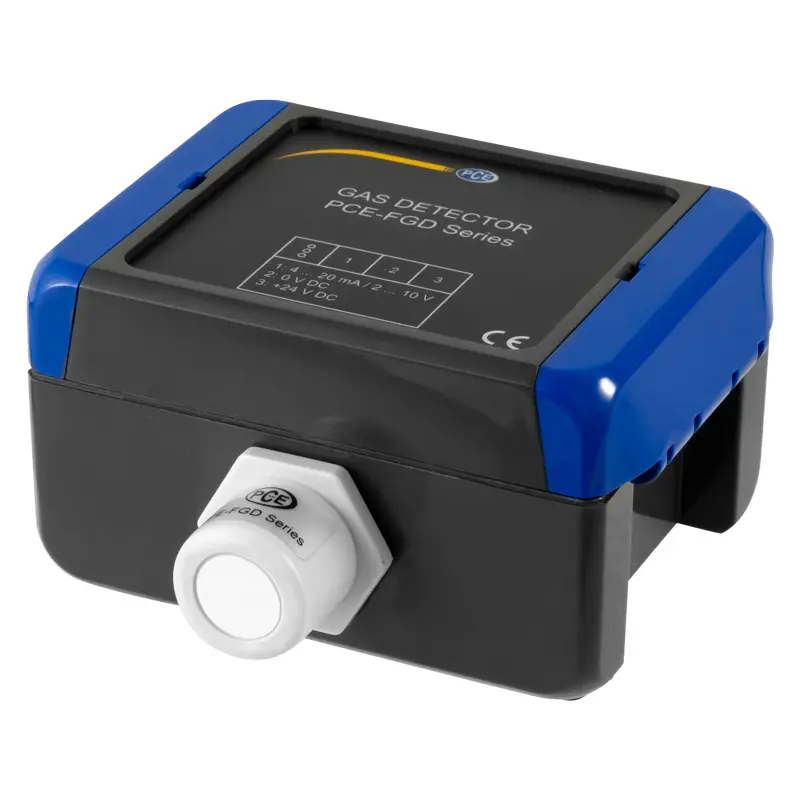

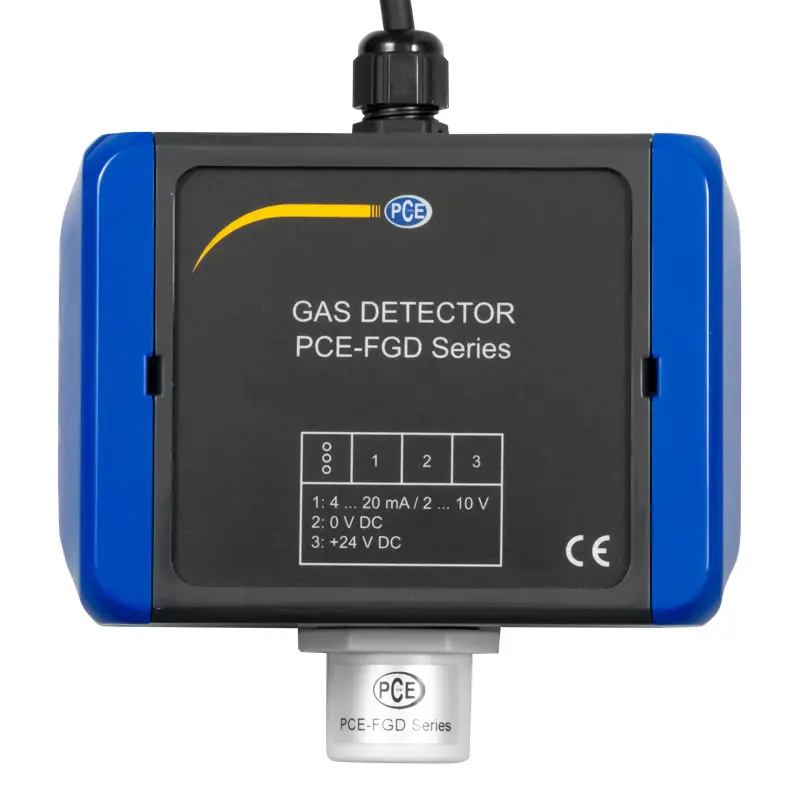

Formaldehyde Meter for toxic gases / standard signal output / IP65

robust housing / sensor element interchangeable

Gases and gas mixtures have become indispensable in industry and research. The PCE-FGD series gas detectors are particularly suitable for monitoring the industrial gases required in many industries. Processes such as combustion may produce harmful toxic gases, which should be monitored to protect people. The gas detectors of the PCE-FGD series are also particularly suitable for monitoring the gases generated during digestion processes, such as in sewer shafts or silos. The risk of carbon dioxide poisoning, such as is used in the beverage industry or for the better flourishing of fruit and vegetables in greenhouses, can be significantly reduced with these gas detectors. The fact that nitrogen, for example, displaces atmospheric oxygen,

The problem-free connection of the gas detectors is guaranteed by the already integrated standard signal output 4… 20 mA / 2… 10 V to existing process systems. The required operating voltage of the gas detectors of 16 ... 19 V DC is already provided in many systems and systems. By connecting the gas detectors to the corresponding gas warning systems, visual and acoustic alarms can be triggered if the limit values are exceeded or undershot.

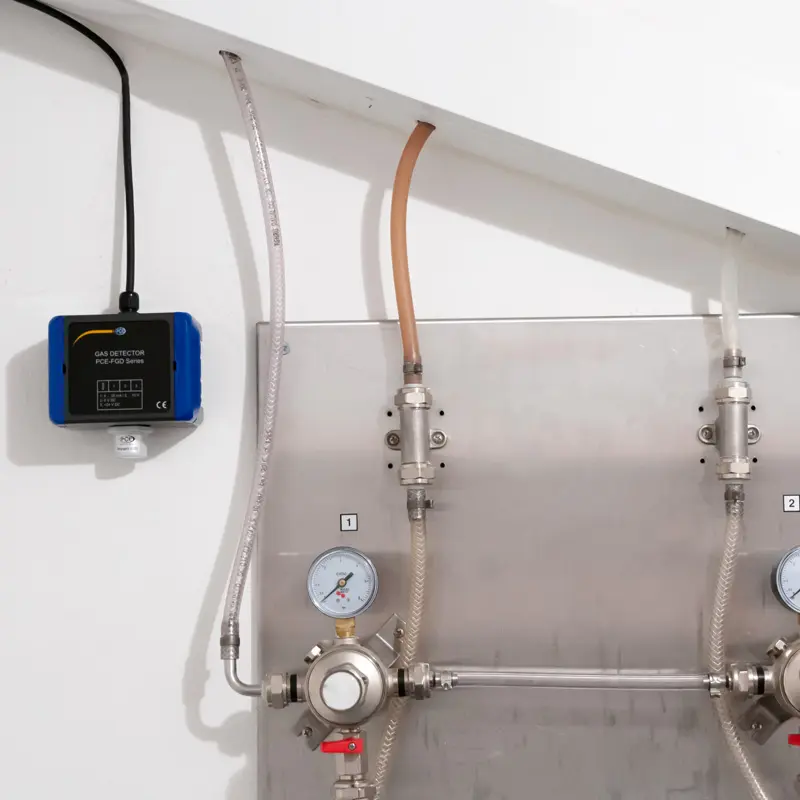

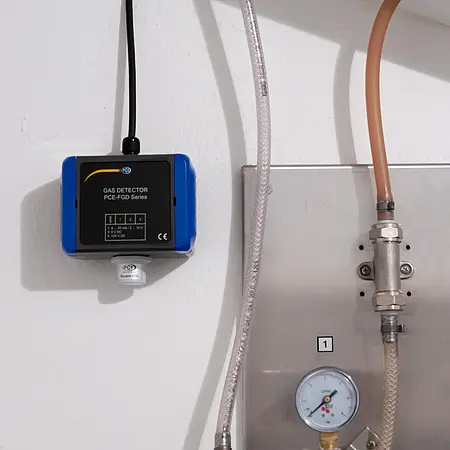

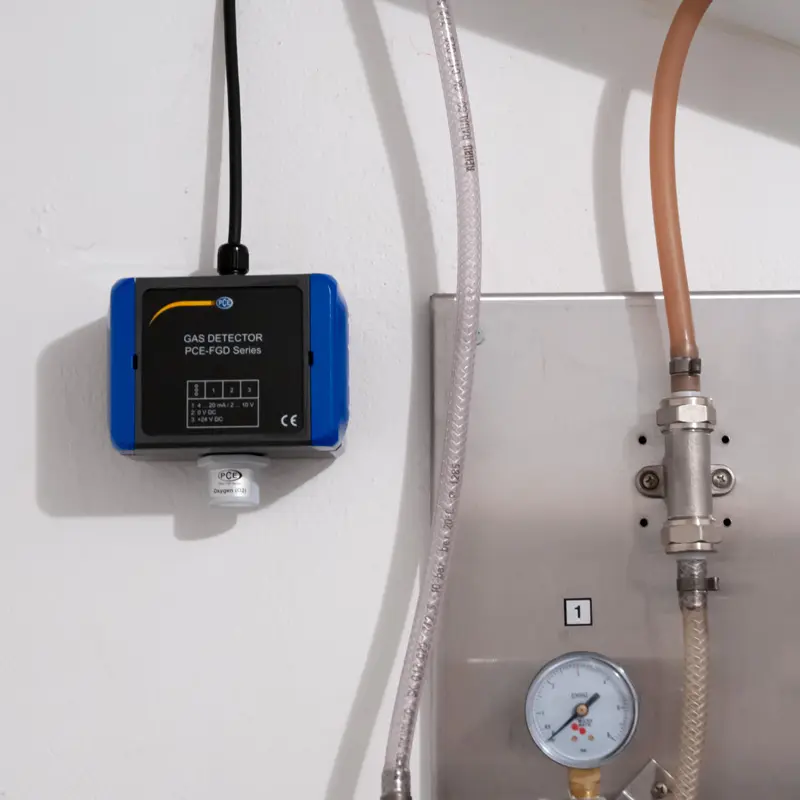

The IP65-protected housing of the gas detectors of the PCE-FGD series enables installation in humid sewer shafts for monitoring hydrogen sulfide, for example, as well as in carbon dioxide stores, which are often found in dispensing systems. The mounting holes already in the robust ABS housing allow mounting directly on a wall. Optionally, mounting brackets or a mounting plate can be purchased to make the gas detectors easier to use.

- Toxic gas sensors

- Degree of protection IP65

- Standard signal output 4 ... 20 mA / 2 ... 10 V

- Interchangeable sensor element

Technical specification for the Carbon Dioxide Meter PCE-FGD series
Electrical
Supply voltage	16 ... 29 V DC, reverse polarity protected
Power consumption (at 24 V DC)
toxic gases (except CO2)	approx. 23 mA
Analog output	4 ... 20 mA or 2 ... 10 V
	Proportional, overload and short-circuit proof
burden	≤ 500 Ω with current signal
	≥50 kΩ with voltage signal
Underrange	<3.2 ... 4 mA or <1.6 ... 2 V
Measuring range exceeded	> 20 ... 21.2 mA or> 10 ... 10.6 V
Disorder	2 mA or 1 V
High fault	> 21.8 mA or 10.9 V

Mechanically
casing	Polycarbonate
	(Sensor element optionally made of stainless steel)

Burning behavior	UL 94 V2
Housing color
Sensor element	RAL 7032
casing	RAL 7024
Dimensions	125 x 113 x 62 mm
Degree of protection	IP65
Assembly	Screw mounting
Connection type sensor	Screw terminal min. 0.25 mm²; Max. 1.3
	mm², 3-ploig
Cable entry	M12, black, plastic
Weight	approx. 180 g

General sensor
Sensor element
toxic gases (except CO2)	electrochemical
Pressure range	Atmosphere ± 10%

storage time
toxic gases	6 months


Operating conditions	-20 ... +65 ° C
Storage conditions	+5 ... +30 ° C
	10 ... 95% RH non-condensing
