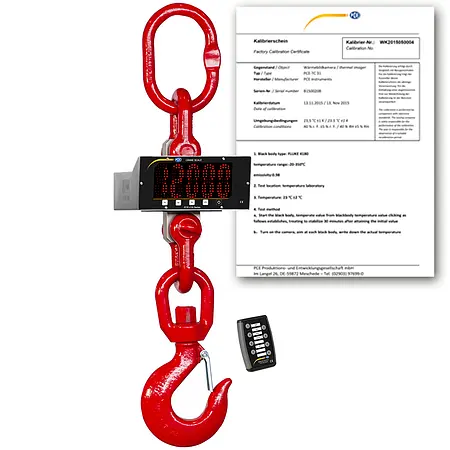

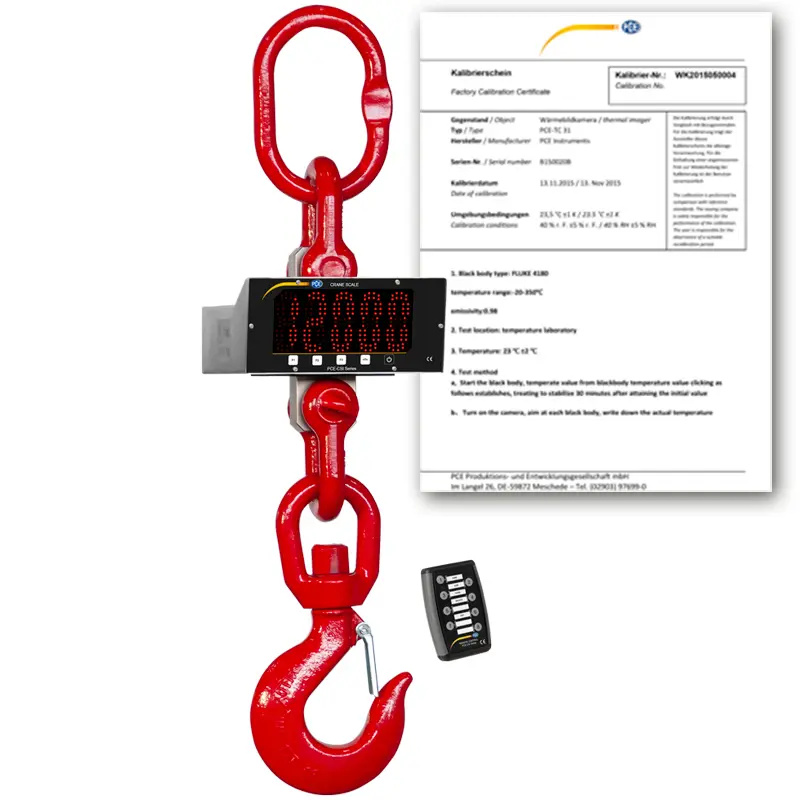

Force Gauge PCE-CSI 12-ICA incl. ISO Calibration Certificate

Order no.: PCE-CSI 12-ICA
ISO Calibration Wireless
US$ 2,303.00
ex. VAT, ex. delivery costs
Available in: 10 - 14 days
Force Gauge PCE-CSI 12-ICA incl. ISO Calibration Certificate
Weighing range 12 t / Control via remote control / Display with 75 mm digit height
Hold, tare and totalizing function / Integrated 7 Ah battery / Operating time ≥ 40 h

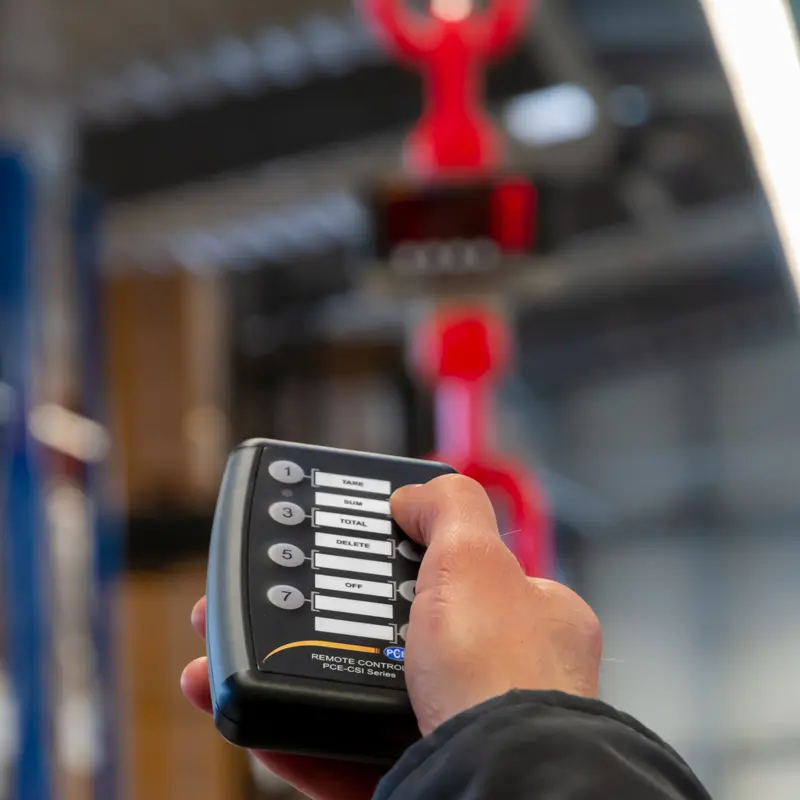

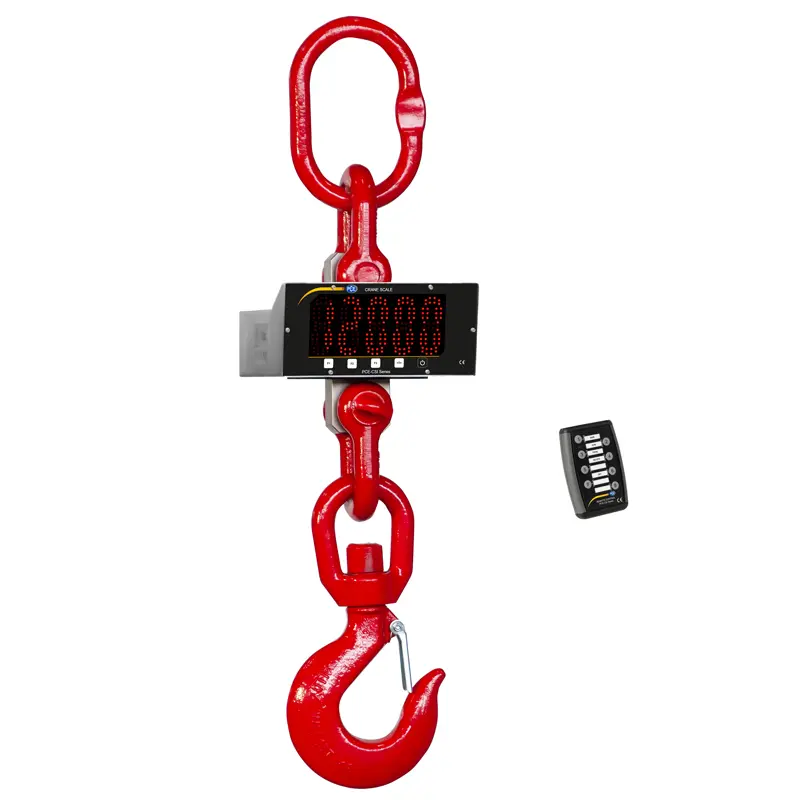

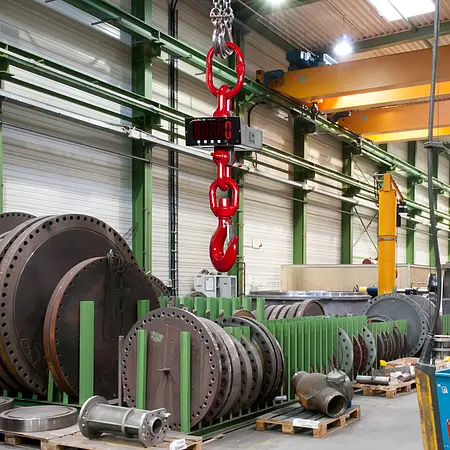

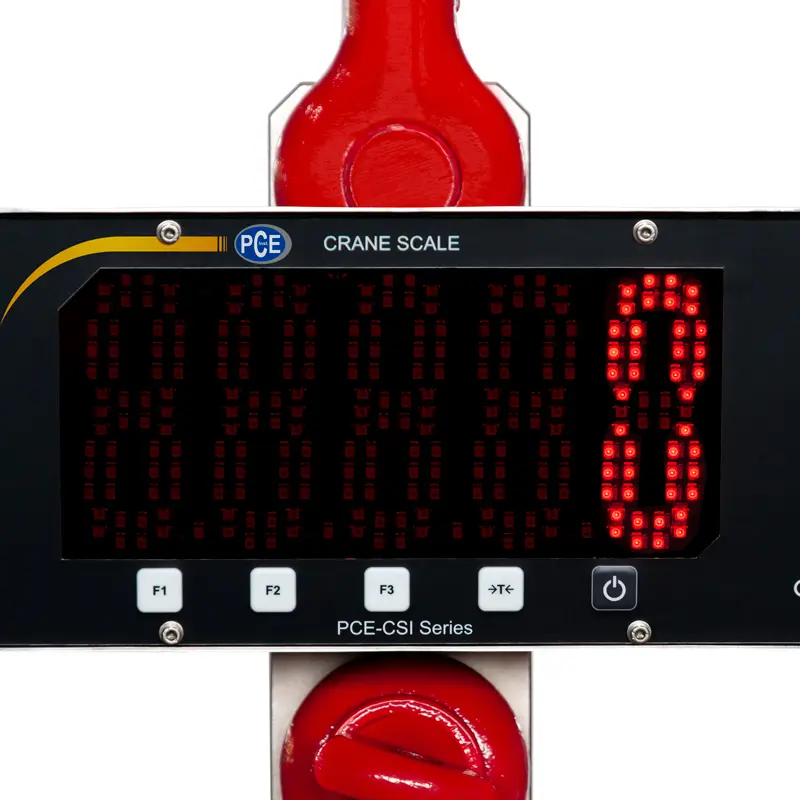

The force gauge was developed for in-house weighing of up to 12 t. The force gauge has a massive shackle on the top and a rotatable hook with a safety catch on the underside. The force gauge is operated using the infrared remote control supplied. The 5-digit LED display has a digit height of approx. 75 mm, so that the readings can be read from a distance without any problems. The integrated battery of the force gauge ensures an operating time of over 40 hours. The battery level can be checked at any time. If it is low, the display of the force gauge also starts to flash, so that it is easy for the operator to see when the battery needs to be charged.

The force gauge also offers other useful functions. The tare function enables weights to be tared (e.g. slings such as ropes, chains, etc.). If the weight of the objects to be tared is known, this can also be entered manually in advance. Another useful function of the force gauge is the totalizing function. Several weights can be added and the sum read out. The display hold function can also be used to freeze measured values ​​on the display.

- Weighing range: 12,000 kg / 26,455 lb
- Resolution: 5 kg / 11 lb
- Minimum load: 100 kg / 220 lb
- Control via remote control
- Up to 40 hours of operation
- Tare, hold and totaling functions

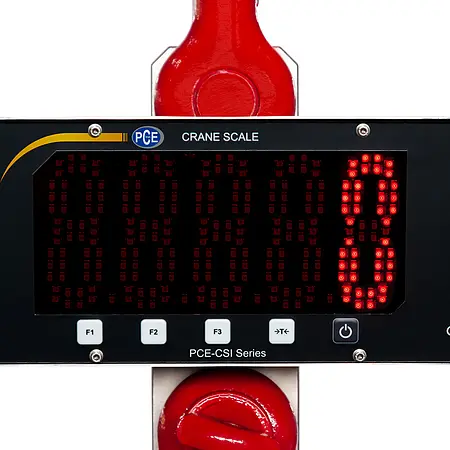

- 5-digit display with 75 mm / 2.9" digit height
- Easy handling
Weighing range12,000 kg / 26,455 lb
Minimum load100 kg / 220 lb
Resolution5 kg / 11 lb
StandardsOIML class III
Zero range4 % of the weighing range
Tare range100 % of the weighing range
Settling time≤ 10 seconds
Overload display100 % of the weighing range + 9e
Max. safety load125 % of the weighing range
Maximum load400 % of the weighing range
Display5-digit LCD/LED,  75 mm / 2.9" digit height

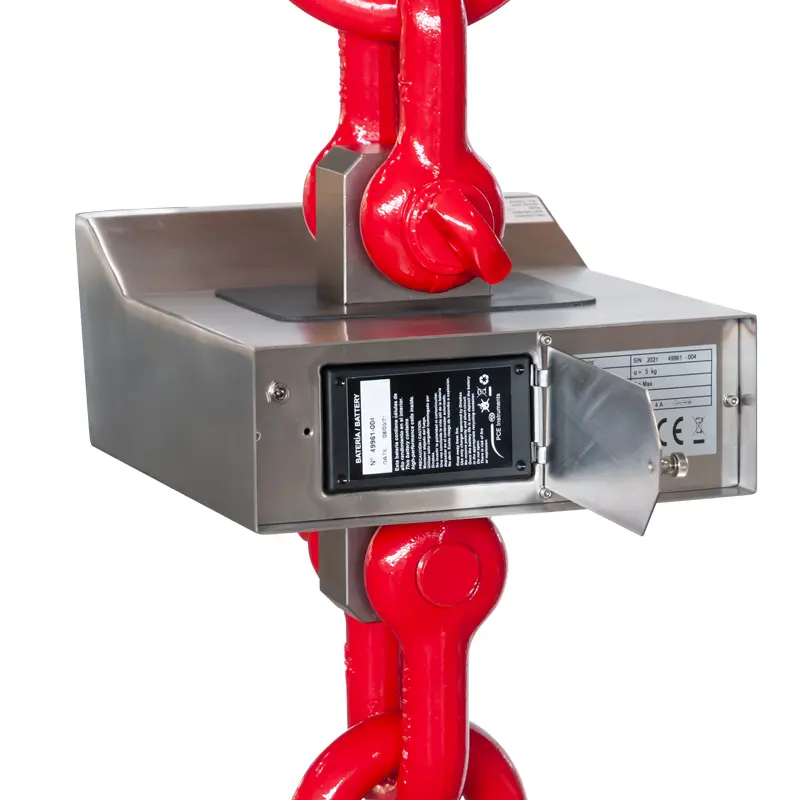

Batteryfully sealed lead battery, 6 V / 7 Ah
Operating time≥ 40 hours
Power supply
9 V DC / 1000 mA
Remote control range15 m / 49 ft
Power supply remote control
2 x 1.5 V AAA batteries
Operating temperature-20 °C to 70 °C / -4 °F to 158 °F
Operating humidity≤ 85 % RH at below +20 °C / 68 °F
Weight27 kg / 59.5 lb
A 900 mm / 35.4"
B 350 mm / 13.7"
C 540 mm / 21.2"
D 710 mm / 27.9"
Shackle 4.11 kg / 9.06 lb
Ring 2.84 kg / 6.26 lb
Hook 7.4 kg / 16.31 lb
Weight 27 kg / 59.52 lb

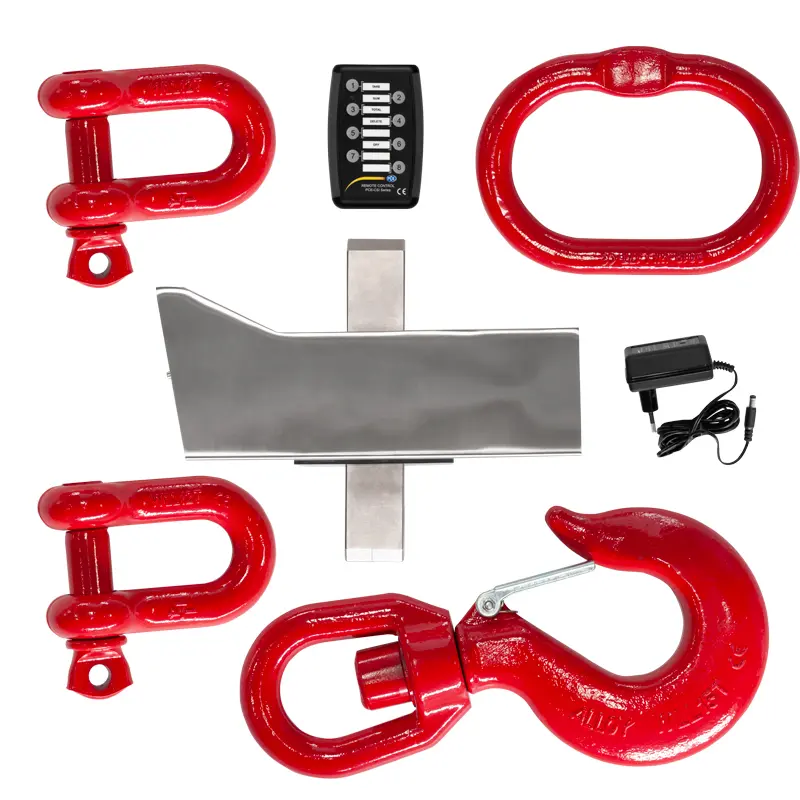

1 x Force Gauge PCE-CSI 12 (including battery, hook and shackle)
1 x Charger
1 x Remote control
1 x 2 x 1.5 V AAA batteries
1 x Instruction manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
