Flow Meter PCE-TDS 100HS+ incl. Thermometer

Order no.: PCE-TDS 100HS+

US$ 3,069.00
ex. VAT, ex. delivery costs
Available in: 1-2 working days

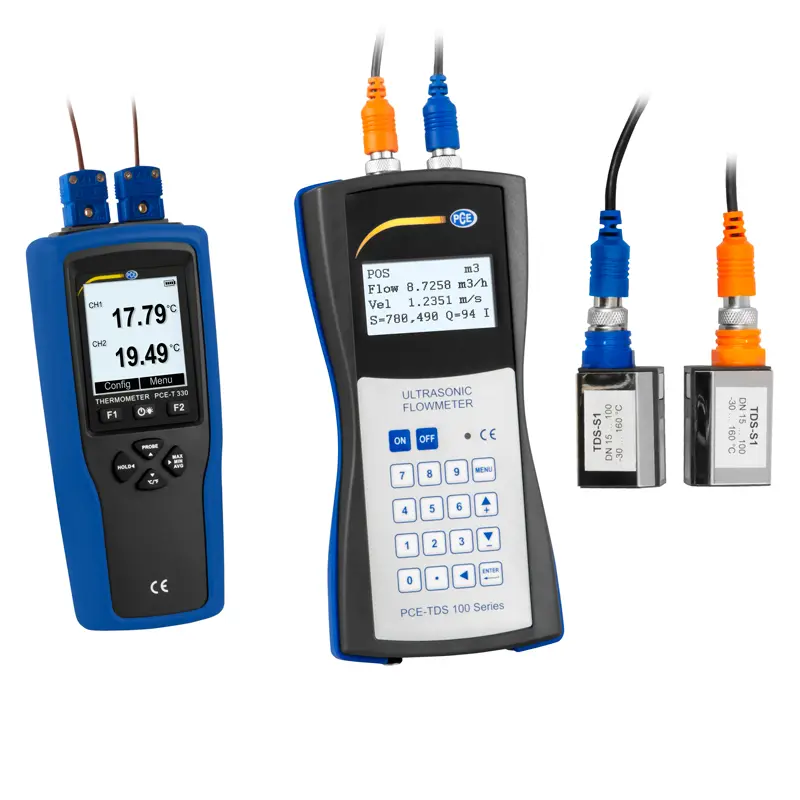

Flow Meter incl. Temperature data logger
according to the transit time difference method / For determining flow velocity and flow / Measurement method for liquids that are as homogeneous as possible

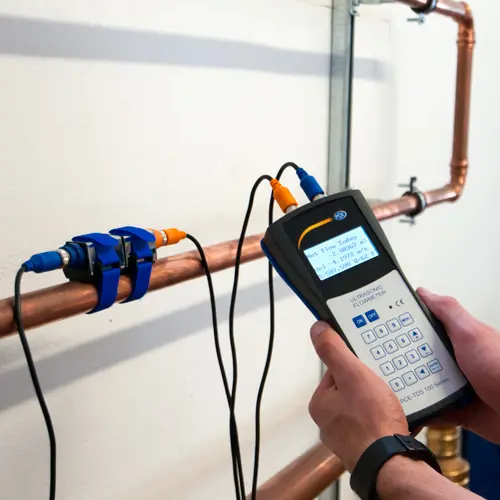

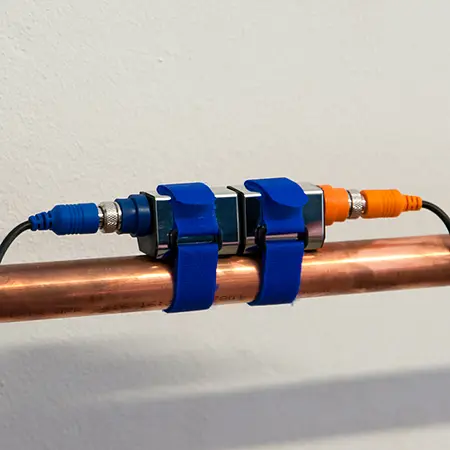

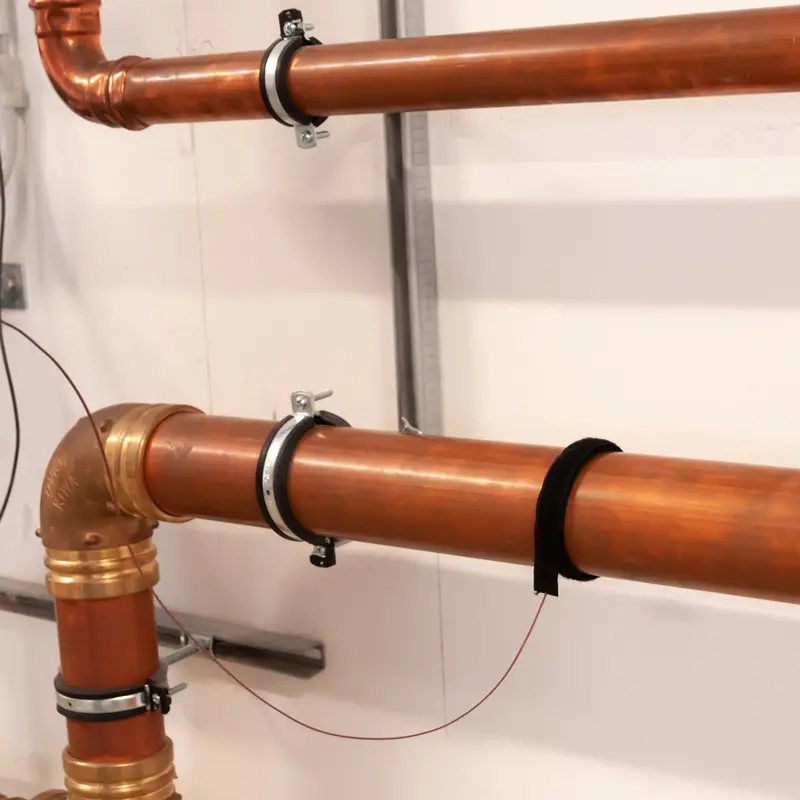

This is a portable handheld clamp-on flow meter used for non-invasive, unobstructed and highly accurate measurements of the flow velocity of liquids in metal, plastic and rubber pipes and tubes with a diameter of 20 … 108 mm / approx. 3/4 ... 4 in. Ideal for use in oil and gas, water and wastewater, chemical, food and beverage, pharmaceutical, metals and mining, pulp and paper, power and heating, ventilation, air conditioning and refrigeration (HVACR) industries, this flow meter features user-friendly velcro-strap clamps that allow for quick and easy repositioning of the electroacoustic transducers.

Measurable liquids include: acetate, acetone, alcohol, ammonia, aniline, benzene, butyrate, chloroform, ethanol, ethyl alcohol, ethyl ether, ethylene glycol, freon R 12, petrol, glycerin, glycol, isobutanol, isobutane, isopentane, kerosene, linseed oil, methanol, methyl alcohol, engine oil, diesel oil, olive oil, peanut oil, paraffin oil, pentane, petroleum, 1-propanol, coolant, lubricating oil, silicone oil, transformer oil, trichlorethylene, 1, 1, 1 - trichloroethane, turpentine, distilled water and sea water.

Calculation of flow velocity according to the transit-time principle follows the equation:

v = measured velocity
T1 = run time of the ultrasonic signal in the flow direction
T2 = run time of the ultrasonic signal against the flow direction
L = length of the ultrasonic wave
α = ultrasonic signal angle to the flow

The transit-time principle requires pipes to be full and have no bubbles and no particles.

Each PCE-TDS series meter is assembled by PCE Instruments in Germany and and factory-calibrated (without any documentation). The reference display of the in-house test stand used by PCE for calibration has a valid DAkkS calibration certificate. This ensures traceability to the Physikalisch-Technische Bundesanstalt (PTB) German national standard. Please note that the meter's measured values depend on the pipe geometry, material and coating; the medium type, temperature and speed; and the sensor type and measuring method.

- ideal for retrofitting
- installation without process interruption
- easy assembly
- accurate and reliable
- no pressure loss
- maintenance-free, no moving parts
- wear-free
- portable devices for control measurements

Technical Data Ultrasonic Flow Meter PCE-TDS 100

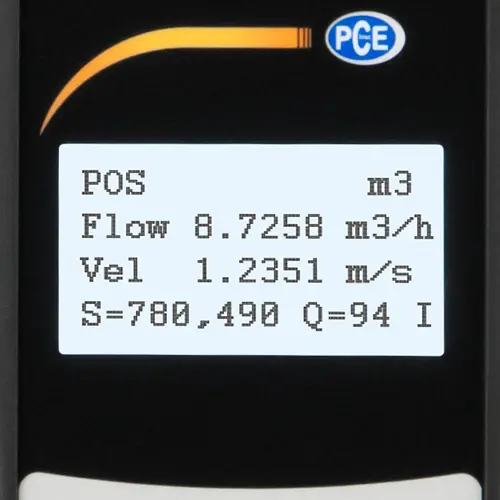

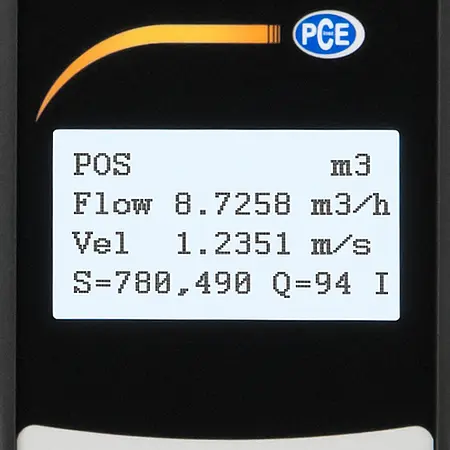

Handheld measuring range -32 ... +32 m/s
Resolution 0.0001 m/s
Accuracy for DN ≥ 50 mm:
for DN < 50 mm:
±1.5 % of measured value
±3.5 % of measured value
Reproducibility ±1.0 % of measured value

All liquids with an impurity

  <5% and a flow >0.03 m³/h
Flow units Cubic meter [m³]
  Liter [l]
  Gallon (USA) [gal]
  Imperial gallon (UK) [igl]
  Million USA gallon [mgl]
  Cubic foot [cf]

Barrel (USA) [bal]
  Imperial barrel (UK) [ib]

Oil barrel [ob]

Time settings per day [/d]

per hour [/h]
  per minute  [/m]
  and per second [/s]
Data logger 60,000 measurements

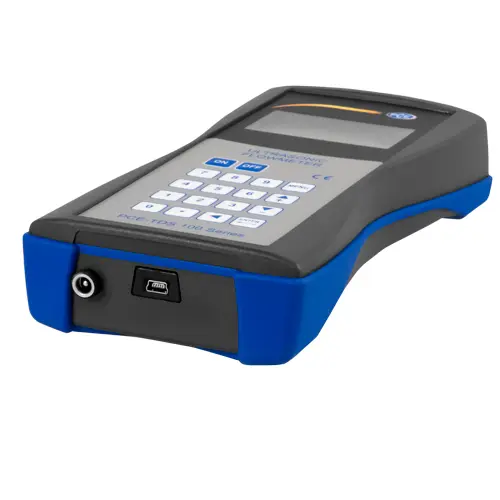

Interface USB (for online measurement and reading of the internal memory)
Protection IP 52
Power supply 3 x AA NiMH rechargeable battery / 2100 mAh
  (at full charge 12h running time) 100 … 240 V AC 50/60 Hz
Dimensions 214 x 104 x 40 mm / 8.4 x 4.1 x 1.5"
Weight 450 g / 15 oz
Sensor               nominal width DN 15 … 100, 20 … 108 mm / approx. 3/4 ... 4"
Temperature of liquid -30 … 160 °C / -22 ... 320 °F
Dimensions 50 x 45 x 45 mm / 1.9 x 1.7 x 1.7"
Weight 260 g / 9oz

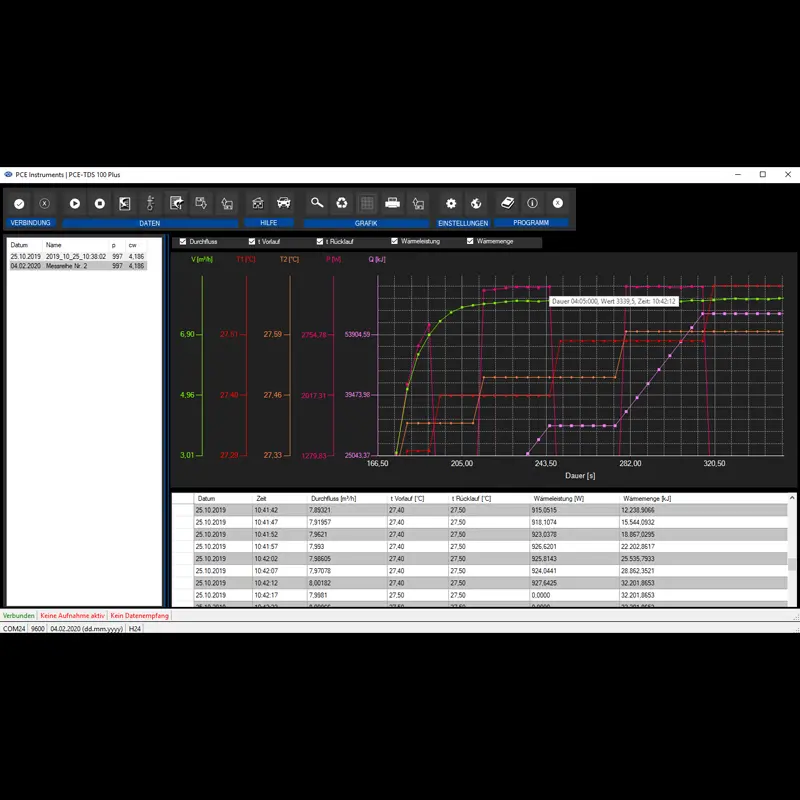

Technical data evaluation software
- Units of power W, kW, MW, J/h, kJ/h, MJ/h, Btu/h, kBtu/h, MBtu/h
- Units of energy J, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu
- Graphical representation of flow, flow temperature,
  return temperature, heat output and heat quantity
- Tabular representation of flow, flow temperature,
  return temperature, heat output and heat quantity
- Mobile and stationary measurement mode
- Real-time data logger with unlimited runtime (only limited by PC memory capacity)
- Data export function
- User-guided software operation with step-by-step instructions for
  device and software configuration
Technical Data Temperature Datalogger PCE-T 330
Measuring range thermocouple Type K   -200 … +1370 °C / -328 ... 2498 °F
Resolution 0.01 °C
Accuracy* ±(0.3 % of rdg. +0.40) °C*
Measuring range thermocouple Type T --200 … +400 °C / -328 ... 752 °F
Resolution00.01 °C
Accuracy*±±(0.3 % of rdg. +0.40) °C*
Measuring range thermocouple Type J --200 … +1200 °C /  -328 ... 2192 °F
Resolution00.01 °C
Accuracy*±±(0.3 % of rdg. +0.40) °C*
Measuring rate 2/s
Operating temperature -10 … +50 °C / 14 ... 122 °F
Storage temperature -20 … +60 °C (without batteries) / -4 ... 140 °F
Power supply 3 x AAA batteries / 1.2 V battery
Battery life ca. 190 h
  (without backlight, battery capacity 1200 mAh,
  ambient temperature 25 °C)
Protection class IP52 (with protective cover and connected sensor)
Norm/ certification CE/EMC ROHS

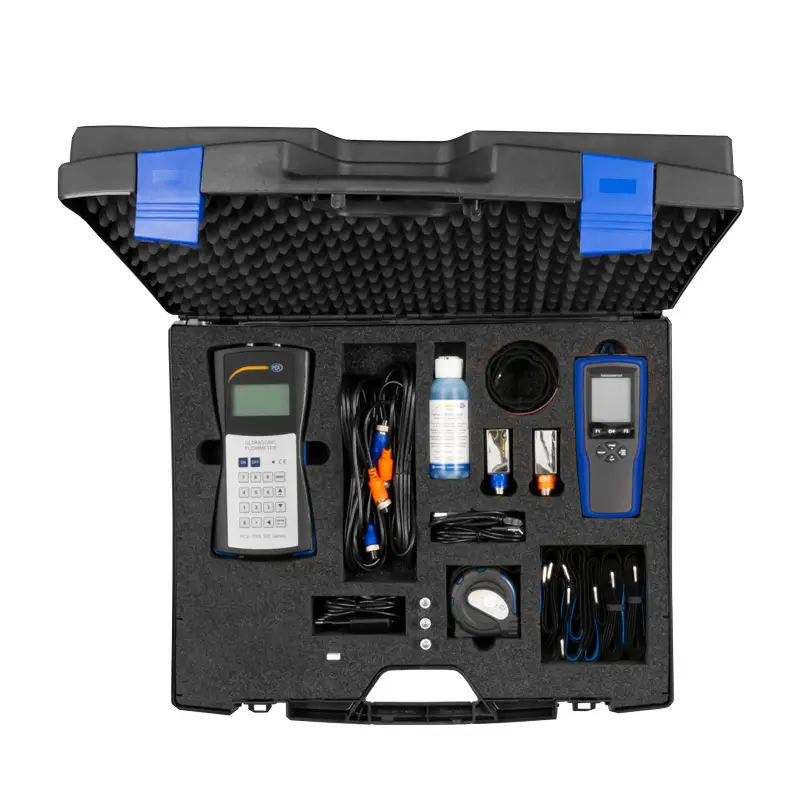

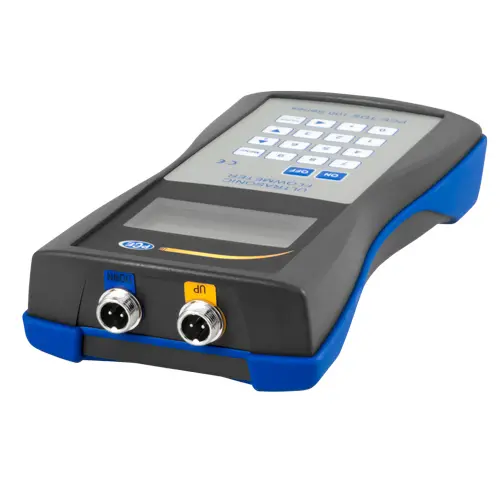

1 x Flow Meter PCE-TDS 100HS+

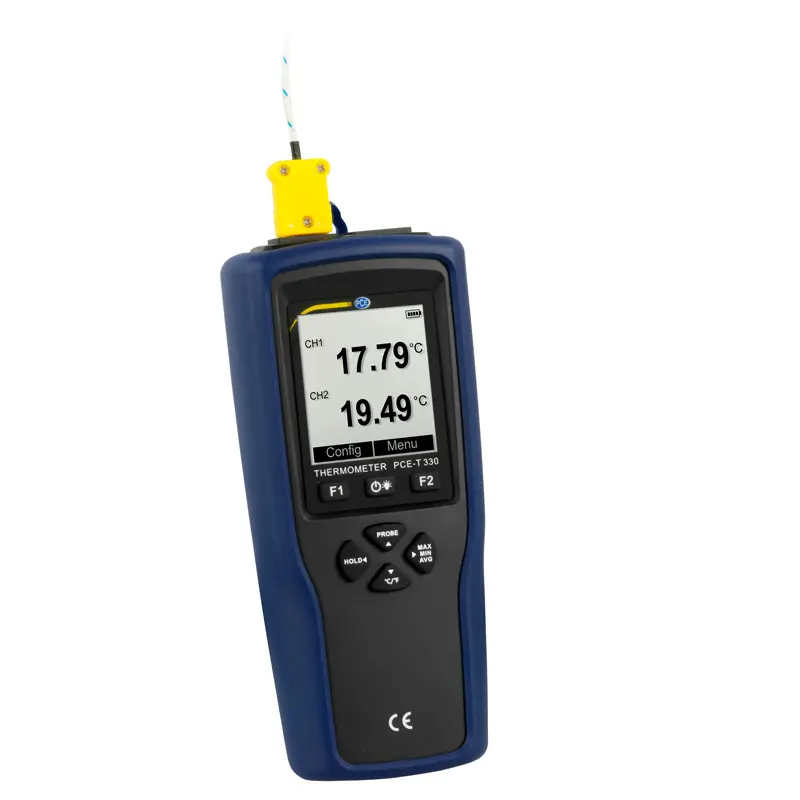

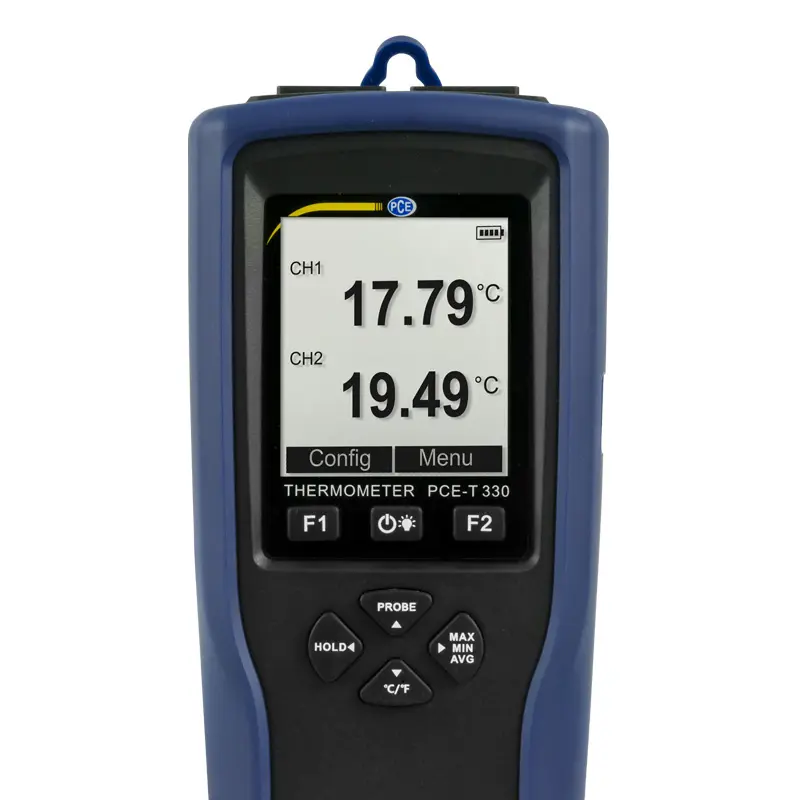

1 x 2-Channel Datalogger-Thermometer PCE-T 330

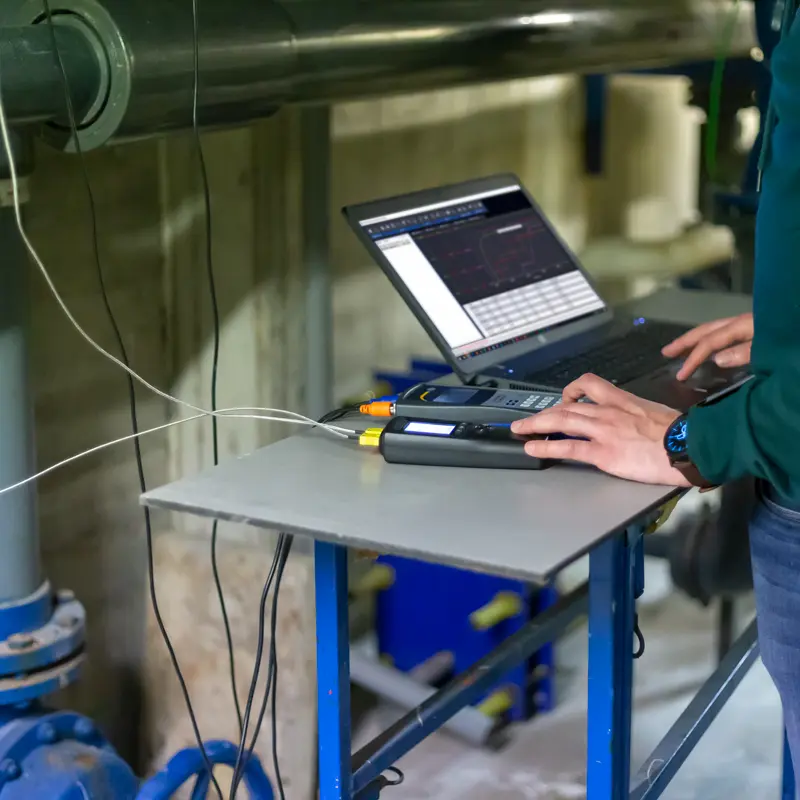

1 x Evaluation software for calculation of heat quantity and heat output

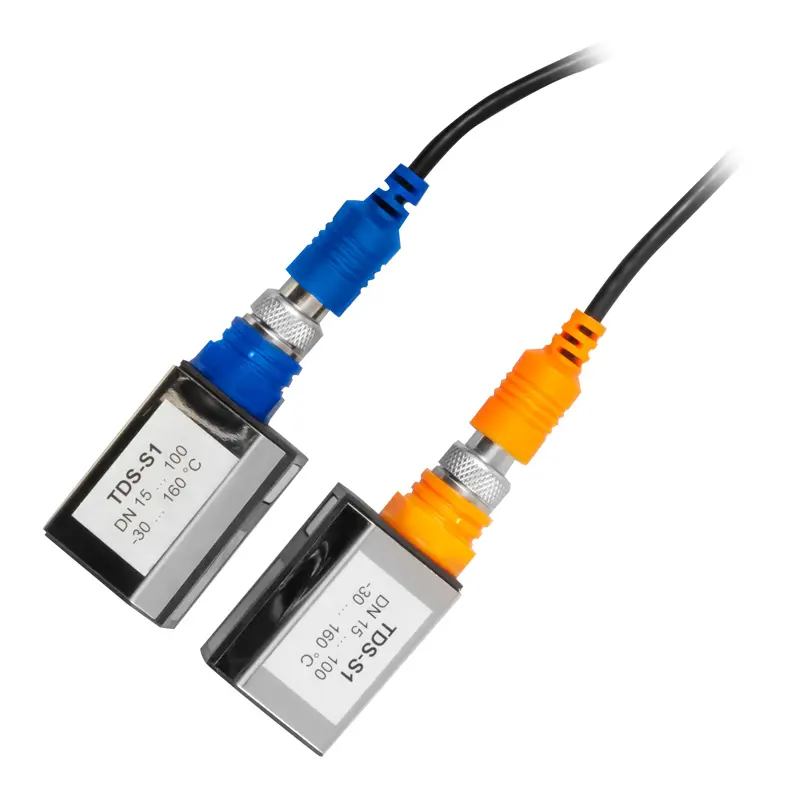

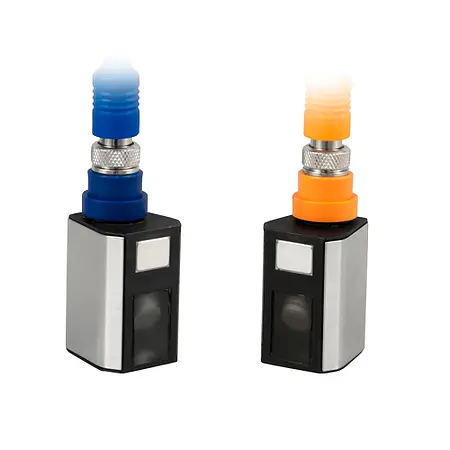

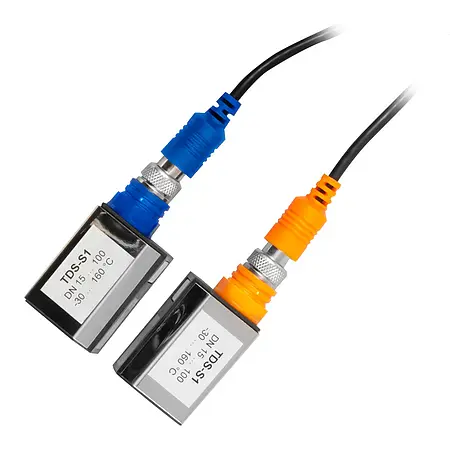

2 x Sensor TDS-S1
2 x Temperature pipe contact sensor TF-RA330 (Standard 1 m)
2 x 5 m / 16.4 ft connection cables
2 x Velcro cable ties
1 x Power adapter
1 x Ultrasound contact gel
1 x PCE tape measure
1 x Transport case
1 x User manual
