Weighing Beam PCE-SD 1500U

Weighing Beam PCE-SD 1500U

Order no.: PCE-SD 1500U
GTIN (EAN): 4250348712424

2.524,90 €
3.004,63 €
price ex. (VAT / delivery)
:
4250348712424
PCE-SD 1500U
Delivery time:1-2 working days

Description

Calibrated weighing beam up to 1500 or 3000 kg / resolution above 0.5 kg or 1 kg / analogue outputs optional / mobile due to transportation rollers / bi-directional RS-232 interface

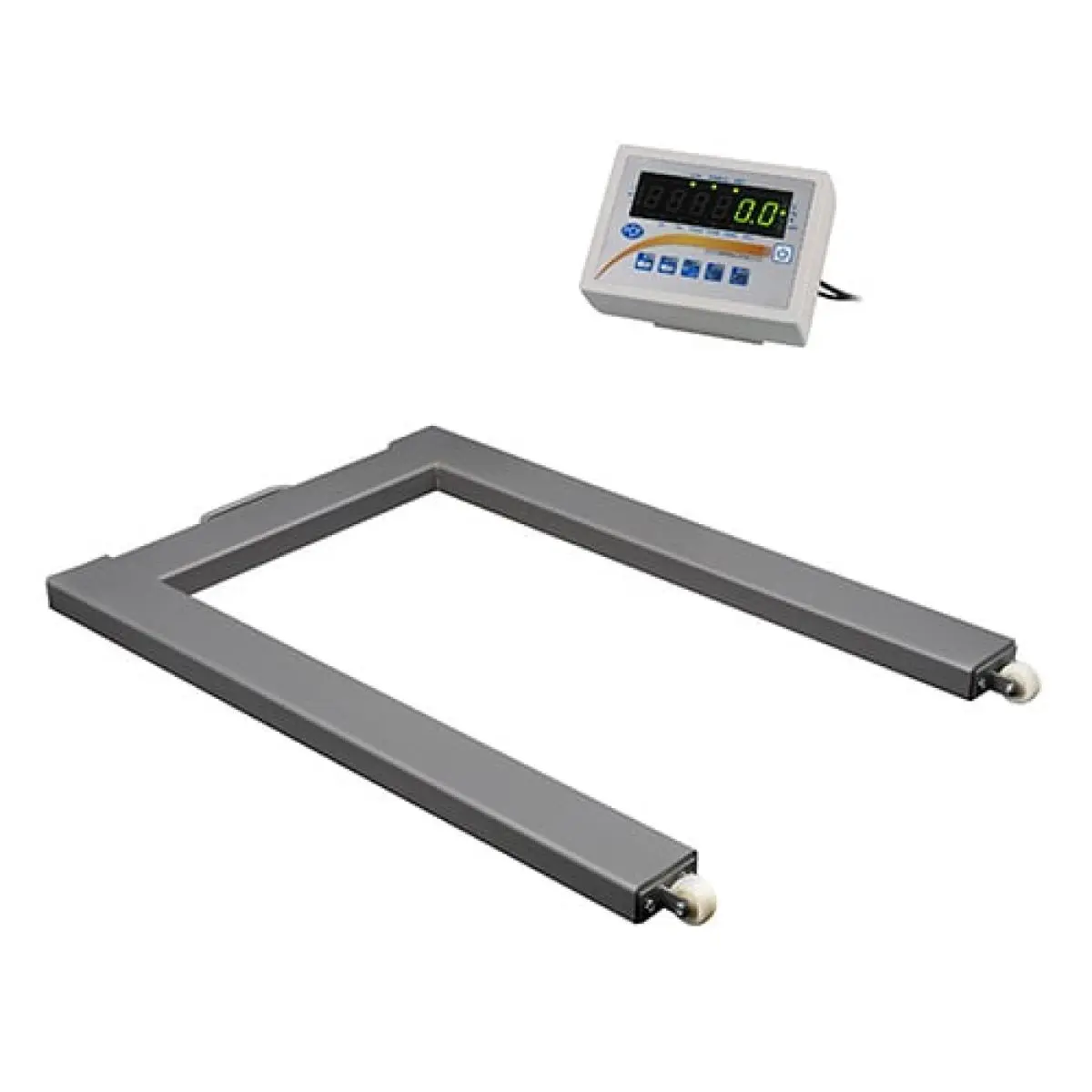

The weighing beam is calibratable, and also initially calibrated, designed for mobile applications and having a U-shaped design. The size and measurements of the calibrated weighing beam PCE-SD U series is accordant to European standard pallet scales (1200 x 800 mm). The U-shape of the calibrated weighing beam allows easy positioning of EU standard pallets on the scale, preferably with a forklift. This calibrated weighing beam is lacquered with steel. In order to maintain flexible application of the calibrated weighing beam, it features two rollers and a handle, thus the calibrated weighing beam can be mounted and dismounted easily and quickly at different locations. The measured data can be easily read from the separate display (connected to a 3.0 m cable). The separate pallet display features a 3.0 m long cable, so that it can be placed on a table or mounted to a wall or placed on a stand. Functions that the calibrated weighing beam support are: unit counter, max./min. weighing, composition weighing, percentage weighing, average weight determination, summation function, tare weighing data storage, adjustable RS-232 interface. The bi-directional RS-232 interface can be used to transfer the weighing data to a computer or printer.

Highlights

- Unit Counter
- Summation function
- Weight compare on percentage
- Animal weighing
- Tare-value memory
- Weight tolerance min/OK/max
- Statistical calculation
- Composition weighing
- Adjustable bi-directional RS-232 interface
- Adjustable automatic switch-off
- Gross / net key at display
- Adjustable menu
- Maintenance-free compartments
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]  1500 kg
Resolution [d]  0,5 kg
Accuracy  0.5 kg
Verification value [e]  0,5 kg

General technical data
Cable length  4 m
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, animal weighing function, statistical function, recipe weighing, percentage weighing
Units  kg, lb, T, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  10 kg
Tare range  Over the full weighing range
Calibration  external
Dimensions  Display 190 x 140 x 65 mm Drive-in width 600 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP54, IP67
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH

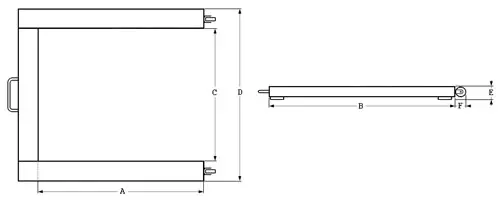

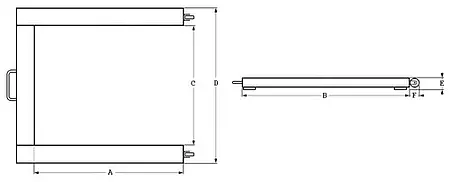

Dimensions ( L x W x H )  1250 x 840 x 78 mm
Weight  49000 g

Delivery Scope

1 x Calibrated Weighing Beam PCE-SD 1500U
1 x display incl. holder for wall or table
1 x instruction manual
