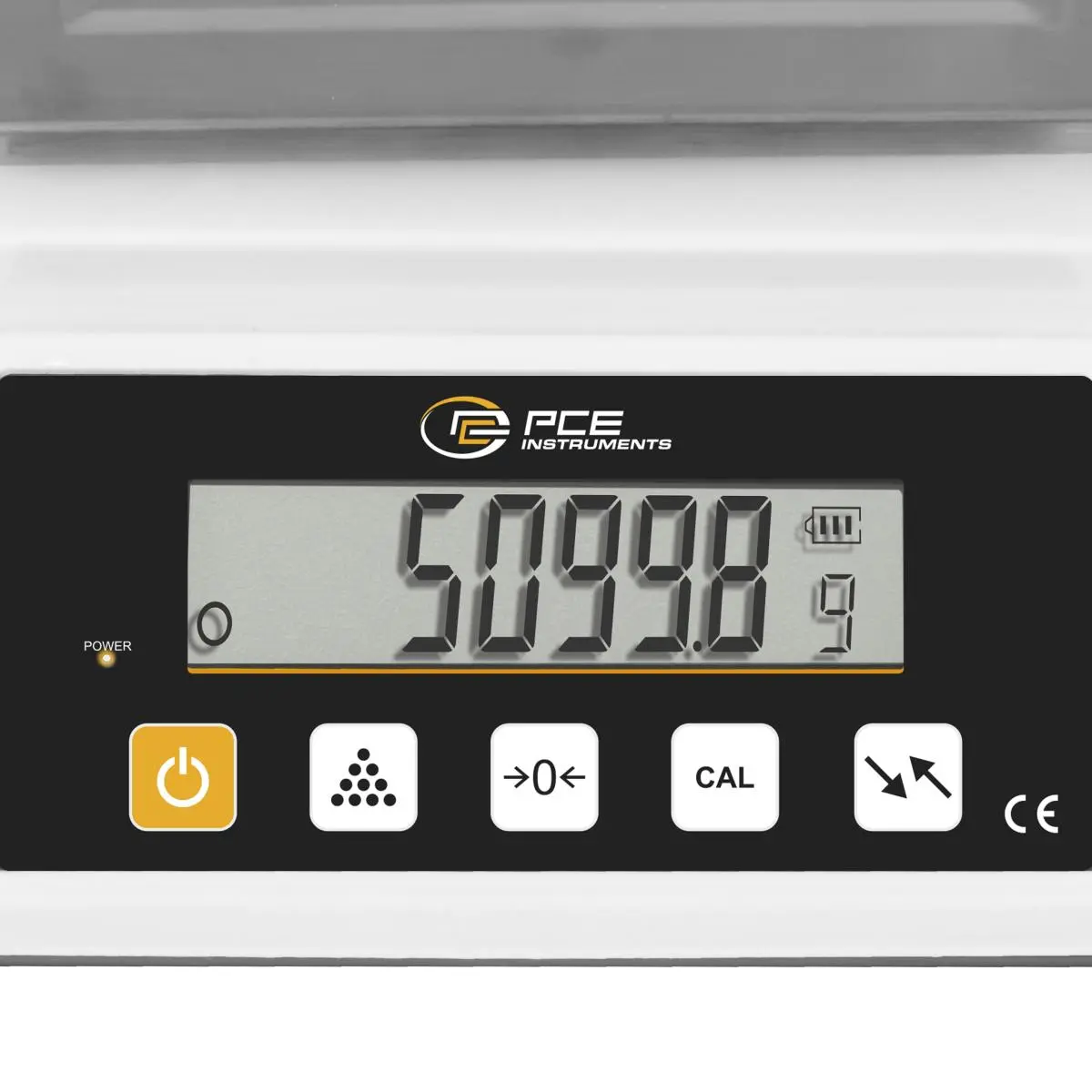

The Tabletop Scale is a scale for daily laboratory use. Another function besides the normal measuring function of the Tabletop Scale is the piece counting function. This function allows the Tabletop Scale to determine the number of screws, for example. Thus, the Tabletop Scale can also be used in logistics, for example. So that the display is readable even in low-light conditions, the display of the Tabletop Scale has a backlight.

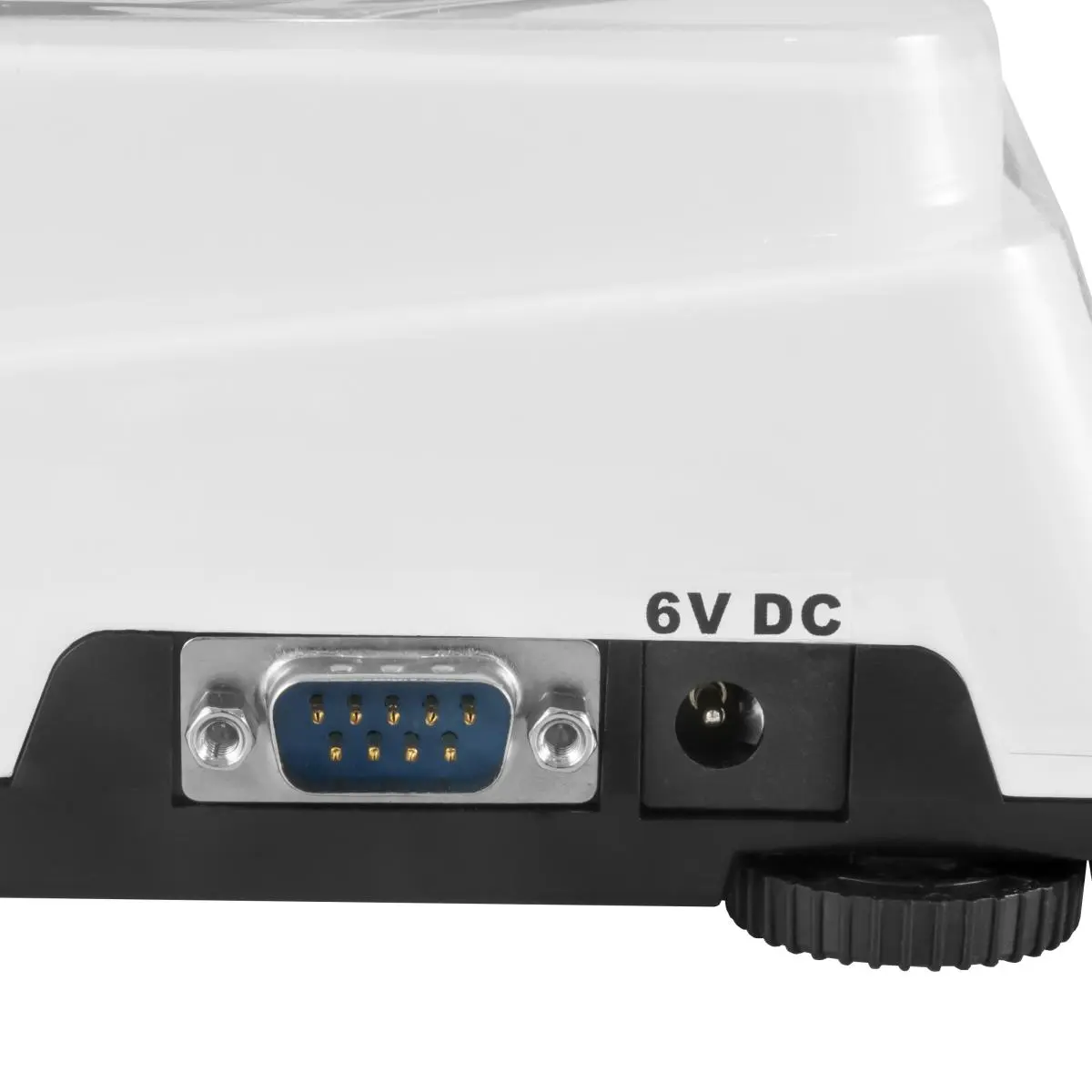

In addition to the measuring functions, the Tabletop Scale also has an RS-232 interface. Thanks to this interface, the measured values can be transferred to a PC, for example. This Tabletop Scale can be used for stationary as well as for mobile use. For mobile use, the Tabletop Scale requires 3 x 1.5 V AA batteries, which can be used quickly and easily.
| Weighing range | |
| Measuring range from | 0 g |
| Measurement range up to [Max] | 5100 g |
| Resolution [d] | 0,1 g |
| Accuracy | Class III |
| General technical data | |
| Measuring functions (additional information) | Piece counting function |
| Interface | RS232 |
| Repeatability | 0,2 g |
| Housing | Plastic |
| Calibration | external |
| Dimensions | Weighing plate: 160 x 160 mm |
| Settling time | < 3 s |
| Linearity | ±0.3 g |
| Protection class (device) | IP20 |
| Power supply | 100 ... 240V AC | 50/60 Hz 6V DC, 500 mA |
| Connector type | Device-europlug |
| Operating conditions | 0 ... 40 °C , 50 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 50 ... 85 % RH |
| Dimensions ( L x W x H ) | 270 x 200 x 80 mm |
| Weight | 950 g |
