Tabletop Scales PCE-SD 300C

Tabletop Scale PCE-SD 300C

Order no.: PCE-SD 300C
GTIN (EAN): 4250348712356

824,90 €
981,63 €
price ex. (VAT / delivery)
:
4250348712356
PCE-SD 300C
Delivery time:1-2 working days

Description

Calibratable tabletop scale / platform 400 x 500 mm or 500 x 600 mm  / bi-directional RS- 232 interface /
item counter / Summation function / RS-485, analogue outputs 4-20 mA, 0 - 10 V optional

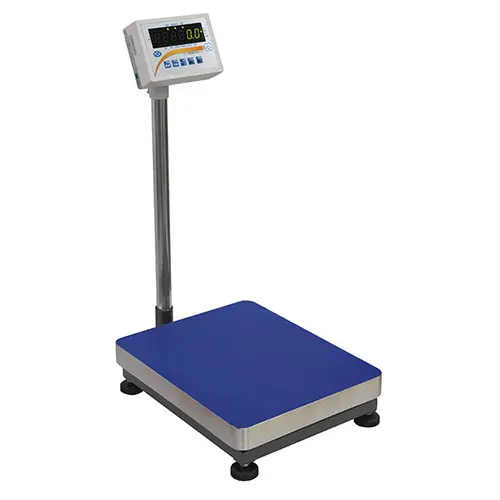

The calibratable tabletop scale is a solid calibratable platform scale that is reasonably priced. The calibration of the tabletop scale is performed by calibrating authorities following the calibration directives of Class M III. The solid base of the calibratable tabletop scale is made of lacquered steel and features a plastic-coated platform made of steel. The calibratable tabletop scale also has pedestals that can be alternated in their height, assuring a firm stand. The navigation display of the tabletop scale is placed on a stand mounted within a reachable height and fixed to the platform scale. In order to assure an ideal readability of the display at all time, the display can be alternated in its angle. Functions that the calibratable tabletop scale features are: automatic tare, item counter, saving tare value, gross / net weighing, percentage calculation, threshold weighing, etc. Further characteristics of the calibratable tabletop scale are: e.g. analogue output 4 ... 20 mA or 0 ...  10 V, RS-485, LAN interfaces, potential-free contact, USB data storage, scanner input etc.

Highlights

- Calibratable (delivery incl. calibration)
- Bi-directional RS-232 interface
- Unit counter
- Summation function
- Max. / min. display
- Percentage weighing
- Formula weighing
- Statistics function
- Animal weighing function
- Gross / net function
- Tare data storage
- Threshold weighing MIN / MAX / OK
- 3 potential-free contacts optional
- Analogue outputs optional (4-20 mA / 0-10 V)

Specification

Weighing range
Measurement range up to [Max]  300 kg
Resolution [d]  100 g
Accuracy  100 g
Verification value [e]  100 g

General technical data
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function
Units  kg, g, lb, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Repeatability  20 g
Tare range  Multiple tare over the full weighing range
Weighing plate material  Painted checkered steel sheet
Calibration  external

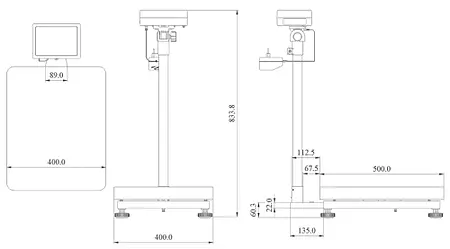

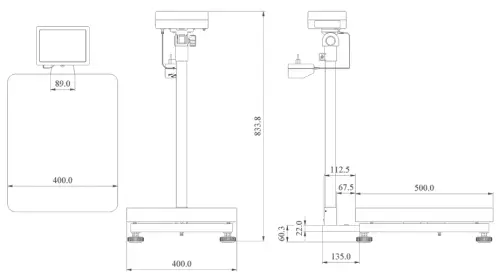

Dimensions  Display 190 x 140 x 65 mm
Platform 400 x 500 x 140 mm
Verification class [e]  M III
Settling time  < 3 s
Linearity  30 g
Menu language  English, English (GB)
Protection class (device)  IP54, IP65
Power supply  230V AC | 50 Hz, 8V A 12V, 850 mA
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V Button cell , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  400 x 620 x 870 mm
Weight  12000 g

Delivery Scope

1 x Tabletop Scales PCE-SD 300C incl. calibration
1 x Adapter
1 x Instruction Manual
