Suspended Scales PCE-DDM 5WI

Suspended Scale PCE-DDM 5WI

Order no.: PCE-DDM 5WI
GTIN (EAN): 4250348716682
1.135,90 €
price ex. (VAT / delivery)
:
4250348716682
PCE-DDM 5WI
Delivery time:1-2 working days
5 t
2 kg

Description

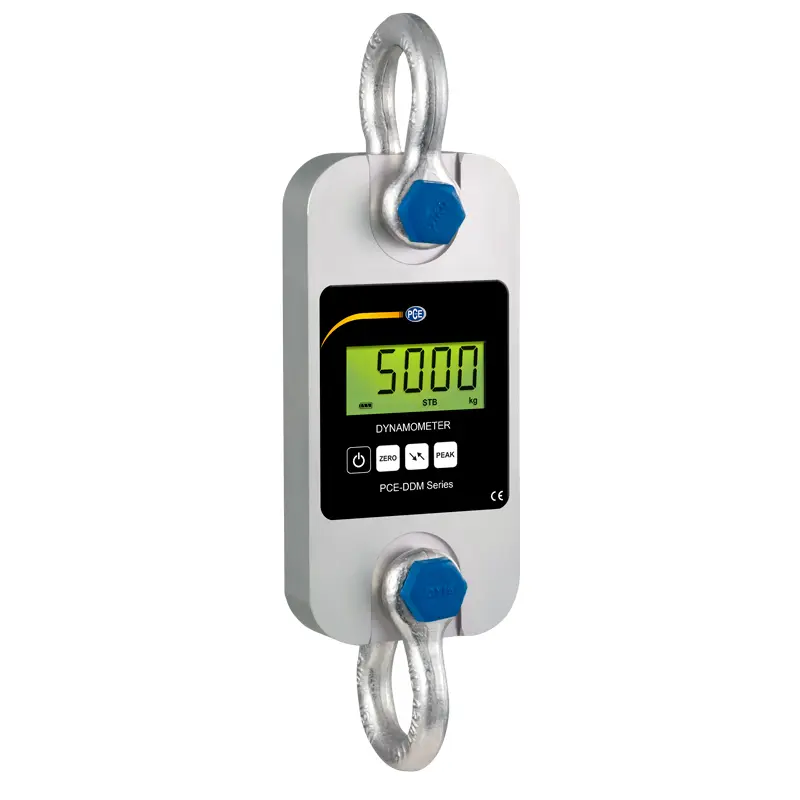

 Suspended Scale PCE-DDM 5WI
Max. capacity up to 5 tons / Peak hold, sum and tare functions / Includes shackles, protective carrying case and two-year warranty against manufacturer defects

The PCE-DDM 5WI is a rugged suspended scale designed to weigh large hanging loads. The PCE-DDM 5WI is also a durable digital dynamometer specially crafted to measure strong tensile forces. This high-capacity device is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. Each suspended scale is manufacturer calibrated, but can be certified to ISO standards for an additional fee (see accessories for details).

Despite its high capacity and rugged durability, the suspended scale is a compact and portable device with a low net weight. The suspended scale has many useful practical features including peak hold, tare, sum and the ability to select different units of measurement such as kg / t / lbs / N / kN.

Please note that this device is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FM series force gauges (visit similar items tab for details).


Highlights

- High capacity up to 5 t / 11023 lbs / 5000 kg / 50 kN
- Heavy duty, rugged and durable yet compact and portable
- Selectable units of measurement: kg / t / lb / N / kN
- Peak hold, sum and tare functions
- Long battery life - approx. 50 hours of continuous use at full charge
- Includes shackles, protective carrying case and two-year warranty against
manufacturer defects
- Manufacturer calibrated, but can be certified to ISO standards for an
additional fee
(see accessories for details)

Specification

Weighing range
Measuring range from  40 kg
Measurement range up to [Max]  5000 kg
Resolution [d]  2 kg
Accuracy  ±0.1% of range

Force
Measuring range  0 ... 50 kN
Resolution  20 N
Accuracy  ±0.1% of range

General technical data
Measuring functions  HOLD, peak
Measuring functions (additional information)  Summing function
Units  kg, N, lb, T, kn
Display type  LCD
Digit size [WxH]  Height: 22 mm
Measuring rate  2,5 Hz
Operating time  50 h
Housing  Aluminium
Minimum load [min]  40 kg
Tare range  max. 20 % of the measurement range
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  batteries
(Rechargeable) battery  3 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Performance  4,5 Wh
Operating conditions  -10 ... 40 °C , 0 ... 85 % RH
Storage conditions  -10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  285 x 123 x 57 mm
Weight  3000 g

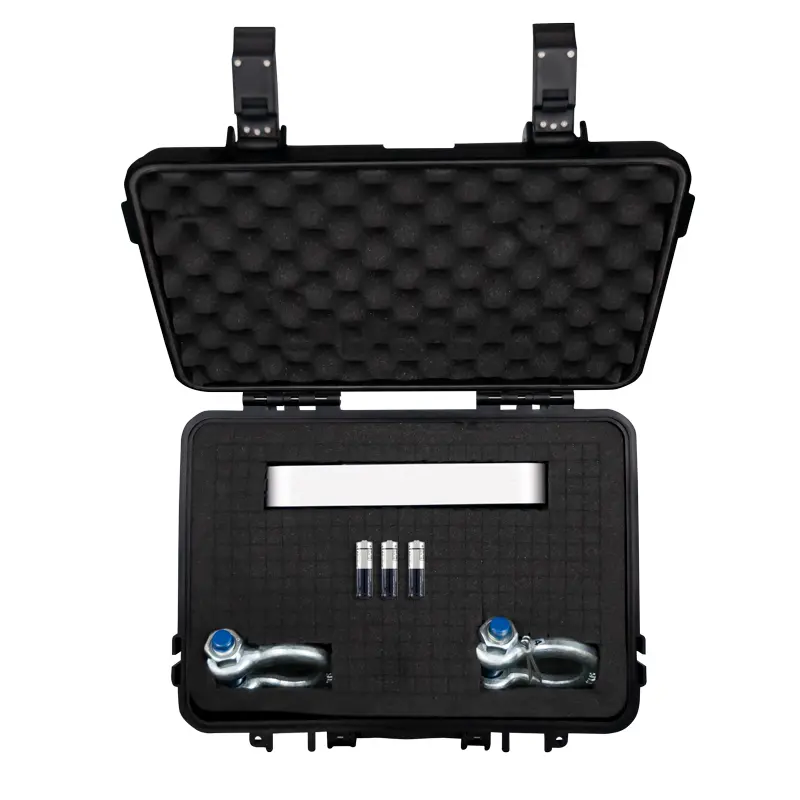

Delivery Scope

1 x PCE-DDM 5WI Suspended Scaless
2 x shackles
3 x 1.5 V AA batteries
1 x user manual
1 x protective carrying case
Note: This model does not come with a remote control. If a remote control is
desired, please see the PCE-DDM 5 (visit similar items for details).
