Suspended Scale PCE-DDM 3-ICA Incl. ISO Calibration

Order no.: PCE-DDM 3-ICA

GTIN (EAN): 4250348725509

Accessory

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

1.424,90 €

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

1.689,90 €

Description

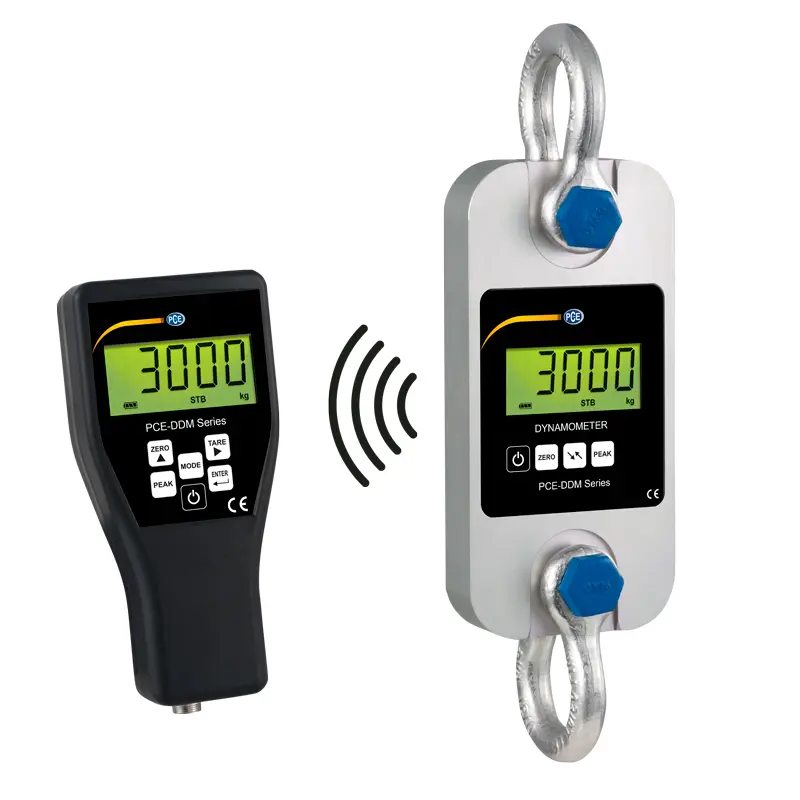

Mobile Suspended Scale / Measuring range up to 3 t /
PEAK hold function / incl. remote display / incl. shackles and transport case

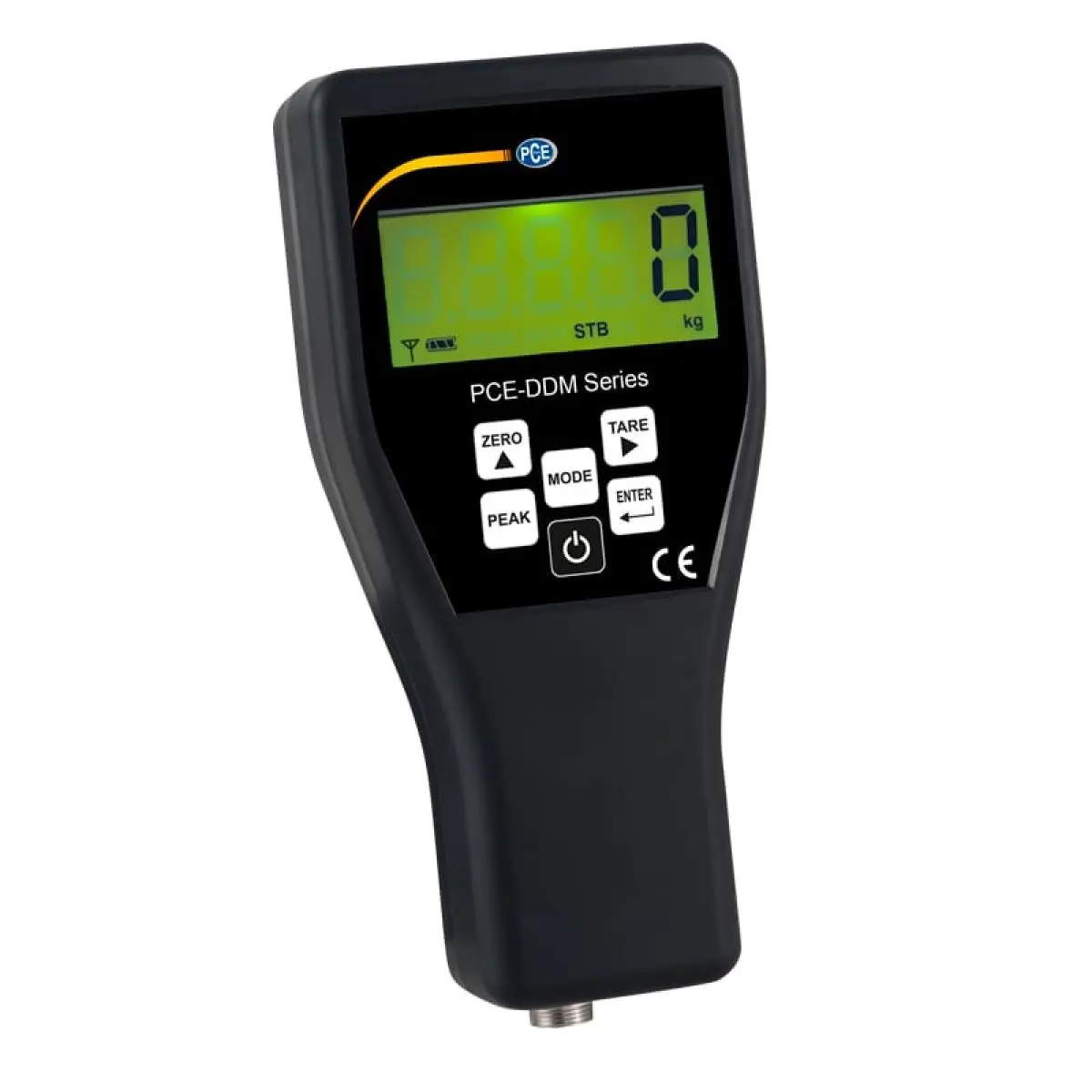

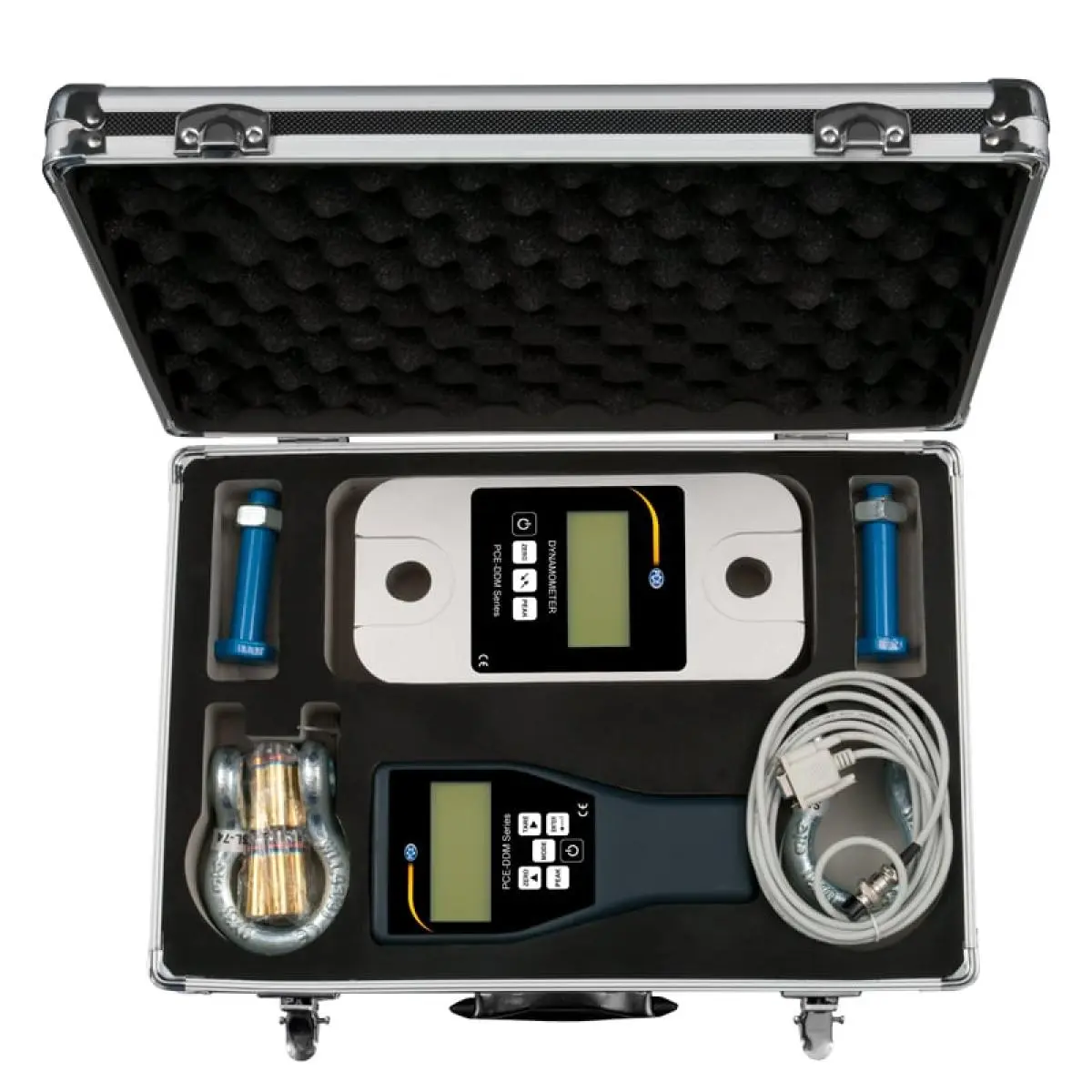

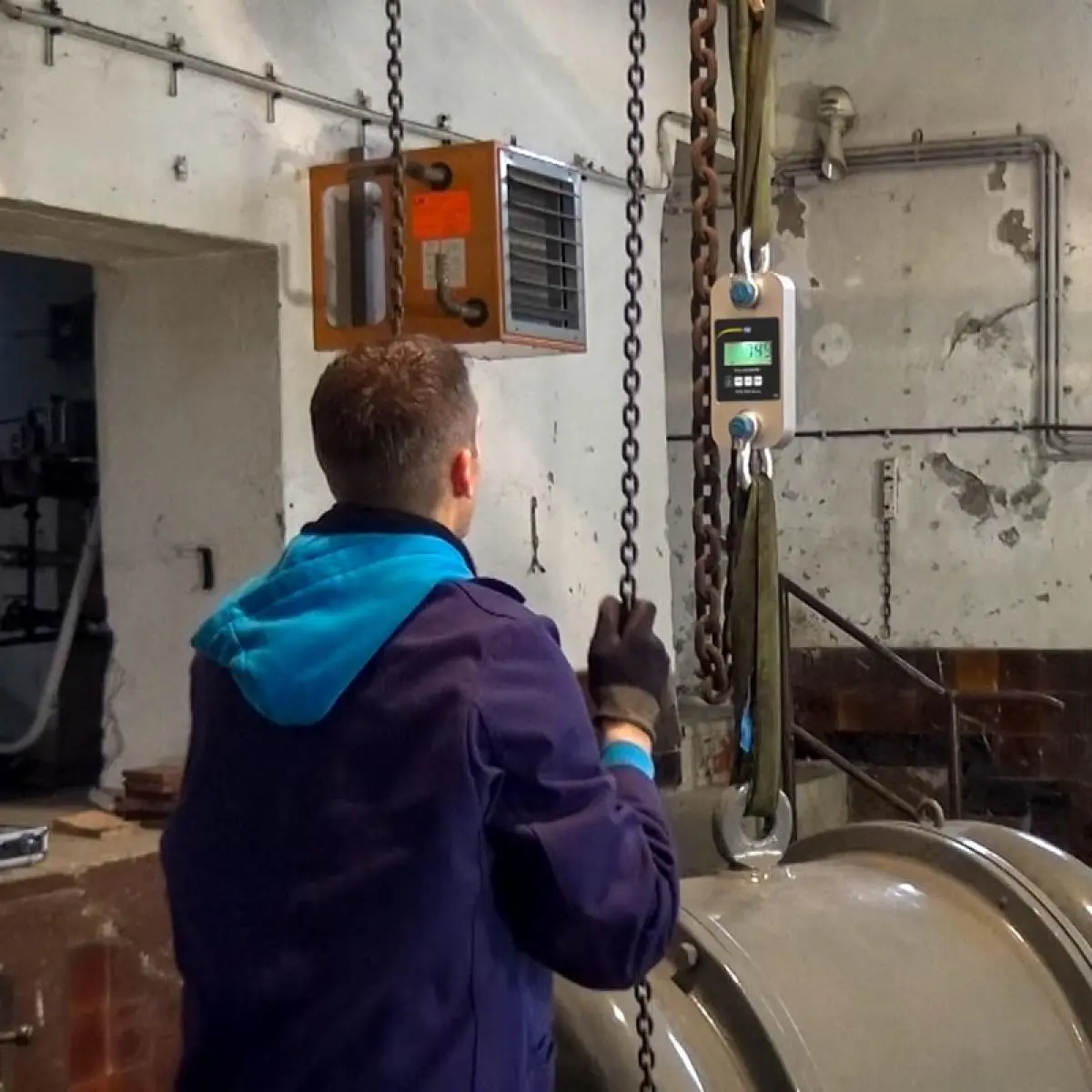

The suspended scale is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the suspended scale. Despite the high measuring capacity, these materials enable a compact design with a low weight. The suspended scale is supplied with a radio display and two shackles in a transport case.

Interesting functions of the suspended scale are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The suspended scale is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measurement range up to 3000 kg / 30 kN

- High capacity

- Compact and portable

- Long battery life

- Peak hold function

- Summation function

- Selectable units of measurement: kg / t / lb / N / kN

- Adjustable gravitation range

- Remote control indicator, shackles and carrying case included

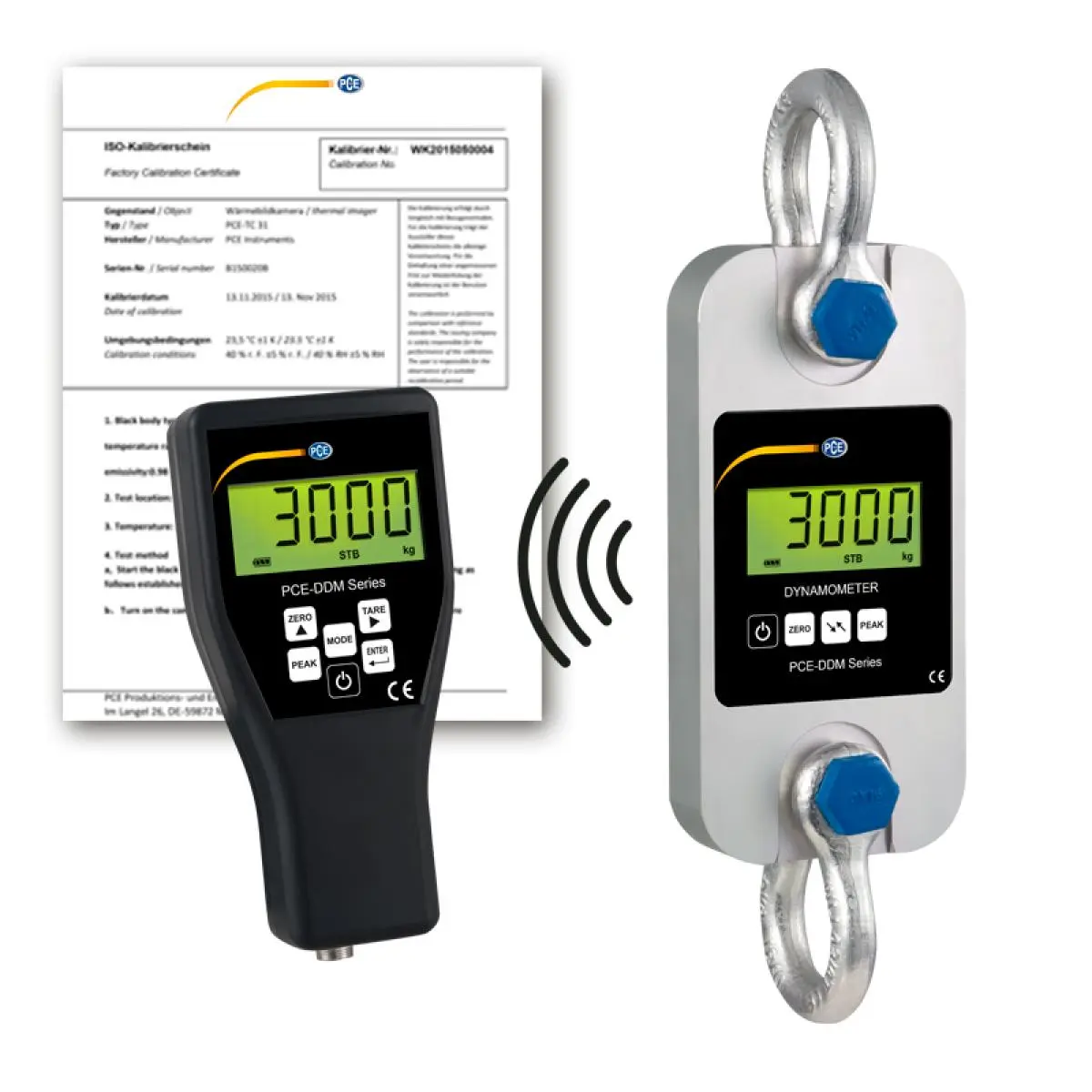

- incl. ISO-Calibration Certificate

Specification

Weighing range
Measurement range up to [Max]	3000 kg
Resolution [d]	1 kg
Accuracy	±0.1% of range

Force
Measuring range	0 ... 30 kN
Resolution	10 N
Accuracy	±0.1% of range

General technical data
Measuring functions	HOLD, peak
Measuring functions (additional information)	Summing function
Units	kg, N, lb, T, kn
Display type	LCD
Digit size [WxH]	Height: 22 mm
Measuring rate	2,5 Hz
Operating time	50 h
Minimum load [min]	10 kg
Tare range	max. 20 % of the measurement range
Dimensions	Handheld display: 180 x 100 x 40 mm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	7 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 ... 40 °C , 0 ... 85 % RH
Storage conditions	-10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	260 x 123 x 37 mm
Weight	2000 g
