32,90 €
Calibrated built-in scale with software up to 6,000 kg /
Resolution 2 kg / Weighing cells IP67 /
Piece counting function / Summing function / RS-232 interface / Scales made of painted steel

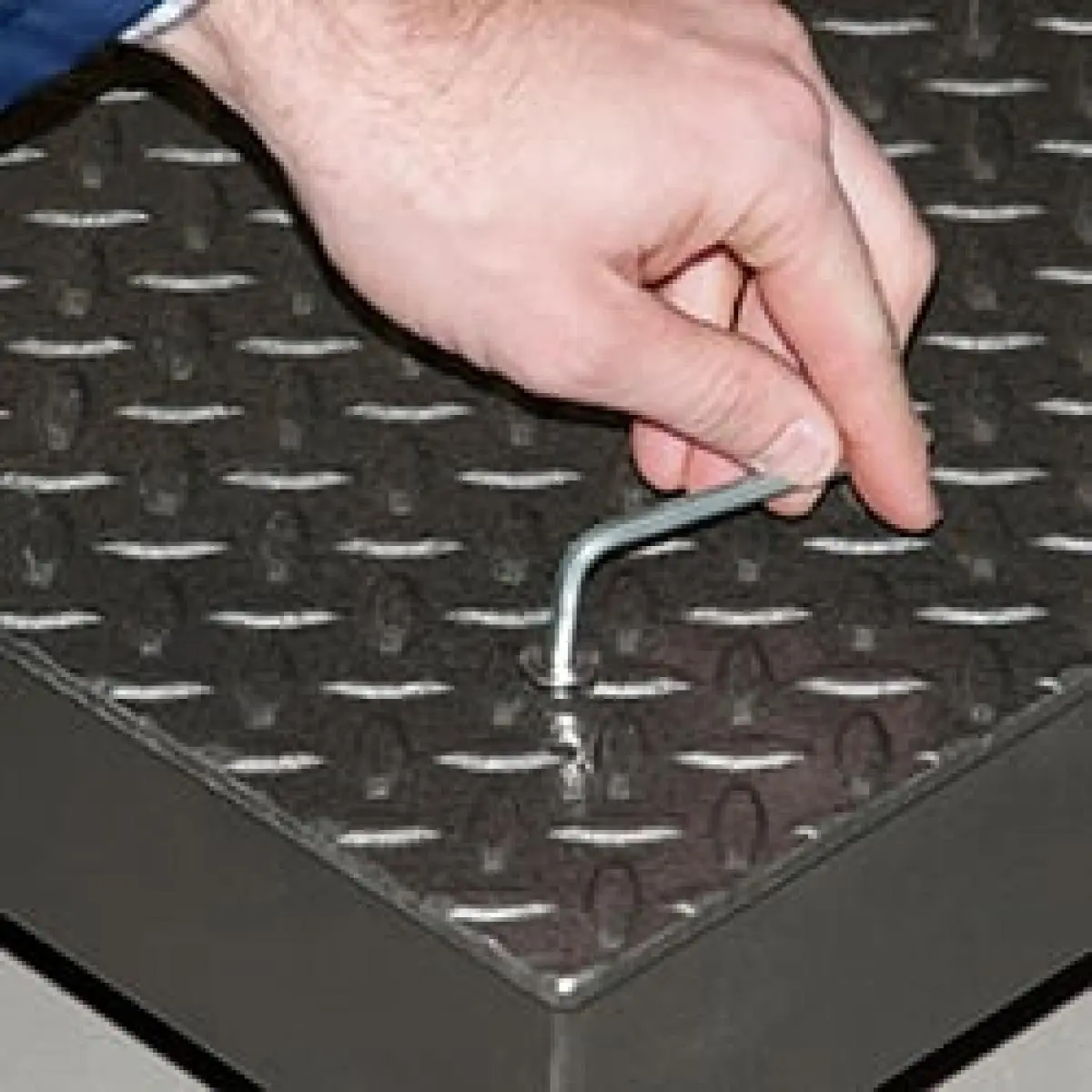

/ Removable weighing plate / Mounting frame optional

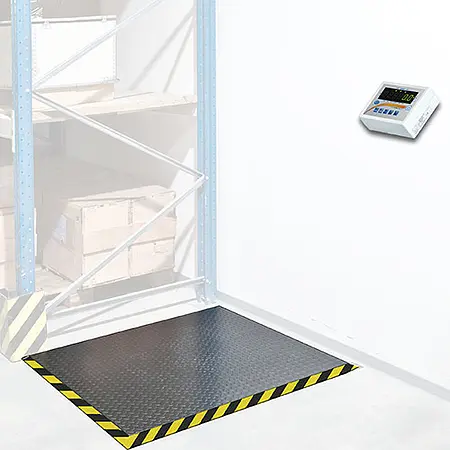

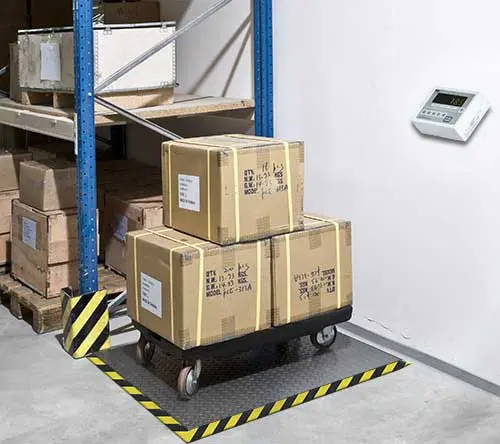

The calibratable built-in scale with software is designed for flush installation and is optionally available with a built-in frame on request. The calibrated built-in scale with software is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the built-in scale with software has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the built-in scale with software. The display of the scale with software is IP 54 protected and has a bracket for a table or wall mounting.
Optionally, you can also get a tripod suitable for the scale with software. Various dimensions of the built-in scale with software are available to you and the functions of the built-in scale make this a multi-talent. The serial bi-directional RS-232 interface of the scale with software is also a versatile feature. Thus, a programmer can easily implement the scale in the existing IT system. The scale with software is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated scale with software.
| Weighing range | |
| Measurement range up to [Max] | 6000 kg |
| Resolution [d] | 4 kg |
| Accuracy | 2 kg |
| Verification value [e] | 2 kg |
| General technical data | |
| Cable length | 4 m |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, percentage % comparative weighing, animal weighing function, totalising several weighings, recipe weighing, statistics function |
| Units | kg, lb, g, T, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Minimum load [min] | 40 g |
| Tare range | Multiple tare over the full weighing range |
| Weighing plate material | Painted checkered steel sheet |
| Calibration | external |
| Dimensions | Display 190 x 140 x 65 mm Foundation depth of floor scales 128 mm |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Menu language | English (GB), English |
| Protection class (device) | IP67, IP40 |
| Power supply | 230V AC | 50 Hz, 8V A |
| Connector type | Schuko plug |
| (Rechargeable) battery | 1 x 3 V Button cell , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 1500 x 1500 x 1600 mm |
| Weight | 210000 g |
