179,90 €
The

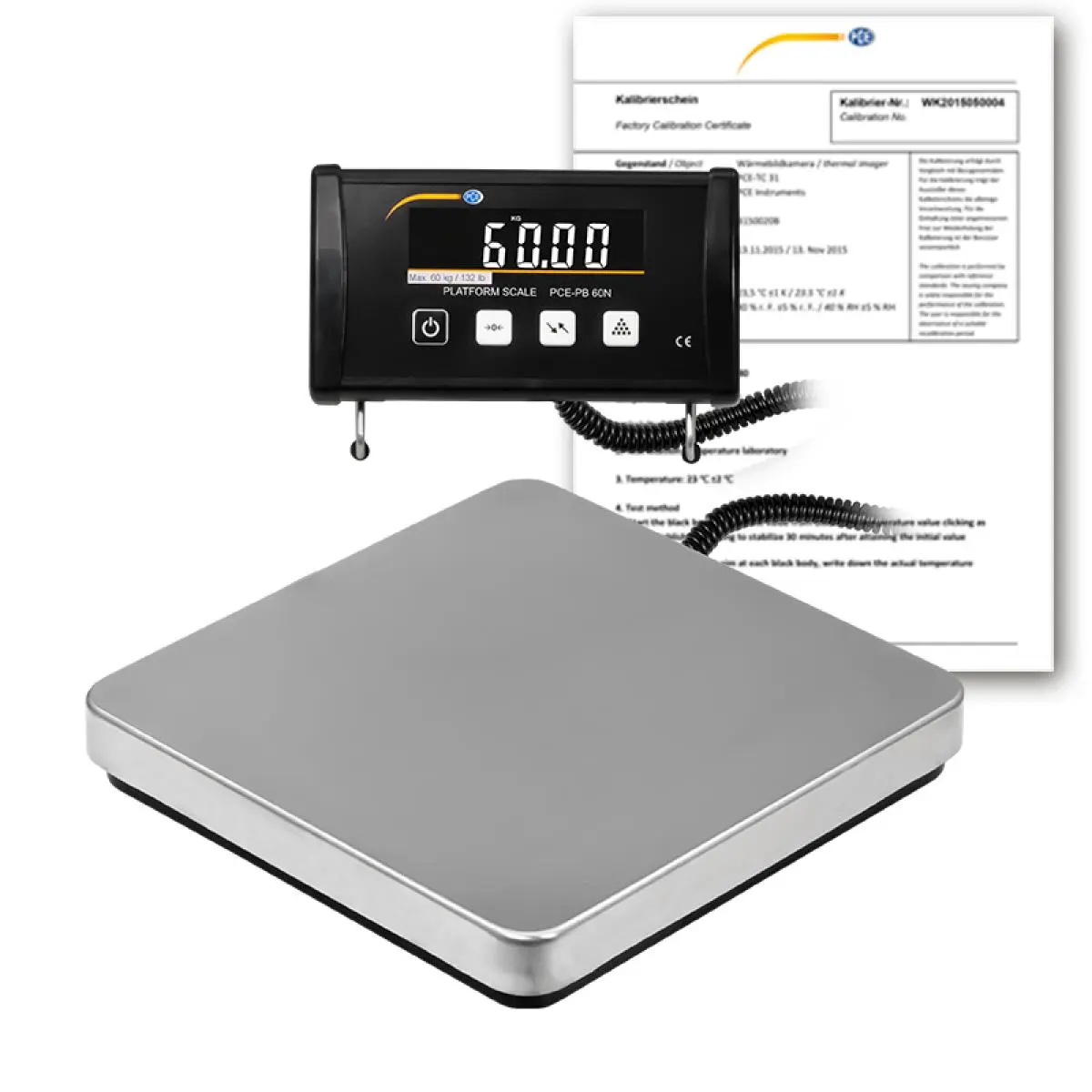

USB scale with software of the PCE-PB N series is a versatile platform
scale. The functions of the USB scale with software are very extensive, but
one function is particularly interesting for shipping. It is the
bidirectional USB interface of the scale with software that enables control
by the PC. However, the USB platform scales of the PCE-PB N series can
be used with the optional, inexpensive "ProCell" software. This software
simulates keyboard input, similar to a scanner. With the help of this
software, the scale with software can then transfer the weight value into
active fields.

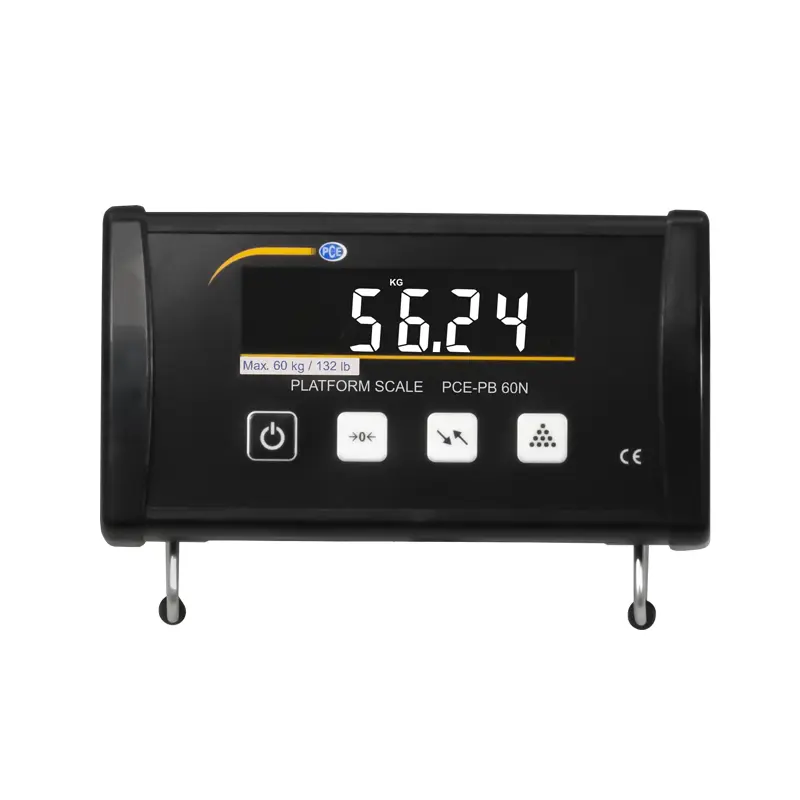

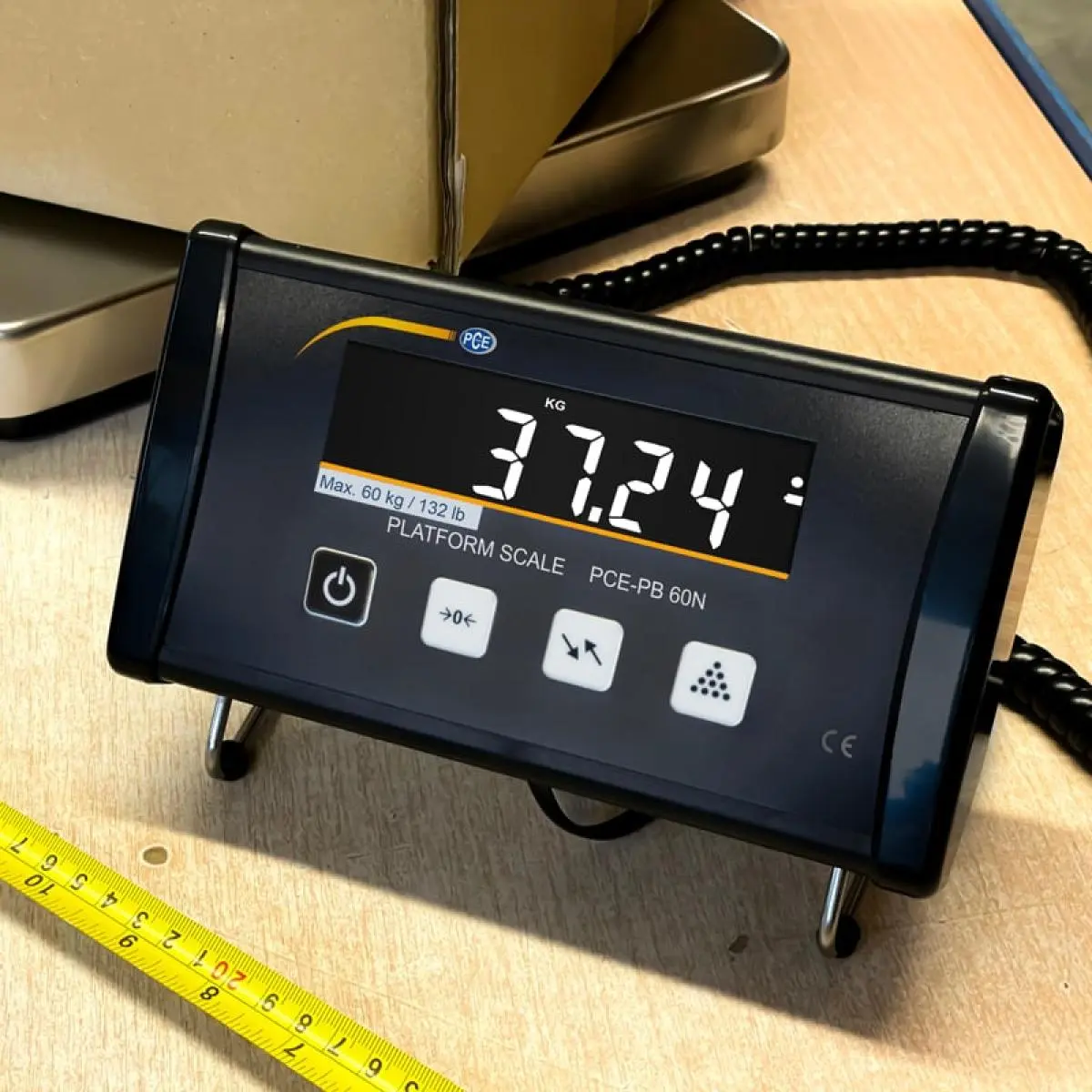

Another advantage of this scale with software is the

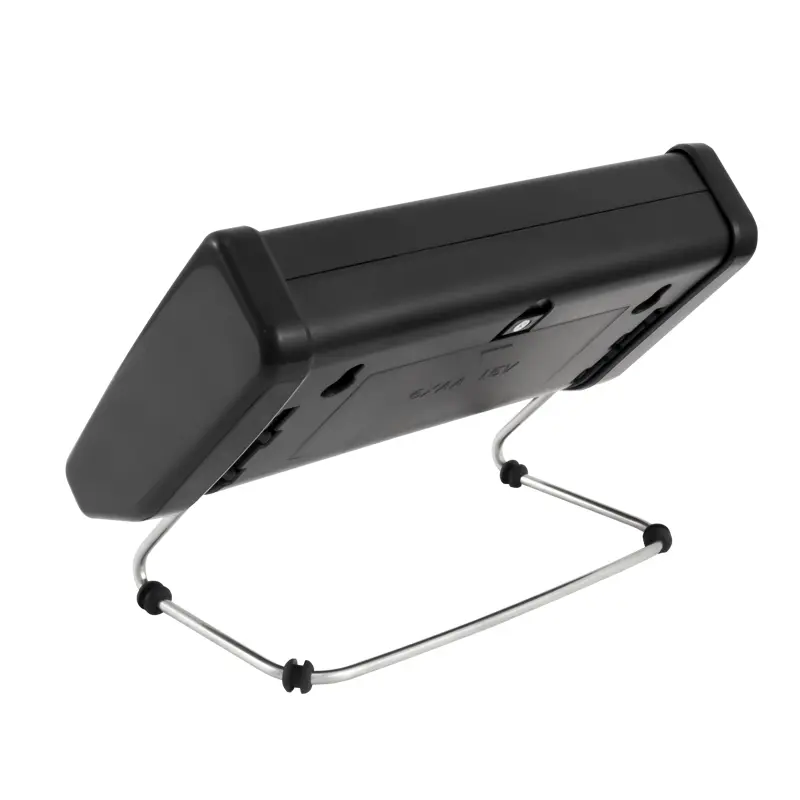

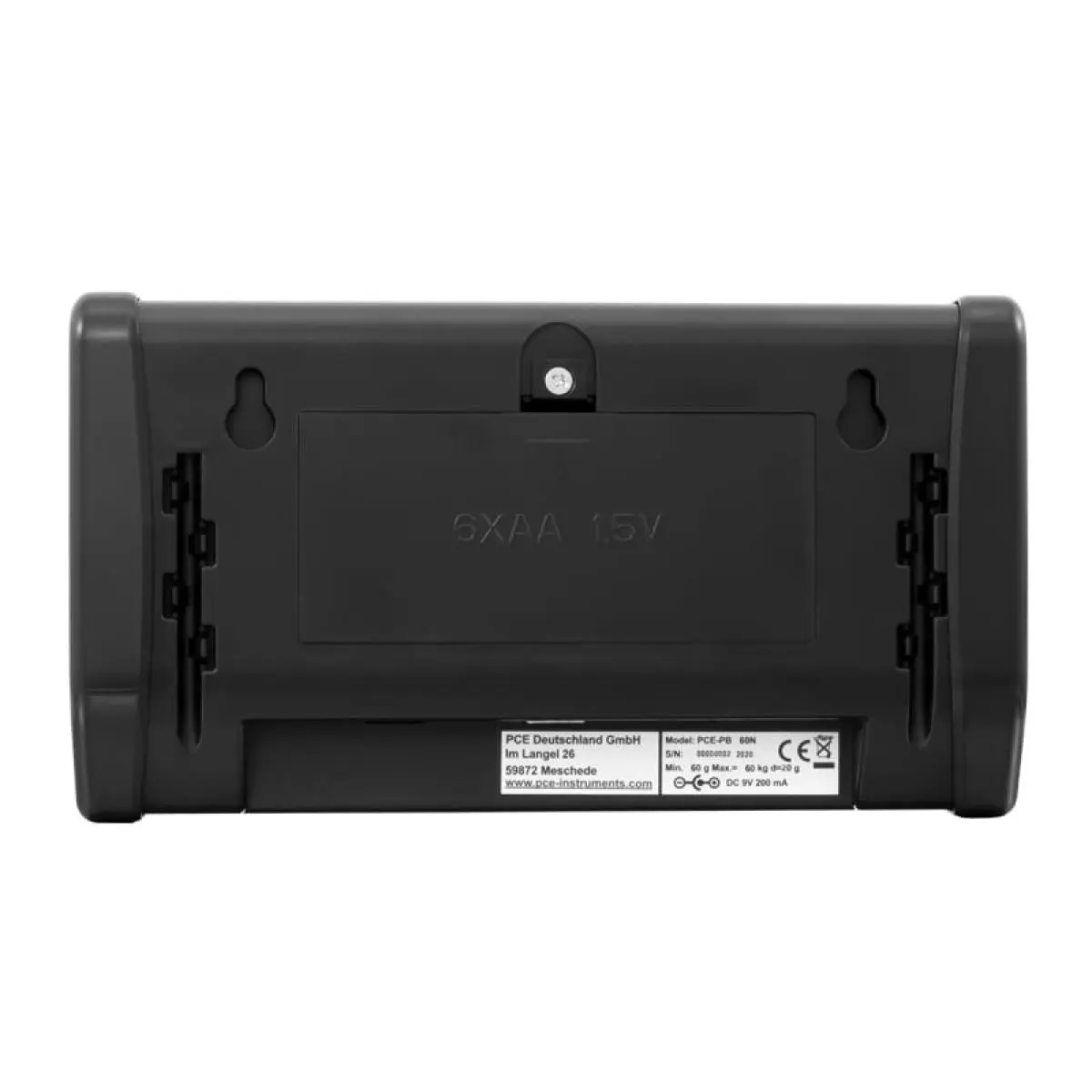

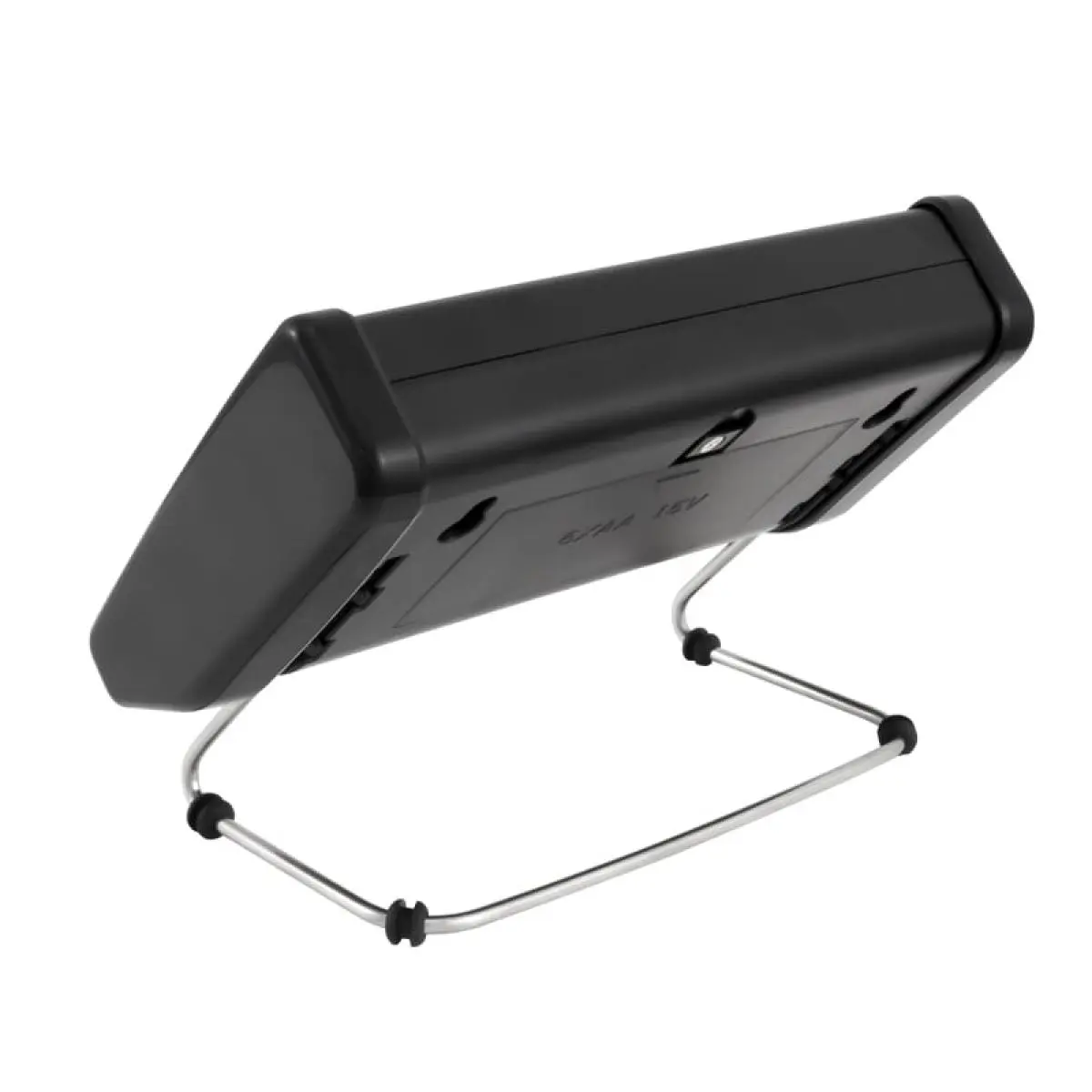

wired display. The display is supplied with a stand, but it is also

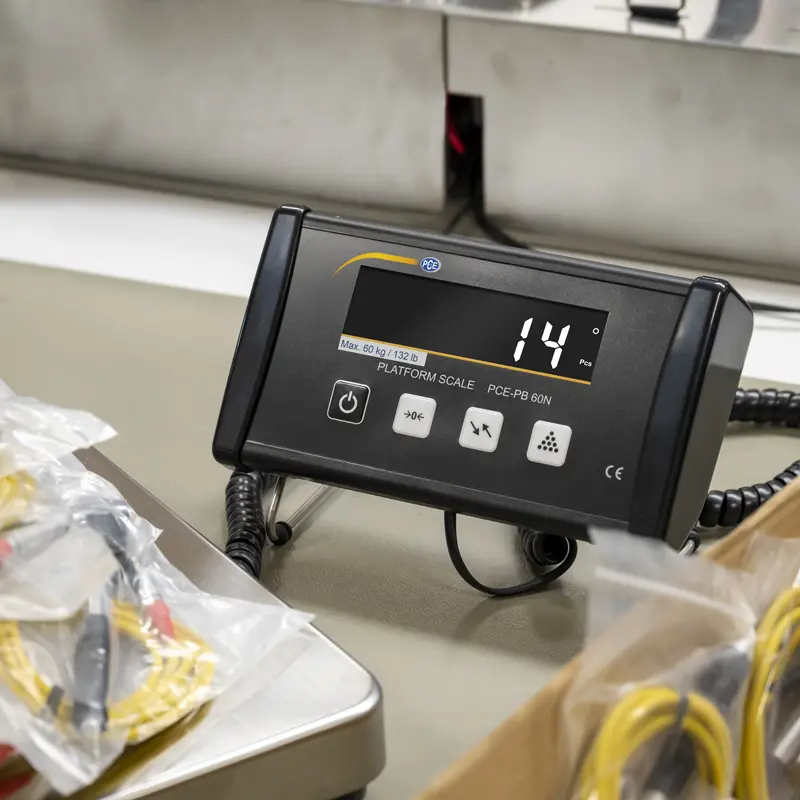

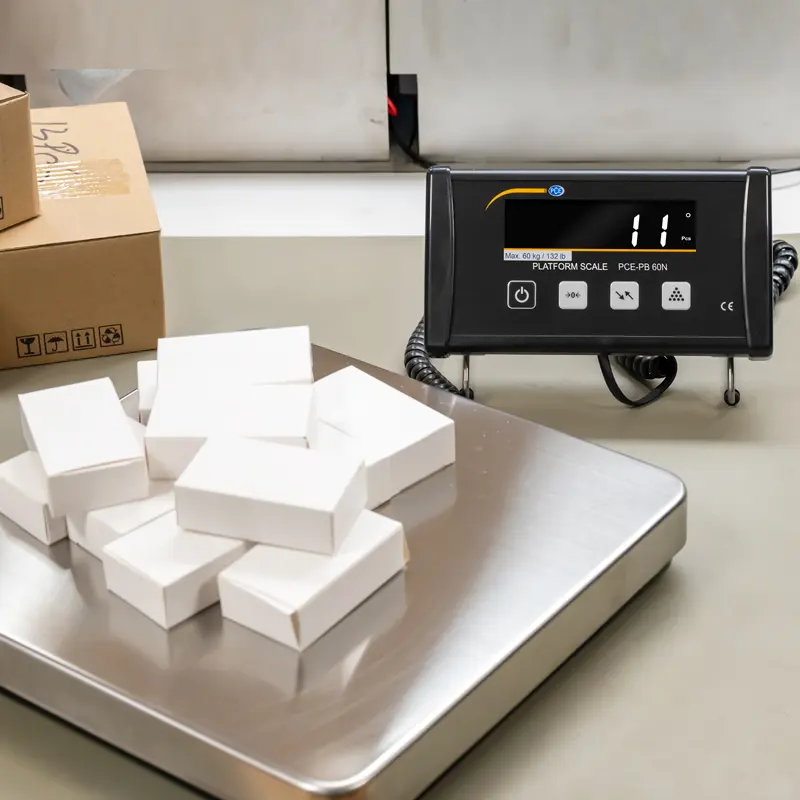

suitable for wall mounting. Other interesting functions of the scale with software are the piece counting function, PEAK hold function, function for
level control, measuring units such as kg / lb / N (Newton) / g,
adjustable background lighting, adjustable automatic switch-off and the

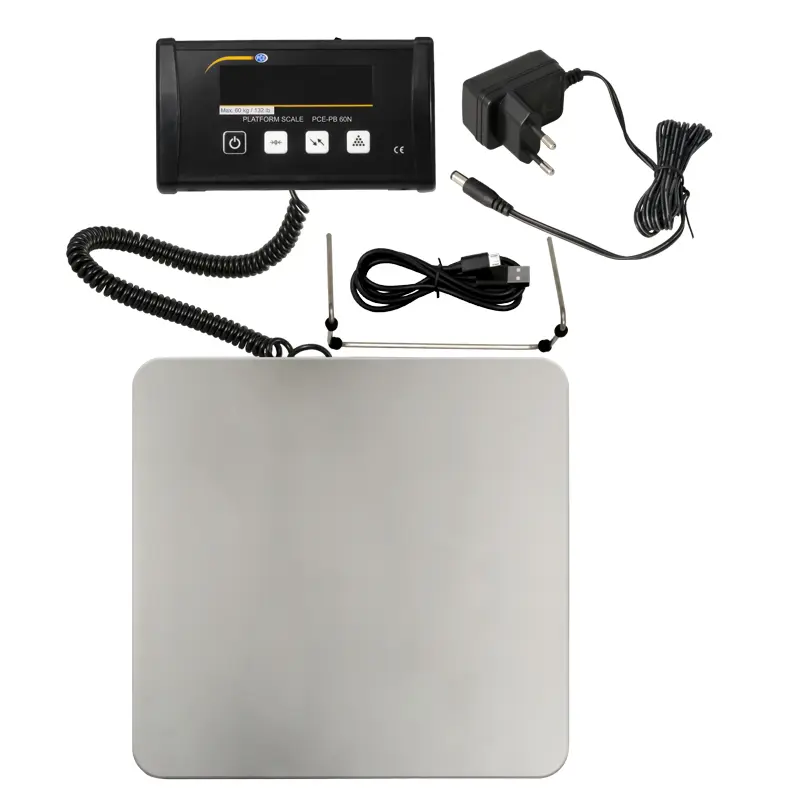

option to operate the scales with power pack or batteries.
| Weighing range | |
| Measurement range up to [Max] | 60 kg |
| Resolution [d] | 20 g |
| Accuracy | ±80 g |
| General technical data | |
| Cable length | 1,5 m |
| Measuring functions | MAX, HOLD, peak |
| Measuring functions (additional information) | Fill level control (auto tare OFF function), piece counting function (min.1 d), animal weighing function |
| Units | kg, g, N, lb |
| Display type | LCD with backlight |
| Digit size [WxH] | Height: 20 mm |

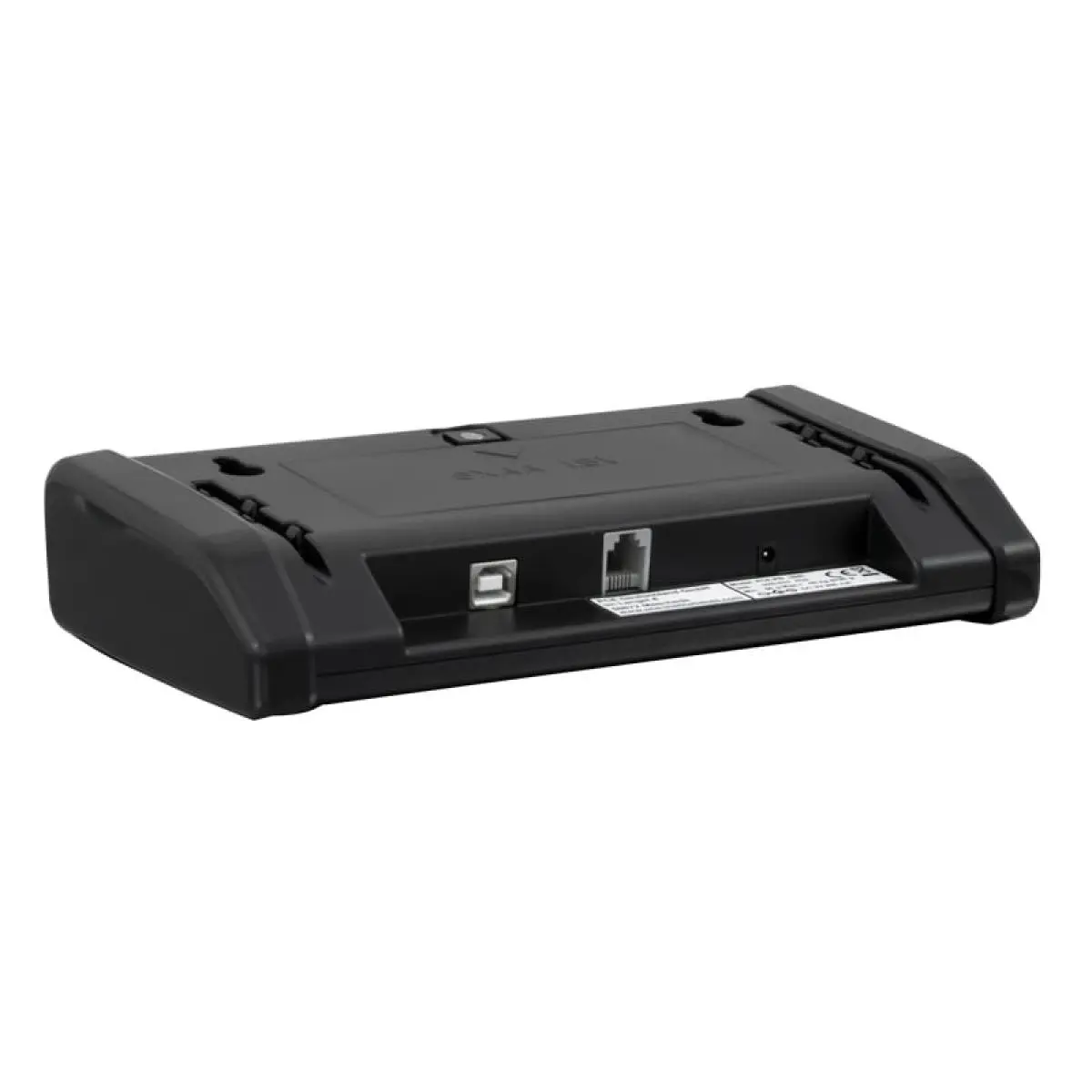

| Interface | USB-B bidirectional |
| Minimum load [min] | 60 g |
| Tare range | Multiple tare over the full measurement range |
| Weighing plate material | Stainless steel |
| Dimensions | Cradle plate: L 300 x W 300 x H 45 mm / L 11.8 × W 11.8 × H 1.8 in |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 9V DC / 200 mA |
| Connector type | Device-europlug |
| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 5 ... 35 °C , 0 ... 85 % RH |
| Storage conditions | 5 ... 35 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 300 x 300 x 45 mm |
| Weight | 4000 g |
