Precision Balances / Precision Scales PCE-DMS 200

Precision Balance for Paper Basis Weight PCE-DMS 200

Order no.: PCE-DMS 200
GTIN (EAN): 4250348700728
243,90 €
295,12 €
price ex. (VAT / delivery)
:
4250348700728
PCE-DMS 200
Delivery time:1-2 working days

Description

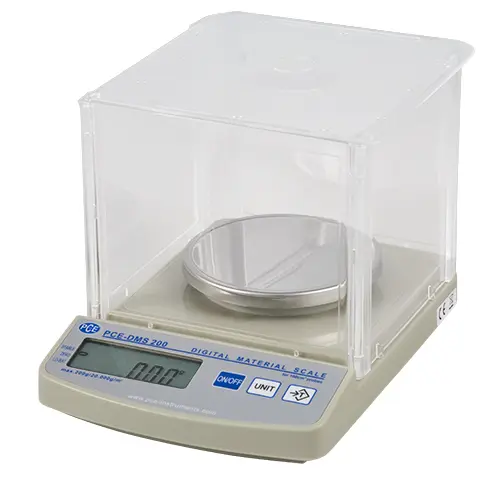

Precision Balance for Paper Basis Weight PCE-DMS 200
10 cm round pan for weighing 11 cm circle cut samples

The PCE-DMS 200 is a precision balance for paper basis weight used to accurately determine the GSM basis weight (in relation to a square meter of material) of paper, cardboard, fabric, textiles and more directly in g, g/m², oz or oz/yd². Weighing units can be changed with just the push of a button.

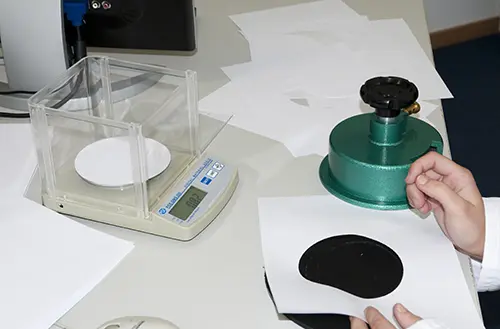

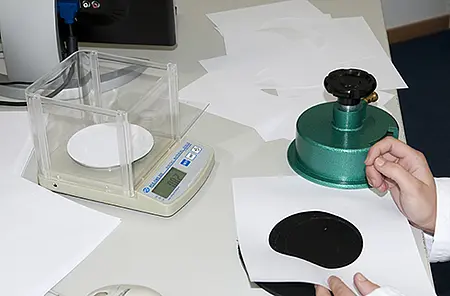

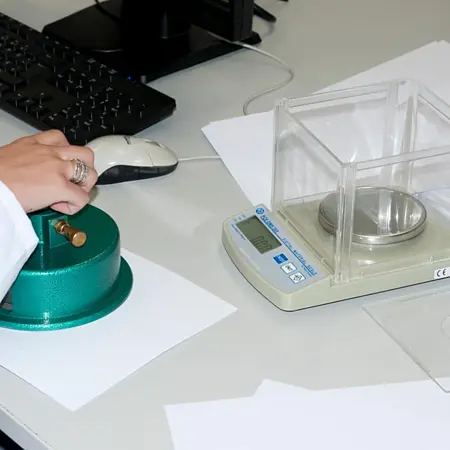

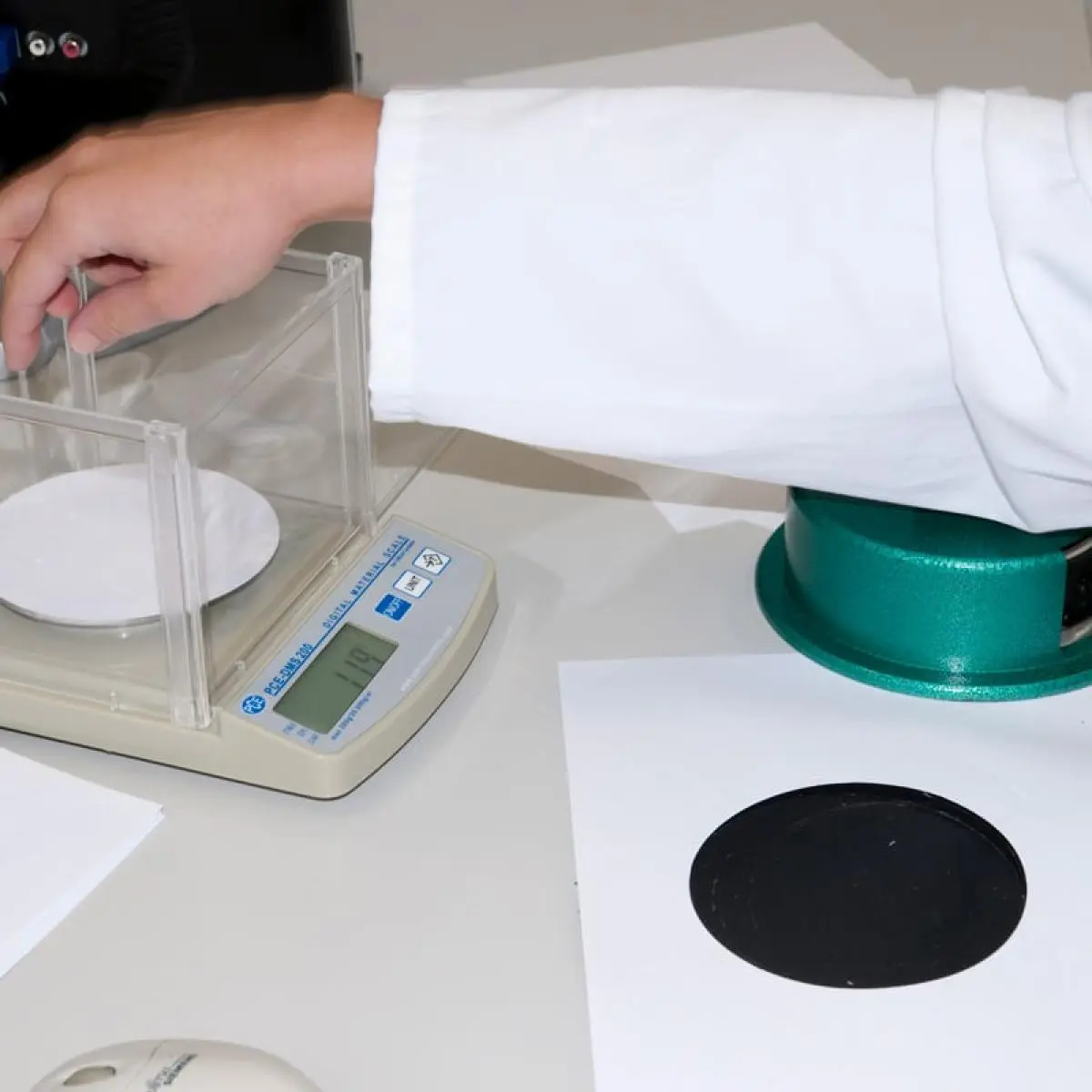

The precision balance is used primarily by paper and textile production companies. The paper and textile industries perform similar quality control testing by weighing a 11 cm round circular sample of paper or fabric. The precision balance makes this test process quick and easy, especially when using the optional 11 cm circle sample cutter accessory (see accessories tab for details).

Highlights

- 10 cm round pan for weighing 11 cm circle cut samples
- Weighing units can be changed with just the push of a button
- Easy-to-read 15 mm (0.6") backlit LCD display
- Automatically powers off (saves battery life / function can be disabled)
- Automatic calibration function (using external weight - not included)
- Optional ISO calibration certificate (see accessories tab for details)

Specification

Weighing range
Measurement range up to [Max]  200 g
Resolution [d]  0,01 g

Weighing range
Measurement range up to [Max]  20000 g/m²
Resolution [d]  1 g/m²

General technical data
Units  g, oz, g/m², oz/yd²
Display type  LCD
Digit size [WxH]  Höhe: 15 mm
Automatic power-off  2 min
Housing  ABS (acrylonitrile-butadiene-styrene copolymers)
Reproducibility  0.02 g
Calibration  Automatically using an external test weight
Dimensions  Wind shield: 145 x 145 120 mm
Stabilisation time  3 s
Readability  0,01 g
Protection class (device)  IP20
Power supply  12V
Connector type  Device-europlug
(Rechargeable) battery  6 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 40 °C , 0 ... 85 % RH
Storage conditions  0 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  145 x 210 x 40 mm
Weight  1000 g

Delivery Scope

1 x PCE-DMS 200 Precision Balances / Precision Scales
1 x Wind screen
1 x Power supply
6 x AA batteries
1 x User manual
