Platform Scales

Platform Scale PCE-TB 1.5

Order no.: PCE-TB 1,5
GTIN (EAN): 4250348712165

524,90 €
624,63 €
price ex. (VAT / delivery)
:
4250348712165
PCE-TB 1,5
Delivery time:1-2 working days

Description

Reasonably priced Platform Scale up to 30 kg / accuracy down to 0.05 g /
operation by battery possible / bi-directional RS232 interface / platform size 300 x 210 mm / optionally purchasable: LAN, 4-20 mA, 0-10 V or 3 potential-free contacts

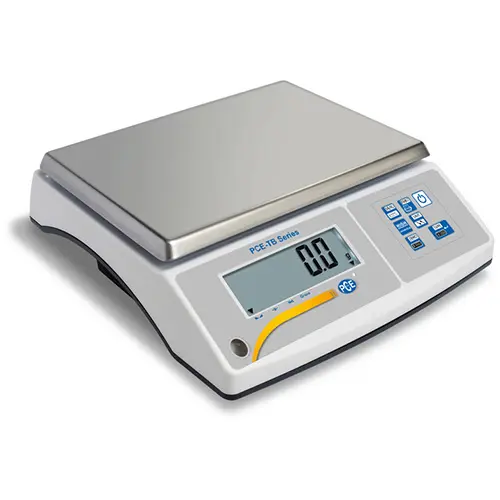

The Platform Scale PCE-TB series stands out due to its multifunctional range of application. But not only the large range of functions of the Platform Scale is outstanding, the communication options of the Platform Scale are interesting as well. The Platform Scale features a bi-directional RS-232 interface and USB interface. Thus the Platform Scale provides a very good foundation for every programmer (description of interface in instruction manual). The Platform Scale sends the information via keypress automatically to a computer either every time the weighing value is stable, continuously (approx. 10 values per second) or on demand. Another option to integrate the Platform Scale into a system would be the optionally purchasable interfaces, e.g. LAN-, analogue output 4 ... 20 mA or 0 ... 10 V as well as the weightlimit function with three potential-free contacts. Interesting functions of the Platform Scale are item-counting, percentage - calculation, formulation weighing, animal weighing, statistical weighing, summation function, threshold function, various weighing functions etc. The Platform Scale can operate by battery as well as via adapter, and is also applicable for mobile weighing tasks. Via the optional ProCell software you can import the weighing data of the Platform Scale into any system, where the data can be fed-in by keypress, such as Excel, Word, DHL, SAP etc. since the software simulates a manual data feed-in.

Highlights

- Item counting function
- 8 different weighing units
- Weight compare in percentage %
- Filter (response time) adjustable
- Animal weighing function
- Max. weighing
- Tolerance determination min / ok / max
- Summation of several weighing values
- Statistic evaluation
- Formulation weighing
- Adjustable RS232 and USB interface
- Bi-directional interface
- Printer language Line Mode and EPL2
- Background lights of display adjustable
- Automatic switch-off adjustable
- Operation by adapter or batteries
- Battery recharge directly within scale
- External calibration (any weight)
- Configurable menu
- Analogue / Switching contact optional

Specification

Weighing range
Measurement range up to [Max]  1,5 kg
Resolution [d]  0,05 g
Accuracy  ±0.2 g

General technical data
Measuring functions  MIN, MAX
Measuring functions (additional information)  Piece counting function, percentage % comparison weighing, statistics function, totalisation function, animal weighing function
Units  kg, g, lb, oz, ct, ozt, gr, dwt, mg
Display type  LCD with backlight
Digit size [WxH]  Height 30 mm
Interface  USB, RS232C
Automatic power-off  5 min
Repeatability  0,1 g
Tare range  over the full weighing range
Weighing plate dimensions  B 300 x T 210 mm
Calibration  external
Settling time  < 3 s
Linearity  0.15 g
Menu language  English, English (GB)
Protection class (device)  IP54
Power supply  230V AC | 50 Hz, 6 VA
12V DC 1.2 A
Connector type  Device-europlug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 15 ... 85 % RH
Storage conditions  -10 ... 40 °C , 15 ... 85 % RH

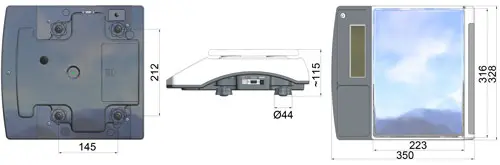

Dimensions ( L x W x H )  350 x 328 x 115 mm
Weight  3500 g

Delivery Scope

1 x Platform Scales
1 x power adapter
1 x stainless steel weighing platform
1 x instruction manual
