Calibrated built-in platform scales up to 1,500 kg / Resolution 0.5 kg / Weighing cells IP67 /

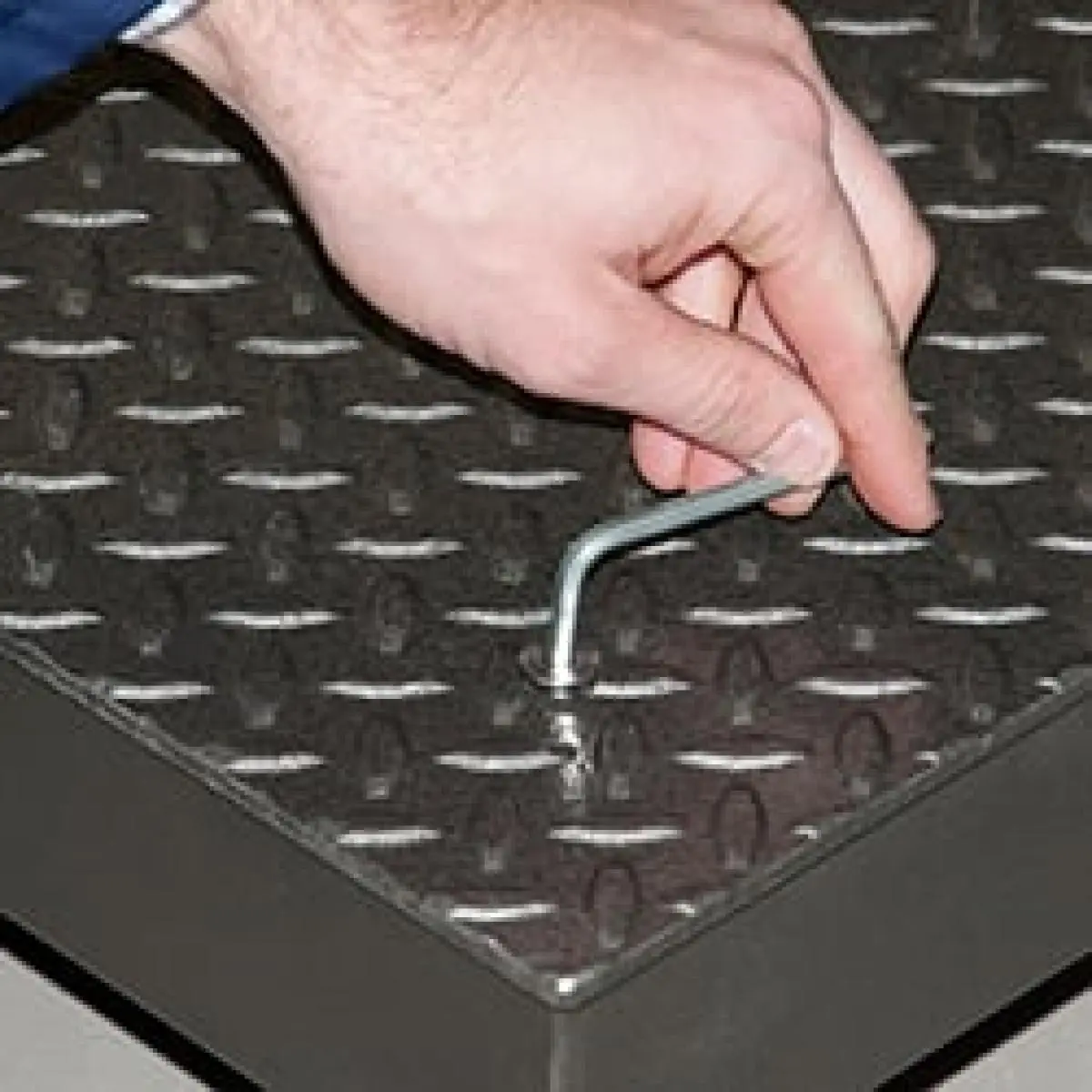

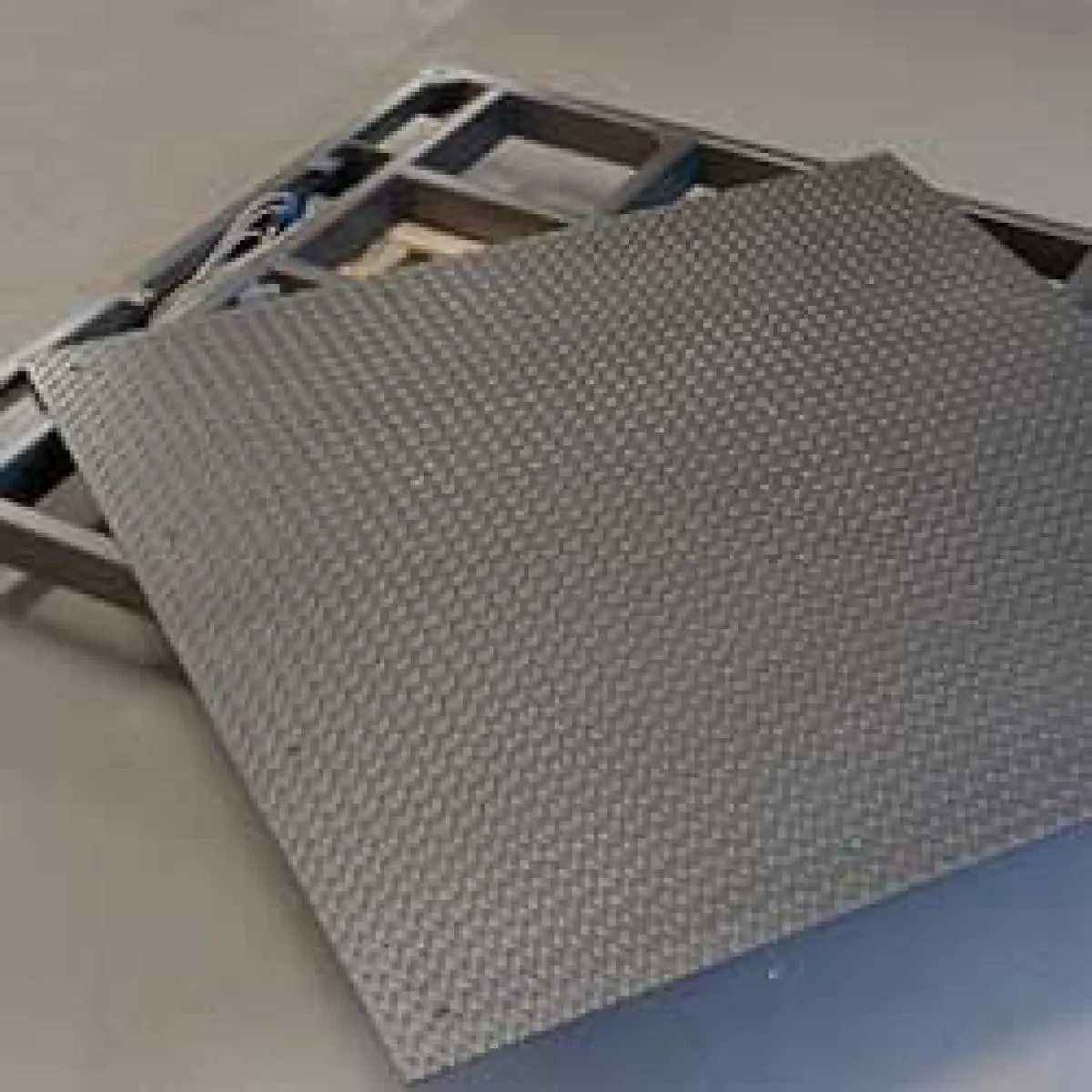

Piece counting function / Summing function / RS-232 interface / Scales made of painted steel / Removable weighing plate / Mounting frame optional

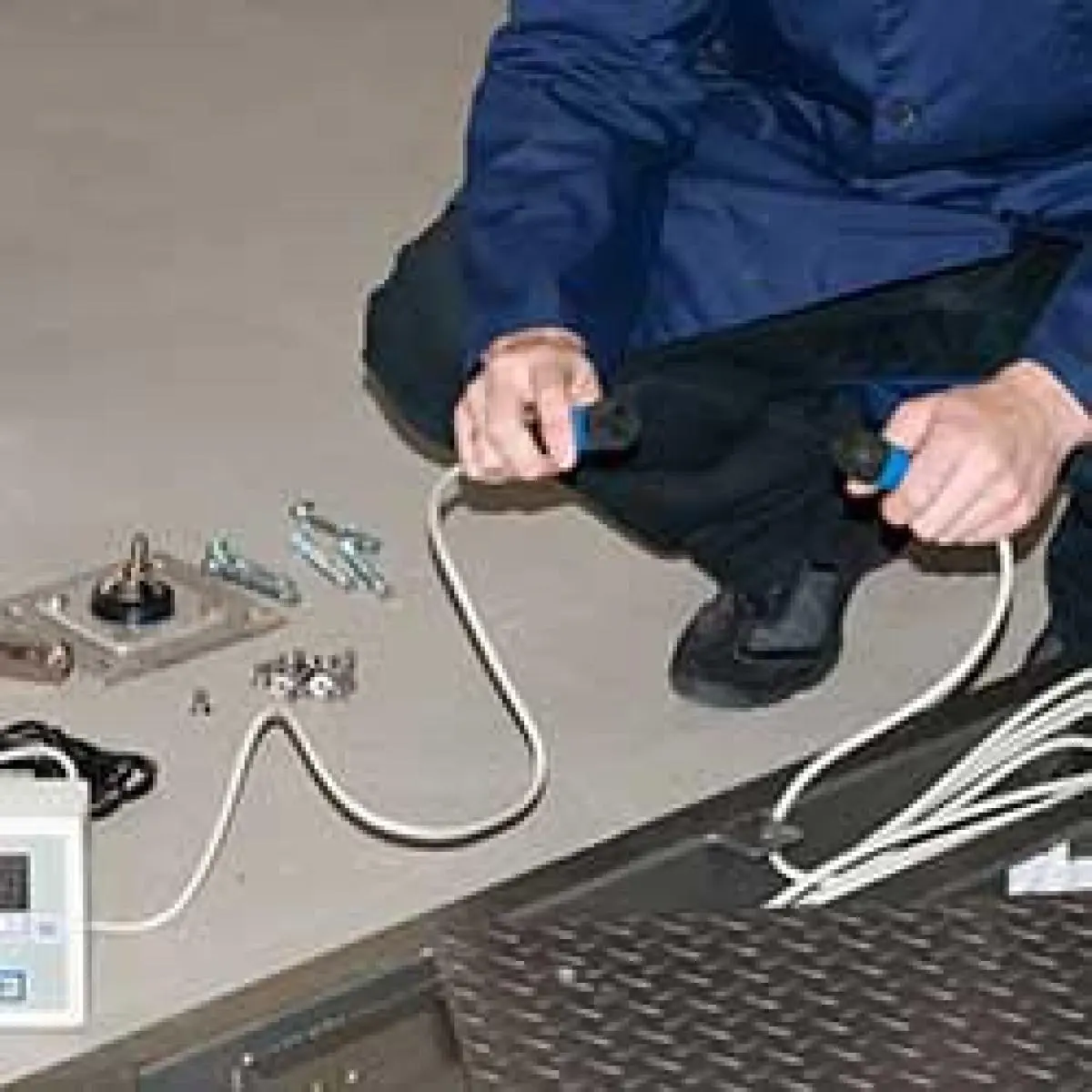

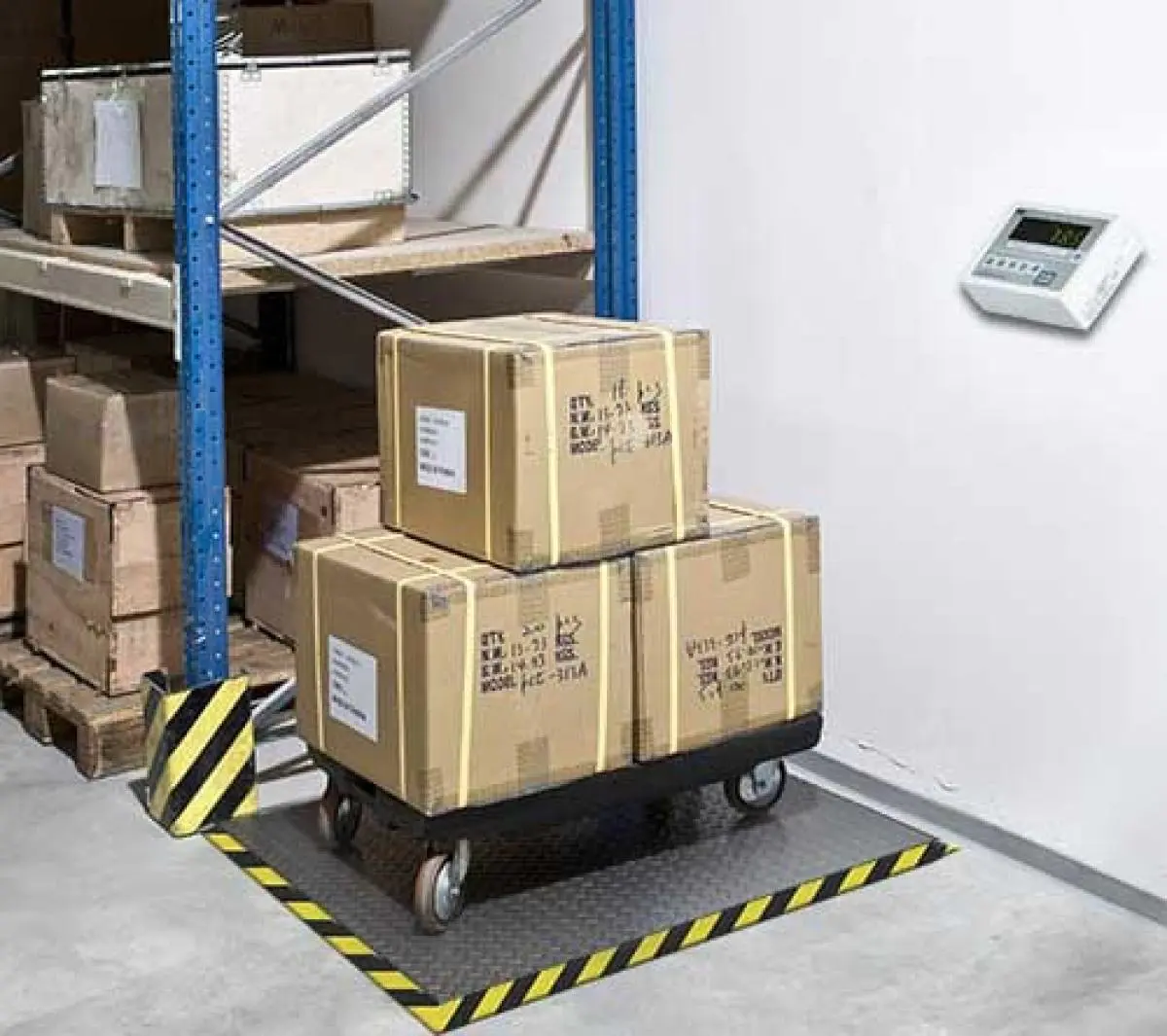

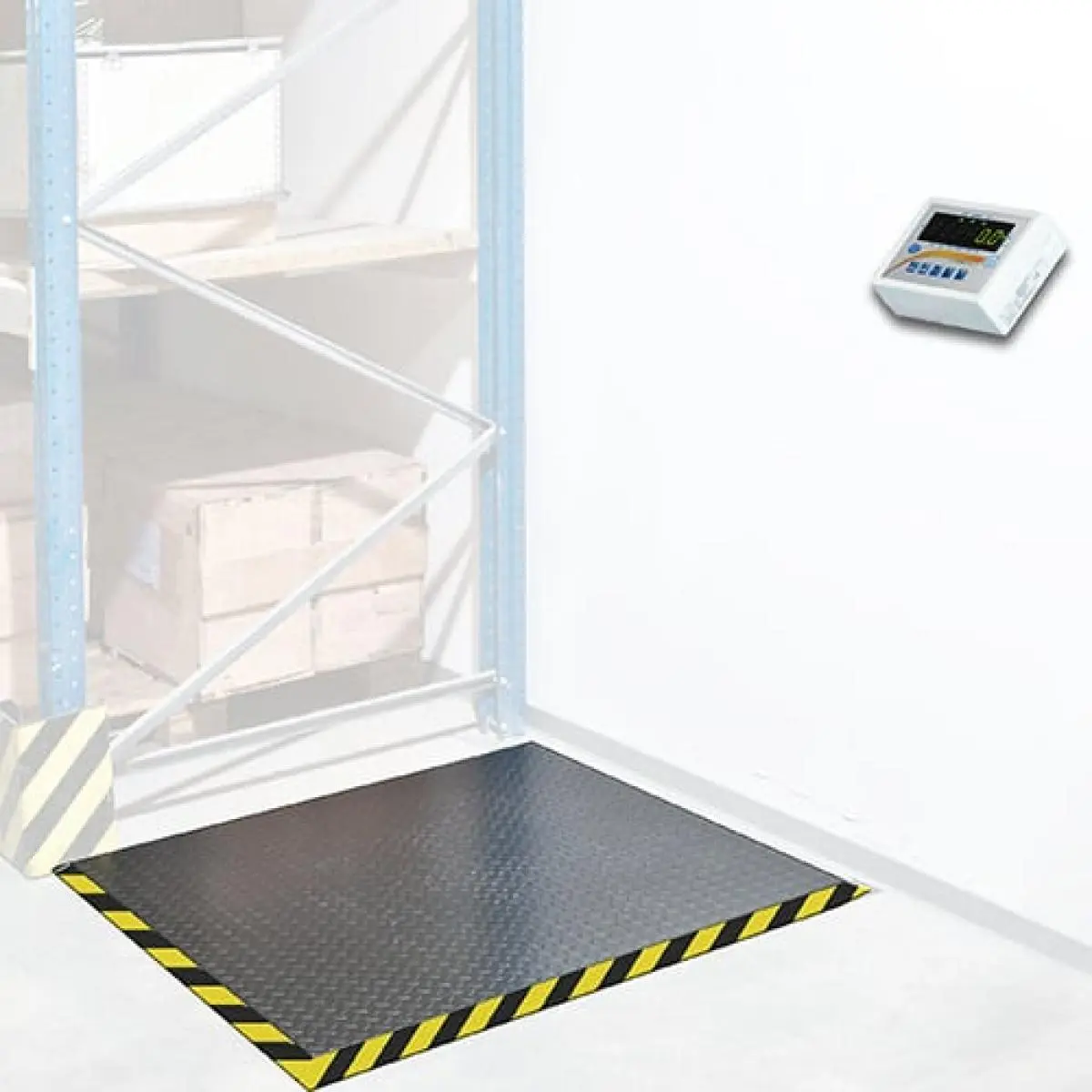

The calibratable built-in platform scale is designed for flush installation and is optionally available with a built-in frame on request. The calibrated built-in platform scale is calibrated according to Calibration Class III and is approved throughout the EU for use for trading of goods for two years. The display cable of the built-in platform scales has a length of 5 m and is equipped with a plug-in connection, which allows a problem-free laying in the cable duct without having to re-calibrate the built-in platform scale. The display of the platform scale is IP 54 protected and has a bracket for a table or wall mounting.

Optionally, you can also get a tripod suitable for the platform scale. Various dimensions of the built-in platform scale are available to you and the functions of the built-in platform scales make this a multi-talent. The serial bi-directional RS-232 interface of the platform  scale is also a versatile feature. Thus, a programmer can easily implement the platform scale in the existing IT system. The platform scale is also available as a stainless steel version. For special industrial applications analog interfaces 4-20 mA or 0-10 V as well as 3 potential-free switching contacts can be offered for the calibrated platform scale.
