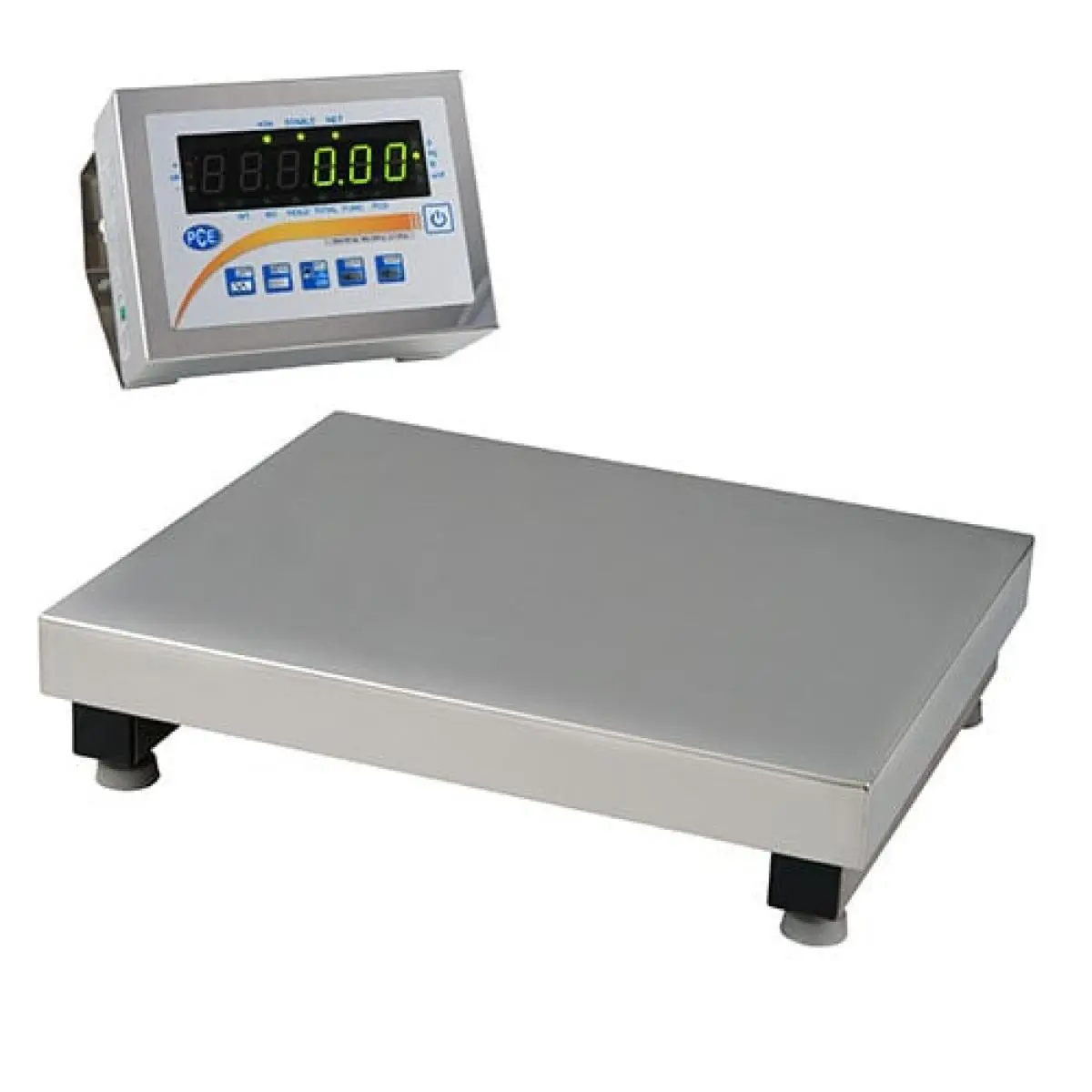

The water resistant parcel scale featuring a separate display can be MIII calibrated and will be delivered calibrated. The load cells of the water resistant parcel scale are IP67 protected, while the display device is made of an IP65 protected enclosure. Thus the water resistant parcel scale proves to be ideal for high-moisture locations or such locations that require a high hygienic standard. With the appropriate equipment that is optionally purchasable, you can also use the water resistant parcel scale on ships at sea.
Standard functions of the water resistant parcel scale are: summation function, counting function, statistics function, mixing on formula, percentage weighing function, animal weighing function, alarm on trespassing thresholds etc. Due to its high IP protection the water resistant parcel scale does not feature any interface. But optionally interfaces can be purchased for the water resistant parcel scale, e.g. RS-232, RS-485, USB, LAN, OC contactors, analogue interfaces 4-20 mA or 0-10 V.
| Weighing range | |
| Measurement range up to [Max] | 150 kg |
| Resolution [d] | 50 g |
| Accuracy | 50 g |
| Verification value [e] | 50 g |
| General technical data | |
| Cable length | 1 m |
| Measuring functions | MIN, MAX, Average value |
| Measuring functions (additional information) | Piece counting function, totalising function, percentage weighing, recipe weighing, statistics function, animal weighing function |
| Units | kg, g, oz, ct, ozt, gr, dwt |
| Display type | LED |
| Digit size [WxH] | Height: 18 mm |
| Interface | bidirectional RS232 |
| Automatic power-off | 5 min |
| Other dimensions | Display 190 x 140 x 65 mm |
| Minimum load [min] | 1 kg |
| Tare range | Multiple tare over the full measurement range |
| Verification class [e] | M III |
| Settling time | < 3 s |
| Menu language | English, English (GB) |
| Protection class (device) | IP65, IP67 |
| Power supply | 230V AC | 50 Hz, 8V A |
| Connector type | Schuko plug |
| (Rechargeable) battery | 1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery |
| Capacity | 220 mAh |
| Operating conditions | -10 ... 40 °C , 20 ... 90 (non-condensing)% RH |
| Storage conditions | -10 ... 40 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 600 x 500 x 135 mm |
| Weight | 25000 g |
