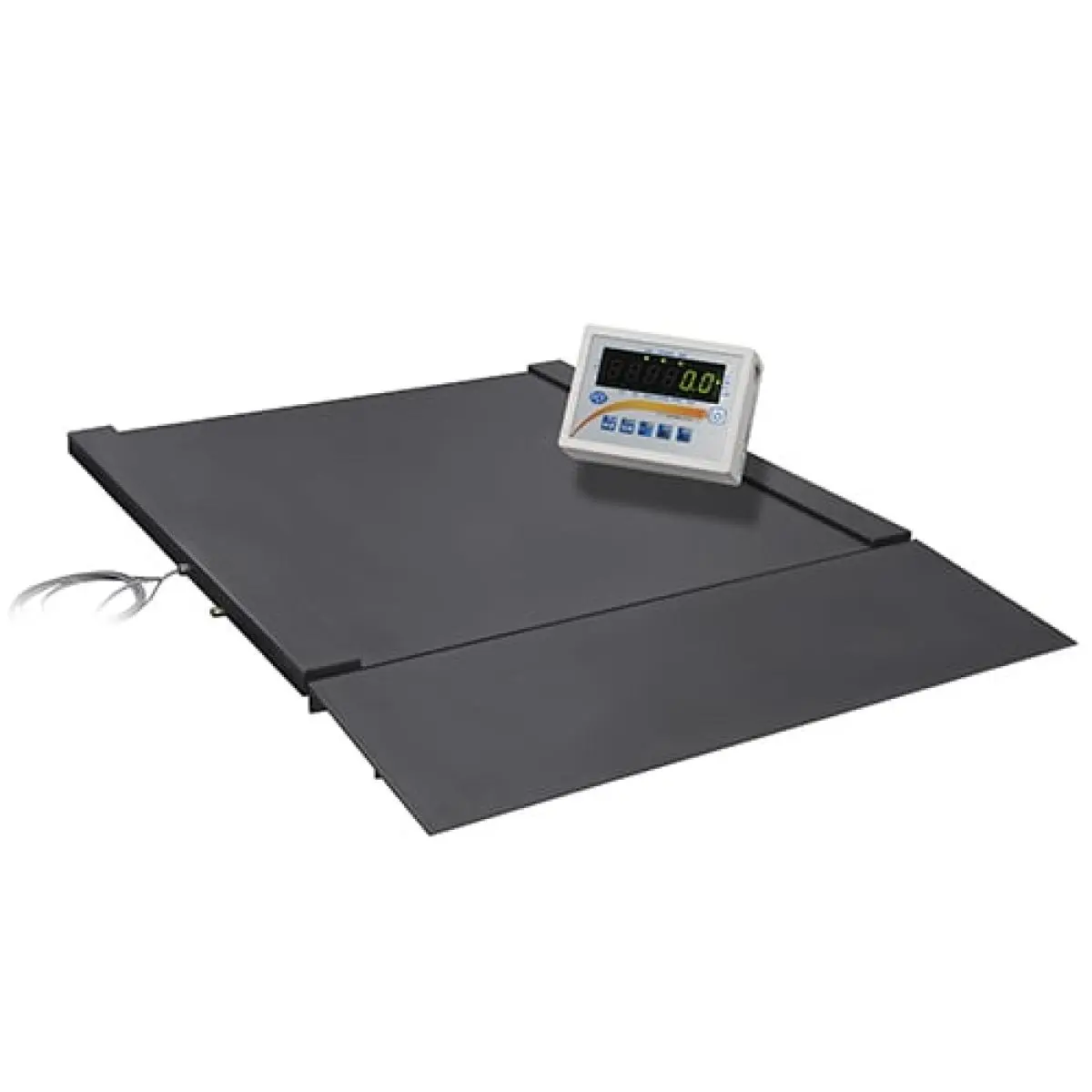

Pallet Scales PCE-SD 300

Pallet Scale PCE-SD 300

Order no.: PCE-SD 300
GTIN (EAN): 4250348712592

3.749,90 €
4.499,88 €
price ex. (VAT / delivery)
:
4250348712592
PCE-SD 300
Delivery time:1-2 working days

Description

Pallet scales up to 300kg / resolution 0.1 kg / low construction height /
includes an access ramp / bidirectional RS-232 interface / totalizing function / piece counting function / tolerance weighing / optional 4-20 mA, 0-10 V or OC switching outputs

The calibrated platform scale is ideal if you do not want to install a scale into the floor. Simply set up the platform scale in the hall, fix the platform scale and the access ramp with the fixing plates included in the scope of delivery, connect the control terminal to the socket and you can start weighing. An initial verification of the platform scale is carried out by us before dispatch, so the platform scale can be used immediately even in goods traffic that is subject to verification.

The platform scale has a low construction height of only approx. 5 cm and enables easy access even with heavy goods. An access ramp is included in the scope of delivery of the platform scales, the second access ramp can be ordered as an option. The display of the platform scale has a bracket that allows it to be mounted on the wall or on a table, a tripod for the platform scale is also optionally available. The functions of the platform scale are: piece counting function, a max. min. weighing, recipe weighing, percentage weighing, average weight determination, totalizing function, a tare weight memory and adjustable RS-232 interface.


Highlights

- Piece counting function
- Percent % comparative weighing
- Filter (reaction time) adjustable
- Animal weighing function
- A tare value can be saved
- Tolerance determination weight min/ok/max
- Sum up several weighings
- Average weight determination
- Mixed recipe weighing
- Adjustable bidirectional RS-232 interface
- Line mode and EPL2 printer languages
- Adjustable automatic switch-off
- Gross / Net key on the display
- Menu freely adjustable
- Maintenance-free components
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]  300 kg
Resolution [d]  0,1 kg
Accuracy  0.1 kg
Verification value [e]  0,1 kg

General technical data
Measuring functions  Average value, MIN, MAX
Measuring functions (additional information)  Piece counting function, animal weighing function, totalising several weighings, recipe mixture weighing
Units  kg, g, lb, oz, ct, ozt, gr, dwt
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  bidirectional RS232
Automatic power-off  5 min
Minimum load [min]  2 kg
Tare range  Over the full weighing range
Calibration  external

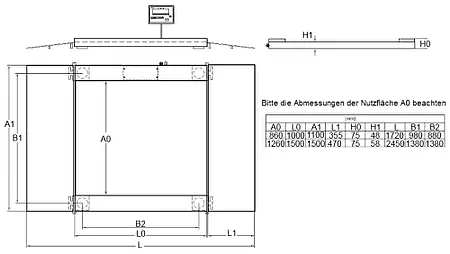

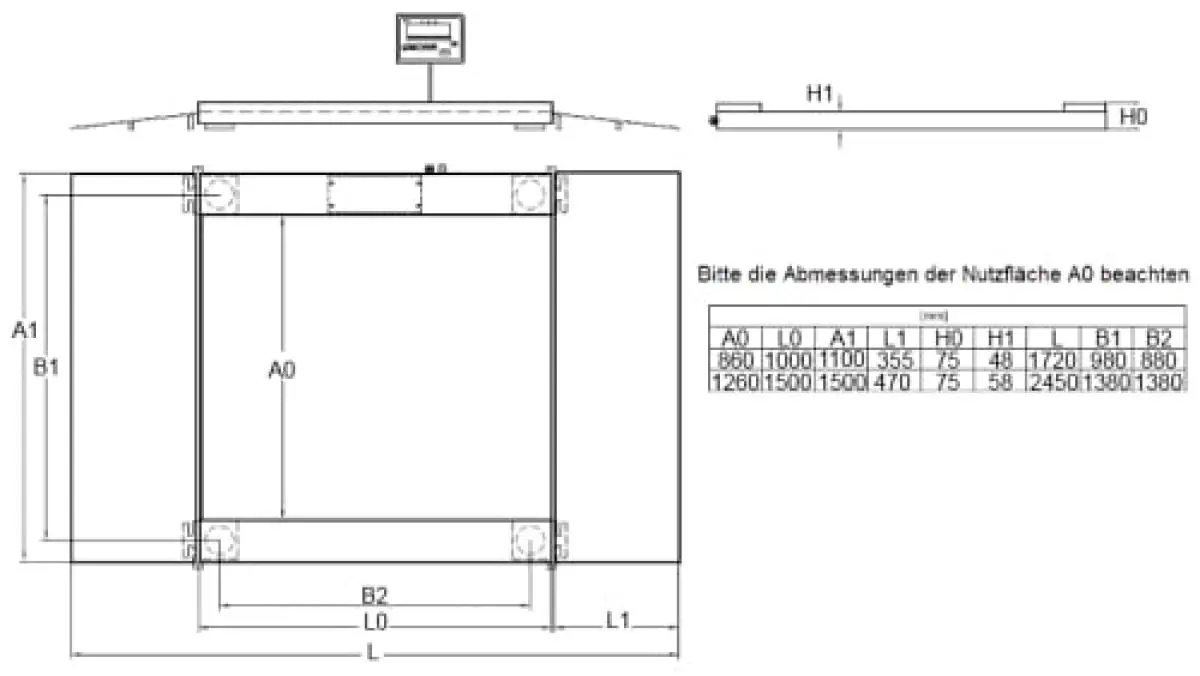

Dimensions  Display 190 x 140 x 65 mm Access ramp L 355 x H 48 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP67, IP54
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V Button cell , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  860 x 1000 x 48 mm
Weight  160000 g

Delivery Scope

1 x Pallet Scales PCE-SD 300
1 x display
1 x access ramp
4 x floor fixing plates
1 x instruction manual
