- TXT Format
- Query commands adjustable
- Polling cycle adjustable
- Internal clock for time / date stamp
- External power supply
- USB Stick incl.

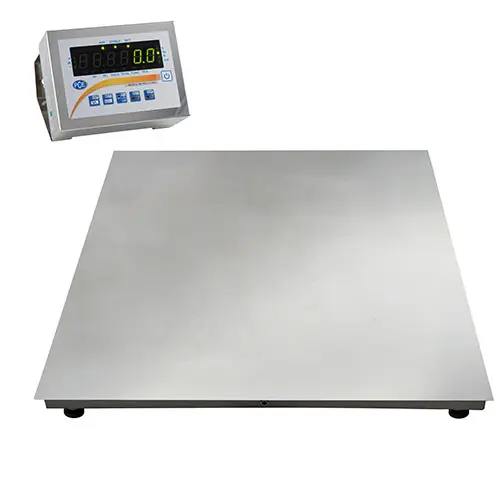

Calibratable stainless steel counitng scales up to 6,000 kg / Resolution from 0.1 kg
/
Summing function / Tare weight storable / Piece counting function
/ Limit value weighing
Optional: analog output 4-20 mA, 0-10 V, OC switch contacts, RS-232, USB, LAN
|
||||||||||||||
* The minimum load is the load from which the calibration authority checks the accuracy. The verifiable floor scale also indicates smaller weights, but these may not be used in legal traffic. | ||||||||||||||
Calibration | calibratable according to class M III (calibrated) | |||||||||||||
Tare range | multiple tare over the full range | |||||||||||||
Settling time | <4 s | |||||||||||||
Display | LED with 20 mm digit height (on the 3 m cable) | |||||||||||||
Weighing units | kg / piece / lb | |||||||||||||
Interface | optional bidirectional RS-232, USB, LAN as well as 4-20 mA, 0-10V, OC |
|||||||||||||
Ramp | optional, see accessories | |||||||||||||
Operating temperature | -10 °C ... +40 °C | |||||||||||||
Power supply | ~230V 50Hz 8VA (safety plug) | |||||||||||||
Protection | IP68 cells / IP65 display |
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
PCE-SOFT-Procell is a software package that runs in the background and is used to transmit the weight data from the scale or balance to a program where keyboard input is possible — such as Microsoft Excel, Word, UPS, DHL or SAP — as keyboard input is simulated by the software. (Note: If you only have a USB interface or port on your computer, you must use an RS-232 to USB adapter.)
