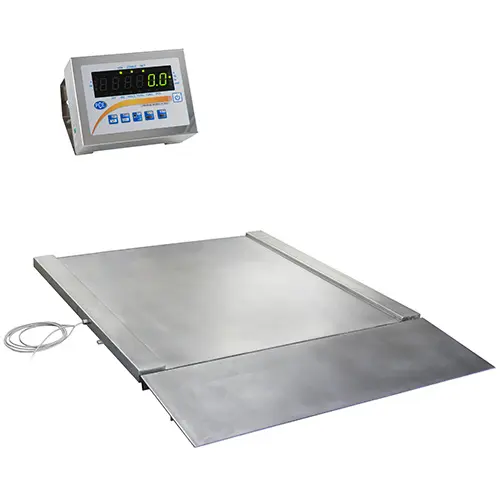

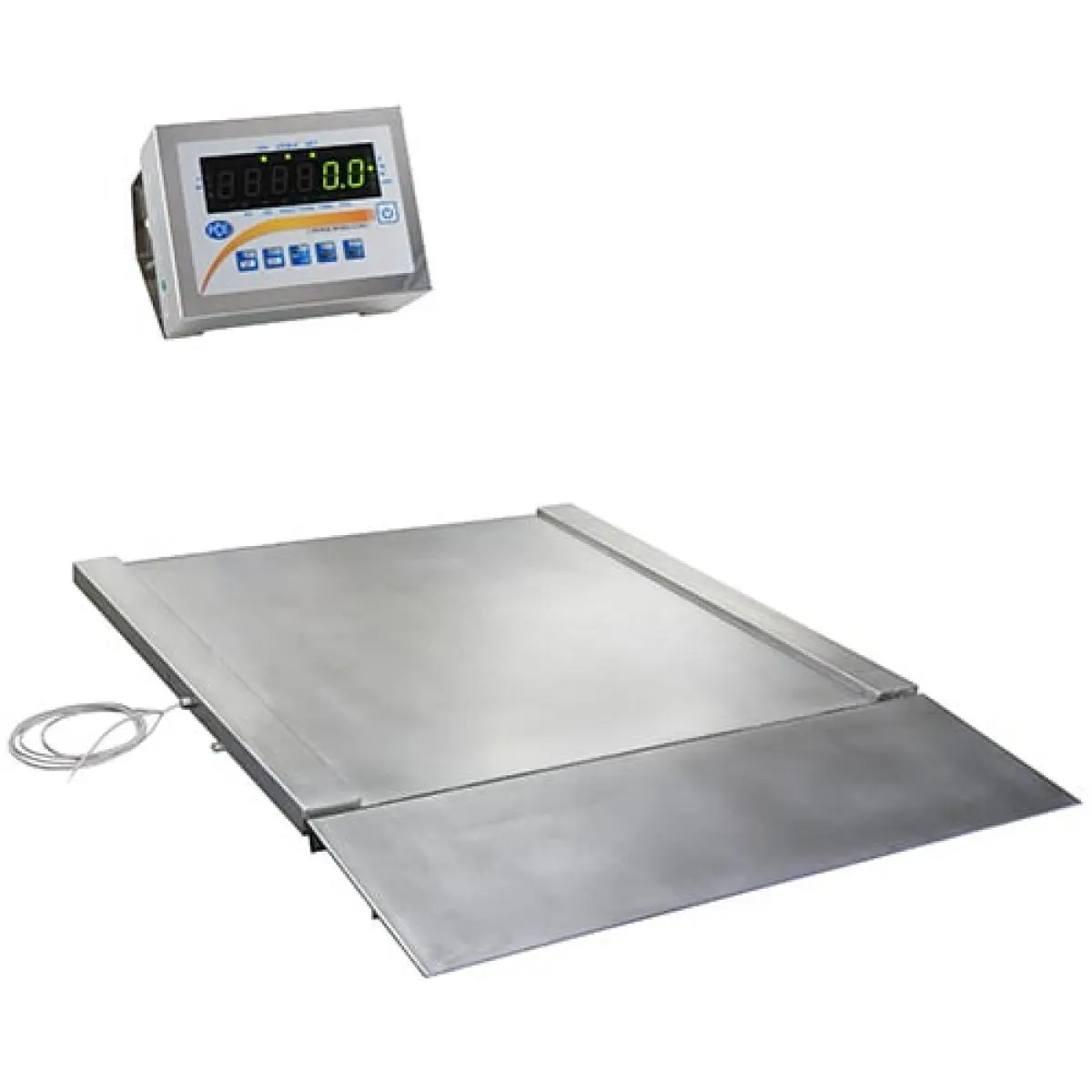

NTEP Certified Scales PCE-SD 1500 SST

NTEP Certified Scale PCE-SD 1500 SST

Order no.: PCE-SD 1500 SST
GTIN (EAN): 4250348712547

8.649,50 €
price ex. (VAT / delivery)
:
4250348712547
PCE-SD 1500 SST
Delivery time:1-2 working days

Description

NTEP Certified Scale up to 1500 kg / resolution 0.5 kg /
corrosion and acid resistant / protection class IP 65 / IP 68 / low overall height /
very robust design / incl. an access ramp and calibration

Before delivery, the NTEP certified scale is calibrated for its location of use according to calibration class III and is then approved for two years in all of Europe for calibration class III. The NTEP certified scale is made of solid corrosion and acid-resistant steel. The weighing platform of the NTEP certified scale has encapsulated weighing cells that withstand the harshest conditions with the IP 68 protection class. The drive-on ramp is easy to drive on thanks to the low height of the NTEP certified scale and, as required, can be used as a drive-on ramp or as a drive-through scale using a second optionally available drive-through ramp. The fixing plates included in the scope of delivery ensure that the NTEP certified scale stands securely and prevent the ramps from slipping.

The stainless steel display of the NTEP certified scale is IP 65 protected and can be conveniently mounted on the table, on the wall or on the optionally available stainless steel tripod. The functional package of the NTEP certified scale is very extensive. Functions such as auto tare, piece counting function, saving a fixed tare weight, recipe function, summing function and more make work much easier. The NTEP certified scale is ideal if you do not want to install a scale into the floor. Simply set up the NTEP certified scale on a level hall floor, connect the control terminal and you can start weighing. For the NTEP certified scale, we offer an RS-232, USB, LAN interface and 4..20 mA or 0 ... 10 V analog outputs or three switching outputs.


Highlights

- Calibrated according to M III
- Statistics function
- Sum up several weighings
- Percent % comparative weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- Maximum value display
- Mixed recipe weighing
- Tolerance determination weight min / ok / max
- A tare value can be saved
- Adjustable automatic switch-off
- Gross / Net key on the display
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measuring range from  10 kg
Measurement range up to [Max]  1500 kg
Resolution [d]  0,5 kg
Accuracy  0.5 kg
Verification value [e]  0,5 kg

General technical data
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Statistics function, percentage comparative weighing, animal weighing function, piece counting function, recipe weighing, totalising several weighings
Units  kg, lb, g, oz, ct, ozt, gr, dwt, T
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  RS232
Automatic power-off  5 min
Minimum load [min]  10 kg
Tare range  Multiple tare throughout the entire weighing range
Calibration  external
Dimensions  Display 190 x 140 x 65 mm Access ramp: L 480 × H 58 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP65, IP68
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  1500 x 1250 x 58 mm
Weight  350000 g

Delivery Scope

1 x calibrated stainless steel drive-through NTEP Certified Scaless
1 x drive-on ramps
1 x display (3 m cable)
4 x fixing plates
1 x table / wall bracket
1 x user manual
