Heavy Duty Scales PCE-SD 1500 SST

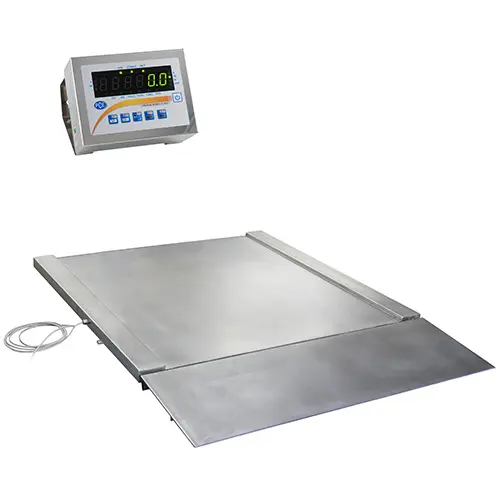

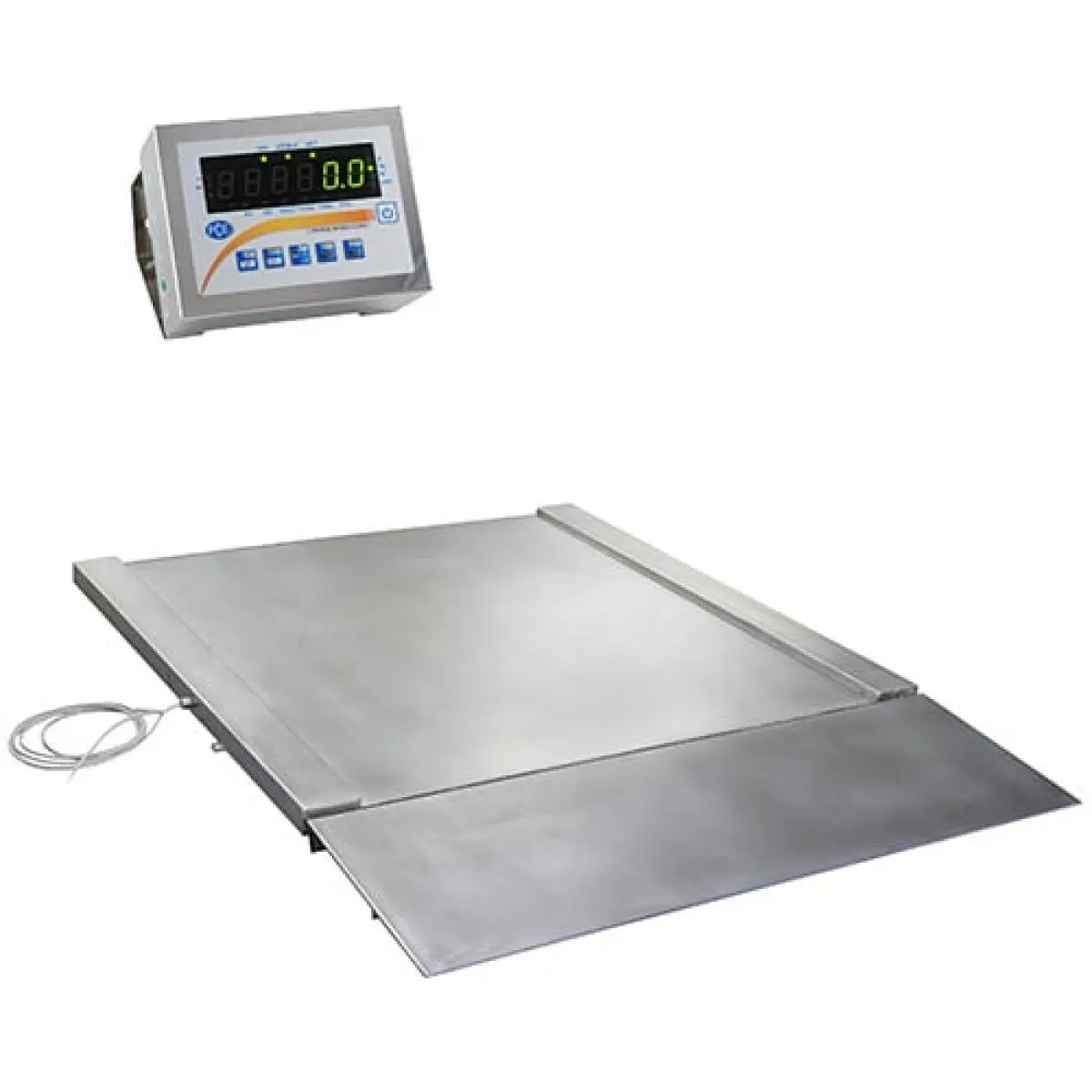

Heavy Duty Scale PCE-SD 1500 SST

Order no.: PCE-SD 1500 SST
GTIN (EAN): 4250348712547

8.649,50 €
10.292,91 €
price ex. (VAT / delivery)
:
4250348712547
PCE-SD 1500 SST
Delivery time:1-2 working days

Description

Calibratable Heavy Duty Scale up to 1500 kg / resolution 0.5 kg /
corrosion and acid resistant / protection class IP 65 / IP 68 / low overall height /
very robust design / incl. an access ramp and calibration

Before delivery, the calibratable stainless steel heavy duty scale is calibrated for its location of use according to calibration class III and is then approved for two years in all of Europe for calibration class III. The stainless steel heavy duty scale is made of solid corrosion and acid-resistant steel. The weighing platform of the stainless steel heavy duty scale has encapsulated weighing cells that withstand the harshest conditions with the IP 68 protection class. The drive-on ramp is easy to drive on thanks to the low height of the stainless steel heavy duty scale and, as required, can be used as a drive-on ramp or as a heavy duty scale using a second optionally available drive-through ramp. The fixing plates included in the scope of delivery ensure that the calibrated stainless steel heavy duty scale stand securely and prevent the ramps from slipping.

The stainless steel display of the heavy duty scale is IP 65 protected and can be conveniently mounted on the table, on the wall or on the optionally available stainless steel tripod. The functional package of the calibrated stainless steel heavy duty scale is very extensive. Functions such as auto tare, piece counting function, saving a fixed tare weight, recipe function, summing function and more make work much easier. The heavy duty scale is ideal if you do not want to install a scale into the floor. Simply set up the heavy duty scale on a level hall floor, connect the control terminal and you can start weighing. For the heavy duty scale, we offer an RS-232, USB, LAN interface and 4..20 mA or 0 ... 10 V analog outputs or three switching outputs.


Highlights

- Calibrated according to M III
- Statistics function
- Sum up several weighings
- Percent % comparative weighing
- Filter (reaction time) adjustable
- Animal weighing function
- Piece counting function
- Maximum value display
- Mixed recipe weighing
- Tolerance determination weight min / ok / max
- A tare value can be saved
- Adjustable automatic switch-off
- Gross / Net key on the display
- Optional: USB, LAN or 4-20 mA

Specification

Weighing range
Measurement range up to [Max]  1500 kg
Resolution [d]  0,5 kg
Accuracy  0.5 kg
Verification value [e]  0,5 kg

General technical data
Measuring functions  MIN, MAX, Average value
Measuring functions (additional information)  Statistics function, percentage comparative weighing, animal weighing function, piece counting function, recipe weighing, totalising several weighings
Units  kg, lb, g, oz, ct, ozt, gr, dwt, T
Display type  LED
Digit size [WxH]  Height: 18 mm
Interface  RS232
Automatic power-off  5 min
Minimum load [min]  10 kg
Tare range  Multiple tare throughout the entire weighing range
Calibration  external
Dimensions  Display 190 x 140 x 65 mm Access ramp: L 480 × H 58 mm
Verification class [e]  M III
Settling time  < 4 s
Menu language  English, English (GB)
Protection class (device)  IP65, IP68
Power supply  230V AC | 50 Hz, 8V A
Connector type  Schuko plug
(Rechargeable) battery  1 x 3 V CR 2032 (button cell 3V) , lithium-ion battery
Capacity  220 mAh
Operating conditions  -10 ... 40 °C , 20 ... 90 (non-condensing)% RH
Storage conditions  -10 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  1500 x 1250 x 58 mm
Weight  350000 g

Delivery Scope

1 x calibrated stainless steel drive-through Heavy Duty Scales
1 x drive-on ramps
1 x display (3 m cable)
4 x fixing plates
1 x table / wall bracket
1 x user manual
