Compact Scales / Compact Balances PCE-BSK 5100

Compact Balance PCE-BSK 5100

Order no.: PCE-BSK 5100
GTIN (EAN): 4250348722027
166,90 €
198,61 €
price ex. (VAT / delivery)
:
4250348722027
PCE-BSK 5100
Delivery time:1-2 working days

Description

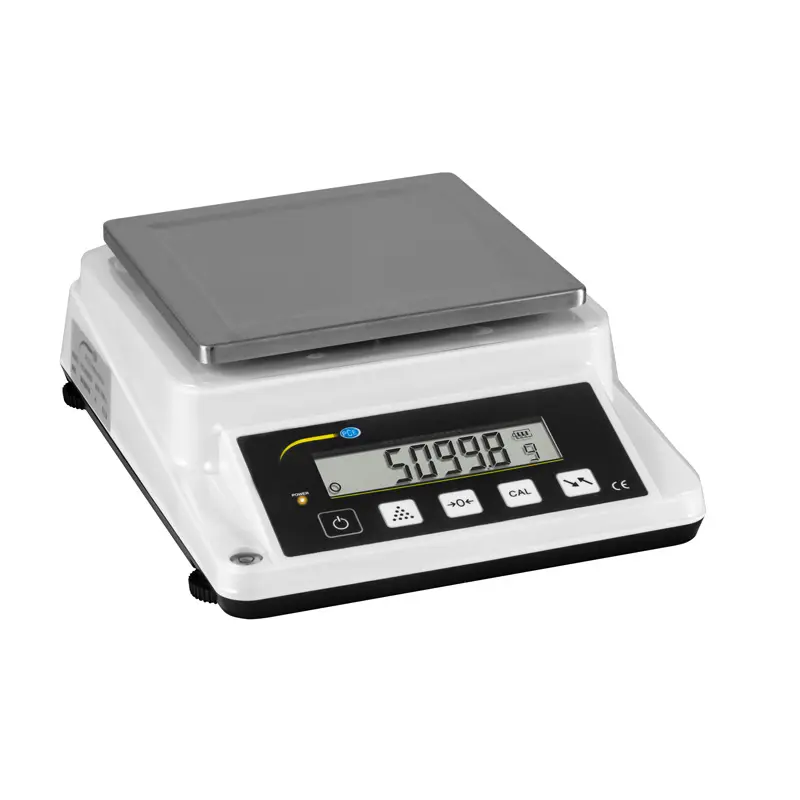

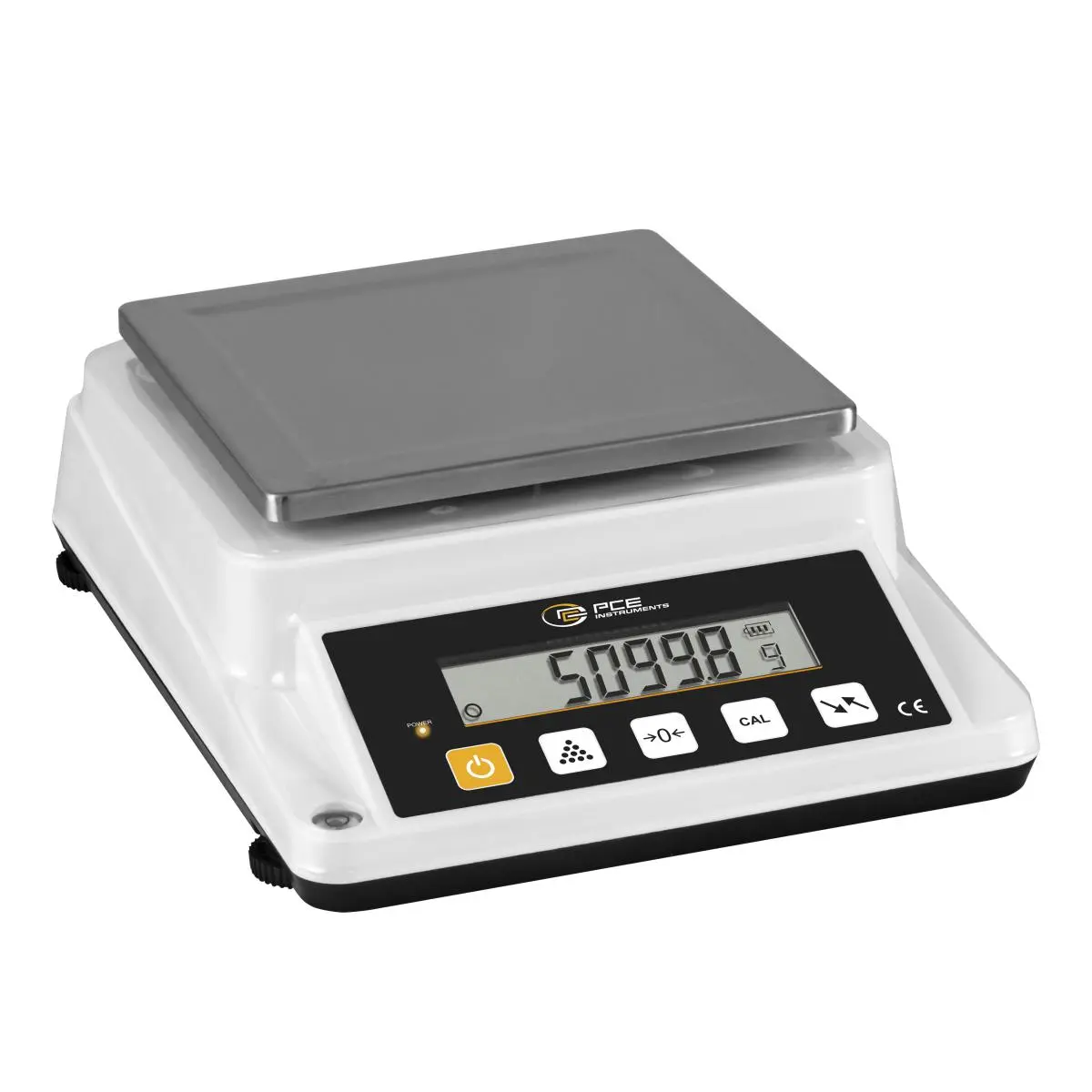

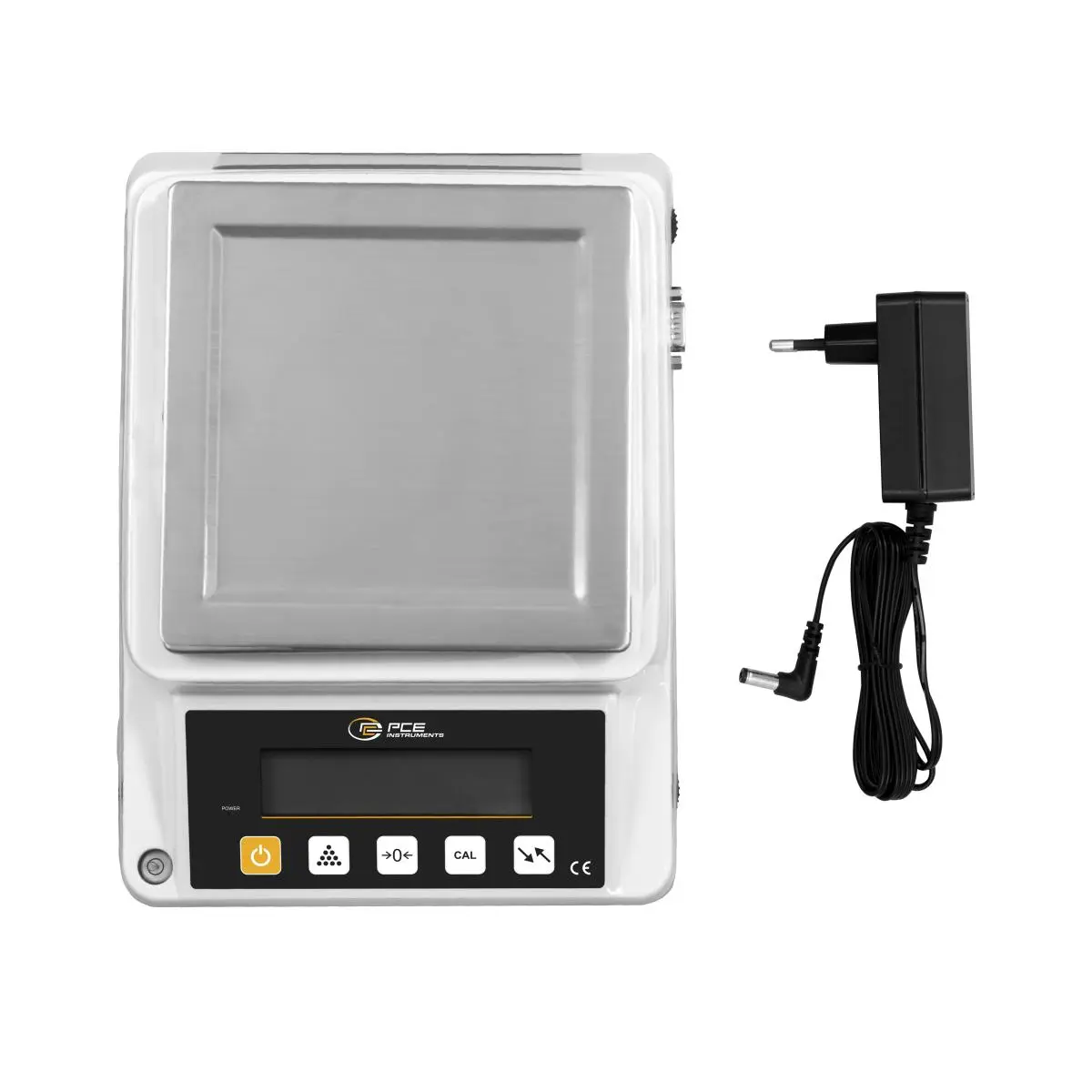

Compact balance PCE-BSK 5100
Compact balance with piece counting function / Usable batteries for mobile operation / RS-232 interface / Level for aligning the scale / For mobile use

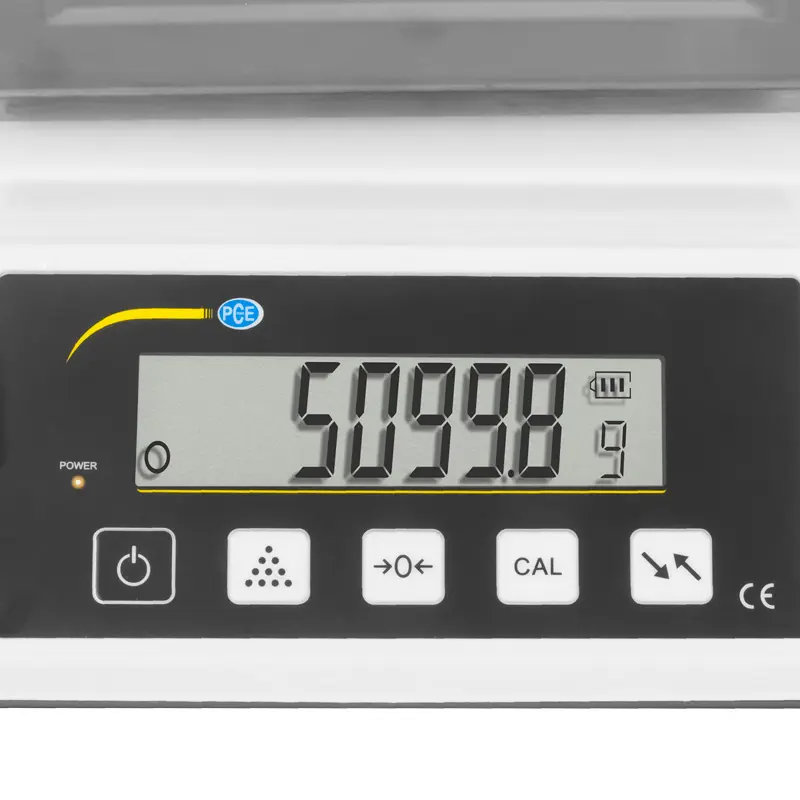

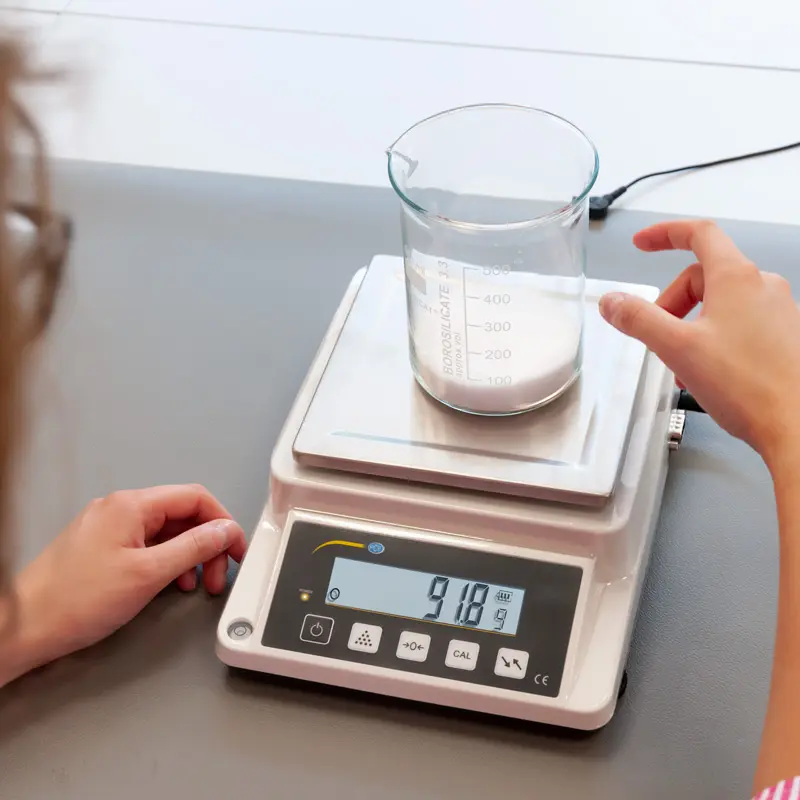

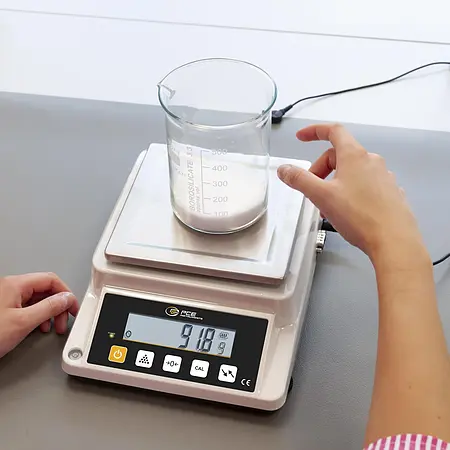

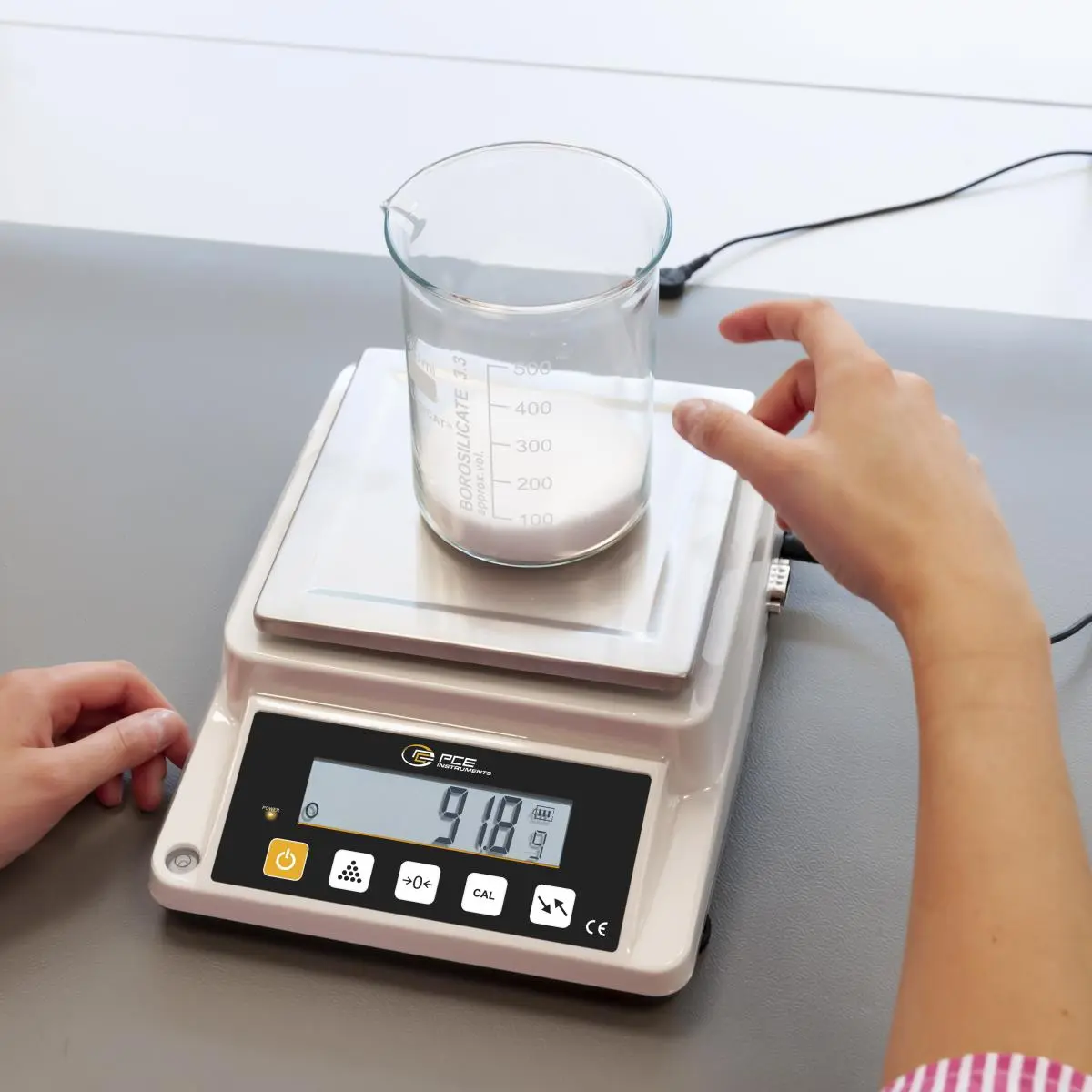

The compact balance is a scale for daily laboratory use. Another function besides the normal measuring function of the compact balance is the piece counting function. This function allows the compact balance to determine the number of screws, for example. Thus, the compact balance can also be used in logistics, for example. So that the display is readable even in low light conditions, the display of the laboratory scale has a backlight.

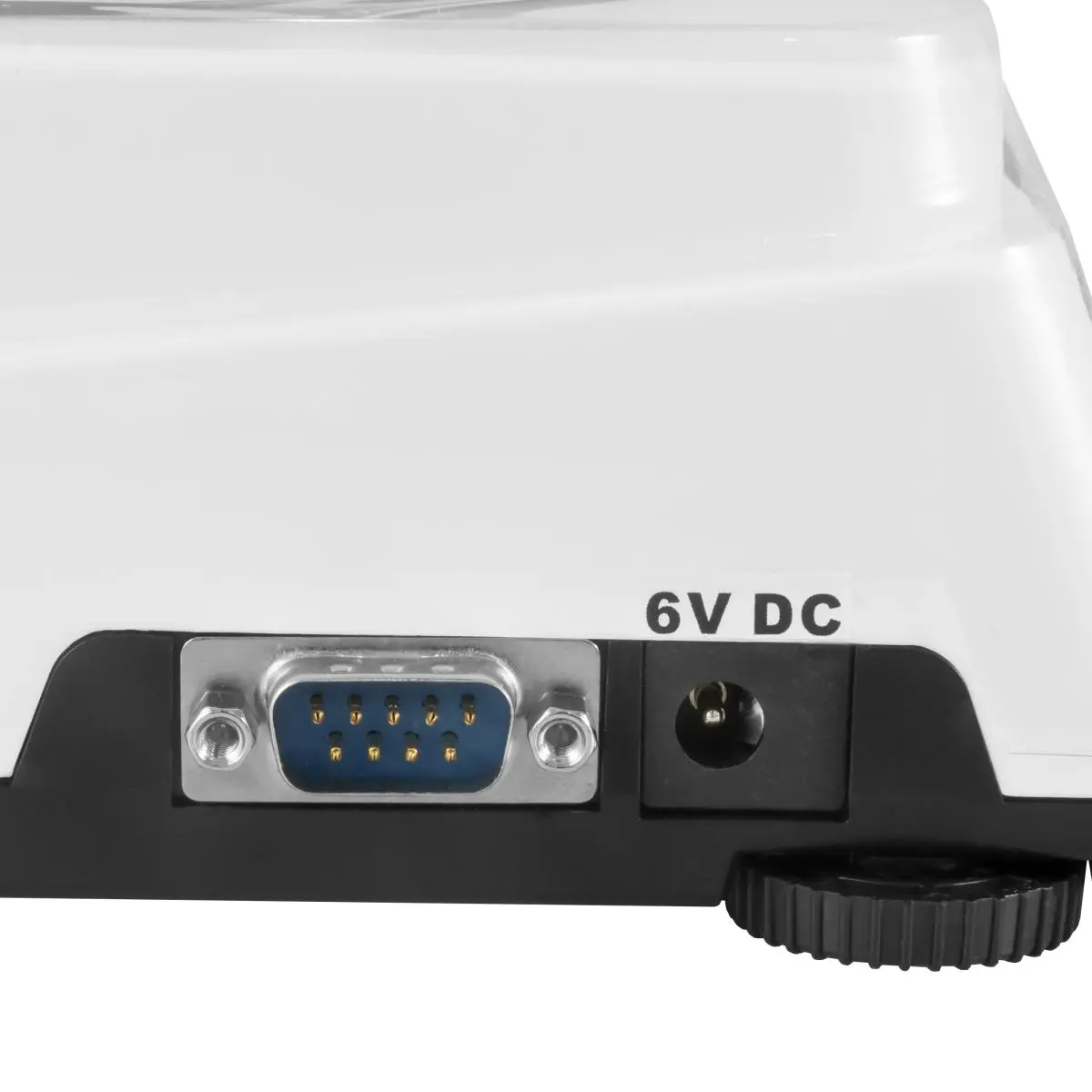

In addition to the measuring functions, the compact balance also has an RS 232 interface. Thanks to this interface, the measured values ​​can be transferred to a PC, for example. This compact balance can be used for stationary as well as for mobile use. For mobile use, the compact balance requires 3 x 1.5V AA batteries, which can be used quickly and easily.

Highlights

- Piece counting function
- RS-232 interface

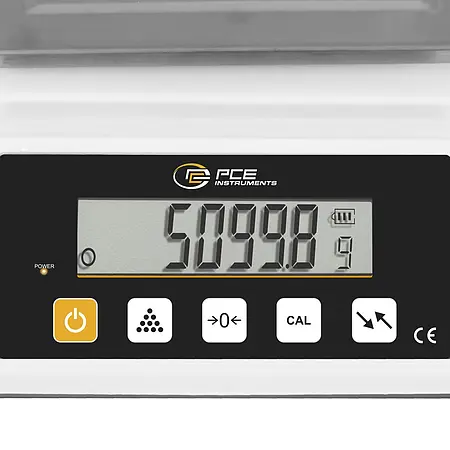

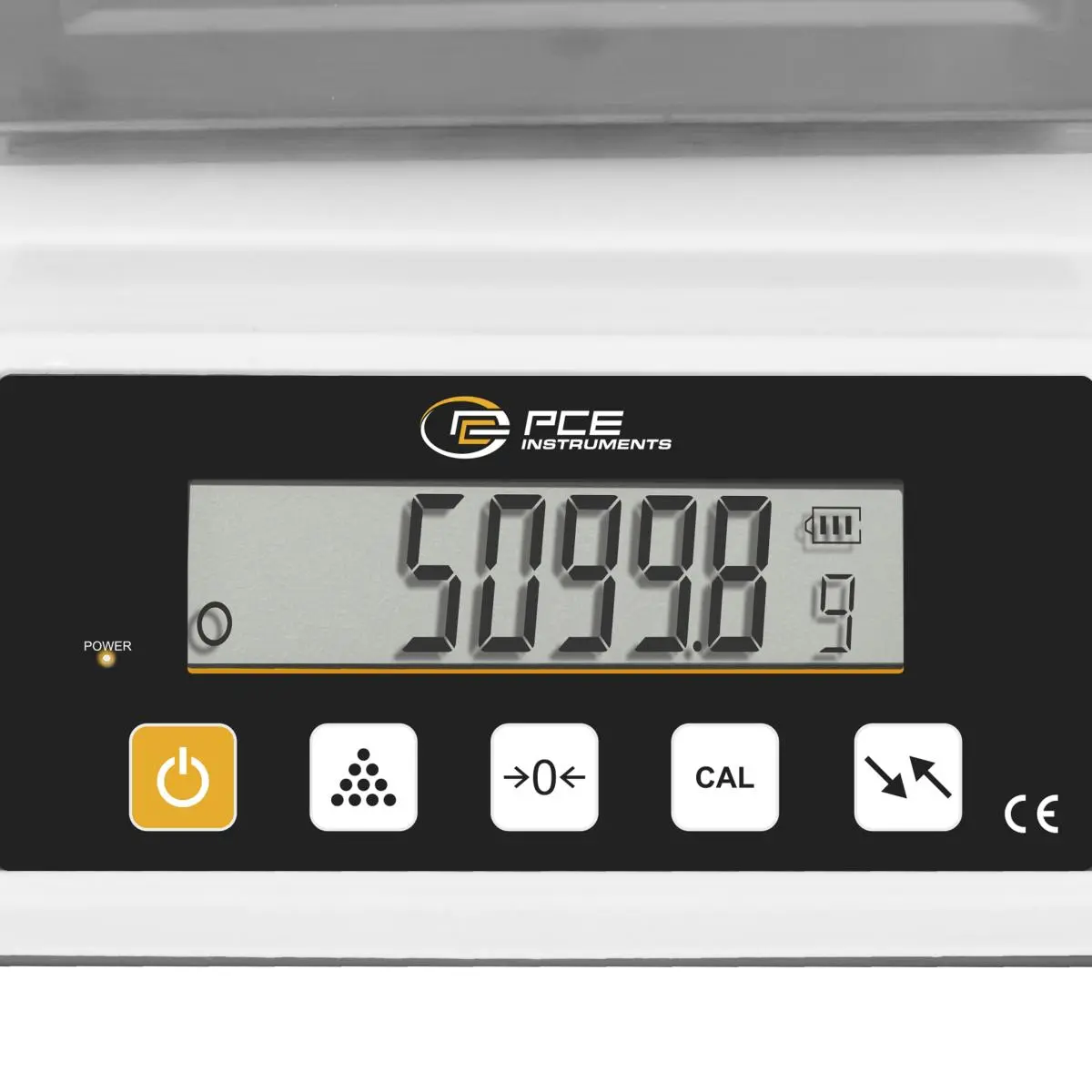

- Backlight
- Battery operation for mobile use

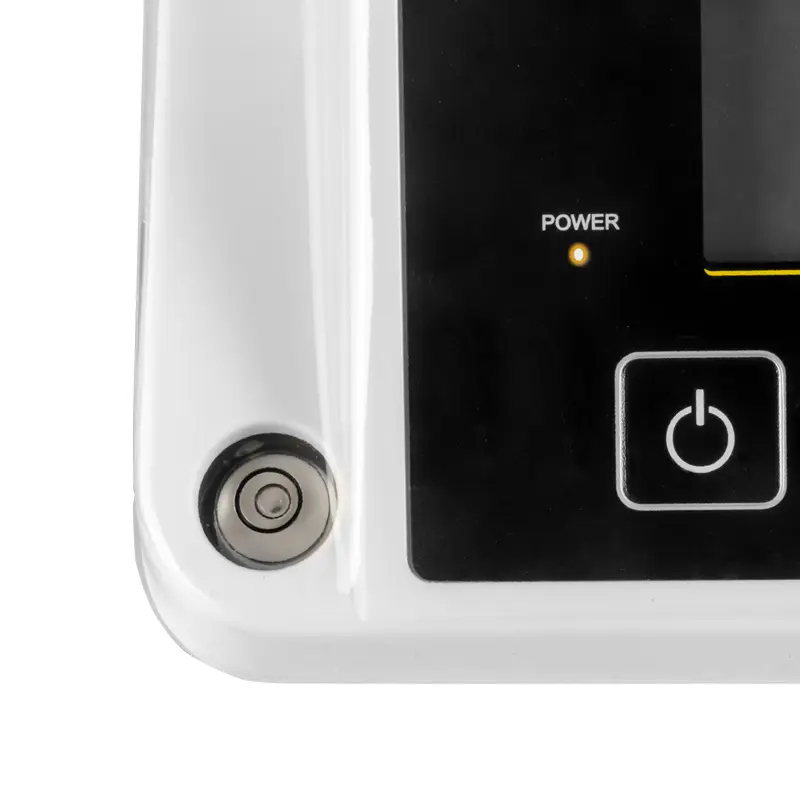

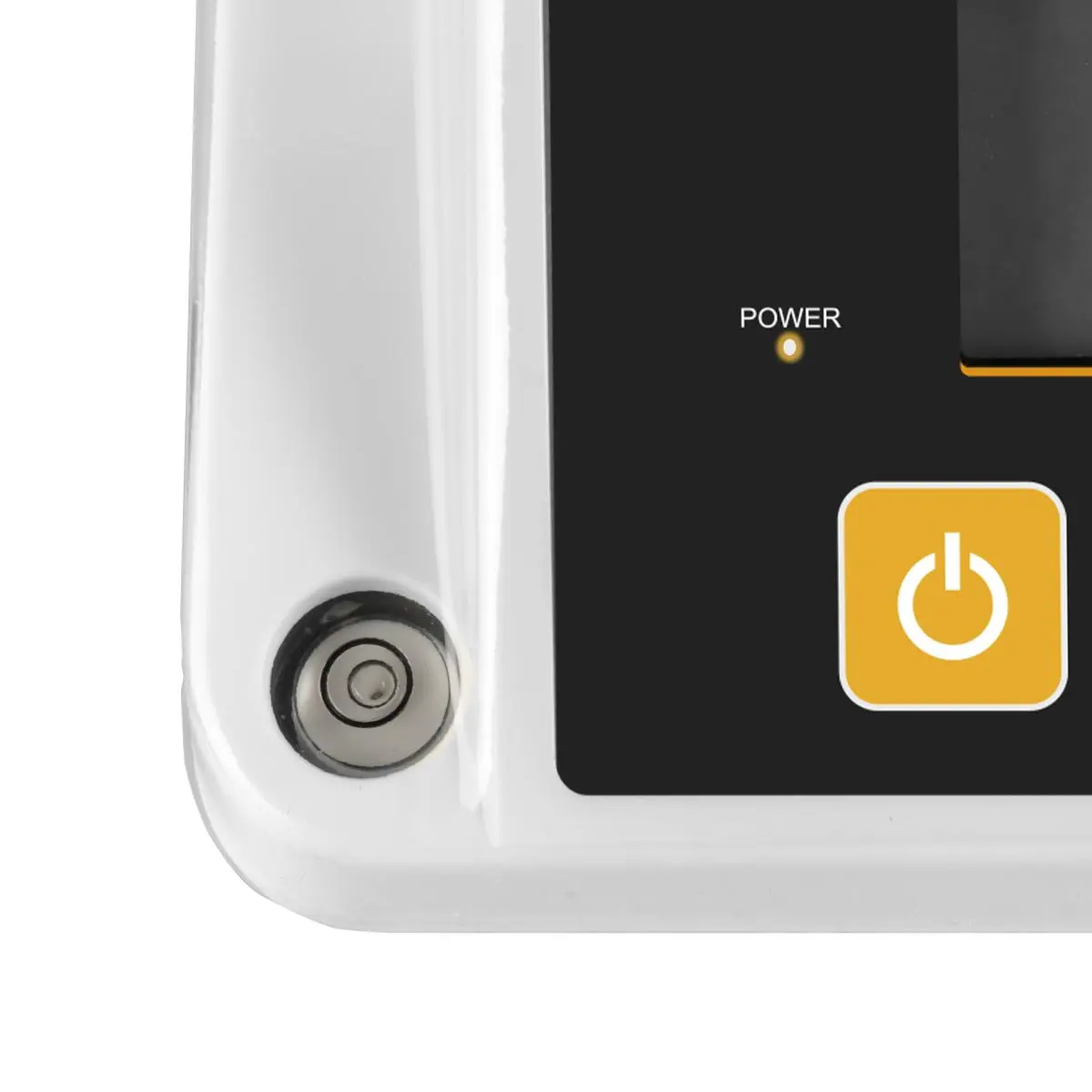

- Level to align the scale
- High precision

Specification

Weighing range
Measurement range up to [Max]  5100 g
Resolution [d]  0,1 g
Accuracy  Class III

General technical data
Measuring functions (additional information)  Piece counting function
Interface  RS232
Repeatability  0,2 g
Housing  Plastic
Calibration  external
Dimensions  Weighing plate: 160 x 160 mm
Settling time  < 3 s
Linearity  ±0.3 g
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50/60 Hz
6V DC, 500 mA
Connector type  Device-europlug
Operating conditions  0 ... 40 °C , 50 ... 85 % RH
Storage conditions  0 ... 50 °C , 50 ... 85 % RH
Dimensions ( L x W x H )  270 x 200 x 80 mm
Weight  950 g

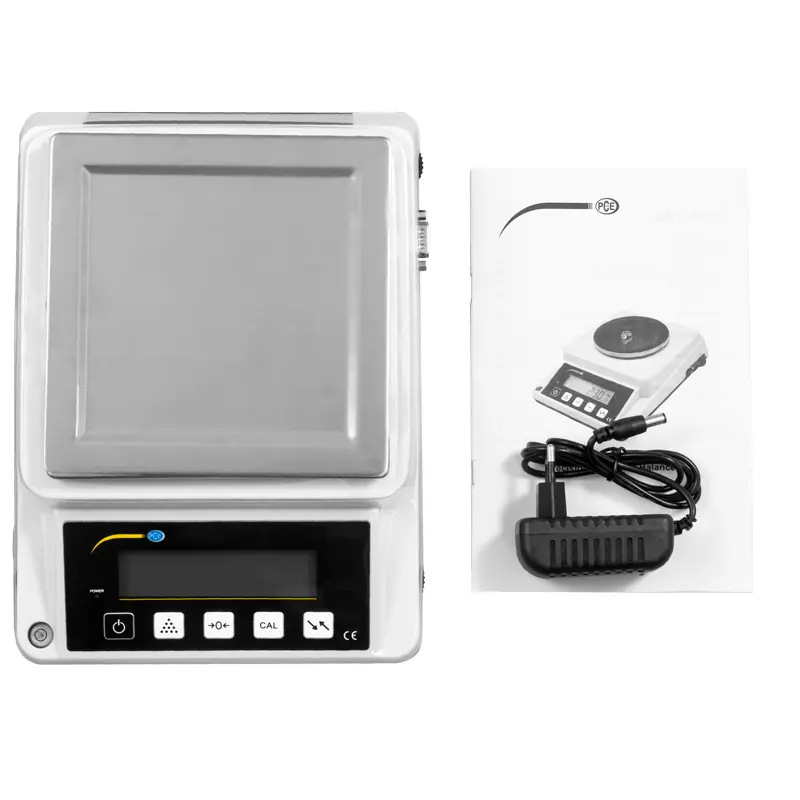

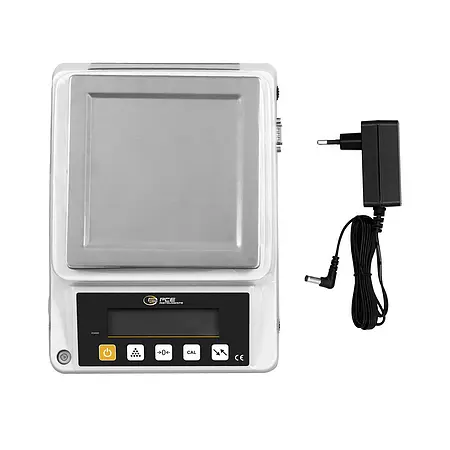

Delivery Scope

1 x Compact Scales / Compact Balances PCE-BSK 5100
1 x Power supply
1 x User manual
