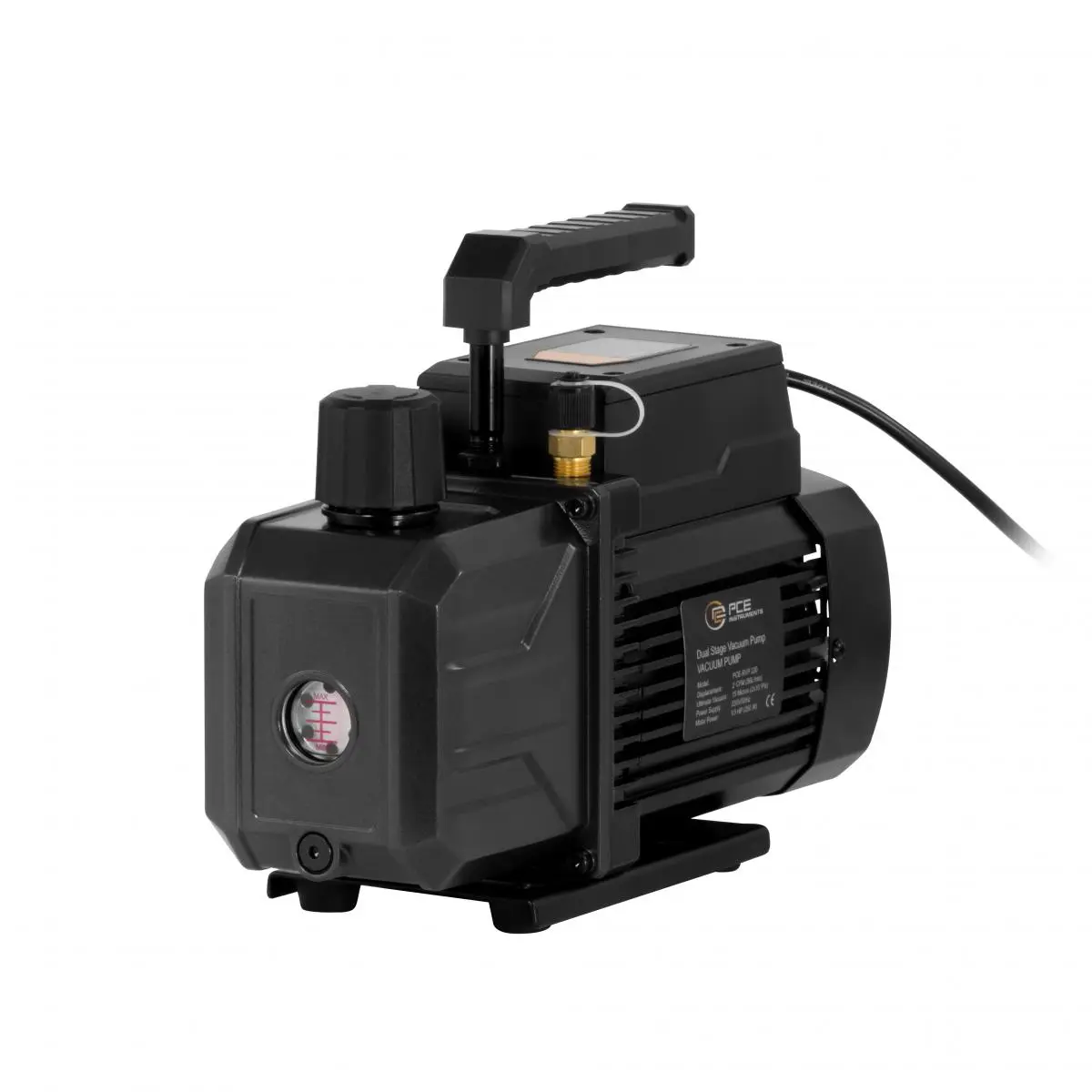

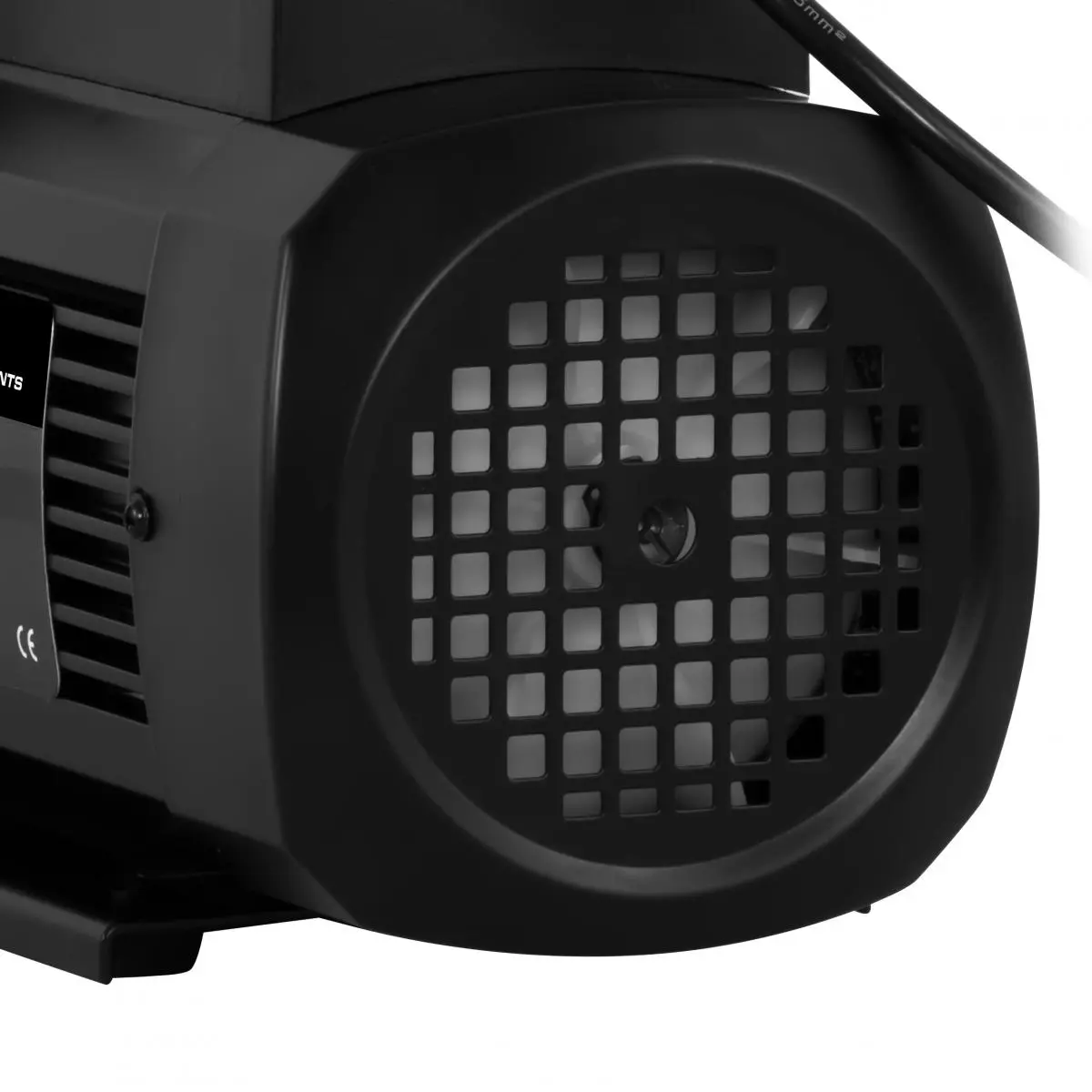

The Vacuumpump is equipped with a reliable motor that provides sufficient torque for stable operation. The motor power is 0.34 hp (250W) and ensures efficient and reliable performance. With a flow rate of 56 to 68 l/min, the Vacuumpump can quickly evacuate air and moisture from air conditioning systems, cooling systems or heat pumps. The pump has a 1/4-inch connection, which allows it to be used with various refrigerant hoses. An integrated filter element reduces oil mist, extends the service life of the Vacuumpump and ensures a cleaner working environment. The ergonomic rubber handle facilitates transport and handling. The Vacuumpump removes air and moisture from the system before refrigerant is filled, improving the efficiency and service life of the system.
| General technical data | |
| Cable length | 130 cm |

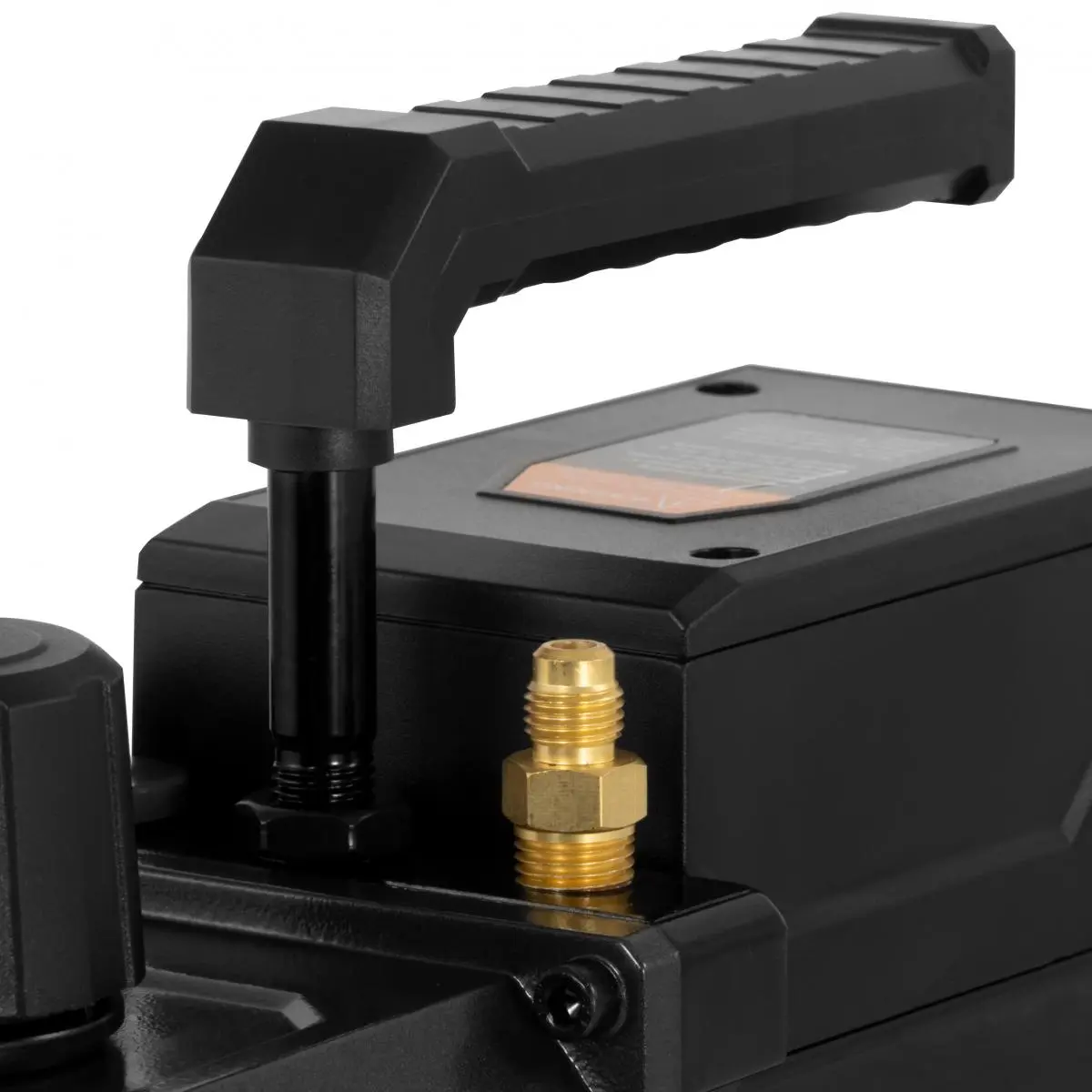

| Connections | 1/4 inch SAE |
| Motor power | 0,34 PS |

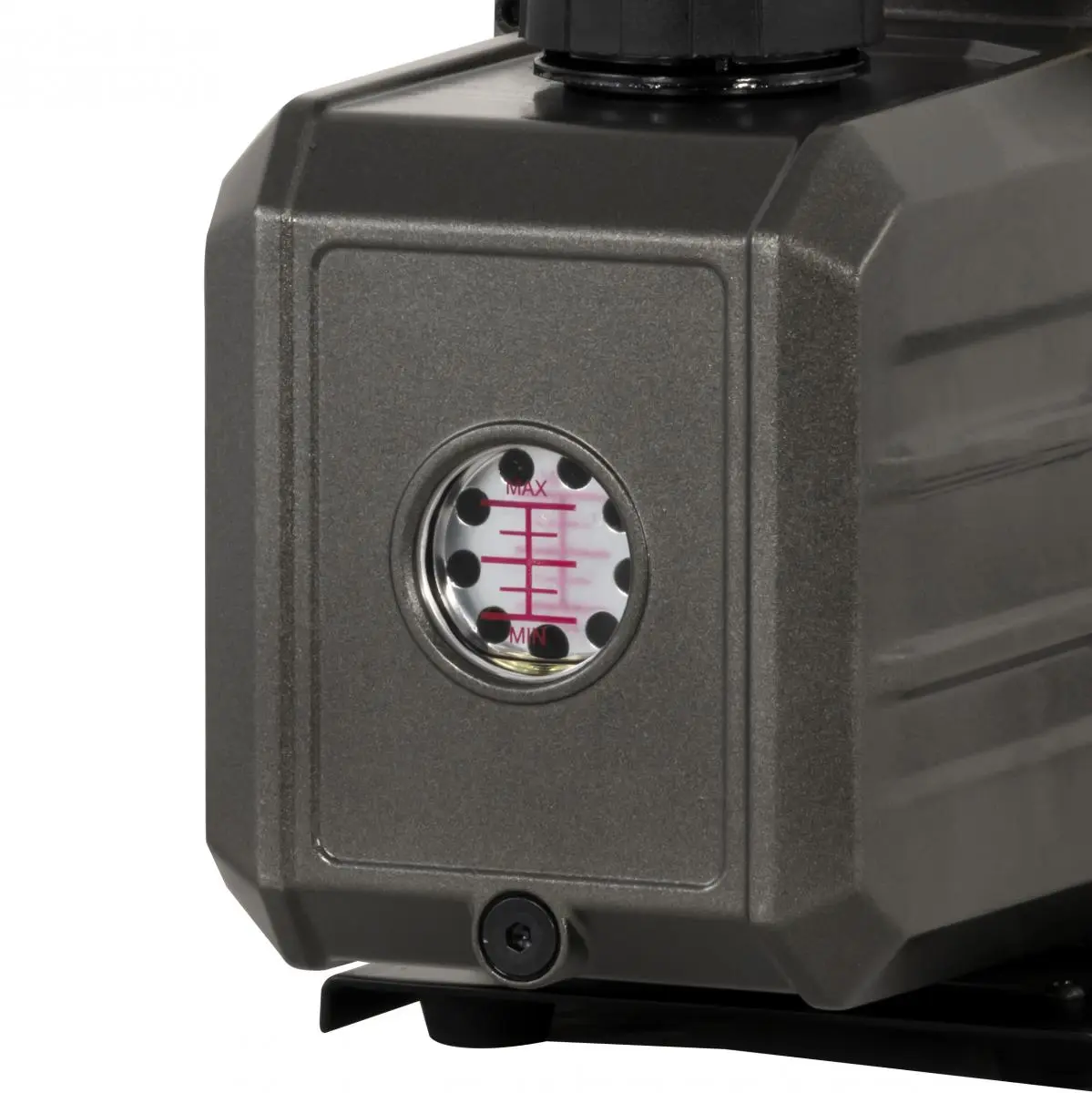

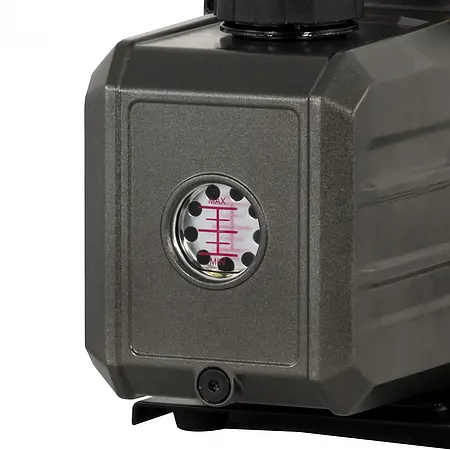

| Oil capacity | 280 ml |
| Ultimate vacuum | 0,02 mbar |
| Flow rate | 56 ... 68 l/min |
| Protection class (device) | IP20 |
| Power supply | 220 V AC | 50 Hz |
| Connector type | Schuko plug |
| Operating conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Storage conditions | 5 ... 40 °C , 20 ... 80 % RH |
| Dimensions ( L x W x H ) | 305 x 123 x 230 mm |
| Weight | 7863 g |
