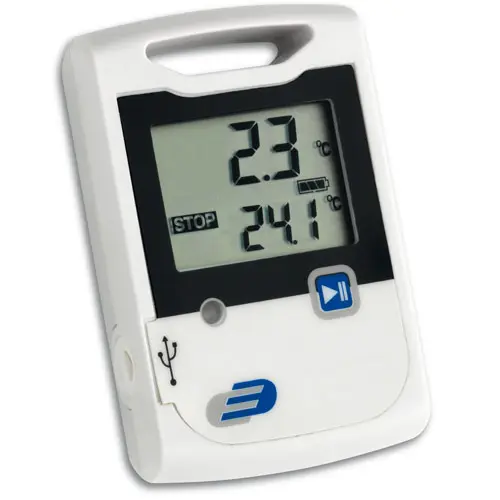

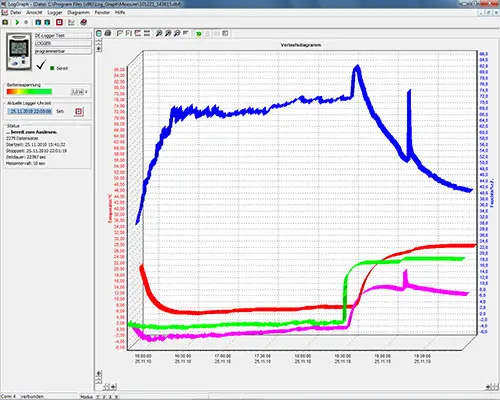

The Data Logger Log110 is ideal for the registry of the development of temperature in the transport and storage sectors. The Data- Logger is also used for the control of temperature in multiple sectors. For more specific applications we have the Data- Logger Log110 that additionally registers the development of relative humidity. Both Data- Loggers are an economic solution for the supervision of measurements with no need for a complex installation. The Logger has useful functions such as how to detect the dew point through software, and the connection of an external sensor of temperature. The Log110 verifies the temperature in the course of quality control in the industrial manufacture, laboratory and storage sectors. In the food sector, the Data- Logger controls the conditions of food transport according to the HACCP Hazard Analysis Critical Control Point. In case you have any questions on the Data- Logger, please consult the data specifications next or contact us. Our technicians and engineers will advise you on this Data- Logger and any other product of our regulation and control systems, meters or and scales of PCE Instruments.
| Model | Log110 |
| Internal temperature | |
| Measurement range | -20 ... 50°C / -4 ... 122°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy ± 1 digit | ± 0.5°C (0.9°F) -20 ... 50°C / -4 ... 122°F ± 0.7°C / 0.26°F (in the rest of the range) |
| External temperature | |
| Measurement range | -50 ... 125°C / -58 ... 257°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy ±1 digit | ± 0.5°C (0.9°F) 0 ... 40°C / 32 ... 104°F ± 1.0°C / 1.8°F |
| Internal Relative Humidity | |
| Measurement range | 0 ... 99% H.r |
| Resolution | 0.1% H.r. |
| Accuracy ±1 digit | ± 3% H.r. |
| Protection type | - - - |
| Display range | -10 ... 70°C / 14 ... 158°F |
| Memory | Approx. 60.000 measurement values |
| Interface | USBB |
| Housing | 7 segments LCD |
| Dimensions | 92 x 55 x 21 mm / 3.6 x 2.2 x .8 in |
| Weight | 95 gg / < 1 lb |
| Power supply | 1 x CR2032 3VV |
