Air Quality Station PCE-AQD 50

Order no.: PCE-AQD 50

GTIN (EAN): 4250348727459

Description

Air Quality Station with a battery life of up to 10 months / E-paper display / Easy operation /
Data memory for 1 trillion measuring points / Measuring range up to 40,000 ppm CO2 /
Temperature, humidity, atmospheric pressure, CO2

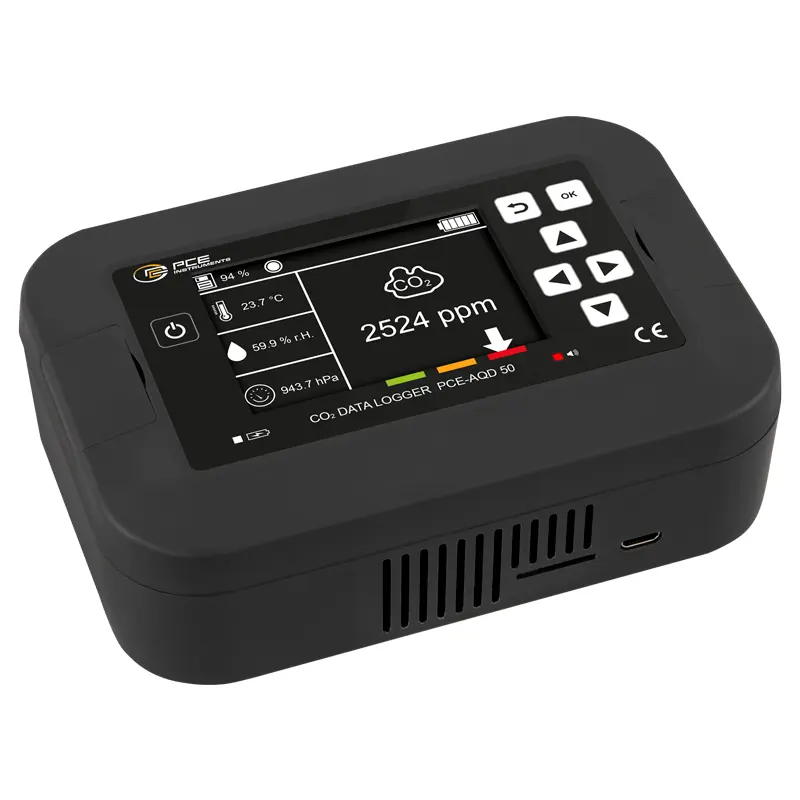

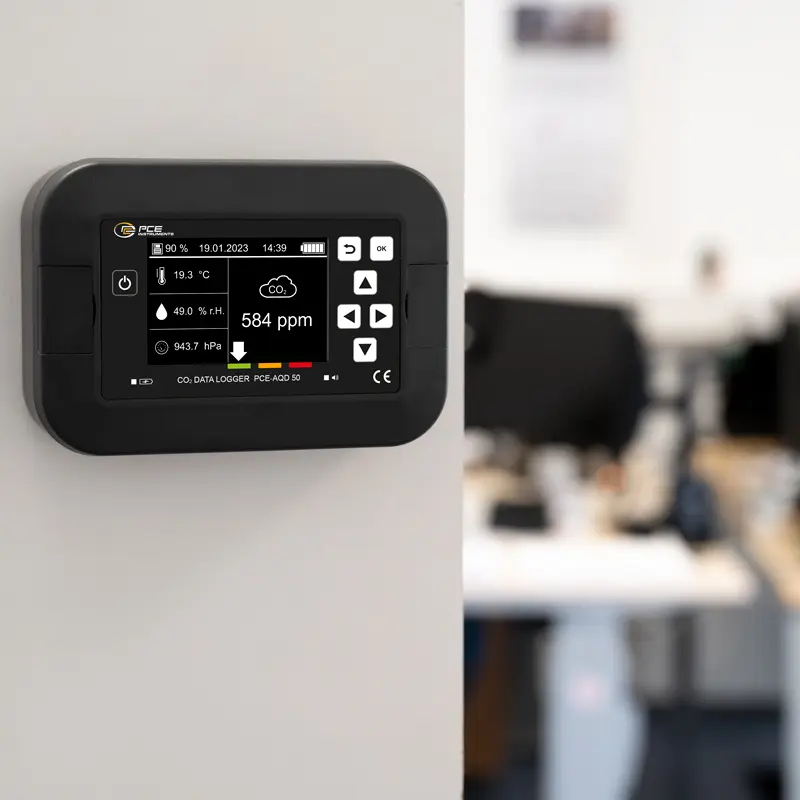

The air quality station is specially designed for long-term monitoring of climatic conditions in, for example, offices, classrooms or lecture halls. The air quality station has various sensors. Among other things, the air quality station has a carbon dioxide sensor up to 40,000 ppm, a temperature sensor with a measuring range between 0 ... 50 °C, an ambient humidity sensor with a measuring range between 0 ... 100% RH and a barometer with a measuring range between 300 ... 2000 hPa. The air quality station can therefore be used in many applications due to its large number of sensors. The measured values are shown directly on the e-paper display of the air quality measuring device. A good / medium / bad rating of the carbon dioxide content in the ambient air is also displayed.

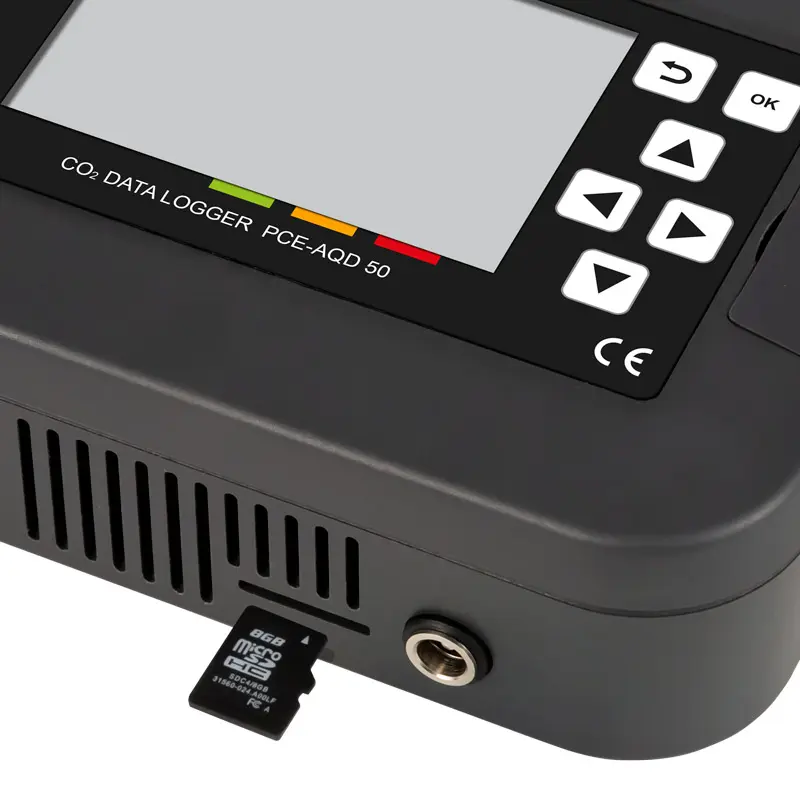

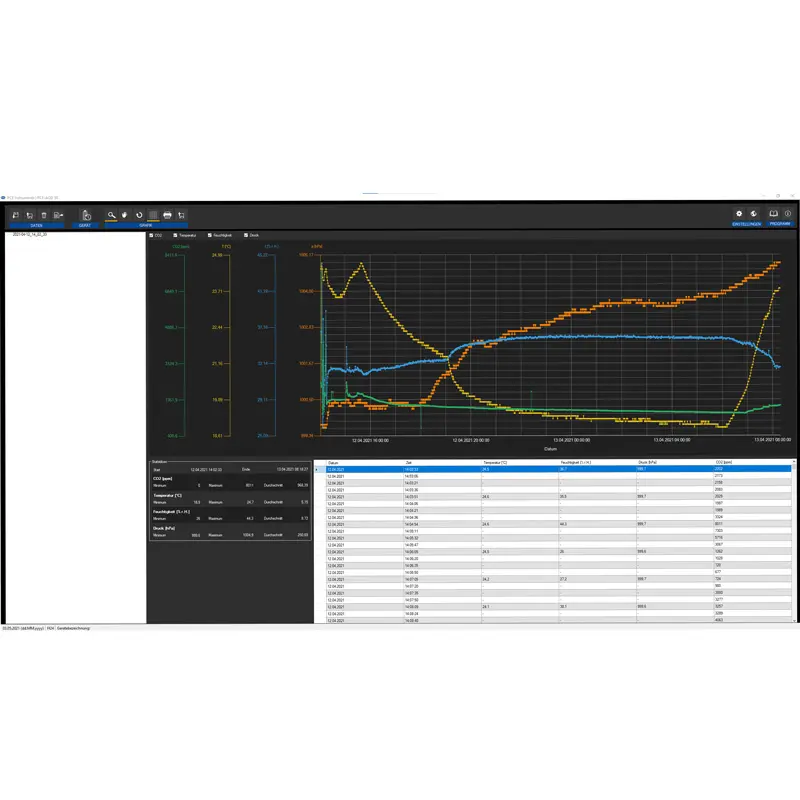

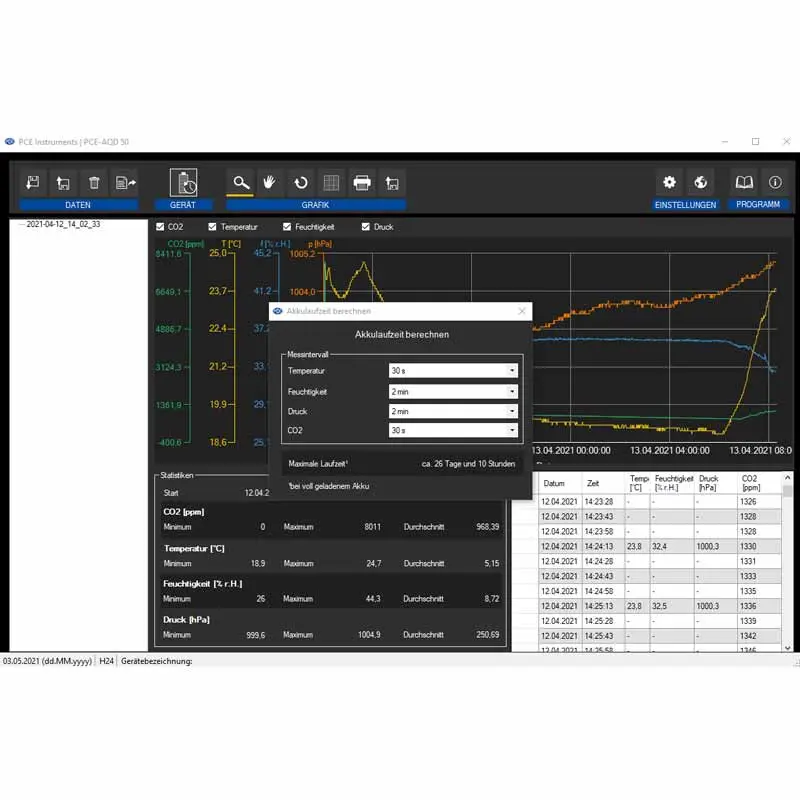

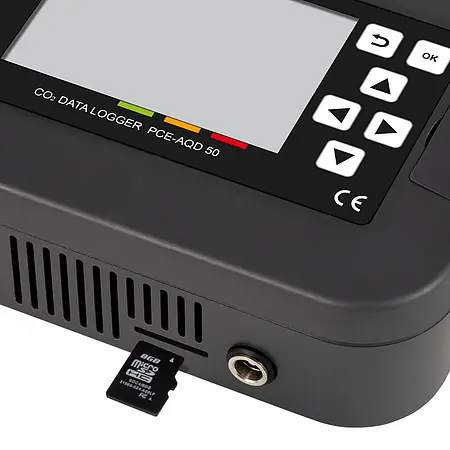

During the measurement, the air quality station can automatically record the measured values. The measured values are saved as .csv on the micro SD card. This means that the measurement data recorded by the air quality station can be imported directly into the company's own database. The measurement data from the air quality measuring device can be displayed in graphical and tabular form via the software.

The air quality station has an alarm function. This alarm mode can be used to set limit values for the individual sensors. As soon as the set threshold value is reached in the air quality station, this is indicated acoustically and visually via the alarm LED. After the air quality station falls below the threshold value again, the alarm switches off again automatically.

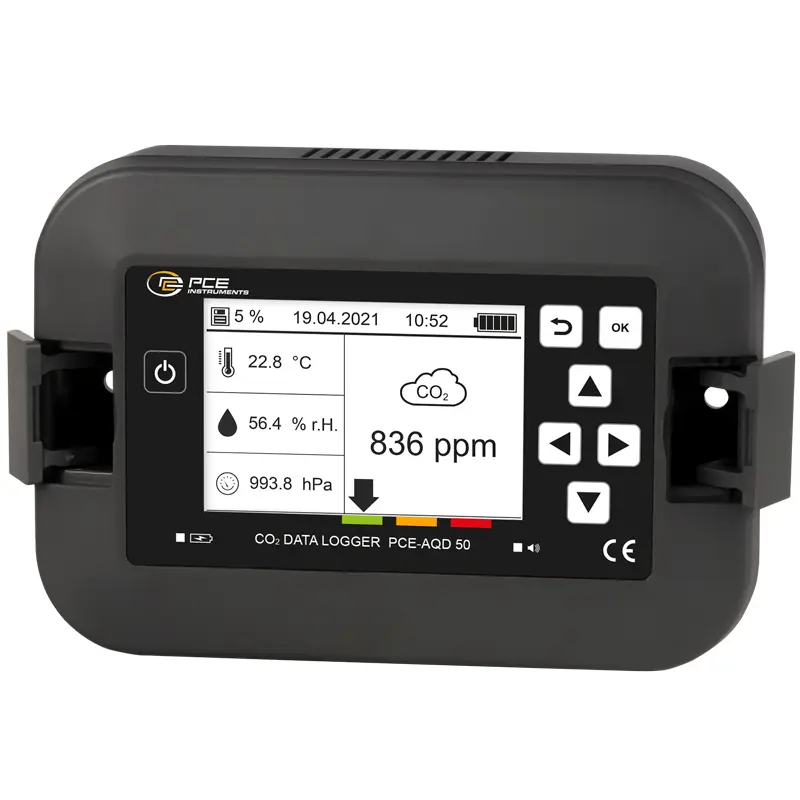

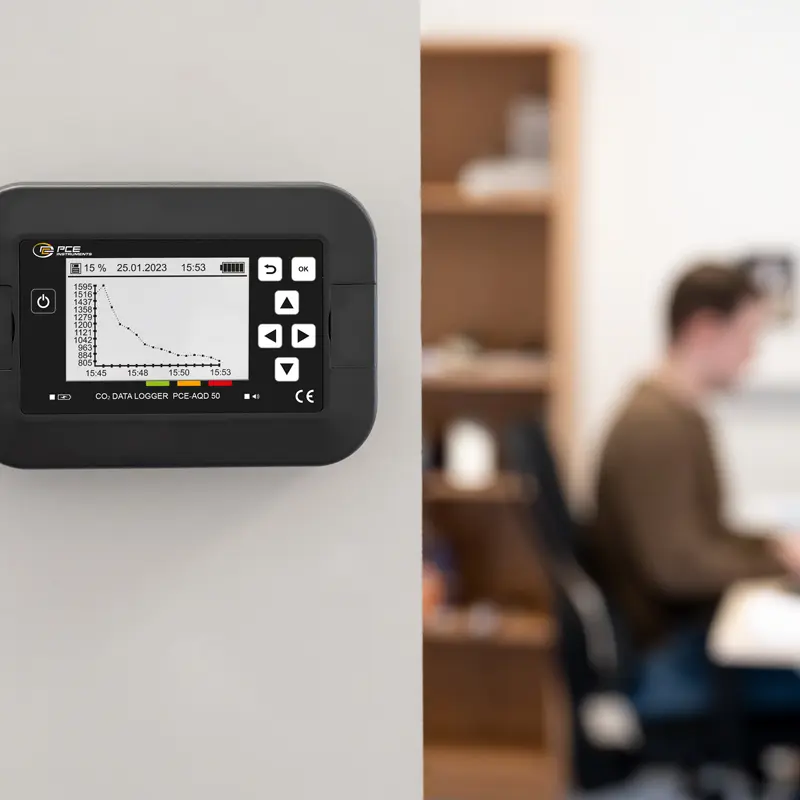

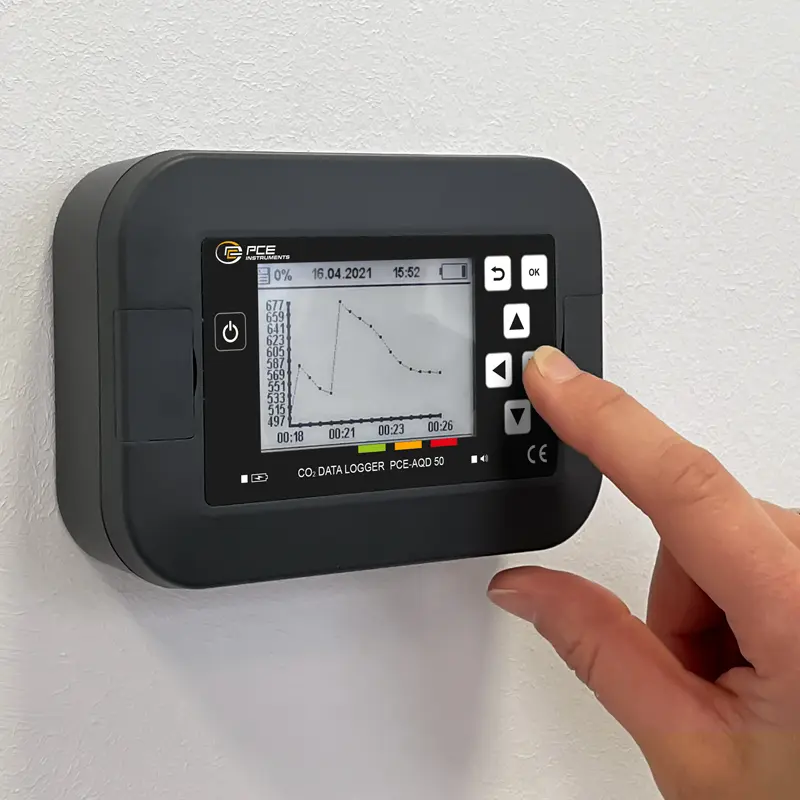

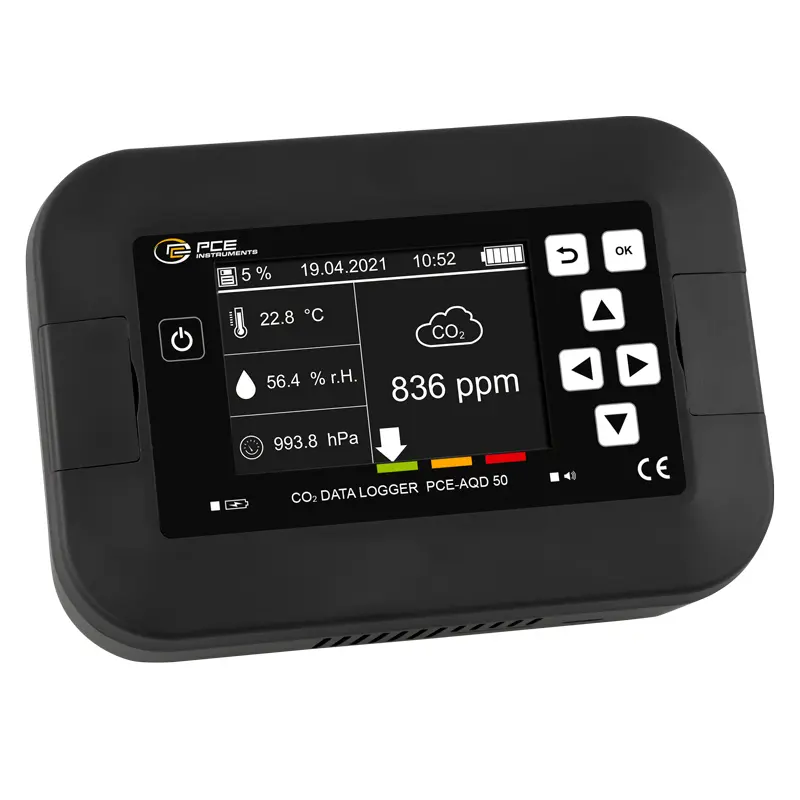

The measured values are displayed numerically on the 2.7" display of the air quality station. For a better analysis of the last measured values, the display can be switched to a histogram display. The energy-saving e-paper display enables a long battery life for the air quality station. Depending on the setting the battery can operate the air quality station for about 10 months before it has to be recharged. In addition to the possible power supply via the built-in battery, the air quality measuring device can also be operated continuously via the micro USB charging cable.

Highlights

- Battery life of up to 10 months
- Measuring range up to 40,000 ppm CO2
- 32 GB data storage
- Temperature and humidity sensor
- .csv file format
- E-paper display with histogram display
- Display of atmospheric pressure
- Good / medium / bad rating
- Alarm limits
- Carbon dioxide and absolute pressure sensor

Specification

Temperature
Measuring range	0 ... +50 ºC / 32 ... 122 ºF
Resolution	0.1 ºC
Accuracy	±0.15 ºC @ 0 ... 20 ºC / 32 ... 60 ºF
	±0.1 ºC @ 20 ... 50 ºC / 68 ... 122 ºF

Ambient Humidity
Measuring range	0 ... 100 % RH
Resolution	0.1 % RH
Accuracy	±1.5 % RH @ 0 … 80 % RH
	±2 % RH @ 80 … 100 % RH

Atmospheric Pressure
Measuring range	300 ... 2000 hPa
Resolution	0.1 hPa
Accuracy	±2 hPa @ 25 ºC / 77 ºF and 750 ... 1100 hPa
	±4 hPa @ 0 ... +50 ºC / 32 ... 122 ºF and 300 ... 1200 hPa

CO2
Measuring range	0 ... 40000 ppm
Resolution	1 ppm
Accuracy	±(30 ppm + 3% of measured value)
	@ 400 ... 10000 ppm @25 ºC / 77 ºF
	±(6 ... 10 % of measured value)
	@ 0 ... 400 ppm or 10000 ... 40000 ppm

Temperature Stability	2.5 ppm/ºC @ T = 0 ... 50 ºC / 32 ... 122 ºF, 400 ... 10000 ppm

Further Specifications
Display	2.7" E-Paper
Battery life*	ca. 10 months for the measurement intervals:
	Temperature: 60 minutes
	Ambient humidity: 60 minutes
	Atmospheric pressure: 60 minutes
	CO2: 60 minutes
*further information on battery life can be found in the instructions

Storage capacity	MicroSD card with 32 GB of storage for
	a total of 1 trillion measuring points

Sampling intervals	30s, 1 min, 2 min, 10 min, 15 min, 30 min,
	1 h, 2 h, 6 h, 12 h, 24 h

Power supply	battery 7.4 V DC / 3400 mAh, Li-Ion battery

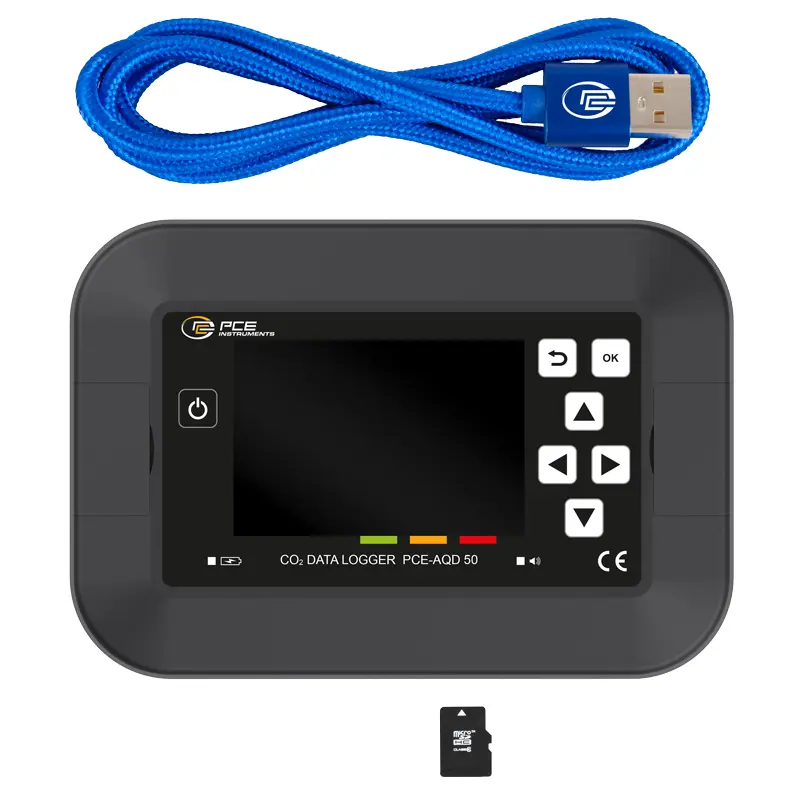

Power supply	micro USB charging cable
Protection class	IP30
Operating conditions	0 ... +50 ºC / 32 ... 122 ºF
	0 ... 100 % RH, non-condensing
Storage conditions	-20 ... +60 ºC / -4 ... 140 ºF
	0 ... 100 % RH, non-condensing
Dimensions	128.5 x 88.5 x 41 mm / 1.1 x 3.4 x 1.6"
Weight	300 g / 10.5 oz
