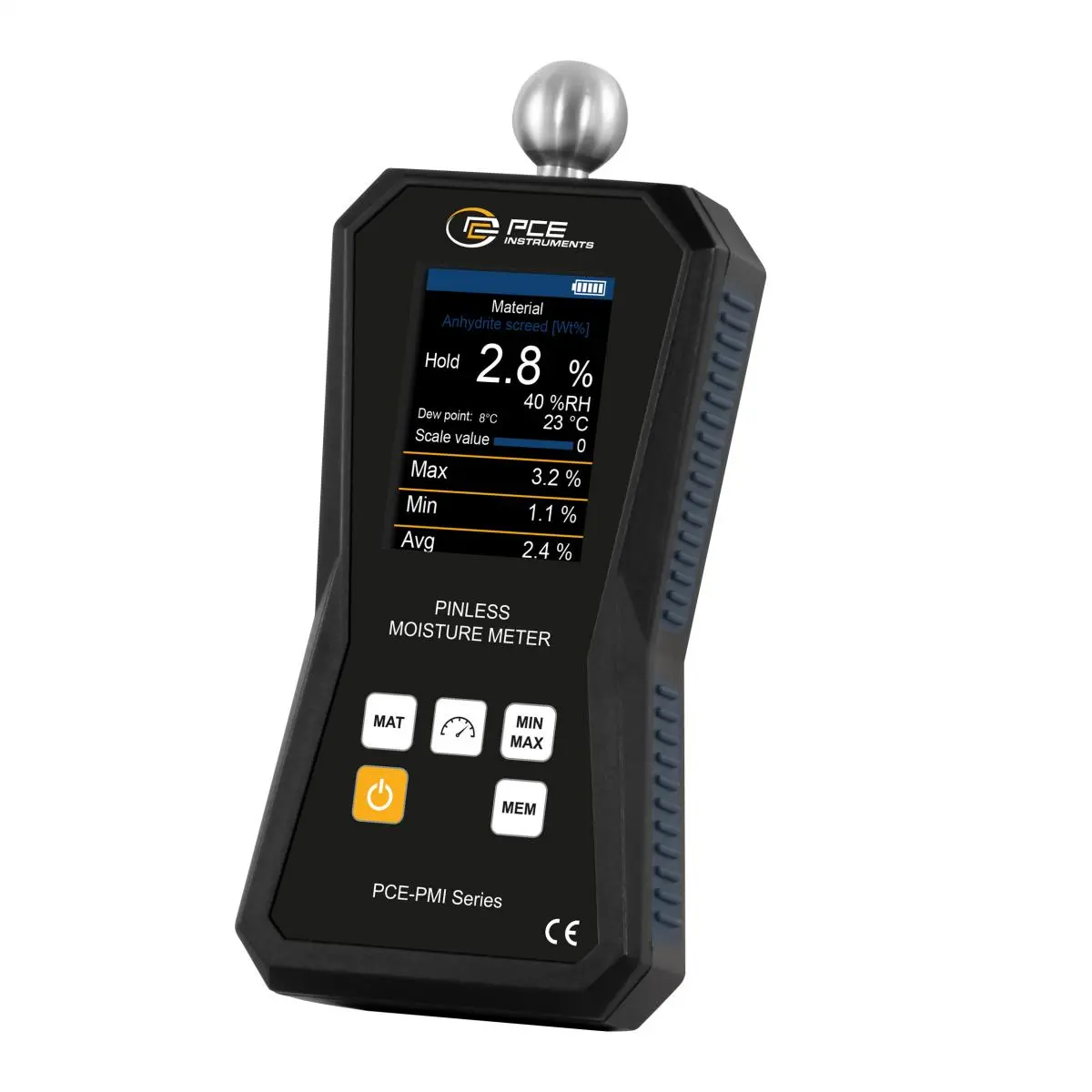

The Wall Moisture Meter is a versatile measuring instrument for non-destructive moisture detection in various building materials and types of wood. The Wall Moisture Meter can be used to precisely determine moisture values in screed, concrete, plaster, hardwood and softwood. In addition, the Wall Moisture Meter measures the ambient temperature, relative humidity and dew point, thus providing a comprehensive climate analysis for construction and renovation projects.

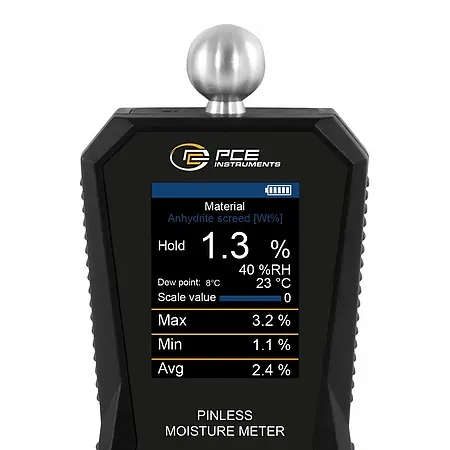

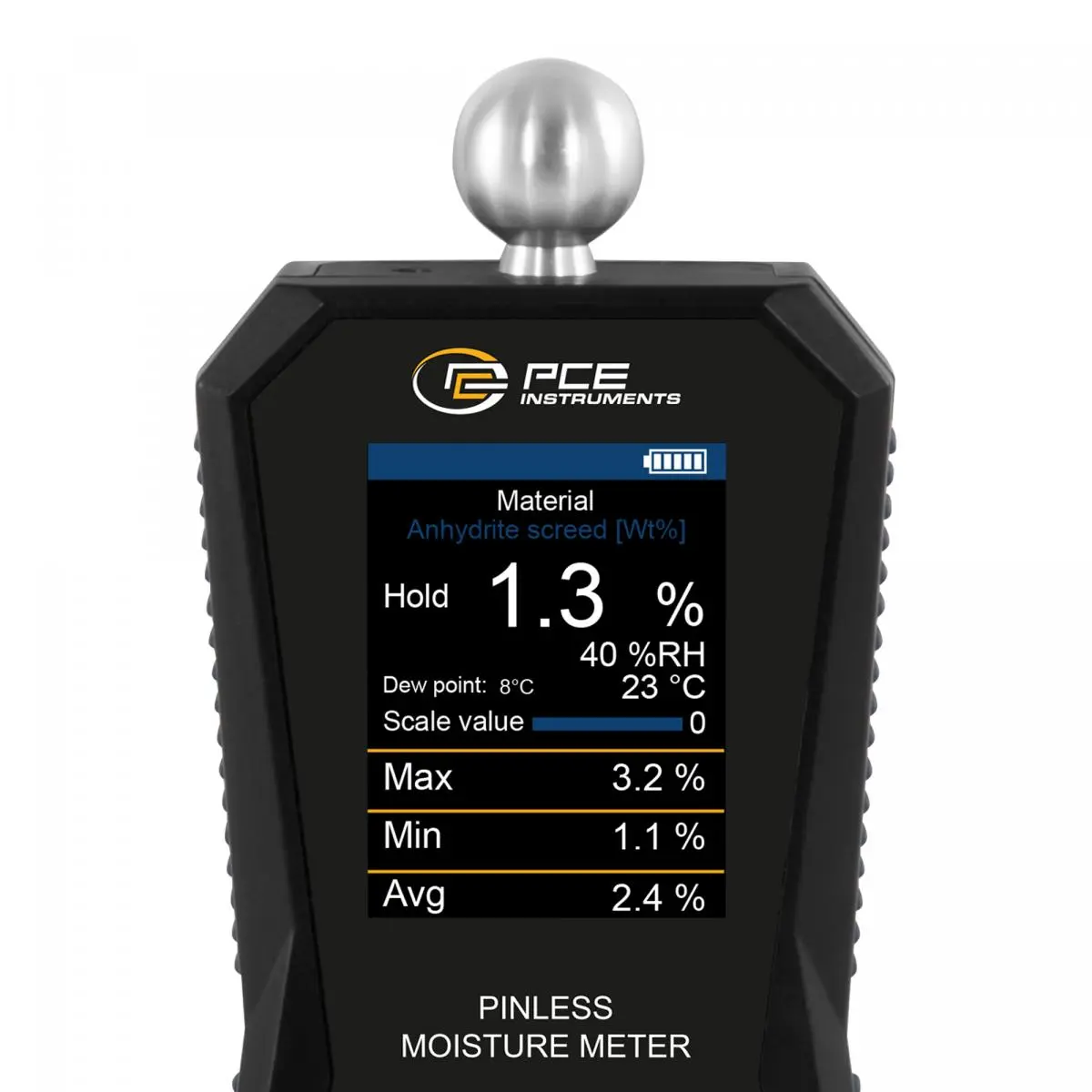

The 2.8-inch TFT color display ensures a clear presentation of all measured values. The Wall Moisture Meter has an internal memory with a capacity of 32 GB, which can store up to 10 million measurement points. Data can be easily read out and the device charged via the USB-C interface. The menu navigation is multilingual and allows for convenient operation. Statistical functions, hold mode and a data logger support professional documentation and evaluation of the measurements. The Wall Moisture Meter is ideal for site managers, surveyors, craftsmen and anyone who needs precise moisture and climate measurements on construction sites, in building diagnostics or in woodworking.
| Relative humidity | |
| Measuring range | 0 ... 100 % RH |
| Resolution | 1 % RH |
| Accuracy | 3% r.F. |
| Dew point | |
| Measuring range | -33 ... +65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| Humidity | |
| Material | Anhydrite screed (% by weight) |
| Measuring range | 0 ... 3,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Anhydrite screed (CM%) |
| Measuring range | 0 ... 1,5 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (% by weight) |
| Measuring range | 0 ... 4,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Cement screed (CM%) |
| Measuring range | 0 ... 4 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Concrete |
| Measuring range | 0 ... 6 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Gypsum screed |
| Measuring range | 0 ... 10 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Hardwood |
| Measuring range | 0 ... 37 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Softwood |
| Measuring range | 0 ... 51 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Humidity | |
| Material | Relative Scale |
| Measuring range | 0 ... 99,9 % |
| Resolution | 0,1 % |
| Accuracy | ±0.5% |
| Temperature | |
| Measuring range | 0 ... 65 °C |
| Resolution | 1 °C |
| Accuracy | 1 °C |
| General technical data | |
| Display type | TFT colour display |
| Display size | 2,8 in |

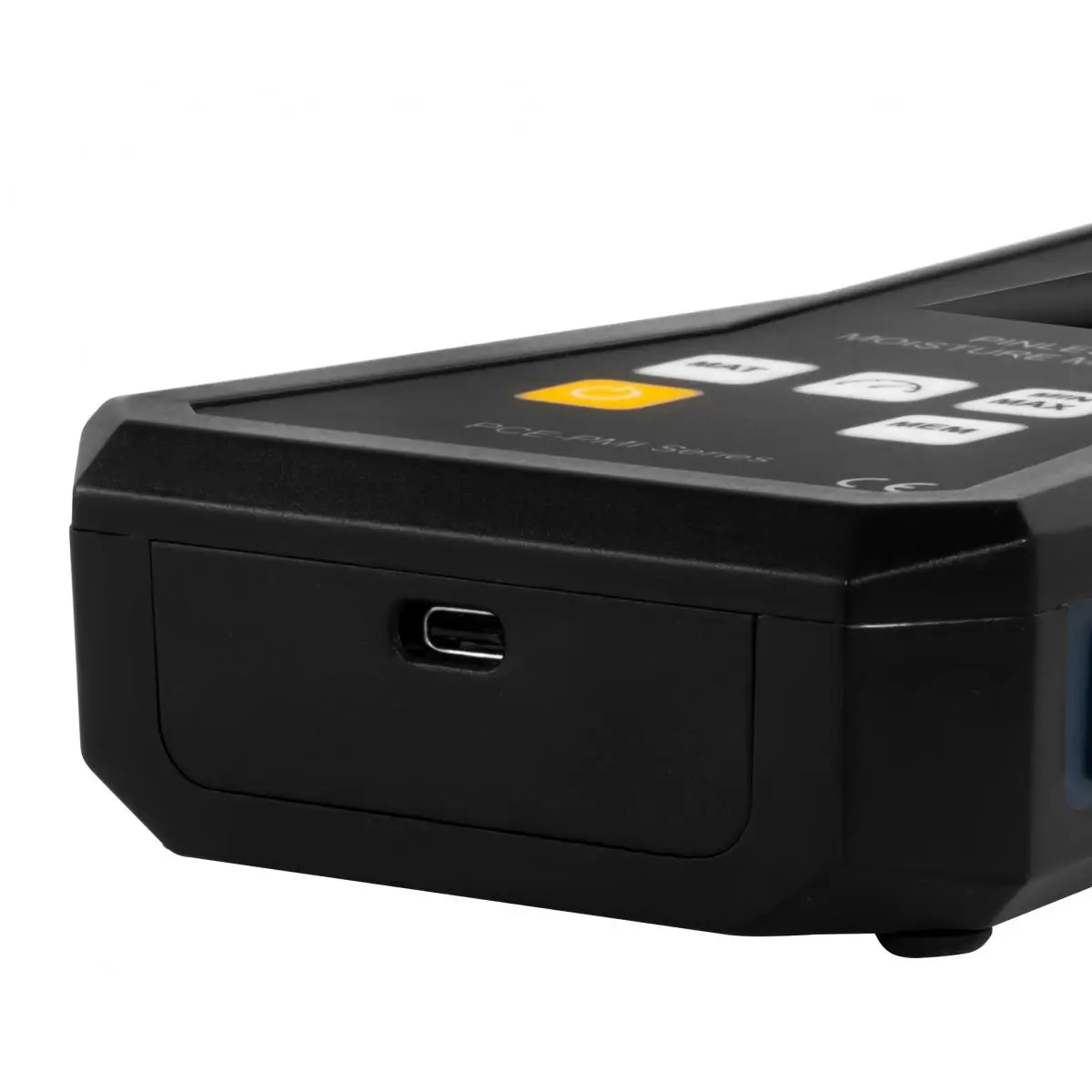

| Interface | USB-C |
| Operating time | 18 h |
| Menu language | English (GB), English |
| Protection class (device) | IP52 |
| Power supply | 5 V DC |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium polymer battery |
| Capacity | 2500 mAh |
| Operating conditions | -20 ... 60 °C , 35 ... 85 % RH |
| Storage conditions | -20 ... 45 °C , 35 ... 85 % RH |
| Dimensions ( L x W x H ) | 190 x 85 x 32 mm |
| Weight | 263 g |
