The UV Meter / UV Tester is a compact measuring device for detecting UV-A radiation in the range of 300 ... 390 nm, with a peak wavelength of 365 nm. The UV Meter / UV Tester measures radiation intensities from 0 ... 19,999 µW/cm² with a resolution of 1 µW/cm² and an accuracy of ±4% FS. The measuring rate is one measurement per second, a hold function enables the current value to be recorded.

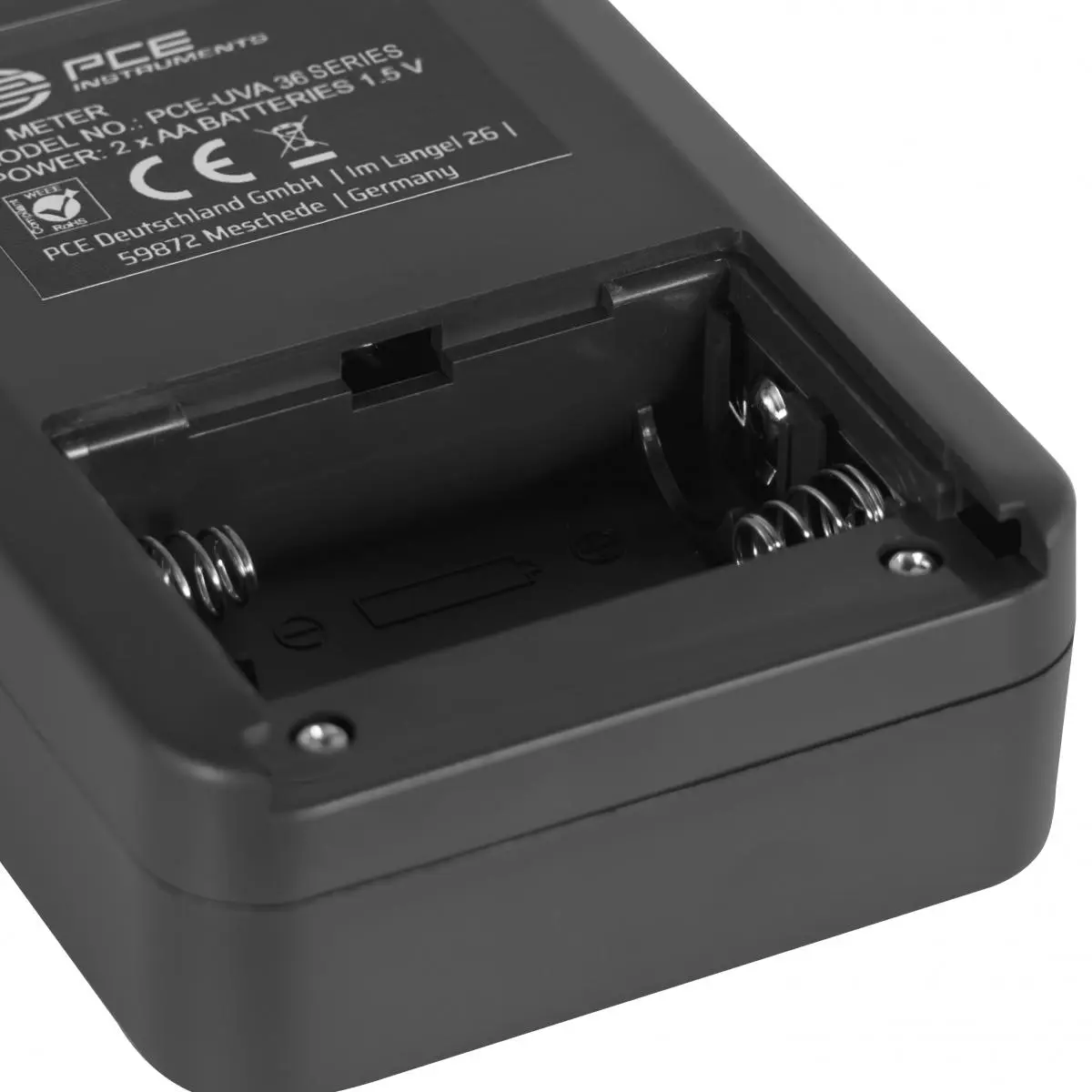

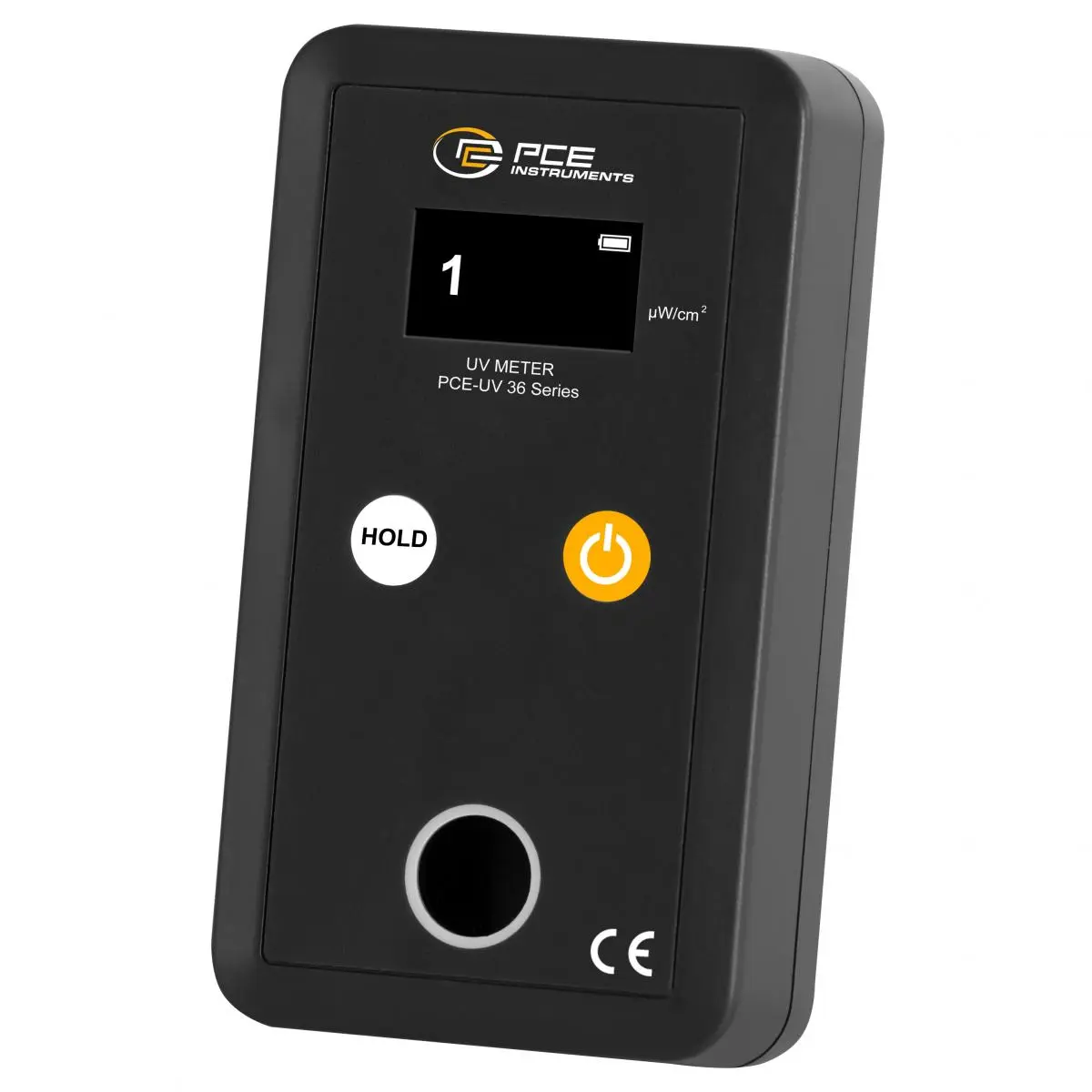

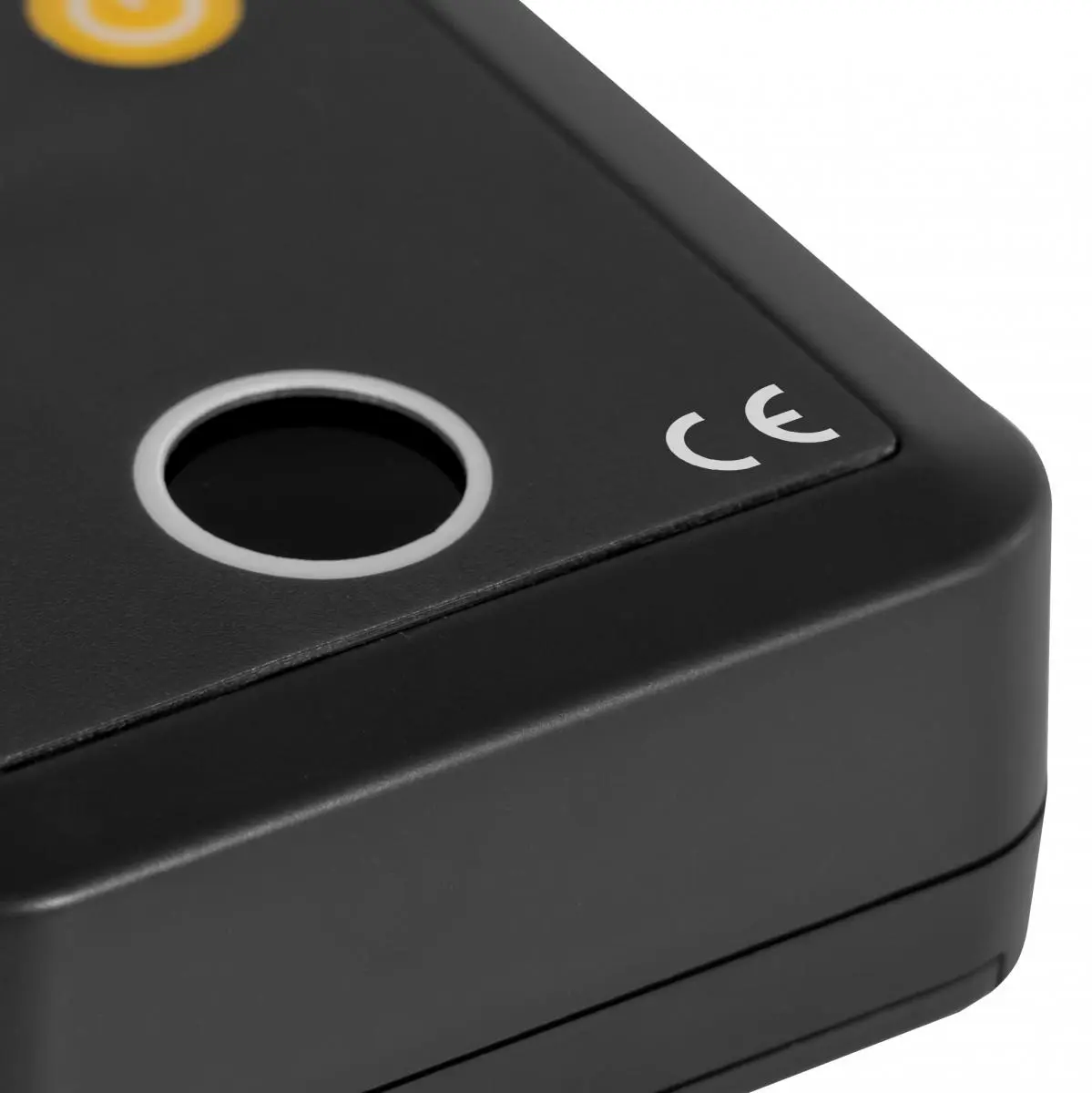

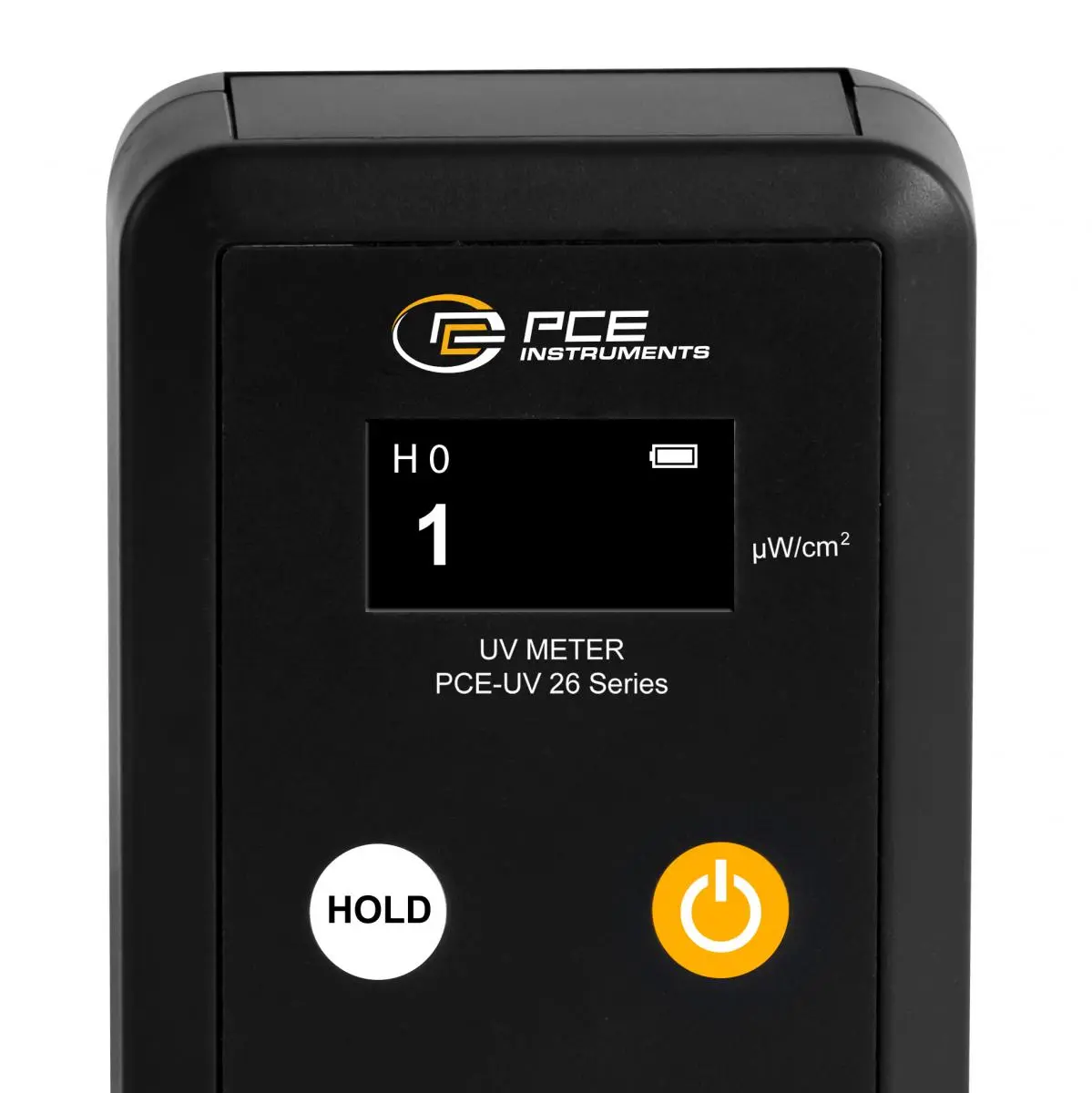

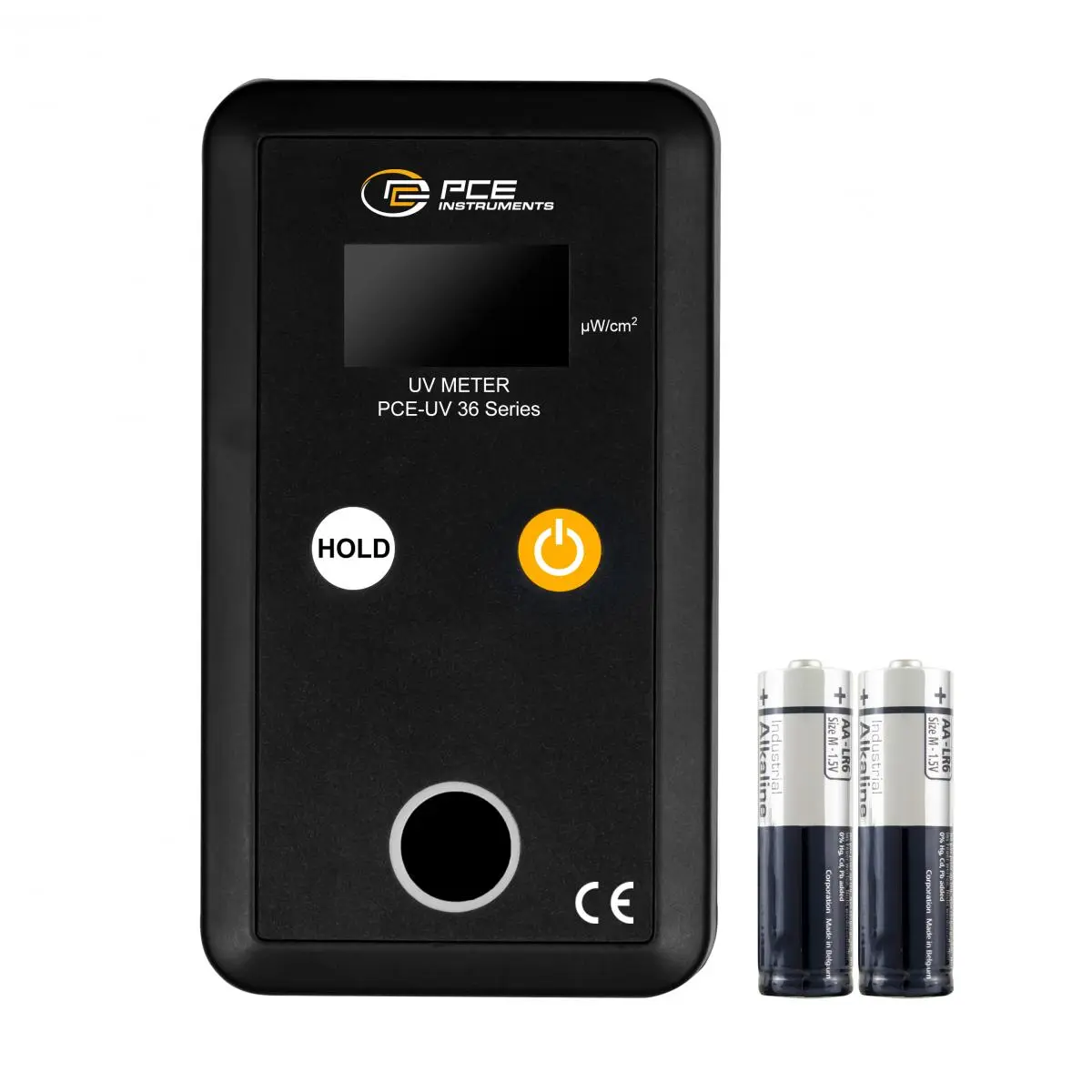

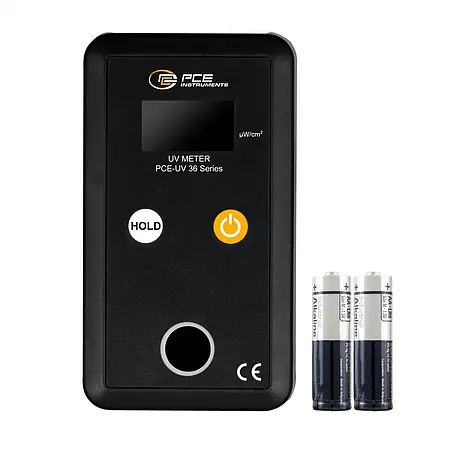

The UV Meter / UV Tester has an integrated sensor, an easy-to-read 1.4-inch LED display, a battery indicator and automatic switch-off after 4 minutes to save energy. It is powered by two 1.5V AA batteries, which makes mobile use particularly convenient.
The UV Meter / UV Tester is ideal for applications such as UV curing in industry, UV controls in medicine, occupational safety measurements and laboratory and environmental technology. The combination of integrated sensor, high accuracy and user-friendly design makes it a reliable tool for a wide range of professional requirements.
| UV | |
| Measurement range up to | 0 ... 19999 µW/cm² |
| Resolution | 1 µW/cm² |
| Accuracy | ±4% FS |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LED |
| Display size | 1,4 Inch |
| Measuring rate | 1 x per second |
| Automatic power-off | 4 min |
| Wavelength range | 300 ... 390 Nm |
| Peak wavelength | 365 Nm |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 2 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Storage conditions | 0 ... 60 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 135 x 76 x 35 mm |
| Weight | 168 g |
