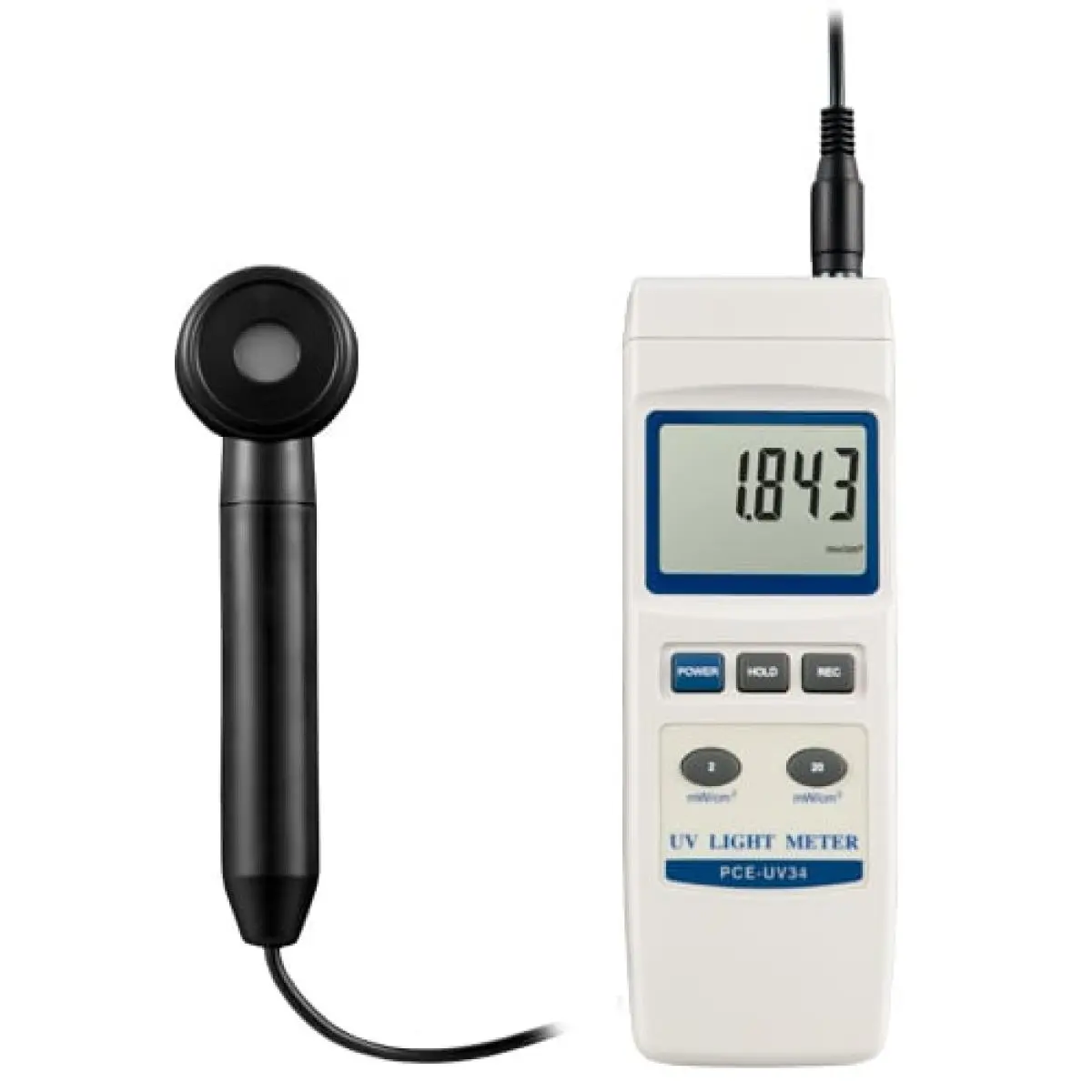

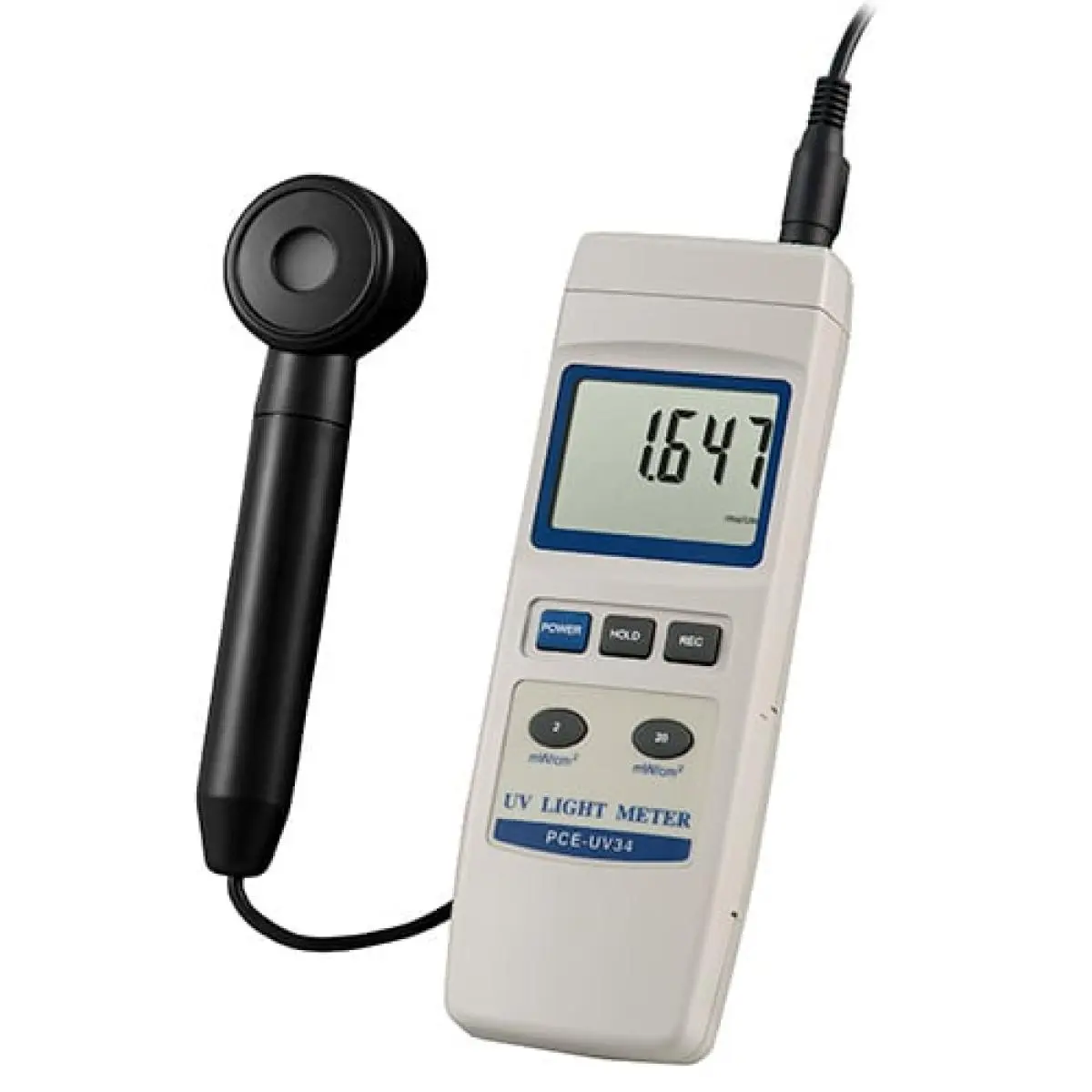

UV Meter / UV Tester PCE-UV34

Order no.: PCE-UV34

GTIN (EAN): 4250348701473

Description

Enviromental Meter PCE-UV34

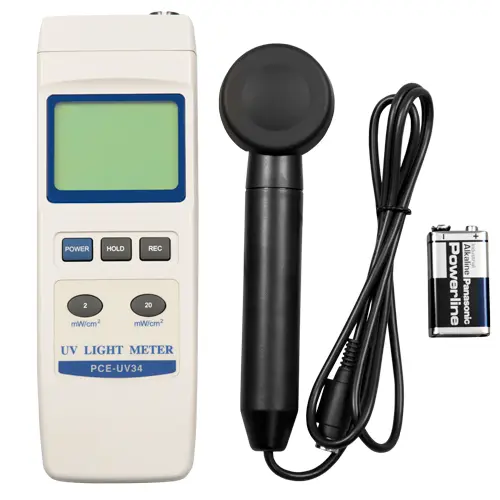

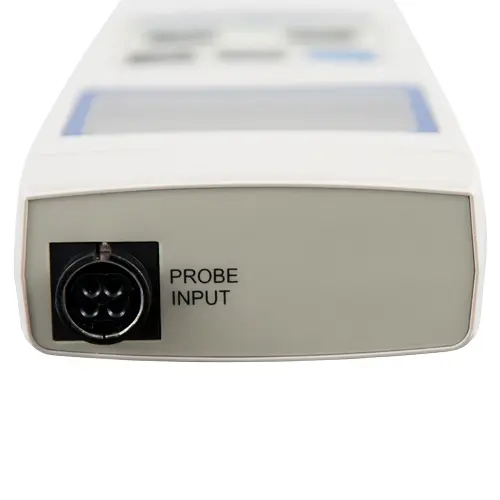

measures radiation UV, with an external sensor

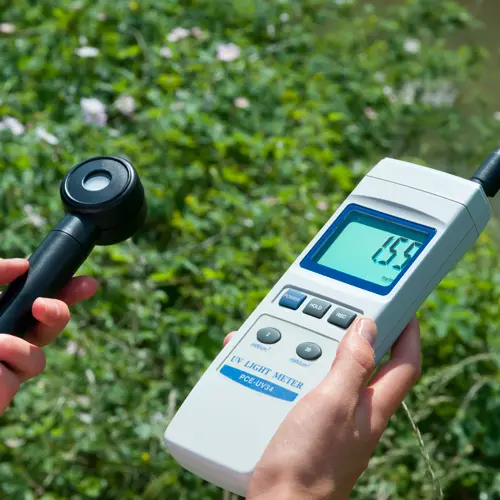

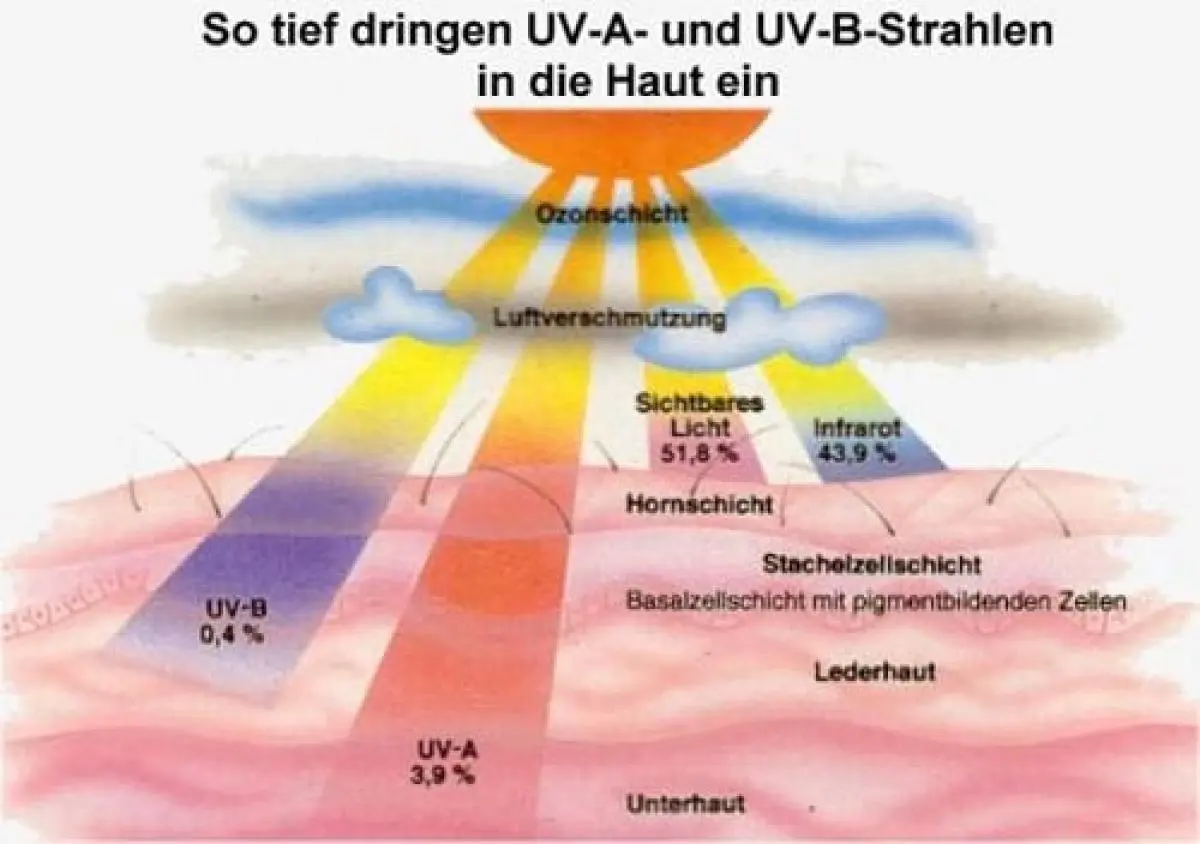

The UV Meter / UV Tester is a device used to measure UVA and UVB radiation. This accurate device operates on a wave length of 290 to 390nm. With this UV Meter / UV Tester you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from damage of high exposure and possible sunburn. With the industrial sector we frequently find elevated UVA radiation level, such as the arc light used in soldering. The UV UV Meter / UV Tester is very versitile thanks to its external sensor. Other fields of use are the sterilization of UVA rays, photo chemical compensation, in virology laboratories or in DNA research

Highlights

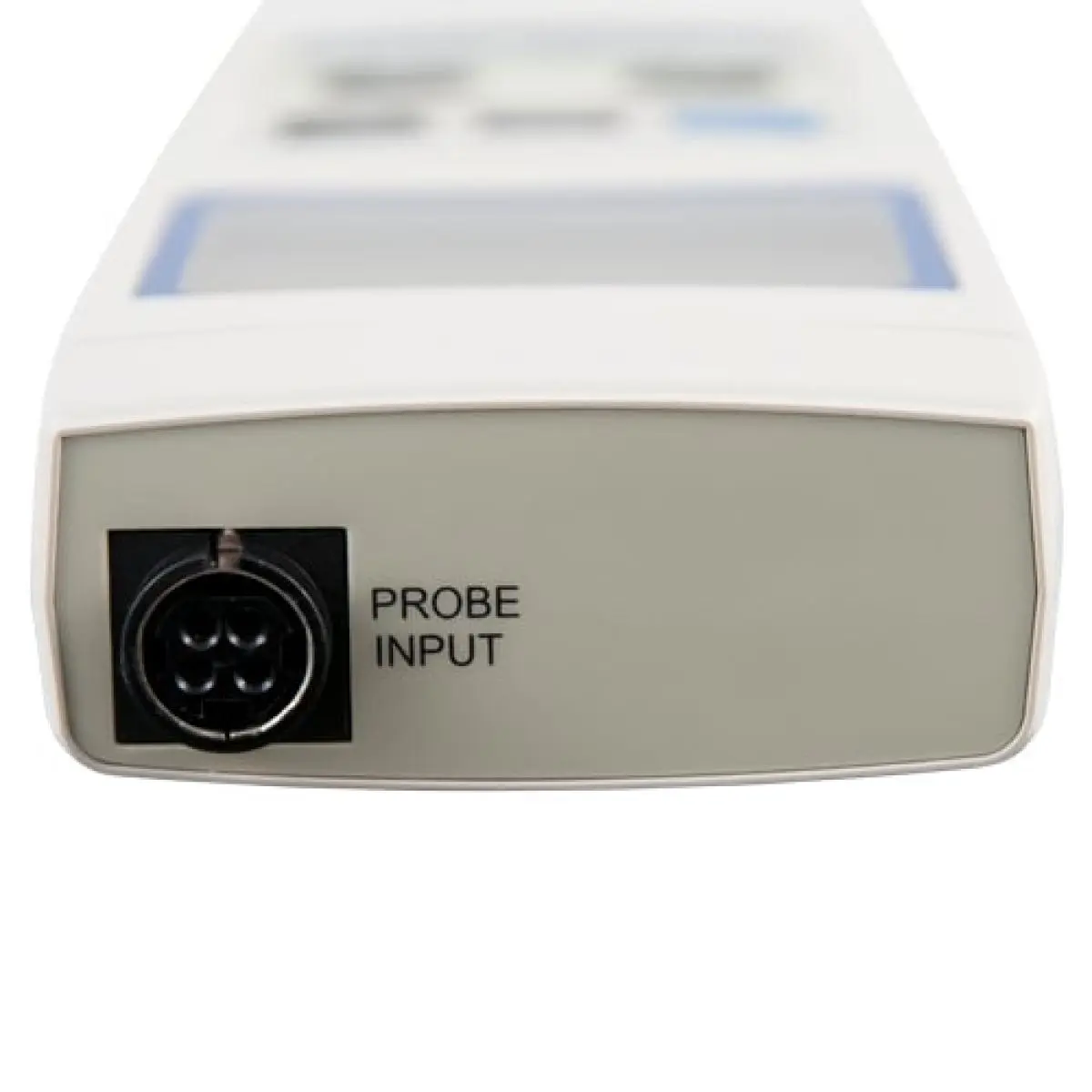

- External sensor with UV correcting filter

- Auto after 10 minutes of inactivity to conserve battery power

- Large LCD

- Minimum, Maximum and Data Hold functions

- compact design

- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²

- 1.999 to 19.99 mW/cm2 or 19.99 to 199.9 W/m²

Specification

Radiation
Measuring range	0 ... 1,999 mW/cm²
Resolution	0,001 mW/cm²
Accuracy	±(4% of full scale +2 digits)

Radiation
Measuring range	1,999 mW/m² ... 19,99 mW/cm²
Resolution	0,001 mW/cm²
Accuracy	±(4% of full scale +2 digits)

General technical data
Measuring functions	HOLD
Display type	LCD
Display size	2,54 Inch
Measuring rate	0,4 s

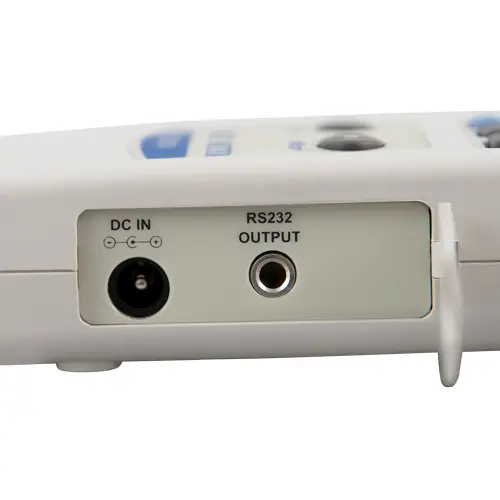

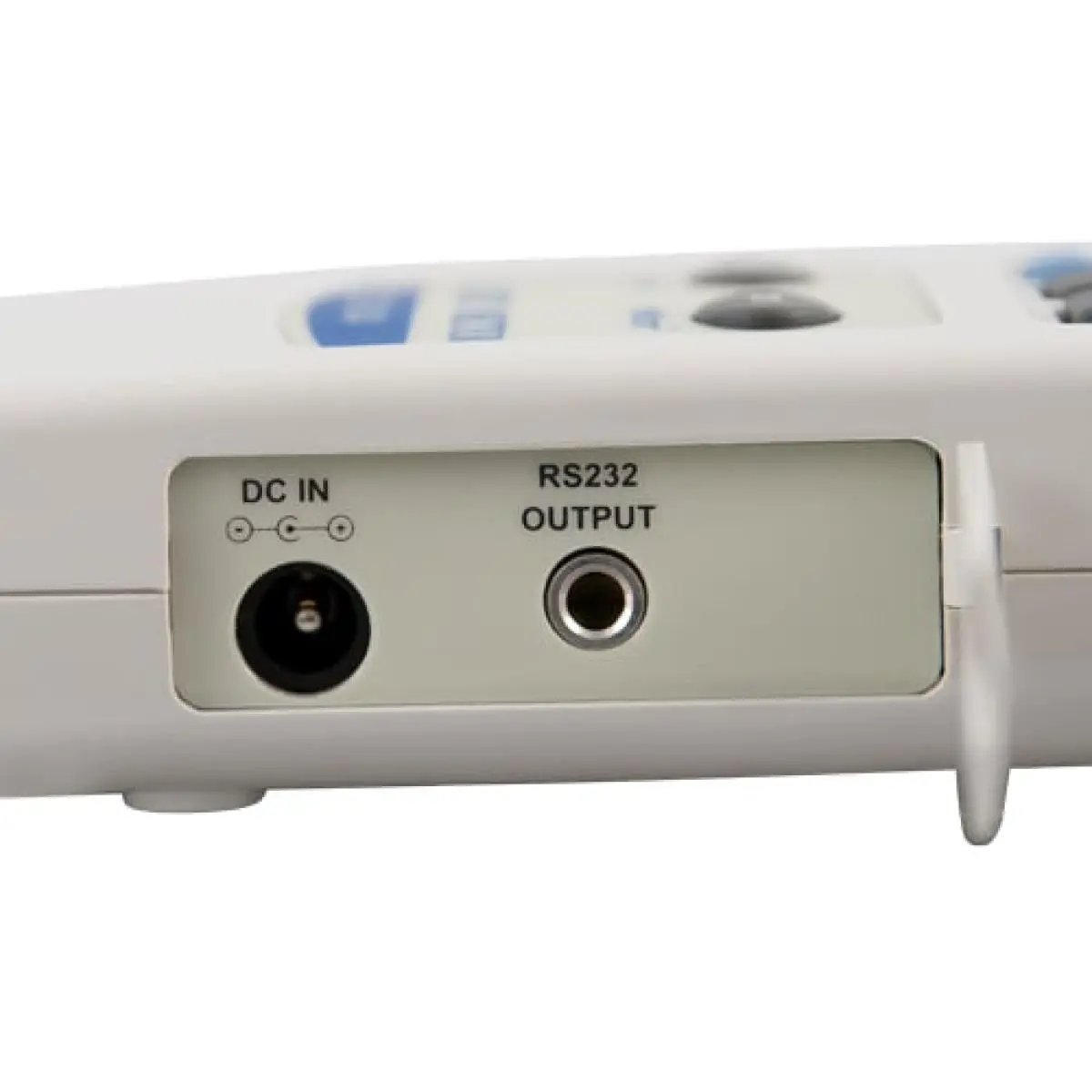

Interface	RS232

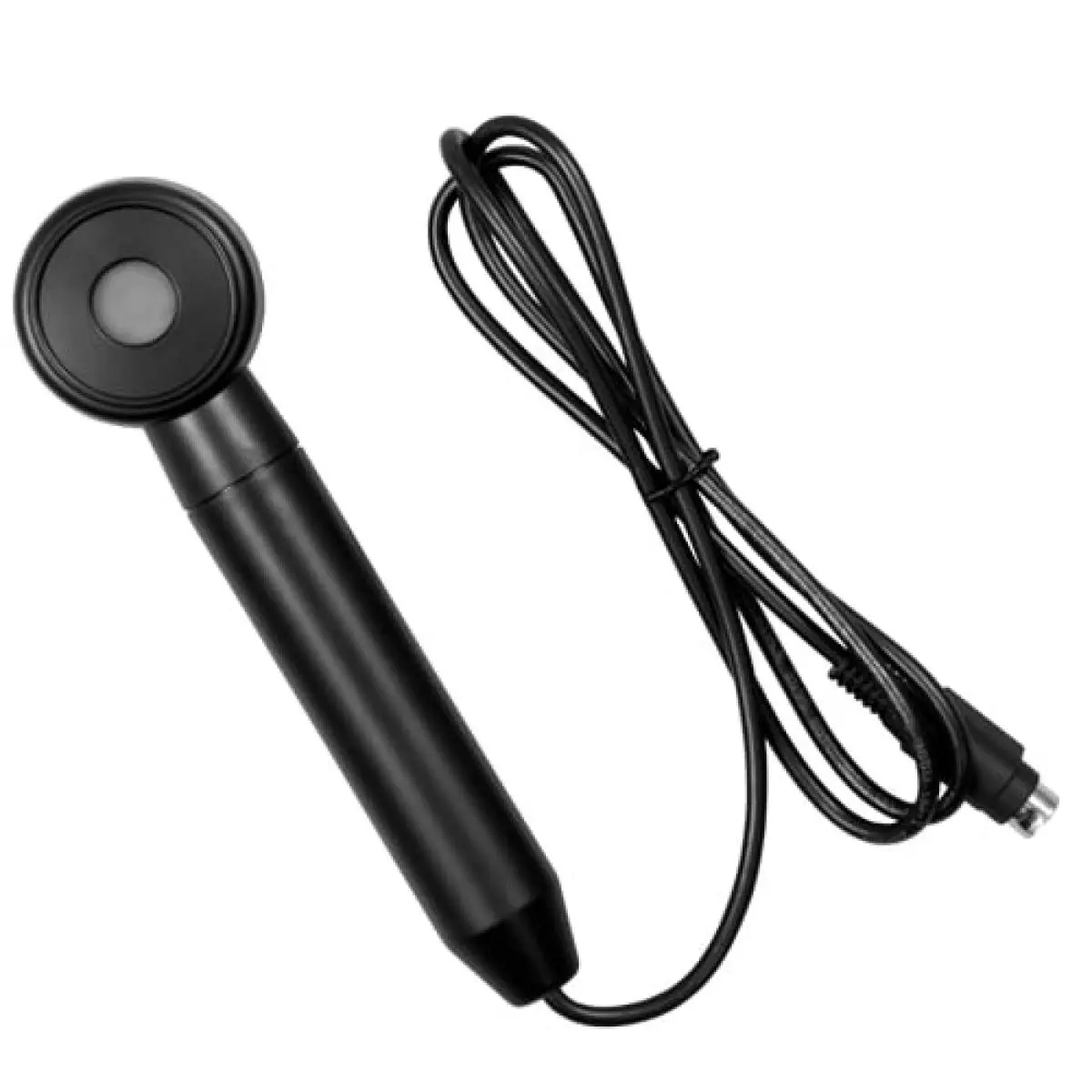

Sensor	Photodiode with UV correction filter
Automatic power-off	10 min
Wavelength range	290 ... 390 Nm
Dimensions	Light sensor: 68 x 60 x 27 mm
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	Battery
(Rechargeable) battery	1 x 9 V 9V block , Alkali-manganese
Capacity	640 mAh
Operating conditions	0 ... 50 °C , 0 ... 80 % RH
Storage conditions	0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )	200 x 68 x 30 mm
Weight	220 g
