Test Stand PCE-FTS50

Force Test Stand PCE-FTS50

Order no.: PCE-FTS50
GTIN (EAN): 4250348716101
579,90 €
724,88 €
price ex. (VAT / delivery)
:
4250348716101
PCE-FTS50
Delivery time:1-2 working days
Analog
Analog
Extern

Description

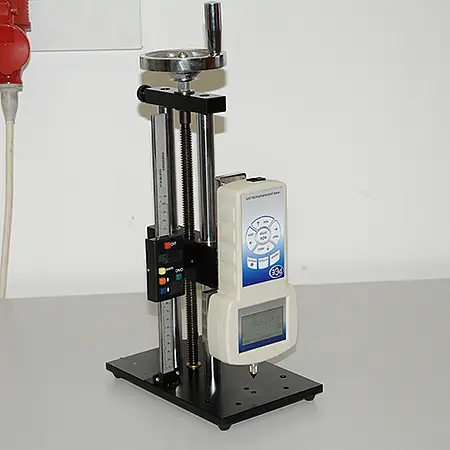

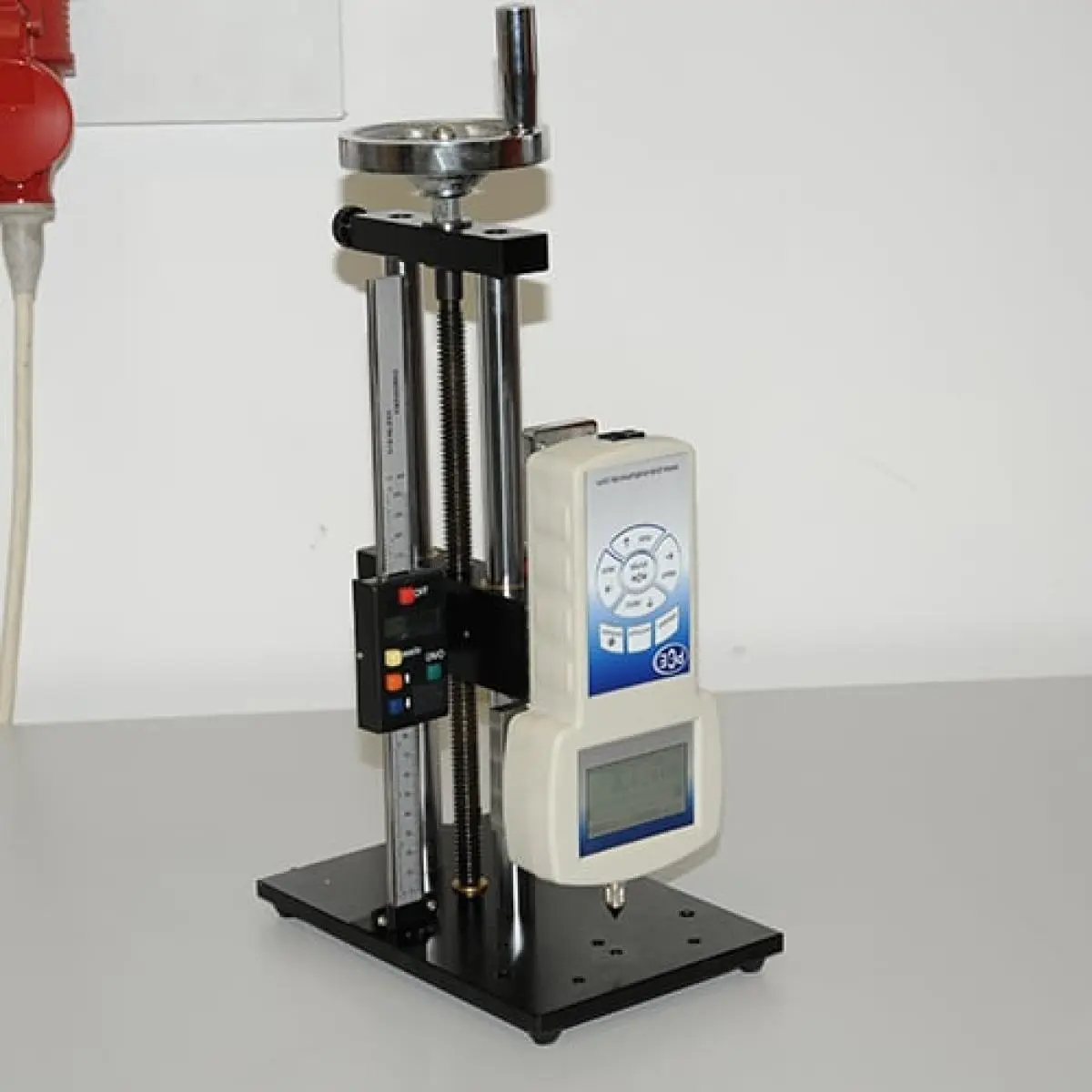

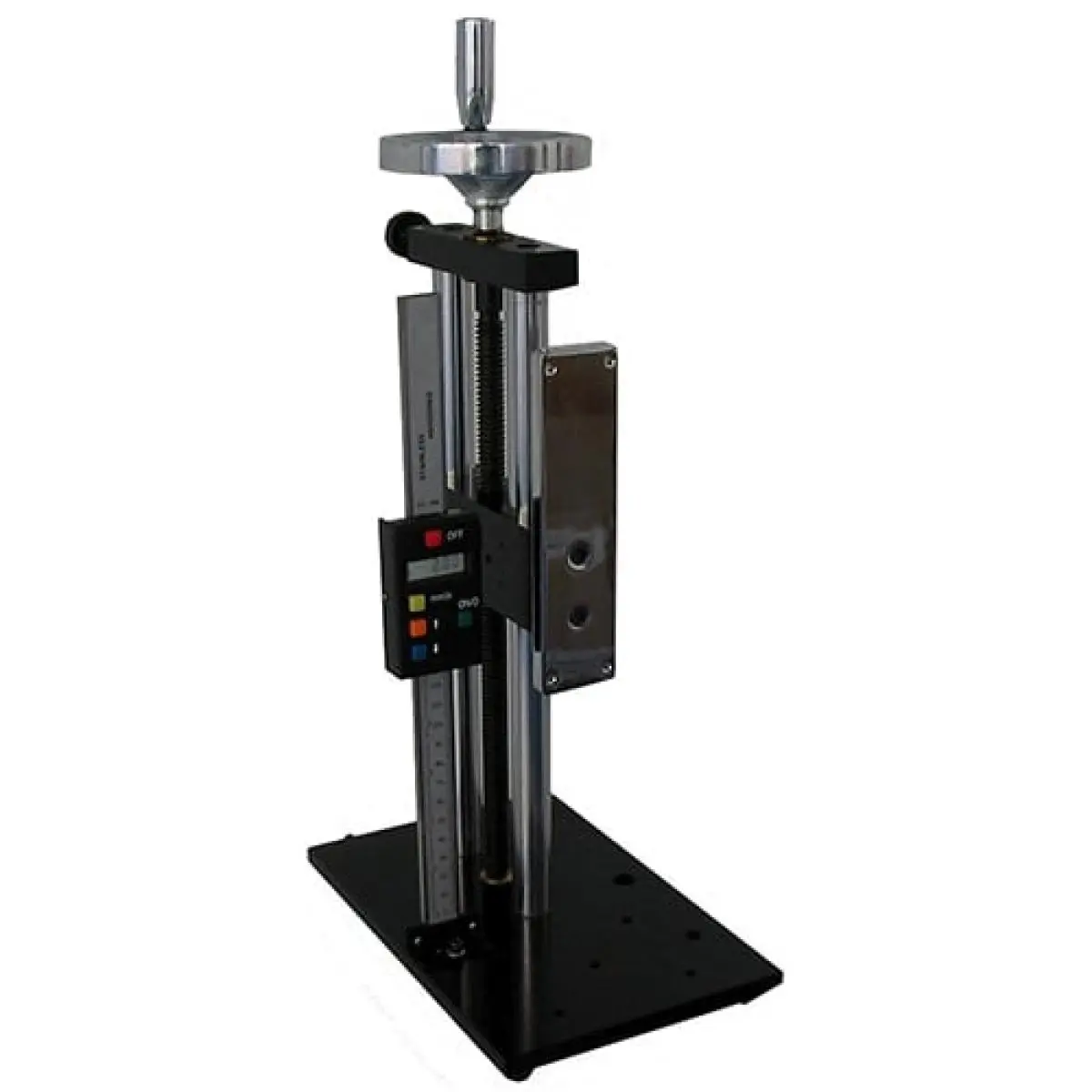

PCE-FTS50 Force Test Stand
Measurement of digital length / high reproducibility / accurate results

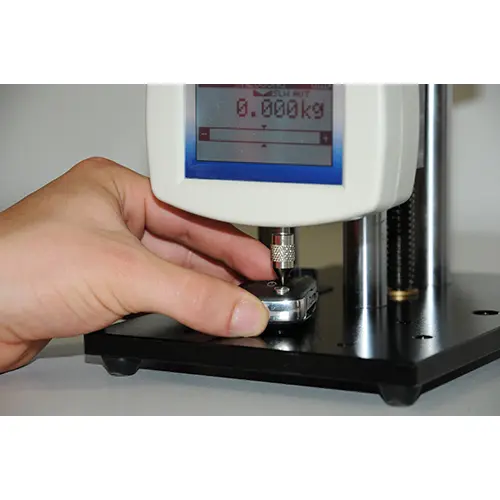

The PCE-FTS50 Force Test Stand that works with the PCE-FM 50, PCE-FM 200, PCE-DFG N 200, PCE-DFG N 500 and PCE-PTR 200. This Force Test Stand offers control and stability when measuring traction and compression with a force gauge or force meter. In addition, using the Force Test Stand guarantees a precise correspondence between the test matrix and the test position. This allows for results to be accurately reproduced.

*** The mounting plate
ADP-UNI must be ordered at the same time!


Highlights

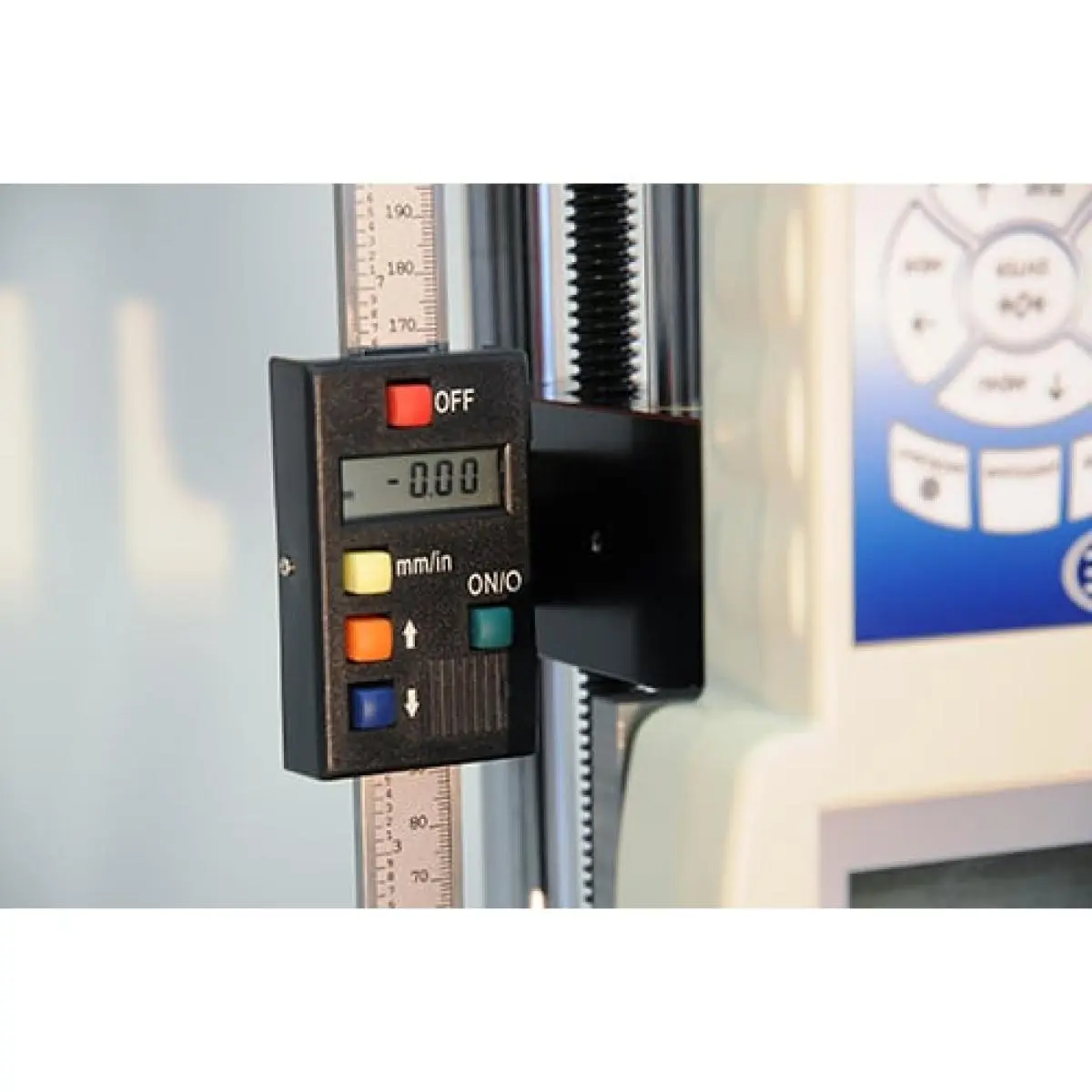

- with digital measuring distance display
- maximum operating length of 236.36 mm / 9.30"
- max. force range 500 N
- delivered without force gauge

Specification

General technical data
Dimensions  Handwheel Ø 120 mm
Base plate 145 x 100 mm
Strength range  0 ... 500 N
Travelling distance  0 ... 335 mm
Spindle pitch  3 mm
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  600 x 210 x 128 mm
Weight  8800 g

Delivery Scope

1 x PCE-FTS50 Test Stand
