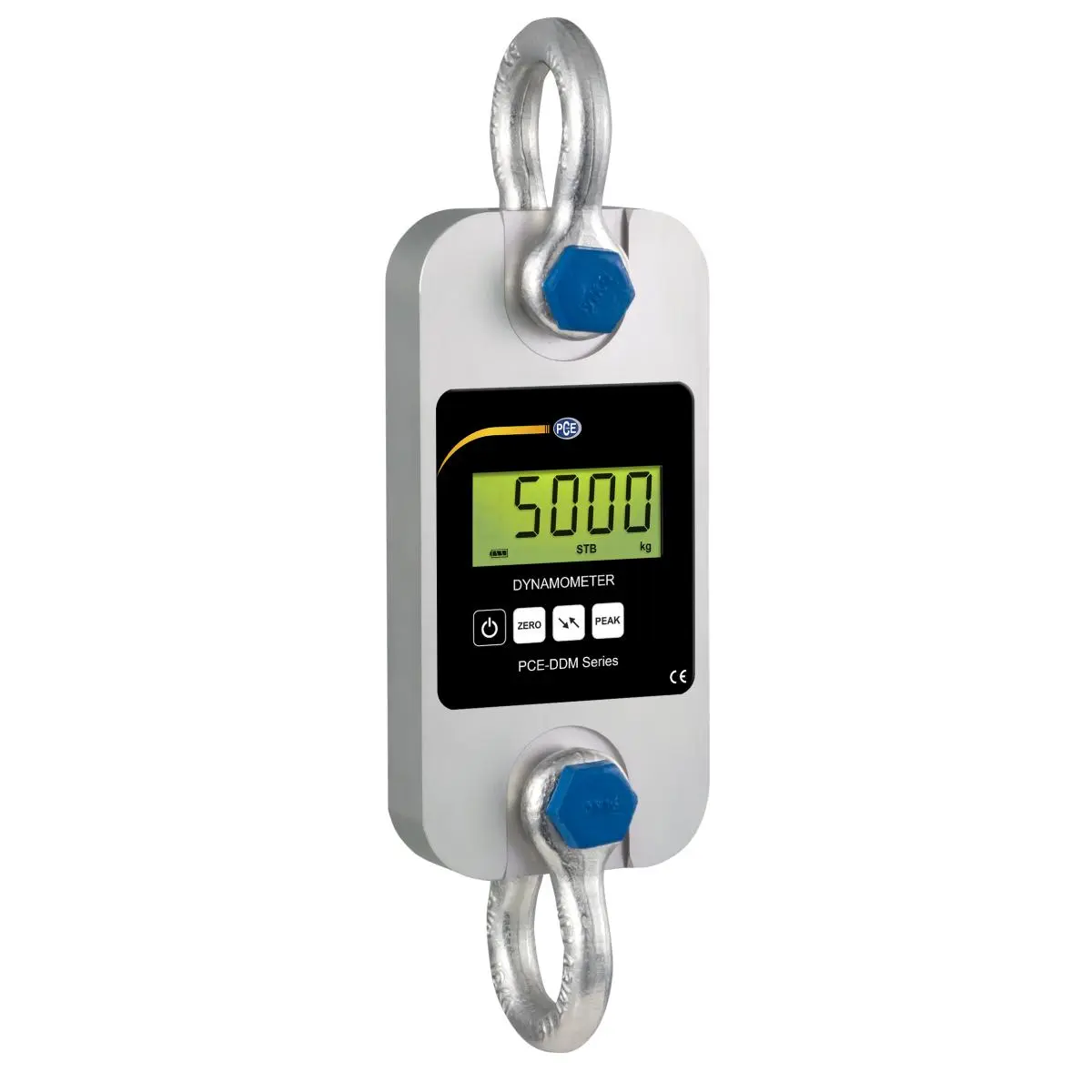

Tension Dynamometer / Tension Load Cell PCE-DDM 5WI

[zoom]

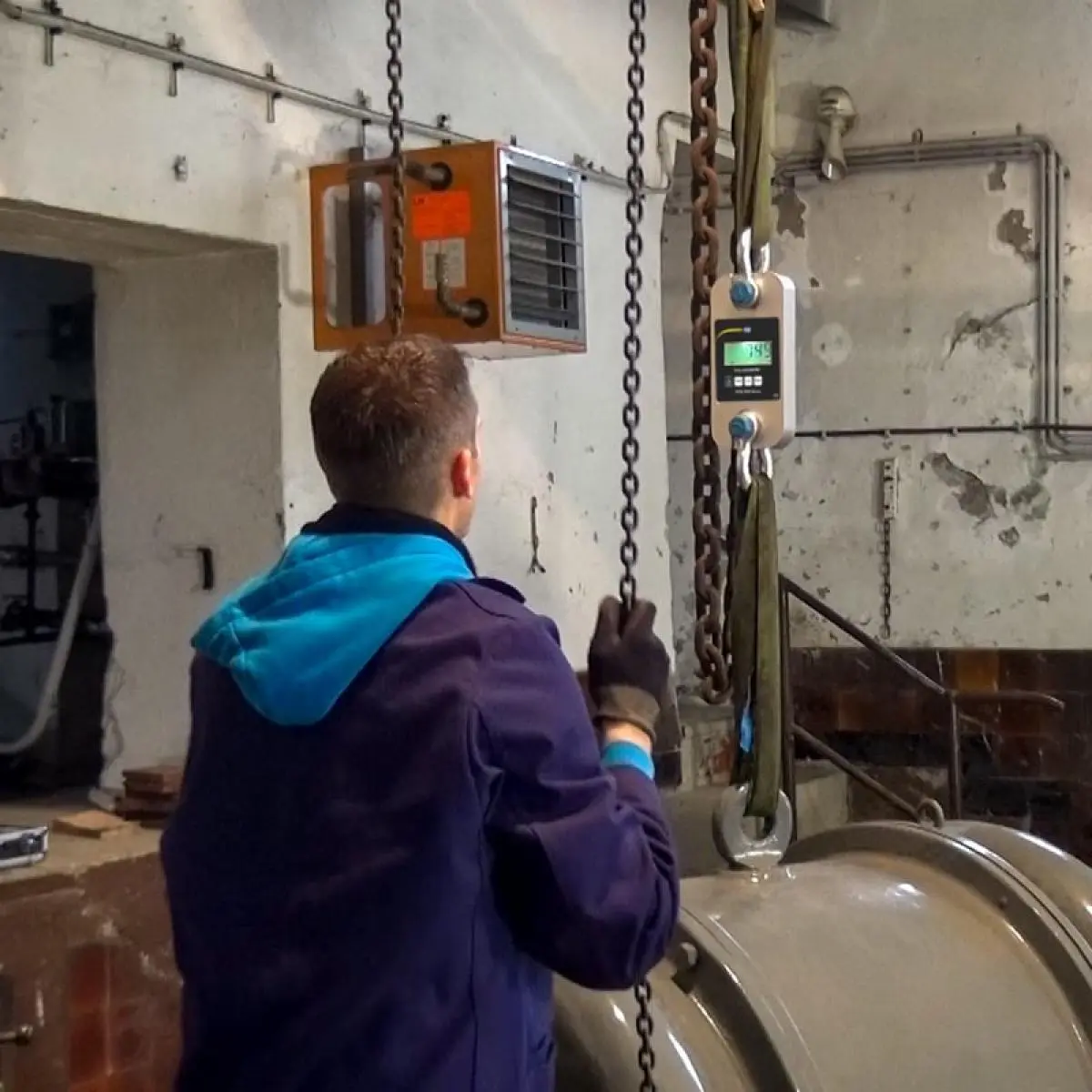

Tension Dynamometer / Tension Load Cell Application picture

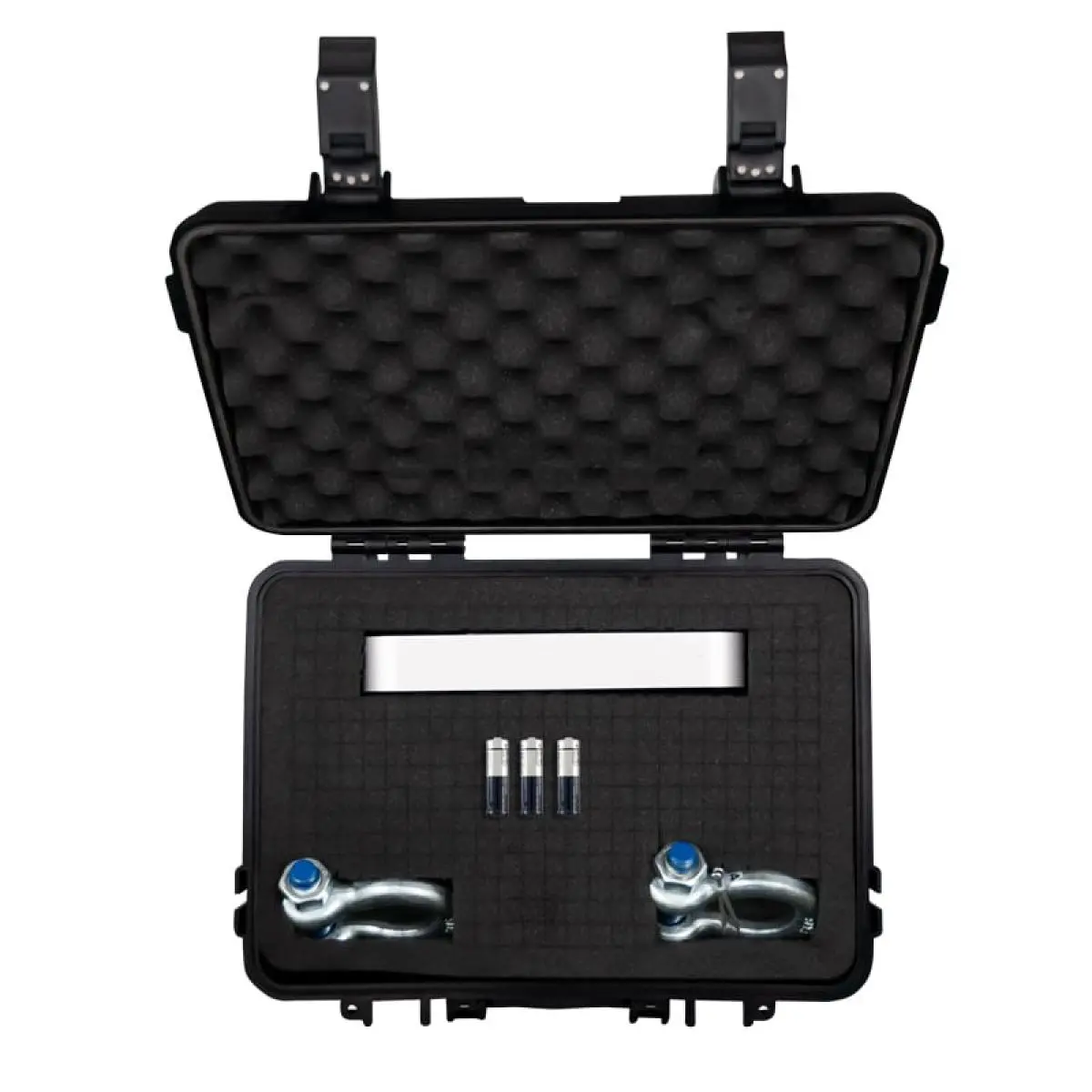

Tension Dynamometer / Tension Load Cell Delivery scope

Tension Load Cell PCE-DDM 5WI

Order no.: PCE-DDM 5WI

GTIN (EAN): 4250348716682

Accessory

ISO Calibration Certificate CAL-P-5T

251,90 €

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

1.424,90 €

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

1.689,90 €

Description

Mobile Tension Load Cell / Measuring range up to 5 t /
PEAK hold function / incl. shackles and transport case

The tension load cell is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension dynamometer. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension dynamometer is supplied with two shackles in a transport case.

Interesting functions of the tension load cell are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile dynamometer is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- High capacity up to 5 t / 11023 lbs / 5000 kg / 50 kN

- Heavy duty, rugged and durable yet compact and portable

- Selectable units of measurement: kg / t / lb / N / kN

- Peak hold, sum and tare functions

- Long battery life - approx. 50 hours of continuous use at full charge

- Includes shackles, protective carrying case and two-year warranty against

manufacturer defects

- Manufacturer calibrated, but can be certified to ISO standards for an

additional fee

(see accessories for details)

Specification

Weighing range
Measurement range up to [Max]	5000 kg
Resolution [d]	2 kg
Accuracy	±0.1% of range

Force
Measuring range	0 ... 50 kN
Resolution	20 N
Accuracy	±0.1% of range

General technical data
Measuring functions	HOLD, peak
Measuring functions (additional information)	Summing function
Units	kg, N, lb, T, kn
Display type	LCD
Digit size [WxH]	Height: 22 mm
Measuring rate	2,5 Hz
Operating time	50 h
Housing	Aluminium
Minimum load [min]	40 kg
Tare range	max. 20 % of the measurement range
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	3 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Operating conditions	-10 ... 40 °C , 0 ... 85 % RH
Storage conditions	-10 ... 40 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	285 x 123 x 57 mm
Weight	3000 g

Delivery Scope

1 x PCE-DDM 5WI Tension Dynamometer / Tension Load Cell

2 x shackles

3 x 1.5 V AA batteries

1 x user manual

1 x protective carrying case

Note: This model does not come with a remote control. If a remote control is

desired, please see the PCE-DDM 5 (visit similar items for details).
