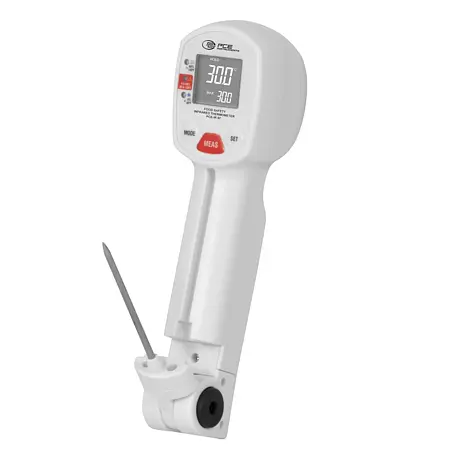

The Temperature Meter enables non-contact measurement of surface temperature and measurement of internal temperature using the integrated probe. It is particularly suitable for monitoring food and offers a measuring range of -40 … 280°C in infrared mode and -40 … 200°C when measuring with the probe.
The Hold and Max functions are available for checking measured values. With a measurement response time of less than 500 ms and a measuring spot ratio of 20:1, the Temperature Meter enables rapid measurements from a suitable distance.
The Temperature Meter also features an integrated countdown timer with an alarm function and a maximum setting time of 10 hours. The temperature can be displayed in either °C or °F. The device is powered by batteries.
The Temperature Meter therefore combines non-contact surface measurement with direct probe measurement and is suitable for versatile temperature checks in the food sector.
| Infrared temperature | |
| Measuring range | -40 ... +4 °C |
| Resolution | 0,1 °C |
| Accuracy | ±2 °C |
| Infrared temperature | |
| Measuring range | 4 ... 65 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1 °C |
| Infrared temperature | |
| Measuring range | 65 ... 280 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5% f.s. |
| Infrared temperature | |
| Measuring range | -40 ... +39,2 °F |
| Resolution | 0,1 °F |
| Accuracy | ±3.6 °F |
| Infrared temperature | |
| Measuring range | 39,2 ... 150 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.8 °F |
| Infrared temperature | |
| Measuring range | 150 ... 536 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.5% of full scale |
| Temperature sensor | |
| Measuring range | -40 ... -5 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1°C |
| Temperature sensor | |
| Measuring range | -5 ... +65 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1°C |
| Temperature sensor | |
| Measuring range | 65 ... 200 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1% of Rd |
| Temperature sensor | |
| Measuring range | -40 ... +23 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.8°F |
| Temperature sensor | |
| Measuring range | 23 ... 150 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1.8°F |
| Temperature sensor | |
| Measuring range | 150 ... 392 °F |
| Resolution | 0,1 °F |
| Accuracy | ±1% of Rd |
| General technical data | |
| Measuring functions | HOLD, MAX |
| Units | °C, °F |
| Display type | LCD |
| Display size | 1,4 Inch |
| Sensor | RTD probe |
| Response time | 500 mS |
| Automatic power-off | 10 s |
| Measurement spot | 20:1 |
| Spectral range | 8 ... 14 µm |
| Dimensions | Probe length: 75 mm |
| Menu language | English, English (GB) |
| Protection class (device) | IP65 |
| Power supply | batteries |
| (Rechargeable) battery | 1 x 9 V 9V block , Alkali-manganese |
| Capacity | 550 mAh |
| Performance | 4,95 Wh |
| Operating conditions | -10 ... 50 °C , 100 % RH |
| Storage conditions | 0 ... 50 °C , 100 % RH |
| Dimensions ( L x W x H ) | 200 x 52 x 58 mm |
| Weight | 180 g |
