Tachometer PCE-DSX 100

Tachometer PCE-DSX 100

Order no.: PCE-DSX 100
GTIN (EAN): 4250348733627
124,90 €
156,12 €
price ex. (VAT / delivery)
:
4250348733627
PCE-DSX 100
Delivery time:1-2 working days

Description

The tachometer with coarse and fine adjustment / 36 bright LEDs / data storage function / automatic switch-off

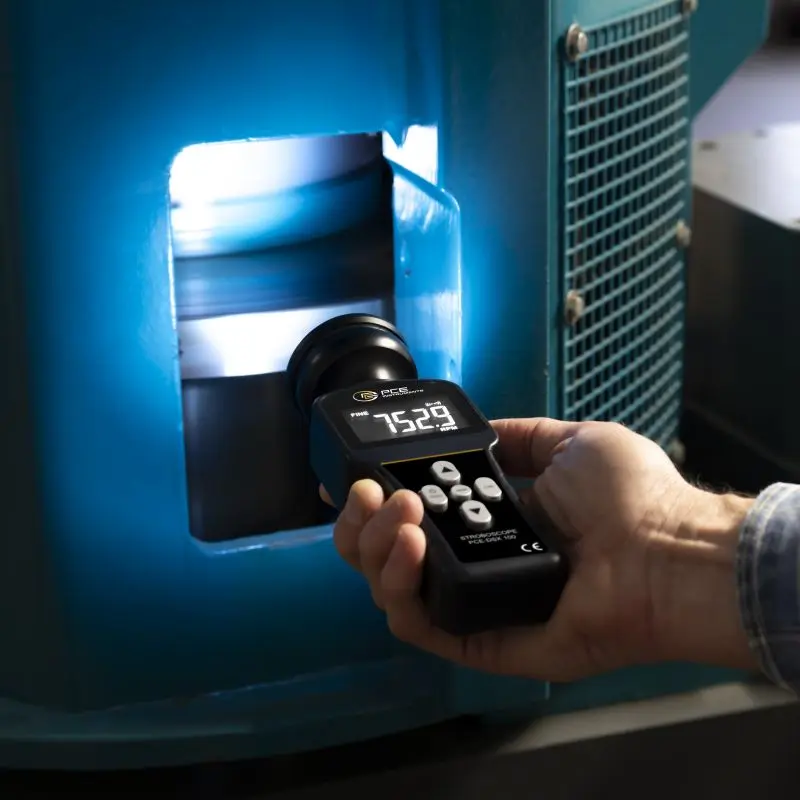

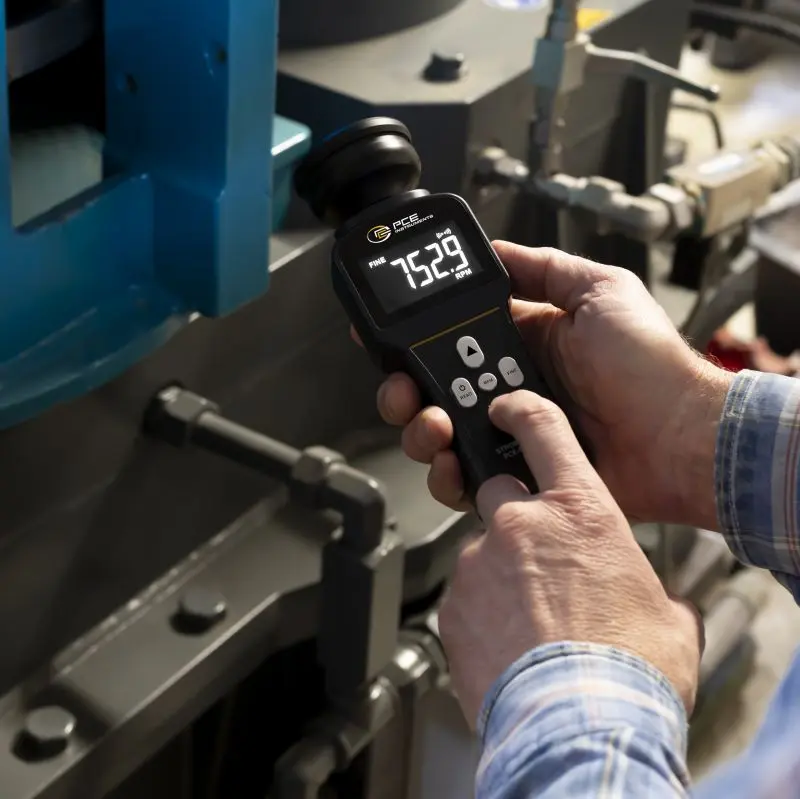

The tachometer is a handy device for measuring the speed of objects with a measuring range of 60 to 20,000 RPM. The tachometer is suitable for inspecting objects with periodic movements and for detecting faults. The tachometer enables precise measurements through fine and coarse adjustment. With the fine adjustment, the speed can be changed in small steps: +0.1 RPM for speeds below 1000 RPM and +1 RPM for speeds above 1000 RPM.The coarse setting allows larger changes: +10 RPM for speeds below 1000 RPM and +100 RPM for speeds above 1000 RPM.

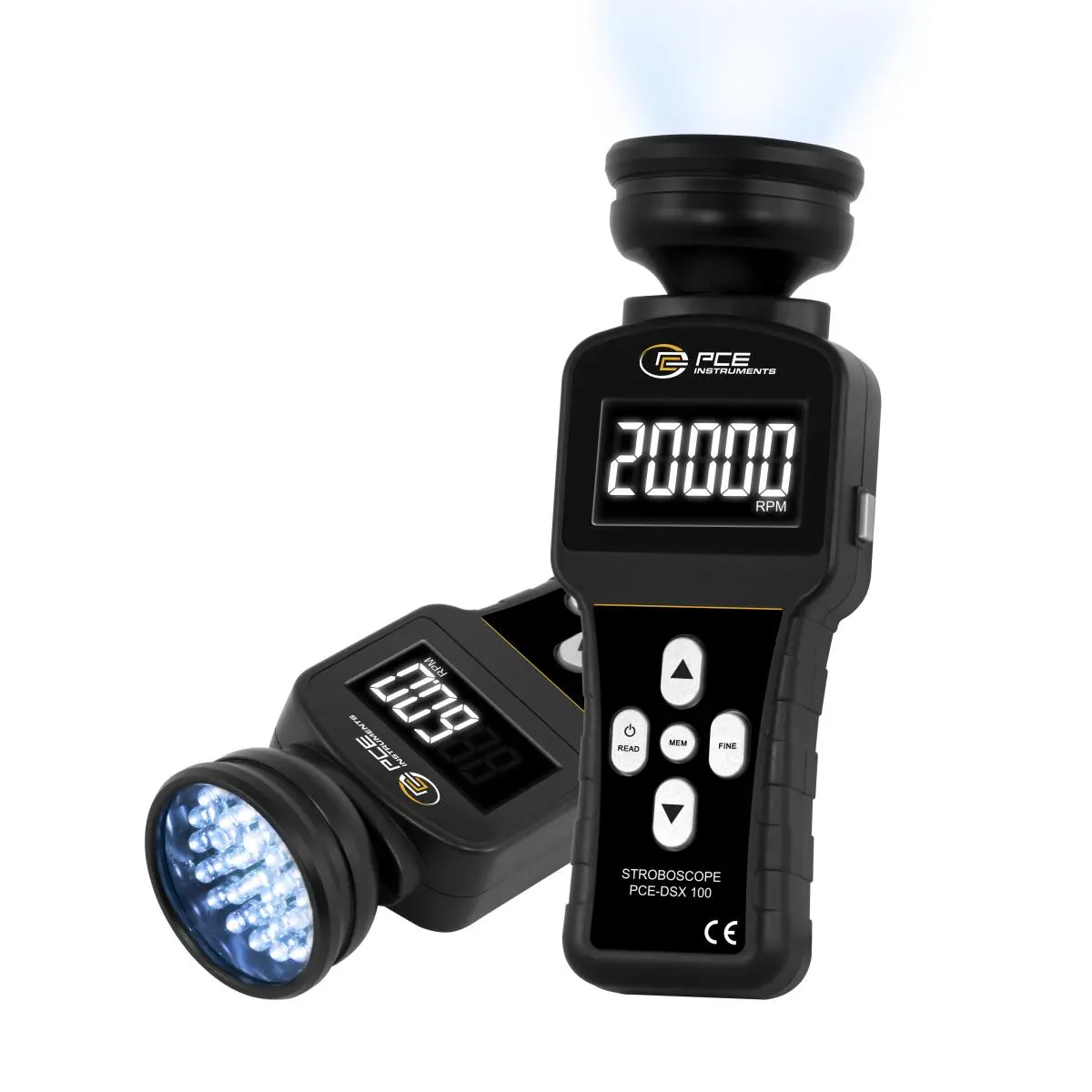

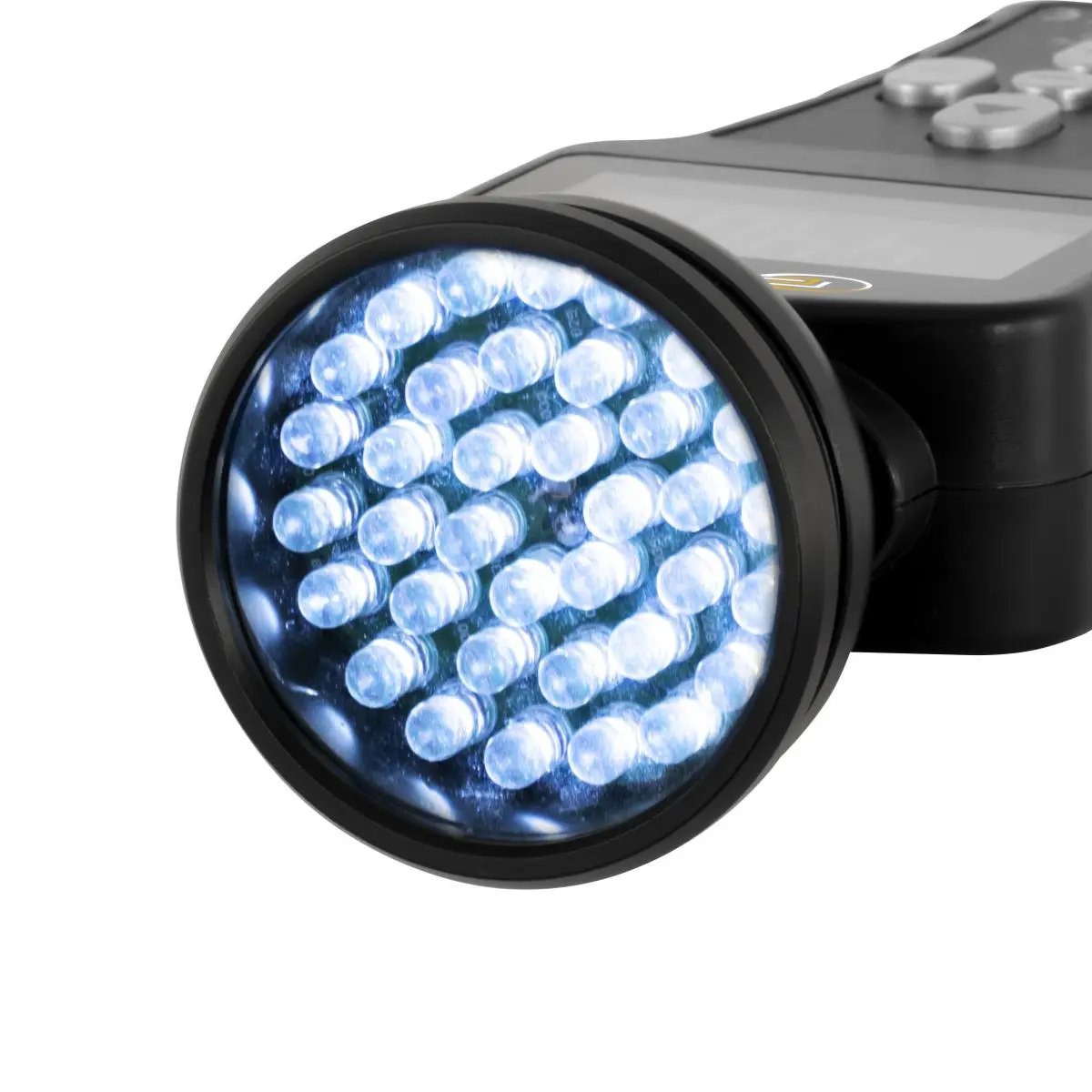

Equipped with an illuminated LC display and a digit height of 16 mm, the tachometer provides a clear display even in poor lighting conditions. The flash light source with over 36 LEDs generates bright flashes of light for optimum measurements. The automatic switch-off after 5 minutes of inactivity saves energy and extends battery life. The tachometer has a memory for up to 10 flash frequencies to enable a quick change to different frequencies. The tachometer automatically warns when the supply voltage is too low to ensure trouble-free operation.


Highlights

- Measuring range from 60 ... 20000 RPM
- Automatic switch-off
- 2.1" LC display with illumination
- Data storage function for up to 10 values
- Coarse adjustment in steps, +10, +100 RPM
- Fine adjustment in steps, +0.1, +1 RPM

Specification

Optical speed
Measuring range  60 ... 999,9 RPM
Resolution  0,1 RPM
Accuracy  0.05 %

Optical speed
Measuring range  1000 ... 20000 RPM
Resolution  1 RPM
Accuracy  0.05 %

General technical data
Display type  LCD with backlight
Display size  2,1 Inch
Storage medium  Internal memory
Storage capacity  10 Values
Automatic power-off  5 min
Light source  36 LEDs
Luminous intensity  approx. 1400 lx @20cm @10000 RPM
(Rechargeable) battery  4 x 1,5 V AA battery , Alkali-manganese
Capacity  3000 mAh
Operating conditions  0 ... 50 °C , 10 ... 85 % RH
Storage conditions  0 ... 50 °C , 10 ... 85 % RH
Dimensions ( L x W x H )  180 x 68 x 56 mm
Weight  180 g

Delivery Scope

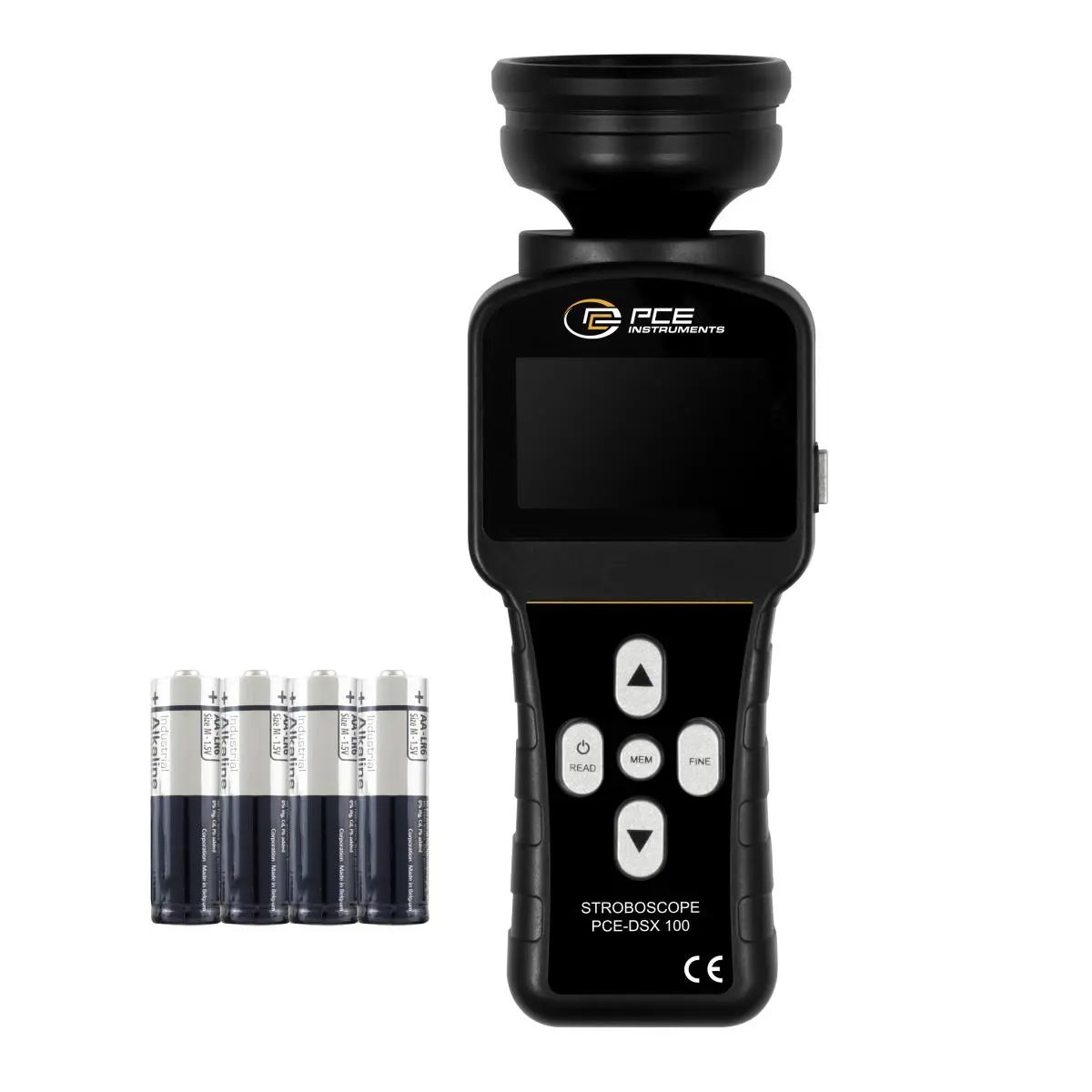

1 x Tachometer PCE-DSX 100
4 x 1.5 V AA batteries
1 x operating instructions
