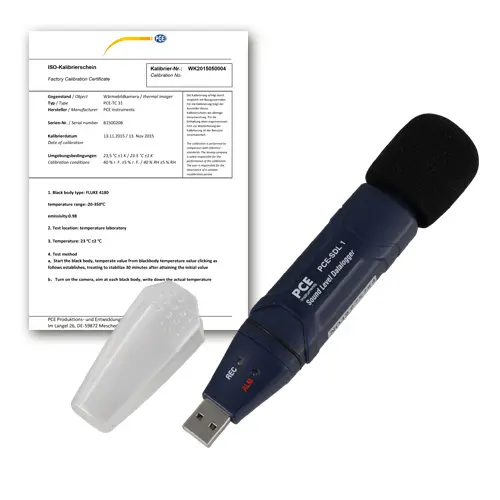

SPL Meter PCE-SDL 1-ICA incl. ISO-Calibration Certificate

Order no.: PCE-SDL 1-ICA

GTIN (EAN): 4250348727916

Accessory

ISO Calibration Certificate for Noise Meter CAL-SL

123,90 €

Description

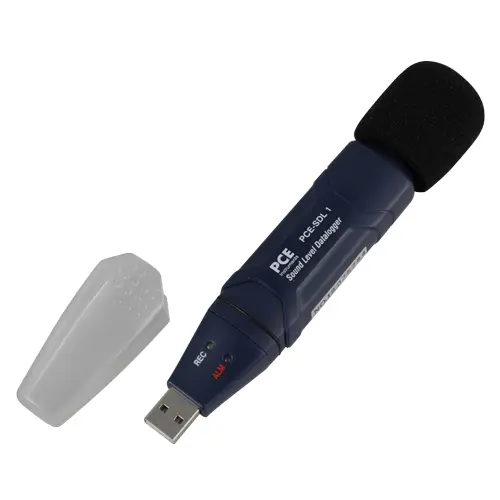

PCE-SDL 1 Data-Logging SPL Meter
Class 2 data-logging noise meter with USB interface and Windows-compatible software

PCE-SDL 1 is a class 2 (type 2) data-logging sound level meter, sound pressure level (SPL) meter, noise meter or decibel (dB) meter used for long-term acoustic measurements.

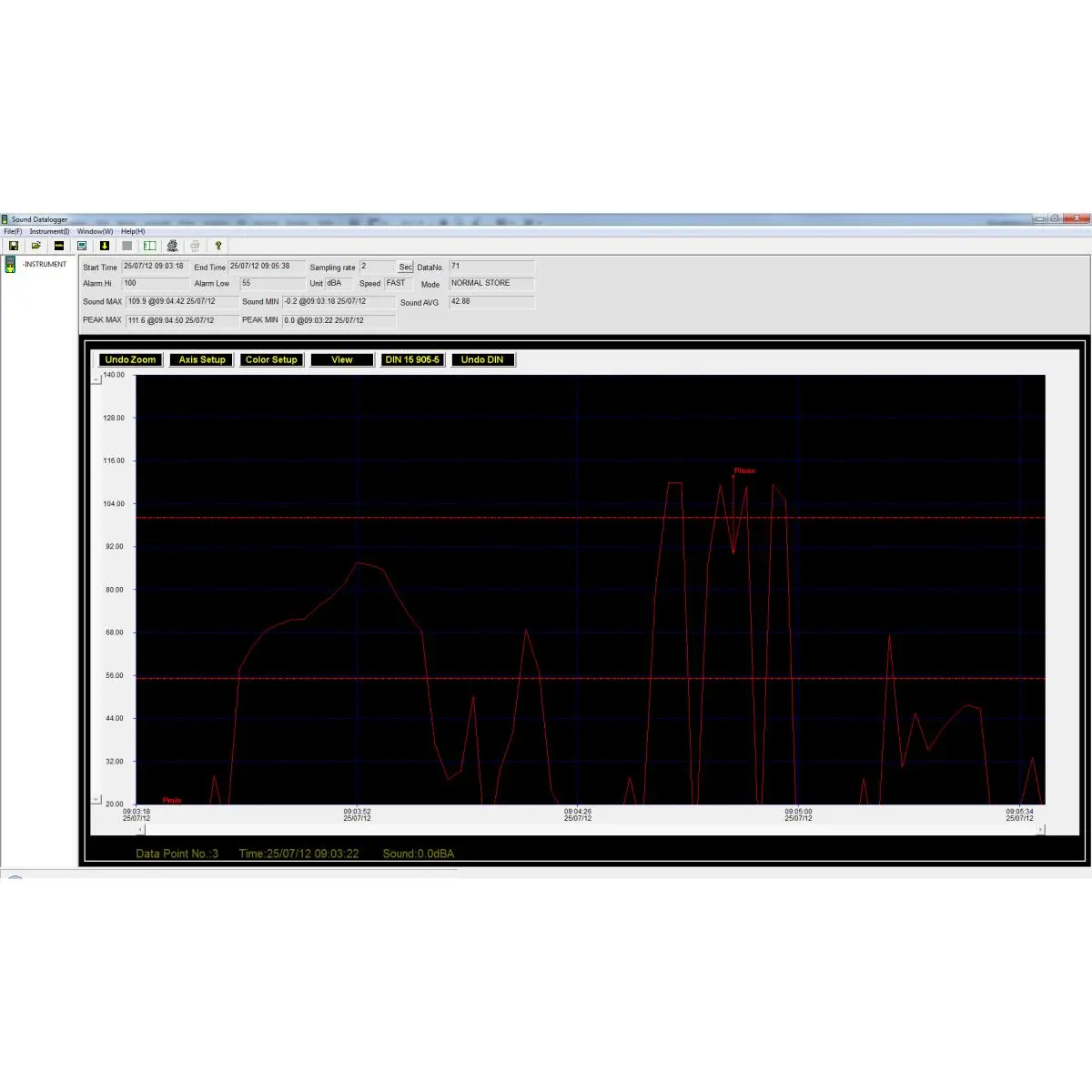

The Windows-compatible software included with the meter allows for the display of a progressive graph of the data collected. The software also enables the user to set alarm limits indicated on the meter via flashing LEDs.

Highlights

- Measuring range: 30 ... 130 dB

- Memory: Stores up to 129,920 data sets or 36 hours at 1-sec interval

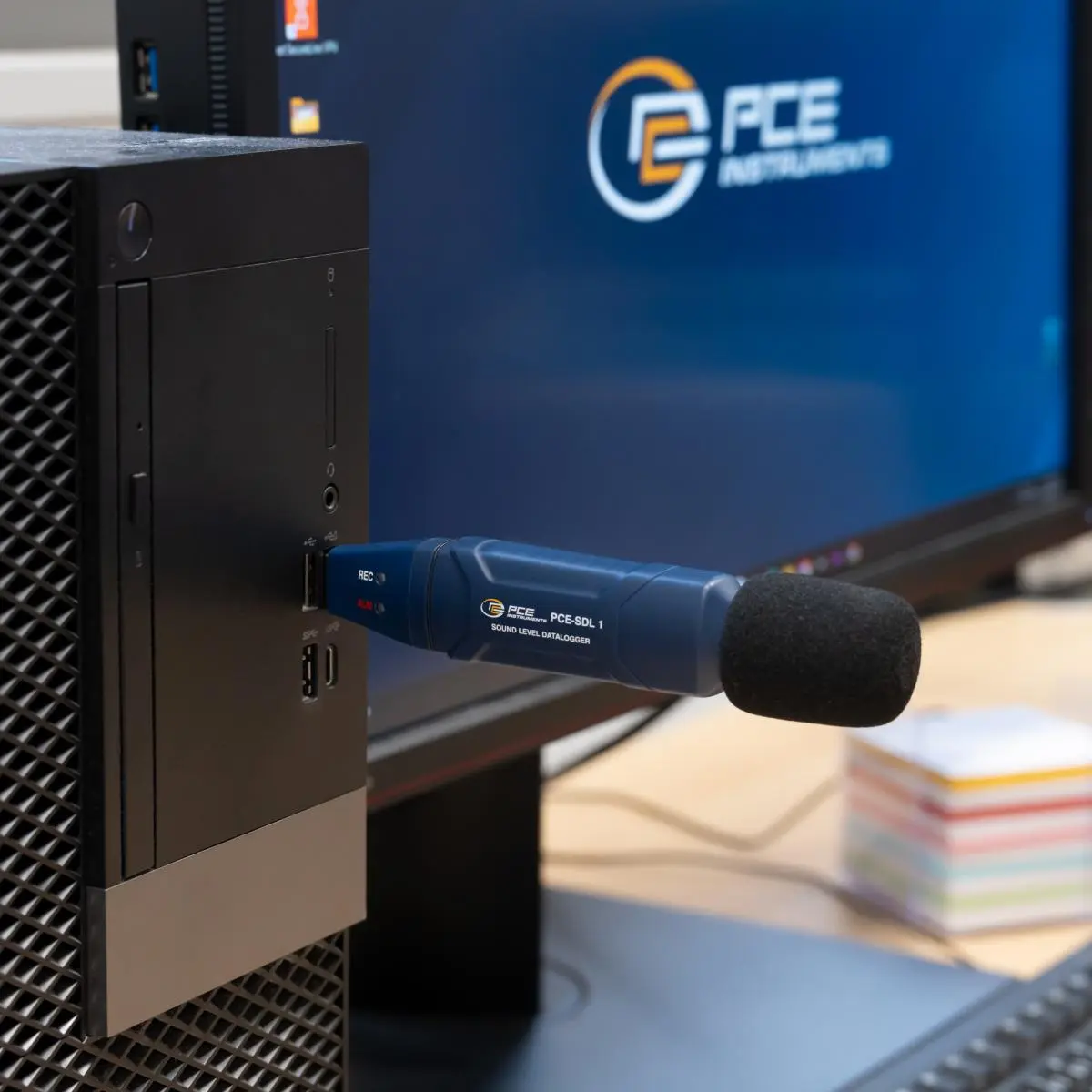

- Includes USB interface and Windows-compatible software for data transfer to

- NORM (normal) and PEAK modes

- Adjustable alarm limits

- LED alarm indicators

- A and C frequency weighting

- Frequency range: 31.5 Hz ... 8 kHz

- Adjustable measurement interval

- Date- and time-stamped data collection

- Manual and auto-start modes

- Standard: IEC 61672-1 (Class 2)

- incl. ISO-Calibration Certificate

Specification

Sound level
Measuring range	30 ... 130 dB
Resolution	0,1 dB
Accuracy	1.4 dB at 1 kHz

General technical data
Time weighting	slow (1 s), fast (125 ms)
Frequency weighting	C, A
Frequency	31.5 ... 8000 Hz
Storage capacity	129920 Data records
Storage interval from	1 s
Storage interval to	24 h

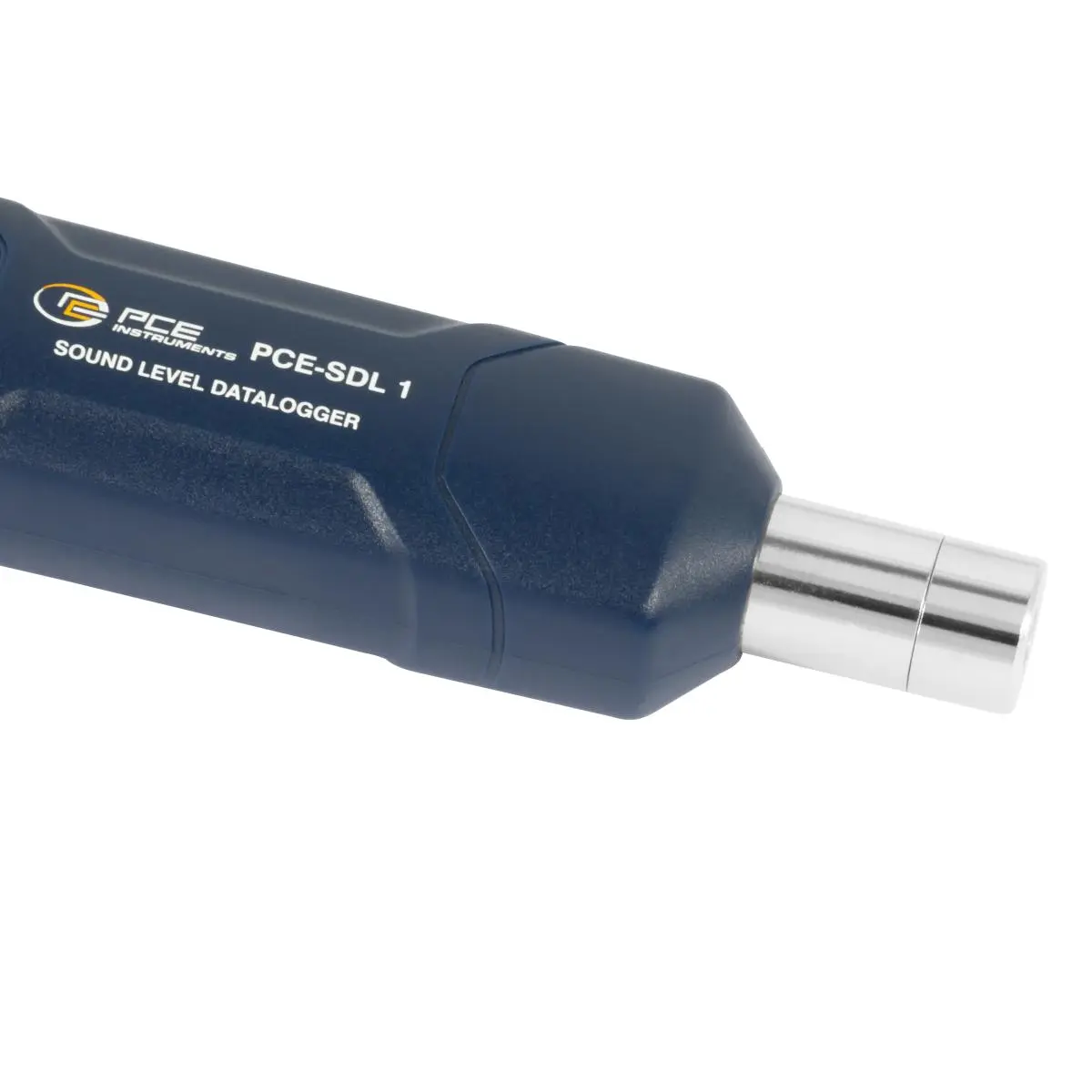

Microphone type	Electret capacitor
Interface	USB
Standard(s)	IEC 61672-1 (Class II)

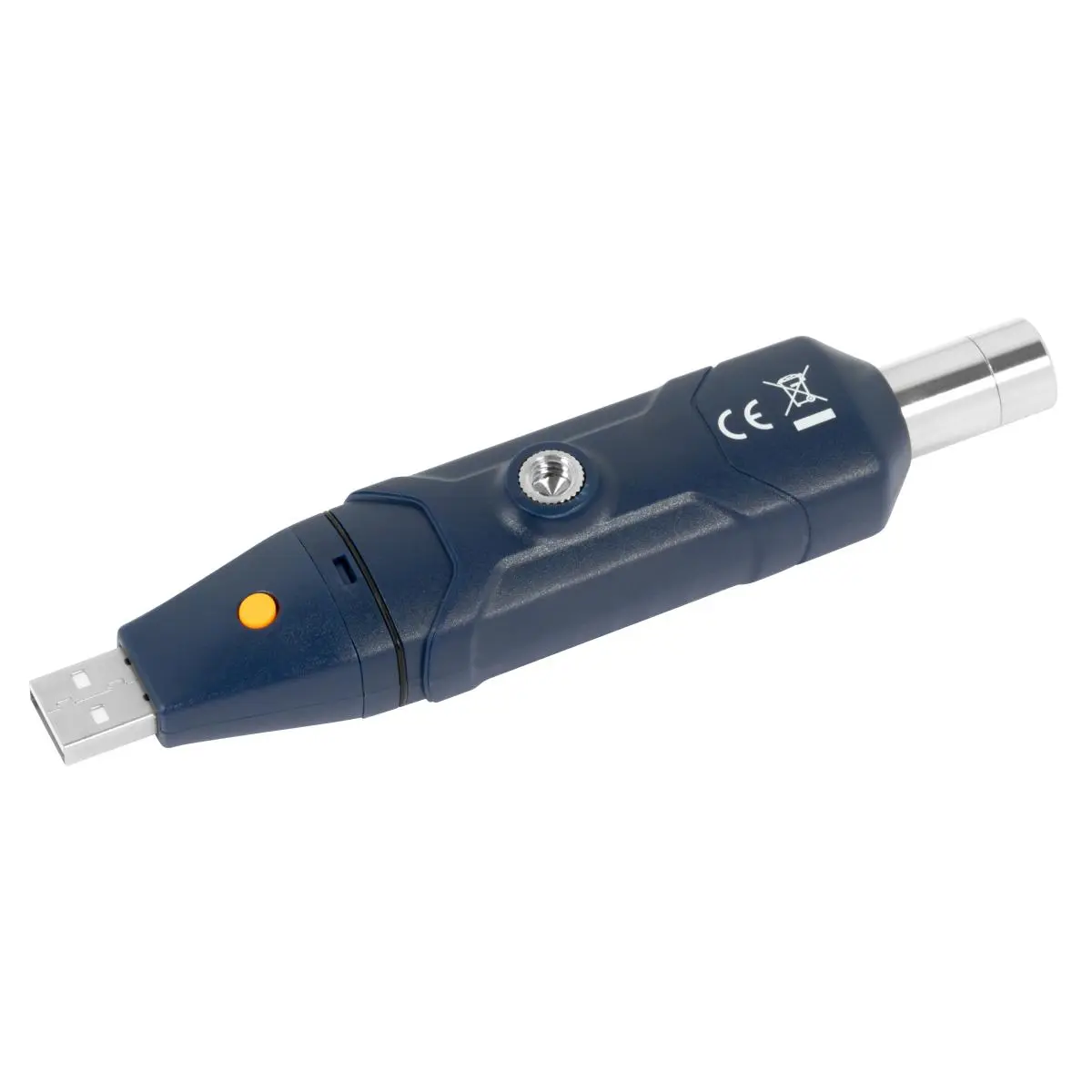

Tripod thread	1/4 inch
Dimensions	Microphone diameter 1/2 inch
Menu language	English, English (GB)
Protection class (device)	IP20
Power supply	Battery
(Rechargeable) battery	1 x 3,6 V 1/2 AA 3.6 V LI-SOCl₂ (LS 14250) , lithium
Capacity	1200 mAh
Operating conditions	0 ... 40 °C , 10 ... 90 % RH
Storage conditions	-10 ... 60 °C , 10 ... 75 % RH
Dimensions ( L x W x H )	145 x 28 x 25 mm
Weight	70 g
