Sound Level Meter PCE-SLT-TRM-24V

Order no.: PCE-SLT-TRM-24V

GTIN (EAN): 4250348722614

Accessory

ISO Calibration Certificate for Noise Meter CAL-SL

123,90 €

Class 2 Acoustic Calibrator PCE-SC 43

144,90 €

Description

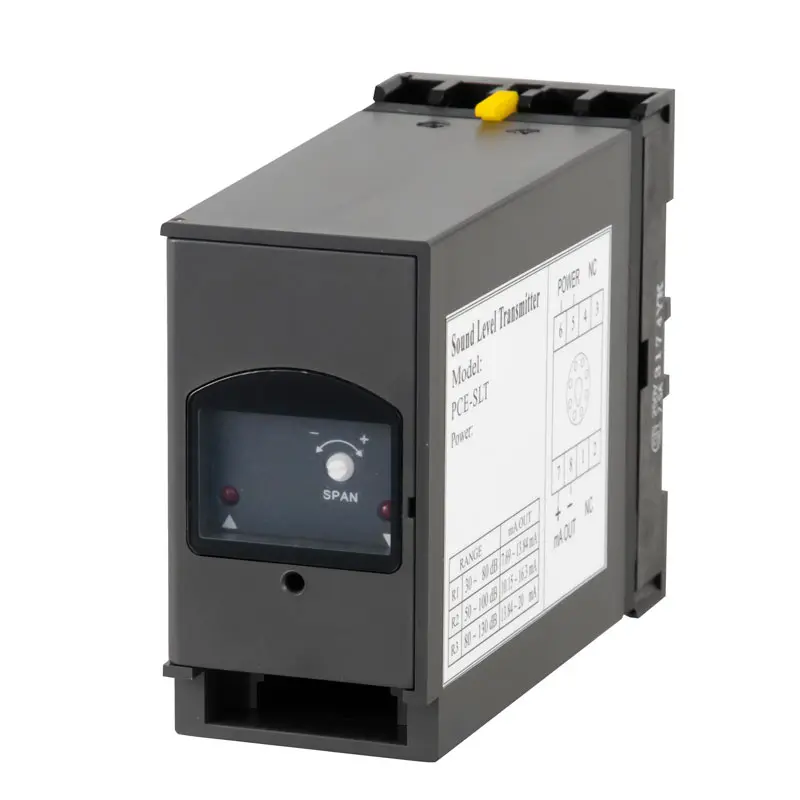

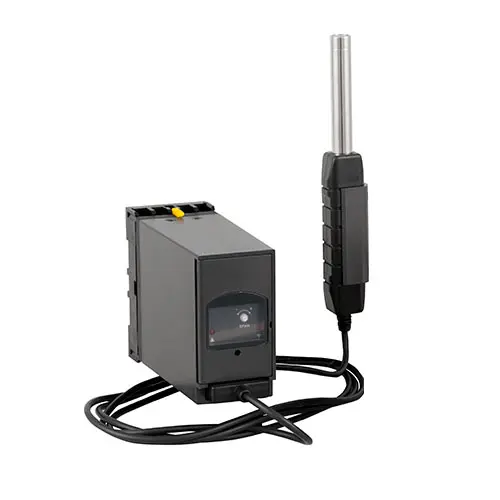

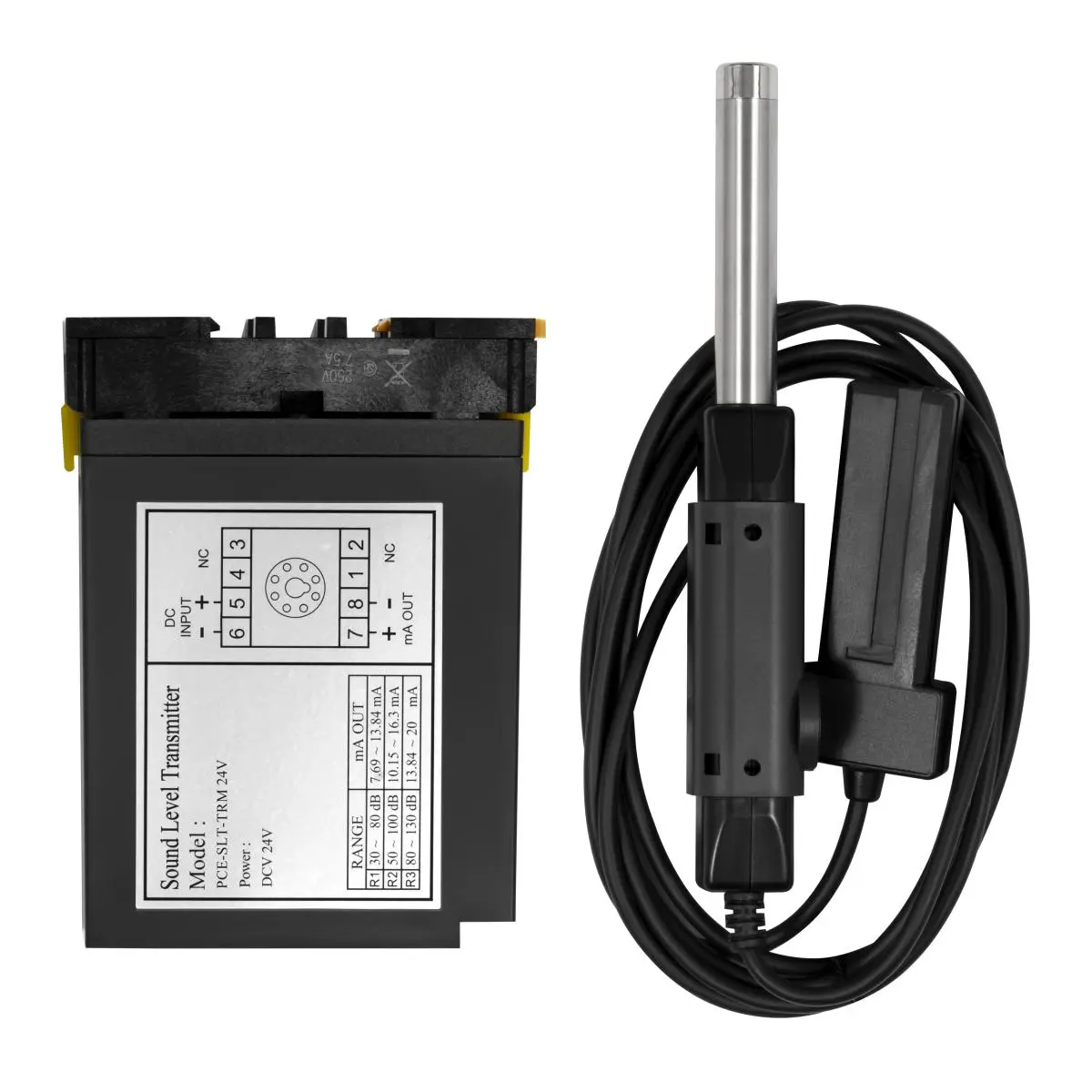

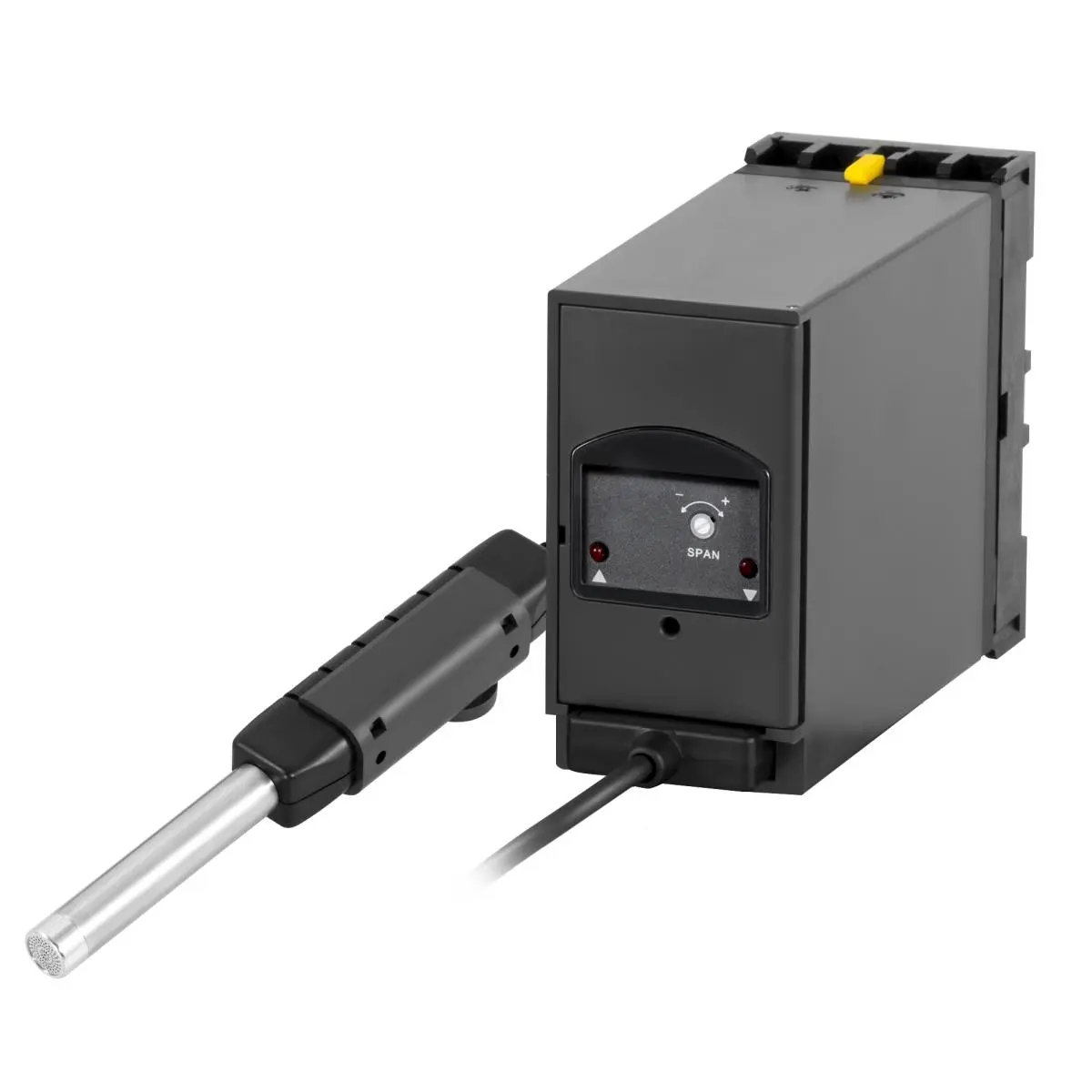

Sound Level Meter / Sound Warning Device
Sound warning device for fixed installation with analogue output 4 ... 20 mA

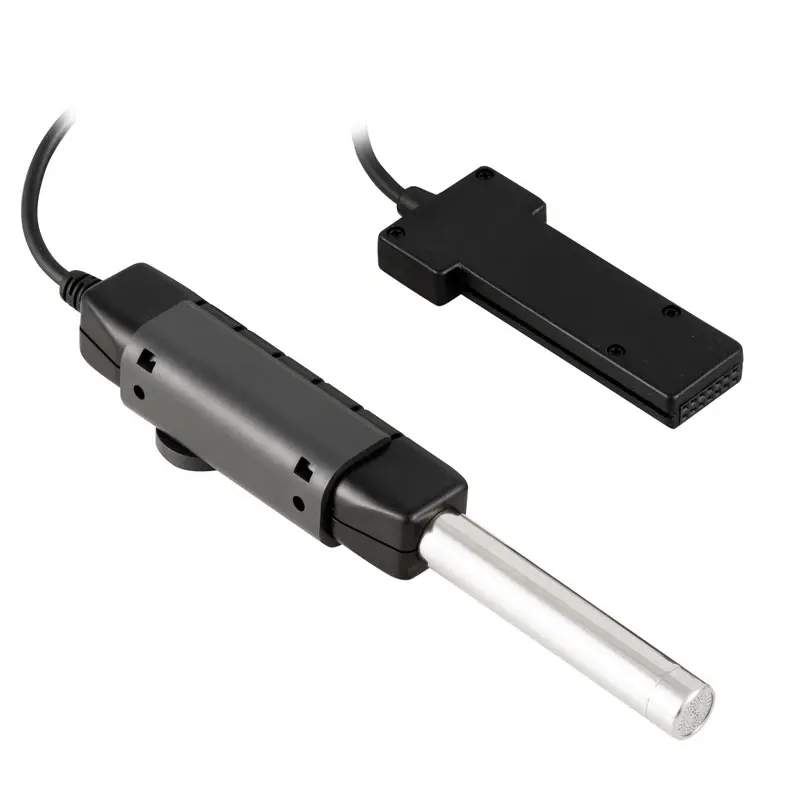

The sound level meter consists of a measuring microphone with a handle and a wall bracket on a 1.5 m cable, a sound transmitter. The main area of application of this sound level meter is in the continuous sound measurement and sound monitoring of factory halls, production rooms and at large events (discotheques, public festivals, cart tracks ...).

The analog output signal can also be used to control window shutters... or the transmitter signals can be saved, evaluated and documented on a logger. The sound level meter is very easy to connect and can be operated via 240 V mains power.

Highlights

- Measuring range: 30 ... 130 dB in three ranges

- Resolution: 0.1 dB

- Power supply: 24 V DC

- Relay output and control output

- Handle and wall bracket

- Analogue output signal

Specification

Sound level
Measuring range	30 ... 80 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	50 ... 100 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

Sound level
Measuring range	80 ... 130 dB
Resolution	0,1 dB
Accuracy	±1.5 dB

General technical data
Outputs	4 ... 20 mA
Cable length	1,5 m
Connections	1/2 inch microphone
Frequency weighting	A
Microphone type	Electret capacitor
Standard(s)	IEC 61672-1 (Class II)
Housing	ABS (acrylonitrile-butadiene-styrene copolymers)
Calibration	adjustable via a grub screw
Dimensions	Sensor: L 170 x W 26 x H 26 mm
Weights	Sensor: 143 g
Protection class (device)	IP54, IP60
Power supply	24 V DC
Operating conditions	0 ... 50 °C , 0 ... 85 % RH
Storage conditions	0 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )	125 x 97 x 50 mm
Weight	315 g
