The soldering iron / soldering device is designed for soldering work with a precisely adjustable temperature and combines cordless operation with a power supply via USB-C. For small components and SMD soldering, the precision tips support targeted processing, while the rapid heat-up reduces waiting times before work begins.
The temperature can be quickly adjusted to recurring tasks using five quick-setting levels and can also be finely tuned in small increments. The wide temperature range covers a variety of soldering tasks. The tips have a core resistance of 2.10 Ω and are designed for precision work. With an output of 10 W, the soldering iron / soldering device provides the heating performance required for these tasks.
For a continuous workflow, the device switches seamlessly between battery operation and USB-C power supply. The built-in 2600 mAh battery enables cordless use, while the wired and cordless dual mode allows you to choose the appropriate operating mode. An intelligent auto-sleep system and the energy-saving system support demand-based power use.

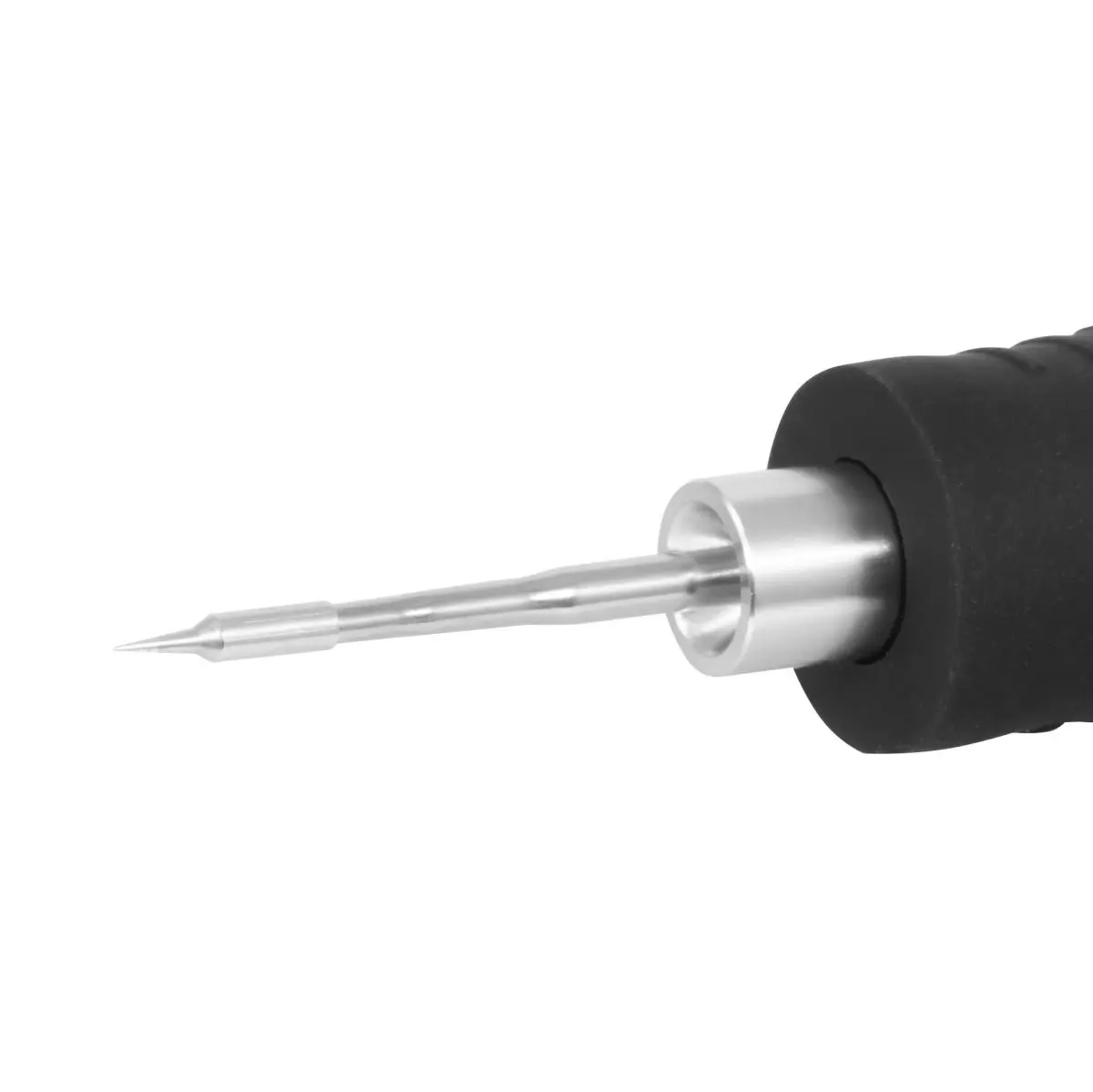

The soldering iron / soldering device is particularly suitable for precision work on small components and for SMD soldering tasks. The combination of F210 precision tips, finely adjustable temperature, and rapid heat-up supports controlled work steps on sensitive solder joints.
| General technical data | |
| Units | °C, °F |
| Display type | IPS |
| Display size | 0,96 Inch |

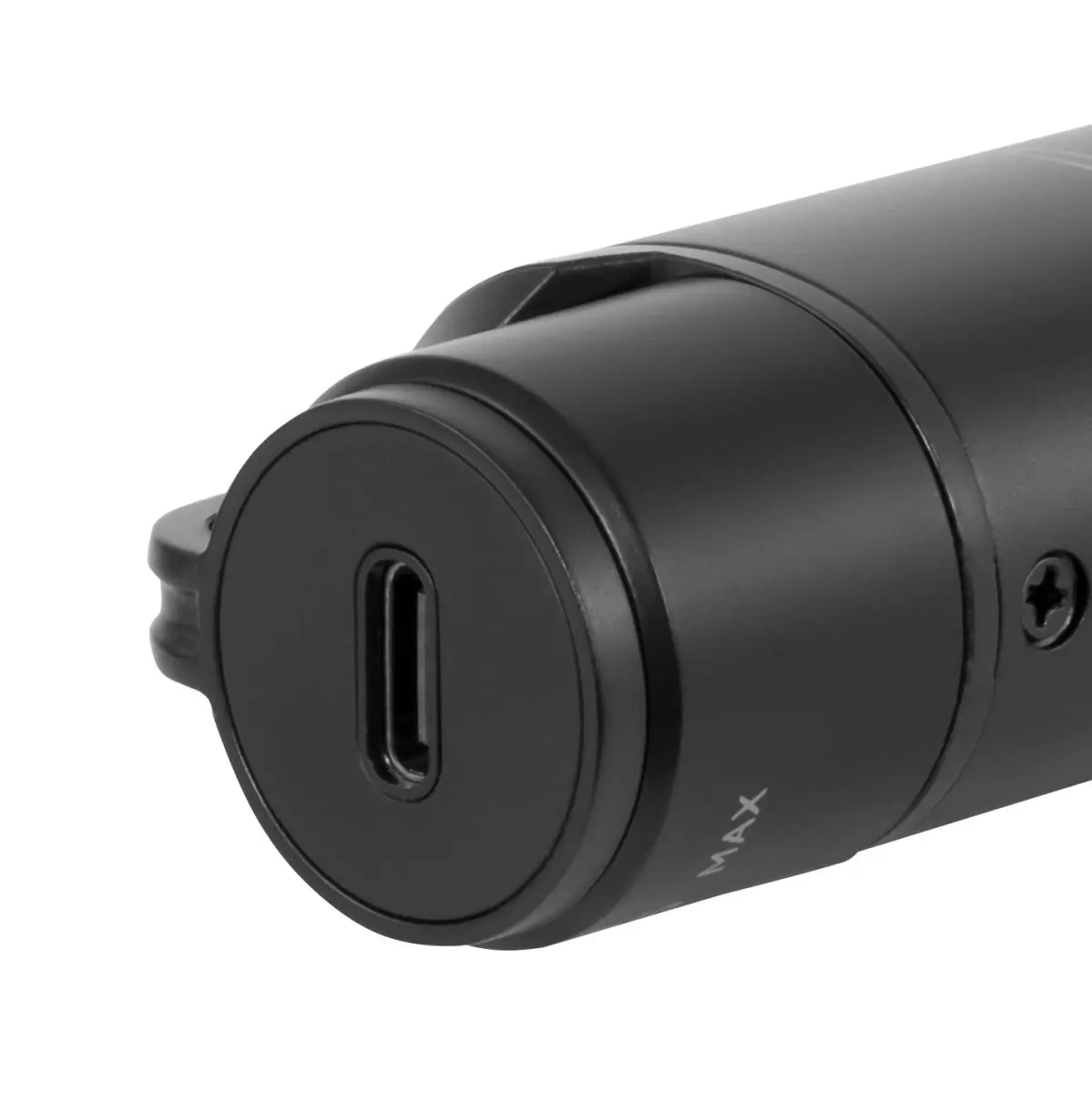

| Interface | USB-C |
| Warm-up time | 7 s |
| Operating time | 1,5 h |
| Temperature range | 100 ... 450 °C |
| Performance | 10 W |
| Menu language | English (GB), English, Chinese |
| Protection class (device) | IP20 |
| Power supply | 5 V DC |
| Connector type | Euro plug |
| (Rechargeable) battery | 1 x 3,7 V 18650 , Lithium-ion battery |
| Capacity | 2600 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 195 x 24 x 30 mm |
| Weight | 140 g |
