Snake Camera PCE-VE 370HR

Snake Camera PCE-VE 370HR

Order no.: PCE-VE 370HR
GTIN (EAN): 4250348715777

3.249,90 €
3.867,38 €
price ex. (VAT / delivery)
:
4250348715777
PCE-VE 370HR
Delivery time:1-2 working days
No
6 mm
1 m
320 x 240 / 640 x 480 pixels
4-way
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

PCE-VE 370HR Snake Camera
Four-way articulating industrial endoscope, borescope or videoscope with IP67 ingress protection rating, boost functionality and 6 LED lights (4 front, 2 side) for optimal illumination

PCE-VE 370HR is a four-way articulating inspection snake camera, industrial endoscope, borescope or videoscope for the non-destructive inspection (NDI) of machines, equipment and more. This industrial borescope is an ideal tool for diagnosing issues in hard-to-reach places. The waterproof camera head features 6 LED lights (4 front, 2 side) for optimal illumination. In addition, digital image magnification or zoom of up to 2 times is available, plus boost functionality for improved image quality in the dark.

The borescope stores the recorded images and videos directly to an SD card memory (included), allowing easy transfer to a PC. The 1 m / 3.28 ft cable length and 6.0 mm / 0.24 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***


Highlights

- with boost function: better images in dark surroundings
- flexible cable
- cable diameter: Ø 6 mm / 0.24"
- image capture / Photos and Videos
- LED lighting (2 additional side LEDs)
- Articulating 4-way optics
- 8 GB SD memory card
- robust carrying case included

Specification

General technical data
Resolution  Image format: JPEG (640 x 480)
Video format: ASF (320 x 240)
Cable length  1 m
Display type  TFT colour display
Display size  3,5 Inch
Display refresh rate  30 x per second
Storage medium  SD card
Storage capacity  32 GB

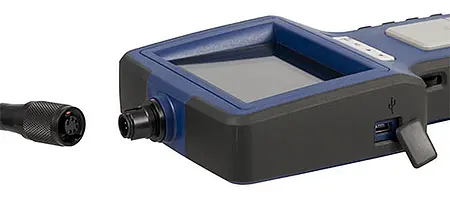

Interface  Mini-USB, AV out, AV in, SD card
Sensor  CMOS
Camera resolution  320 x 240 pixels
Camera orientation  pivoted
Operating time  4 h
Camera head length  23.5 mm
Camera head diameter  6 mm
Camera probe movement  4-way, 110°
Field of vision  87,1 °
Depth of field of vision  10 ... 60 mm
Luminous intensity  3 LEDs at the front, 2 LEDs at the side
Menu language  English, German, French, Italian, Spanish, Dutch, Portuguese, Danish, Turkish, Polish, Russian, Chinese, Japanese, Korean, Czech, Hungarian, Romanian, Swedish, Greek, Norwegian
Protection class (device)  IP52
Power supply  AC 100 ... 240 V AC | 50/60 Hz
Connector type  Device-europlug
Capacity  2300 mAh
Operating conditions  0 ... 45 °C , 0 ... 95 % RH
Storage conditions  0 ... 45 °C , 0 ... 95 % RH
Dimensions ( L x W x H )  207 x 118 x 37 mm
Weight  390 g

Delivery Scope

1 x Snake Camera
1 x 8 GB SD memory card
1 x USB cable
1 x Carrying case
1 x Mains power adapter
1 x User manual
Please note: Not to be used for medical applications!
