Relative Humidity Meter PCE-THB 40-ICA

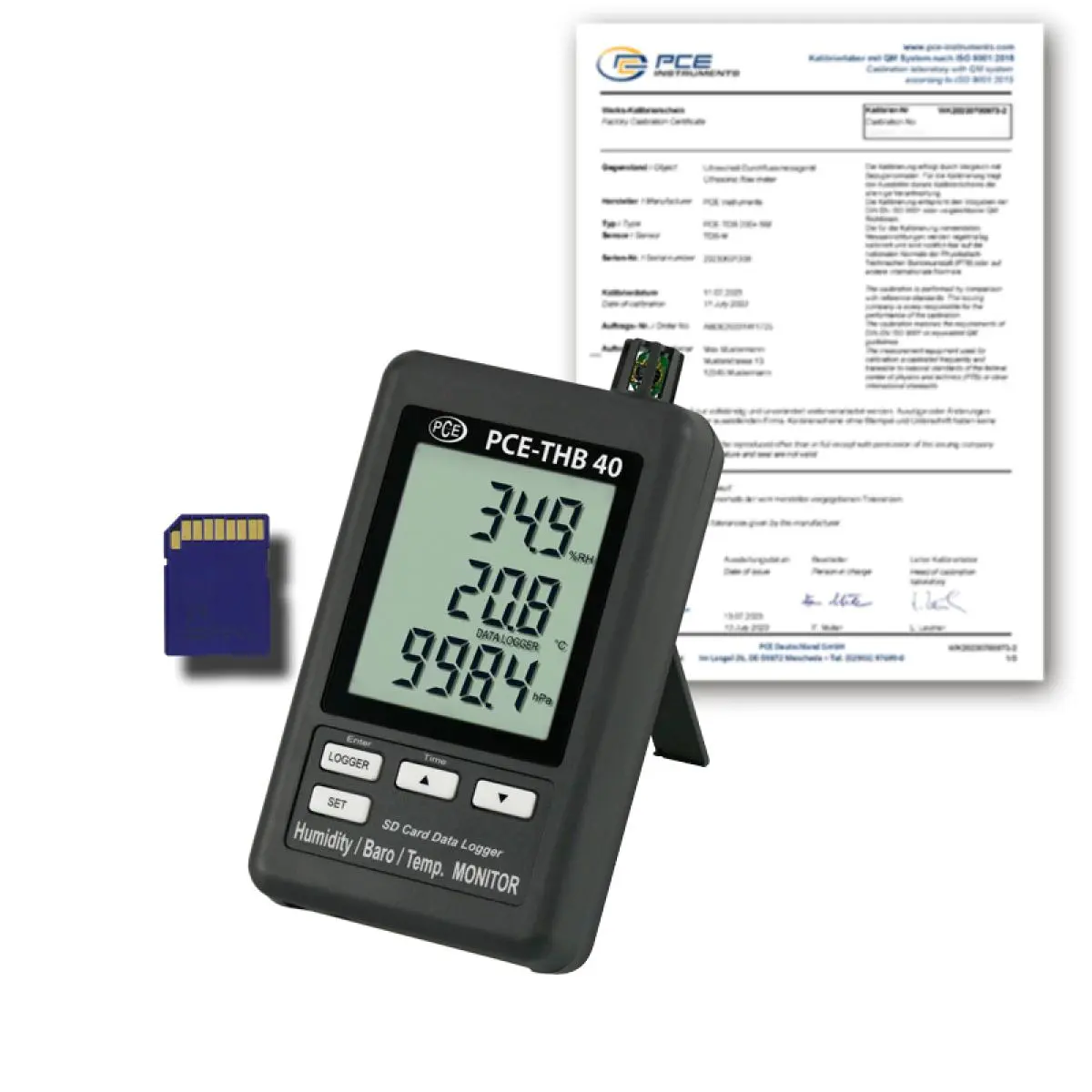

Relative Humidity Meter PCE-THB 40-ICA incl. ISO Calibration Certificate

Order no.: PCE-THB 40-ICA
GTIN (EAN): 4250348727848
436,90 €
519,91 €
price ex. (VAT / delivery)
:
4250348727848
PCE-THB 40-ICA
Delivery time:5-7 working days

Description

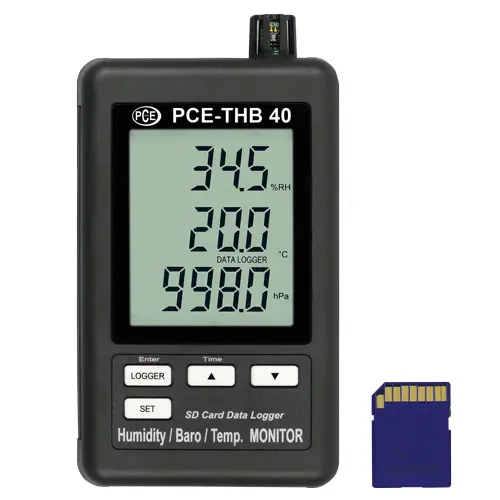

Relative Humidity Meter with SD memory card & ISO Calibration Certificate

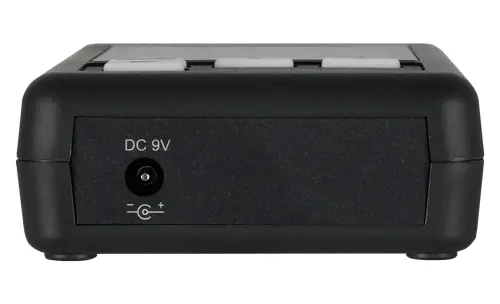

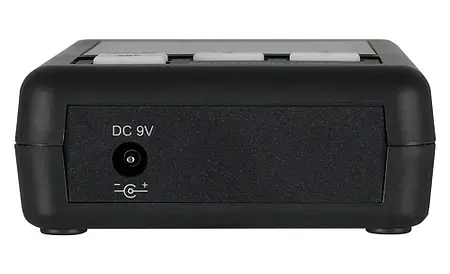

(max. 16 GB SDHC) / large LCD display / different units can be selected / battery or
mains operation (optional) possible

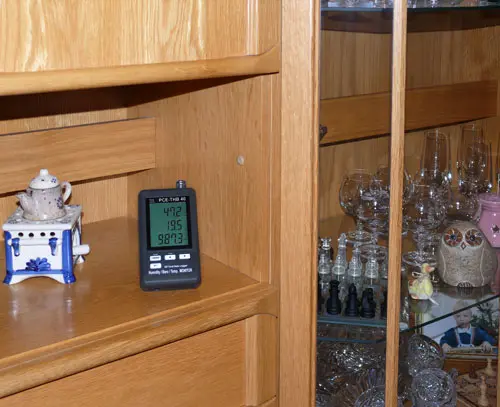

The relative humidity meter records the air temperature as well as the relative humidity and the barometric pressure and saves them internally on an SD card. The compact device with a large memory (up to max. 16 GB SDHC card) is primarily used for long-term registration in the food sector (refrigerated counters in department stores, refrigerated transports, warehouses) and for measurement and recording in industry (heating and cooling processes, machine temperatures, product storage). The current measured value is shown directly on the LCD display and is also stored in the data memory so that the value can either be read off directly or the values ​​stored on the SD card can be transferred to a PC or laptop as desired and evaluated graphically as a progression curve.

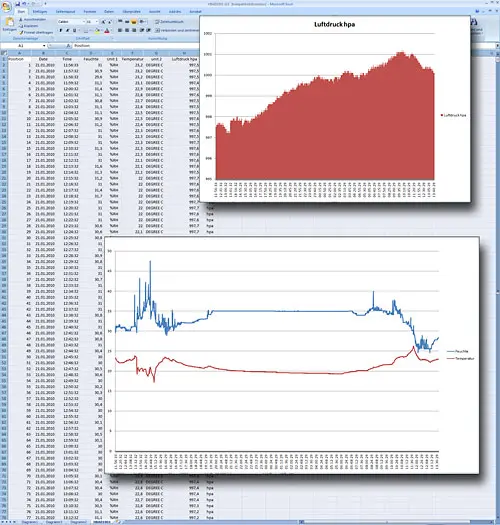

The values ​​recorded in the data logger function can of course also be transferred back to the PC and evaluated (.xls file on the SD card). You can also check the columns of numbers for outliers and, in the case of the food industry, quickly see whether and, if so, how long the cold chain was interrupted. The internal real-time clock with date allows the user to precisely assign the events. The measuring rate is freely adjustable. The electronics of the data logger are protected against impacts and robust handling in industry.

Highlights

- Measures temperature, humidity, barometric pressure
- Flexible internal real-time data storage via SD memory card (1 ... 16GB)

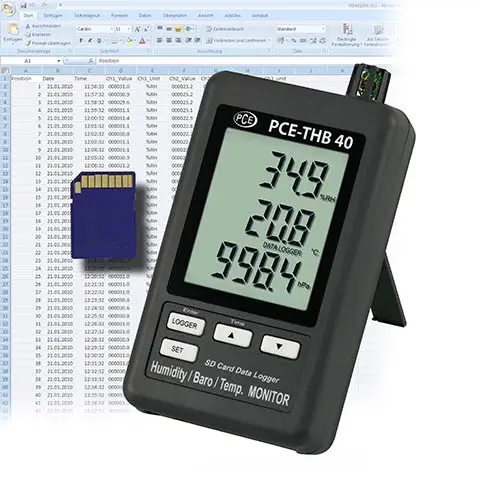

- The saved data is saved directly as an Excel file on the SD card
- Selectable pressure unit: hPa, mmHg and inHg
- Low battery display
- Large LCD display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Optional software kit for online transfer to a PC or laptop (no software is
required to evaluate the stored data)

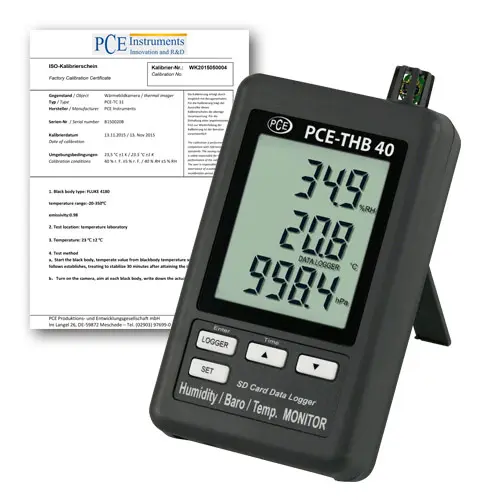

- incl. ISO-Calibration Certificate

Specification

Air pressure
Measuring range  10 ... 1000 hPa
Resolution  0,1 hPa
Accuracy  ±2 hPa (@ 750.1 ... 1100 hPa) / ±3 hPa (@ 300 ... 750 hPa)

Air pressure
Measuring range  1001 ... 1100 hPa
Resolution  1 hPa
Accuracy  ±2 hPa (@ 750.1 ... 1100 hPa) / ±3 hPa (@ 300 ... 750 hPa)

Relative humidity
Measuring range  10 ... 90 % RH
Resolution  0,1 % RH
Accuracy  ±4 % RH

Temperature
Measuring range  0 ... 50 °C
Resolution  0,1 °C
Accuracy  ±0.8 °C

General technical data
Units  mmHg, inHg, hPa
Display type  LCD
Display size  3,08 in
Adjustable measuring rate  5 ... 600 s
Storage medium  SD card
Storage capacity  16 GB
Memory information  2 GB SD card included in the scope of delivery
Interface  RS232
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  batteries
(Rechargeable) battery  6 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  132 x 80 x 32 mm
Weight  285 g

Delivery Scope

1 x PCE-THB 40-ICA Relative Humidity Meter
1 x SD card

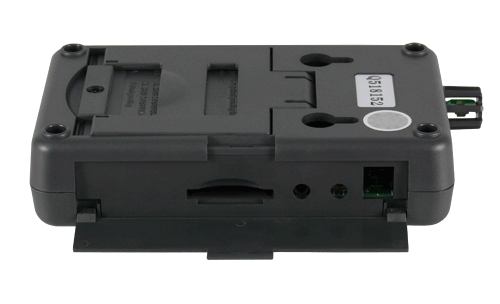

1 x Wall mounting kit
6 x Batteries
1 x User manual
1 x ISO-Calibration Certificate
