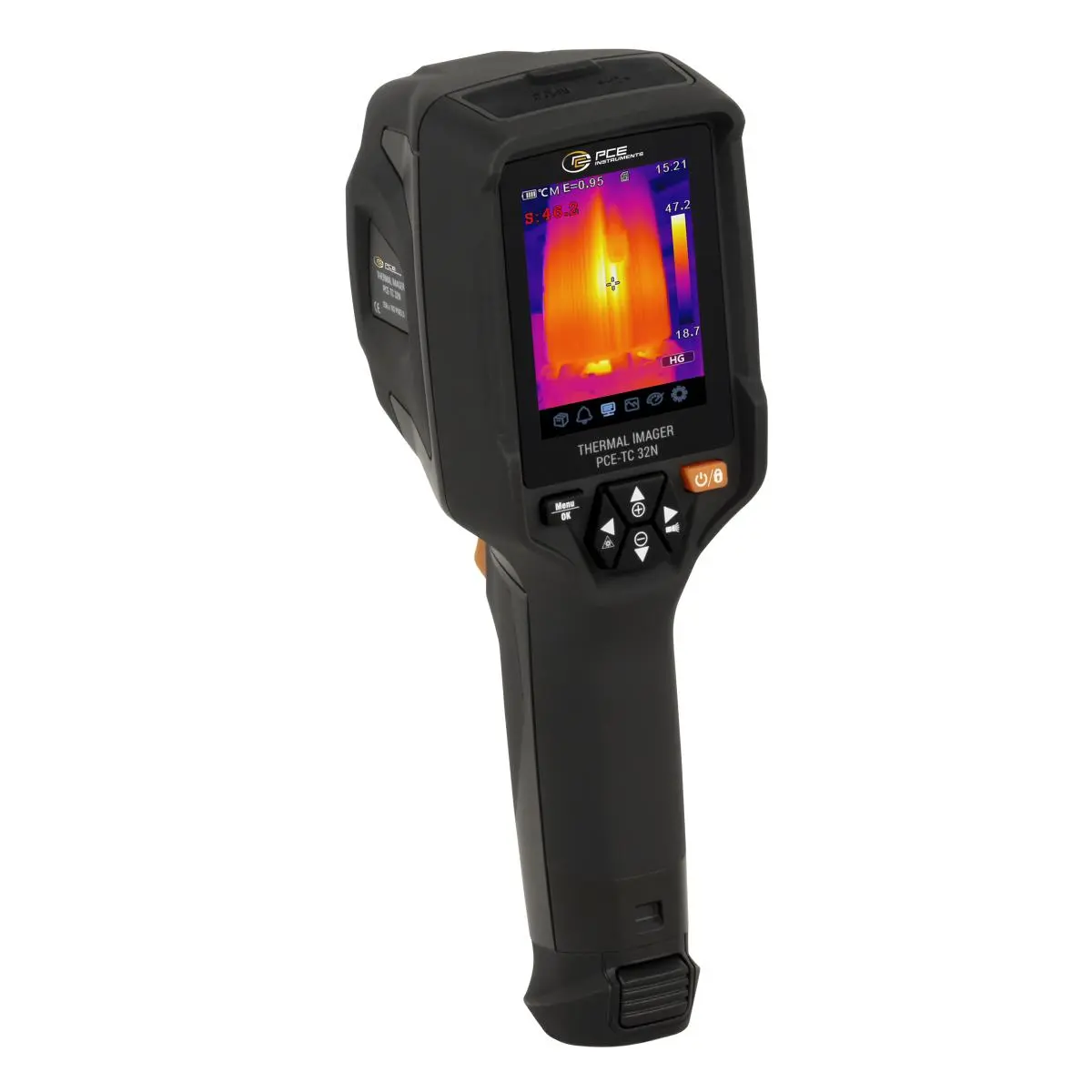

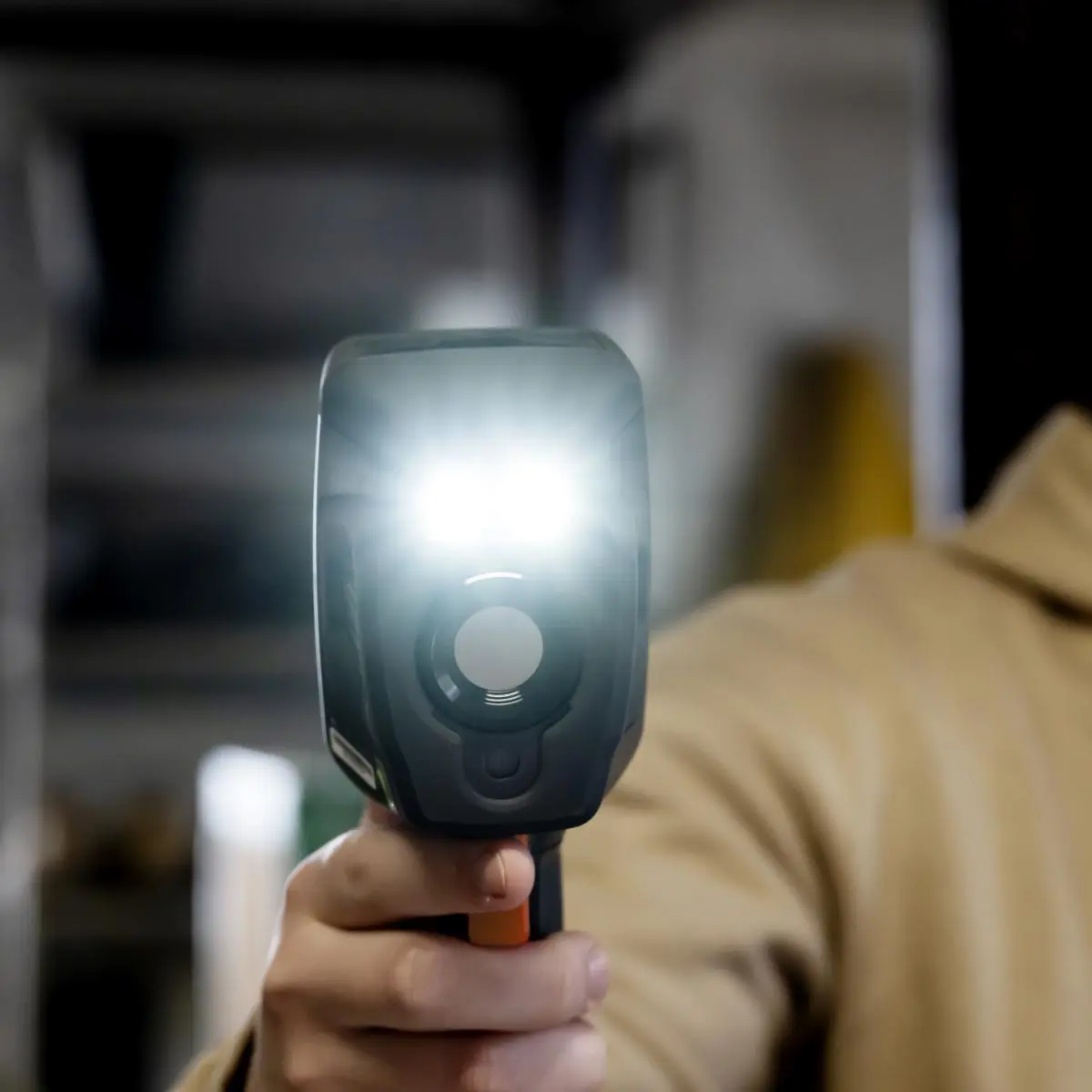

Pyrometer PCE-TC 32N

[zoom]

Pyrometer PCE-TC 32N

Order no.: PCE-TC 32N

GTIN (EAN): 4250348730503

Accessory

Mini Tripod for Various Measuring Devices

15,90 €

Tripod STAT

62,90 €

ISO Calibration Certificate for Thermal Camera

274,90 €

Description

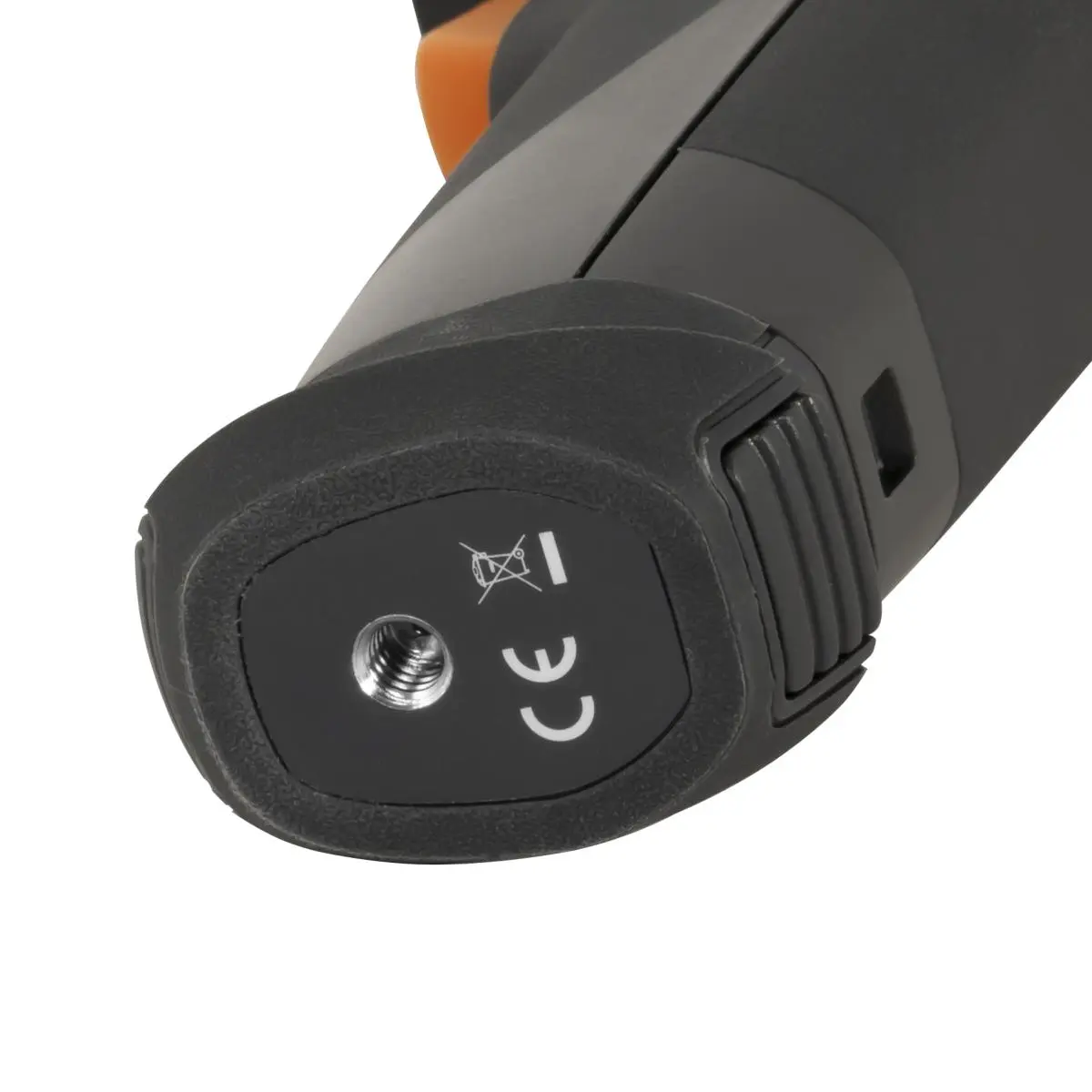

Pyrometer with photo and video function / software to evaluate the recordings / measuring range -20 ... +550 °C / 1/4" inch photo tripod connection / 4 hours operating time.

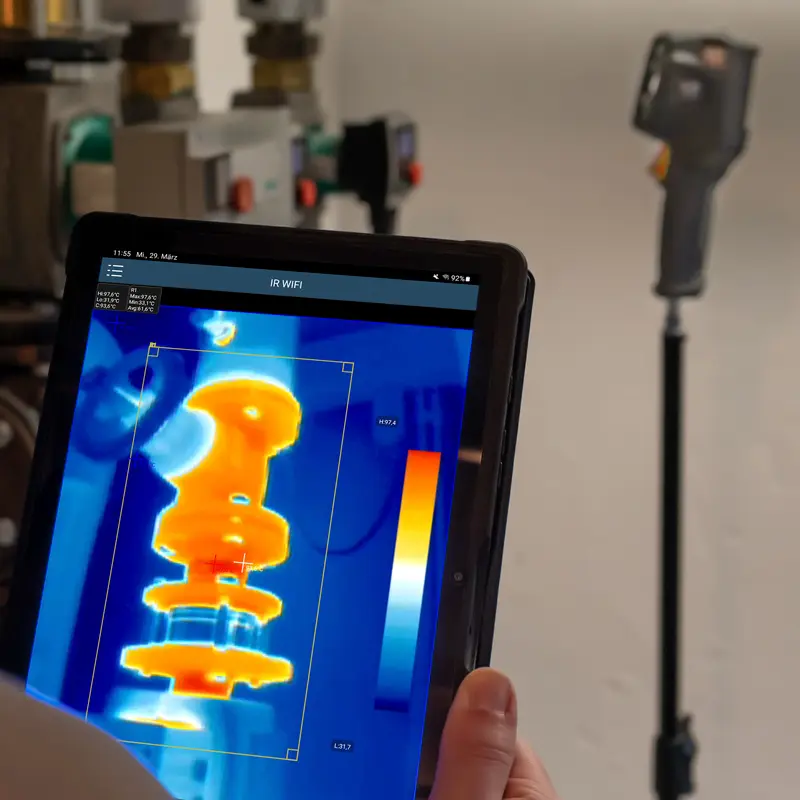

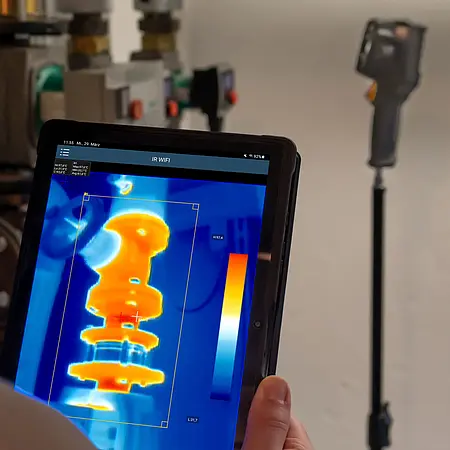

Wi-Fi interface and free Android and iOS app / optionally with ISO calibration certificate

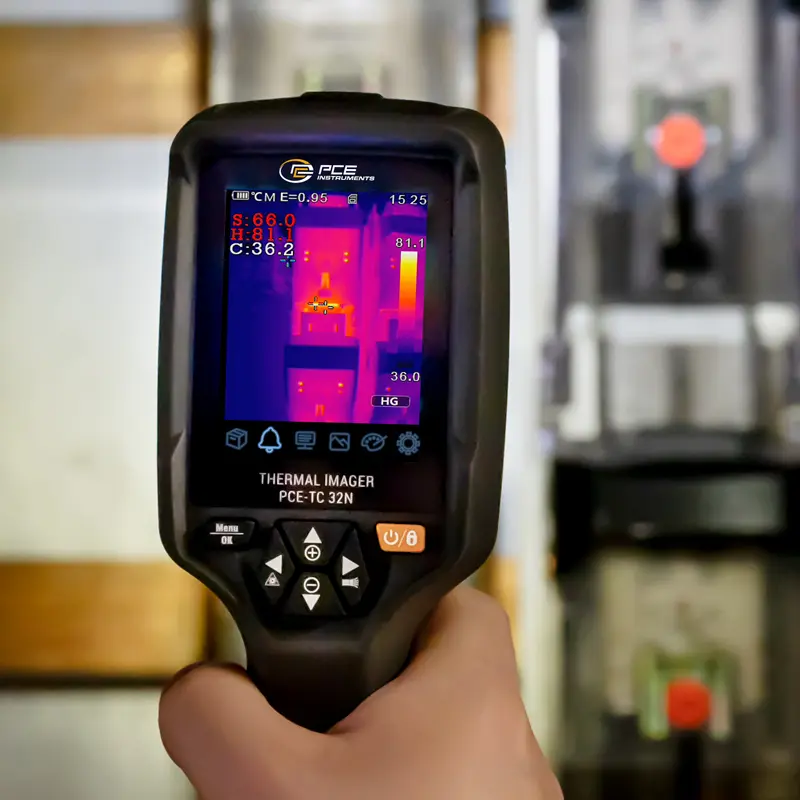

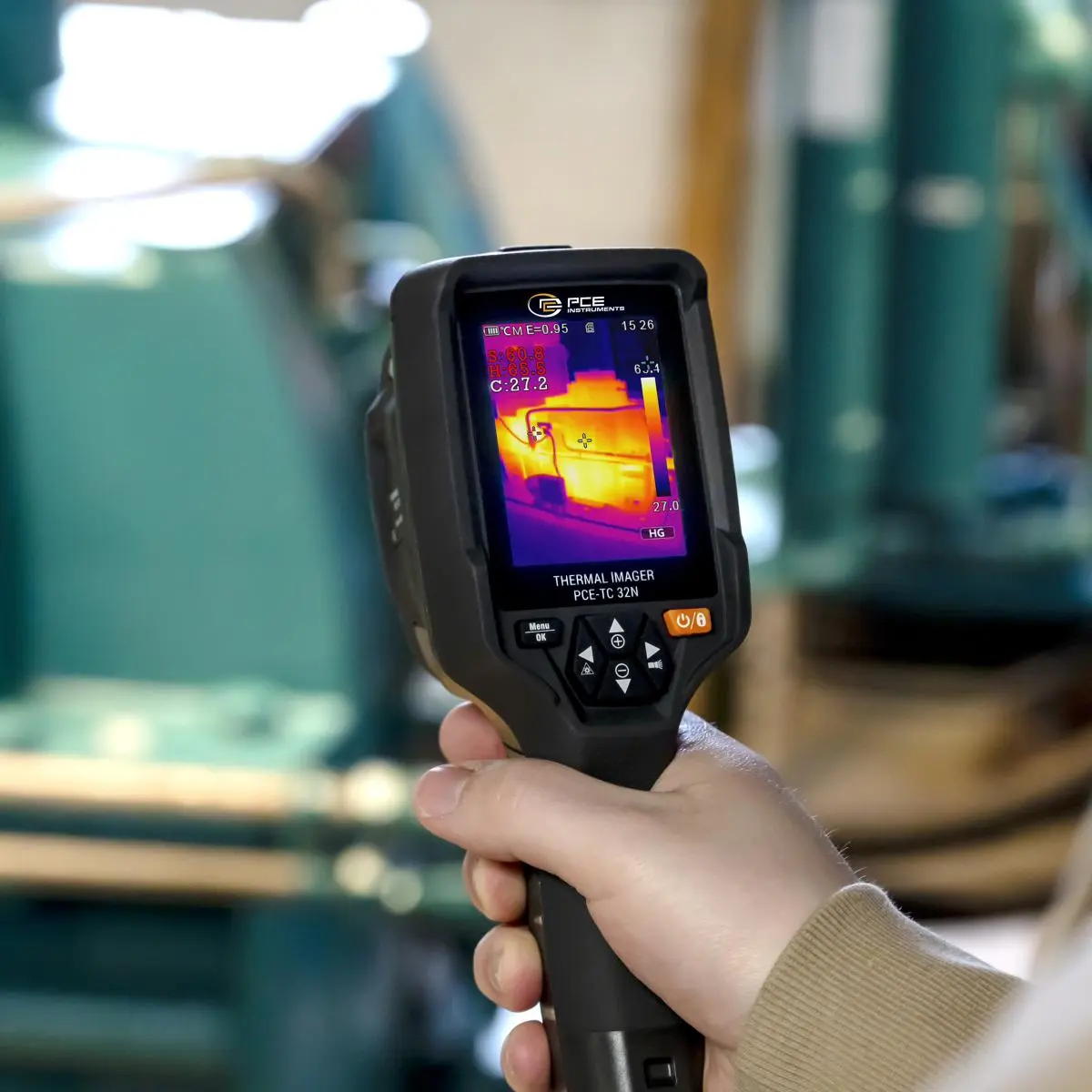

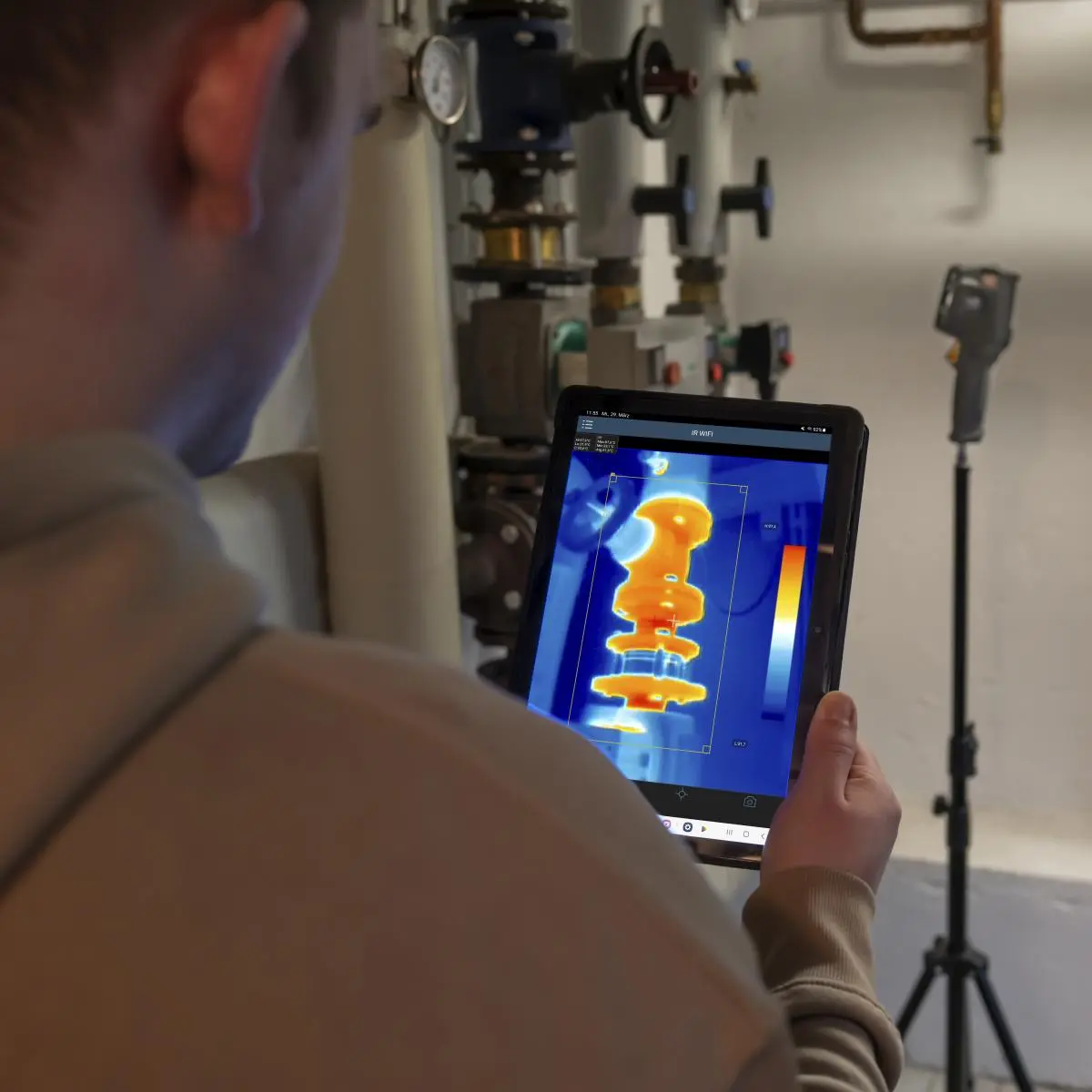

The pyrometer has a measuring range of -20 ... +550 °C. This means that the pyrometer already covers a wide temperature range of measuring tasks. With an image frequency of 25 Hz, problems can be quickly localised with the pyrometer. The picture-in-picture function allows the real image to be displayed simultaneously with the thermal image. The app enables a clear display and operation of the pyrometer.

When connecting the pyrometer to a PC, there are two different functions that can be selected in advance in the settings. With the "PC Connection" setting, the pyrometer is recognised as a mass data storage device. This allows all image, video and measurement data to be copied directly from the pyrometer. With the "PC Camera" function, the pyrometer is recognised as a webcam by the PC. This has the advantage that the current image from the pyrometer can be displayed on a PC during online meetings or training sessions, for example. In both cases, the pyrometer is independent of the operating system.

Highlights

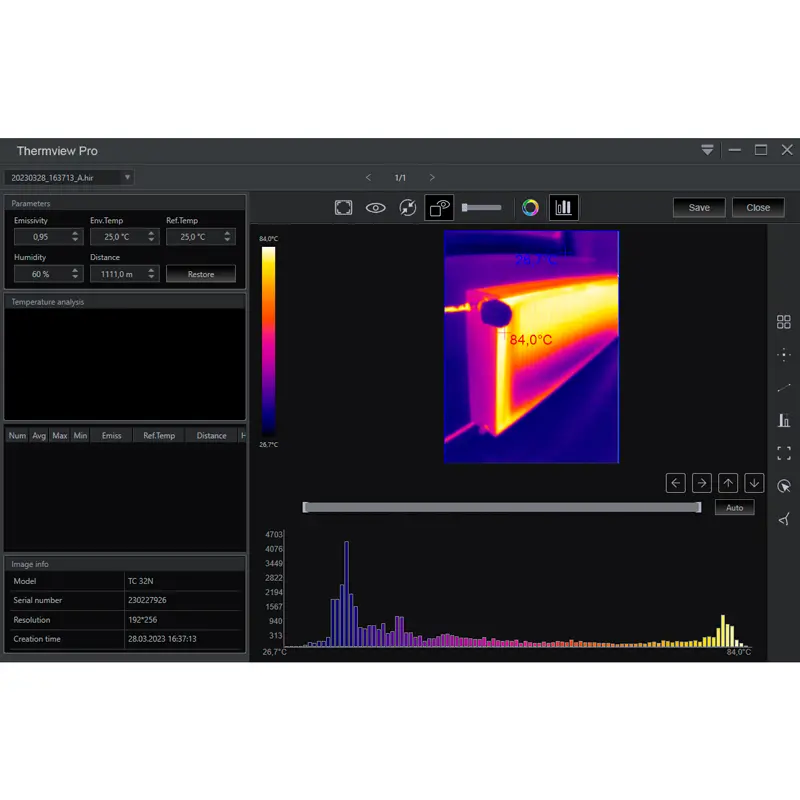

- Software for evaluating the recordings

- Measuring range -20 ... +550 °C

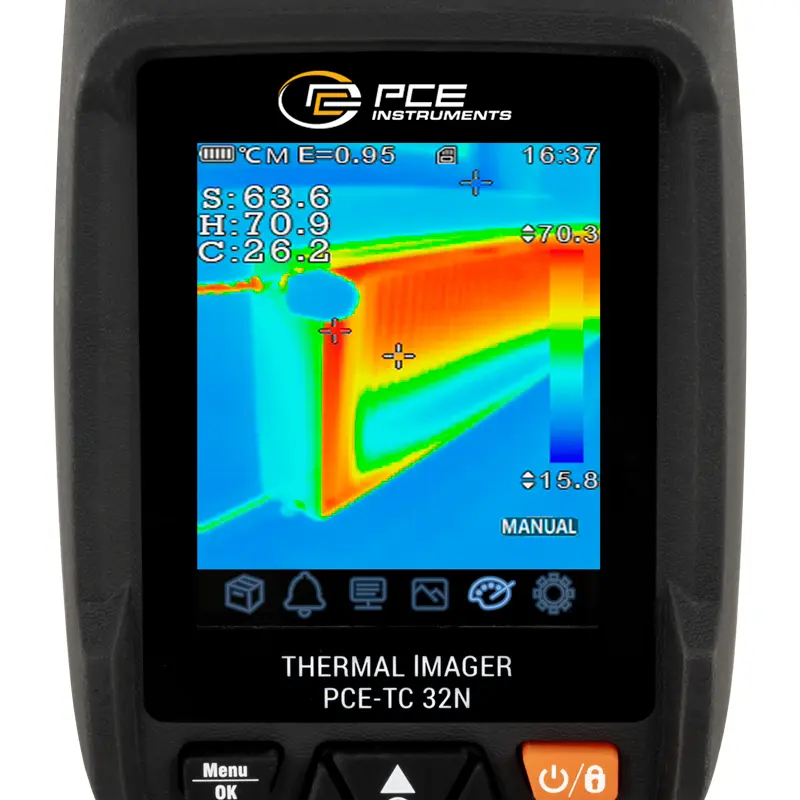

- Picture-in-picture function

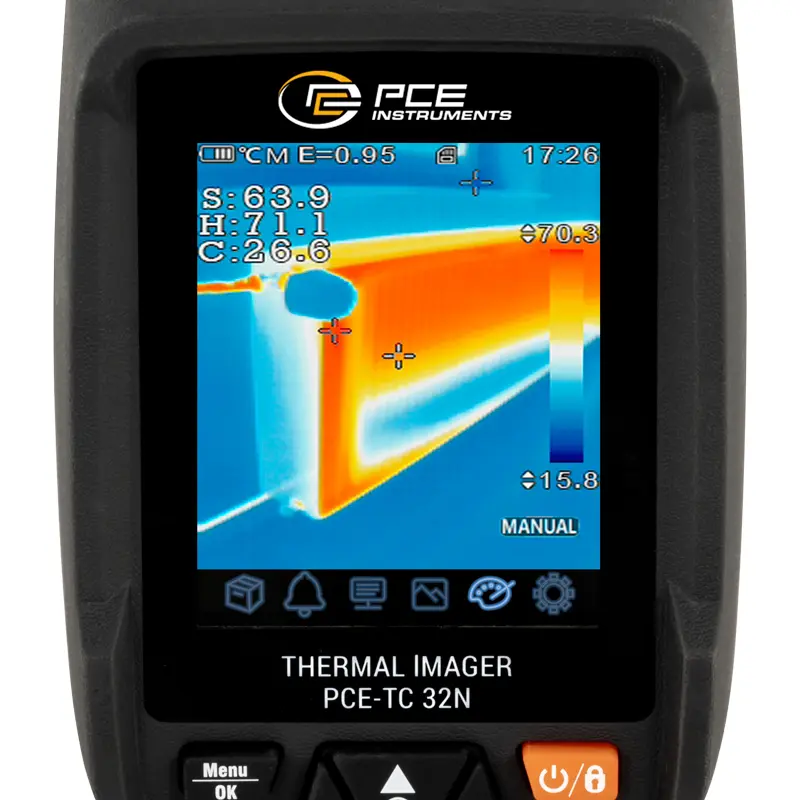

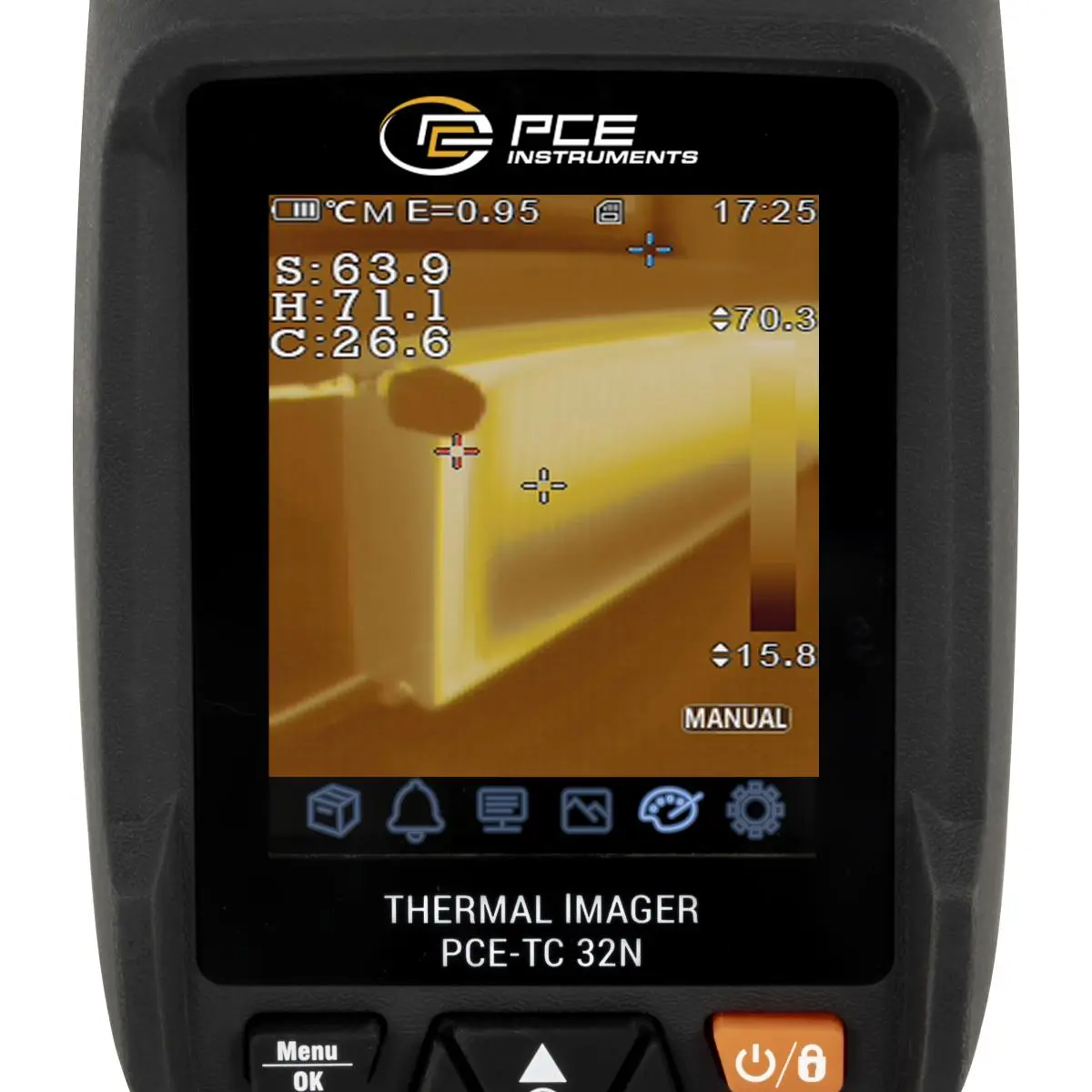

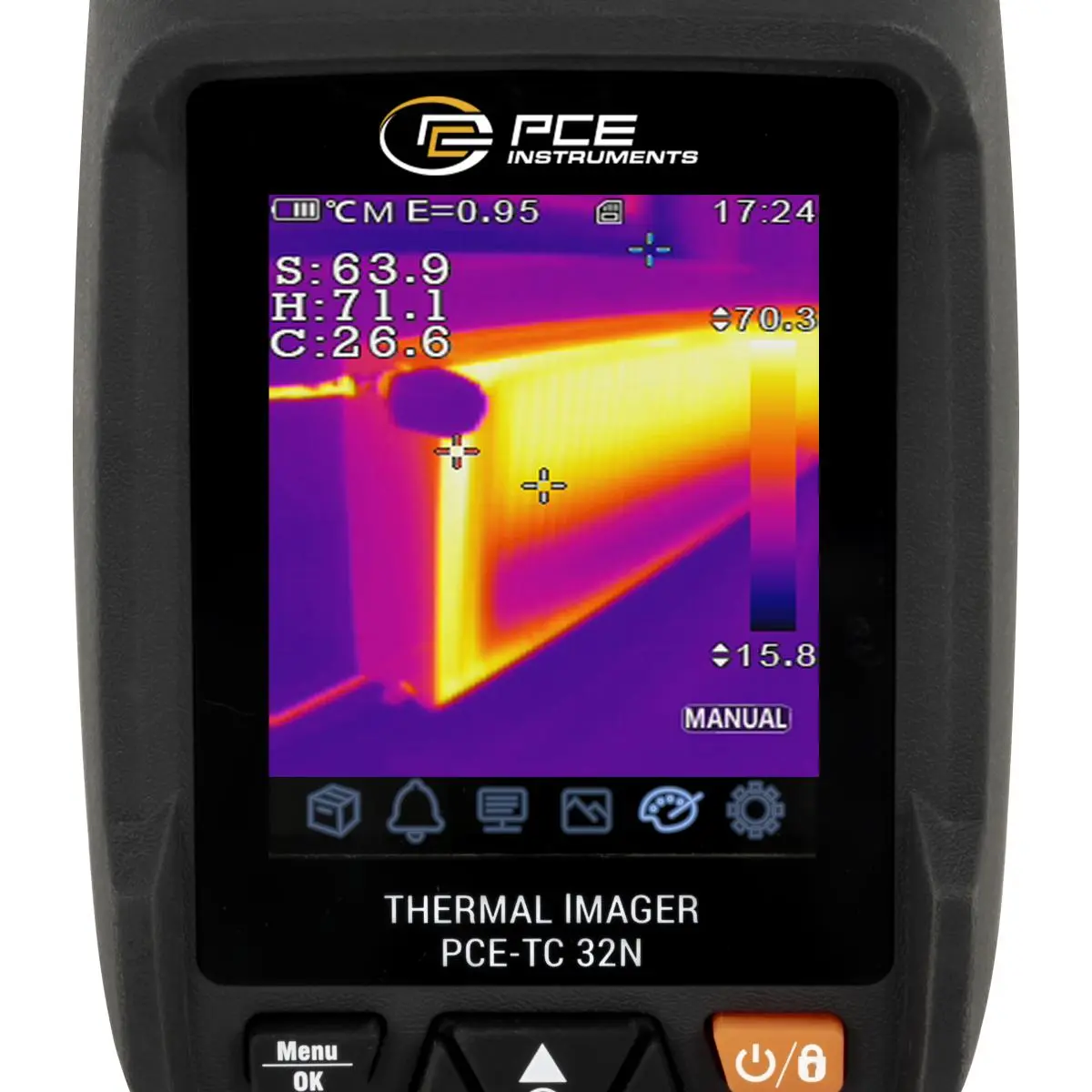

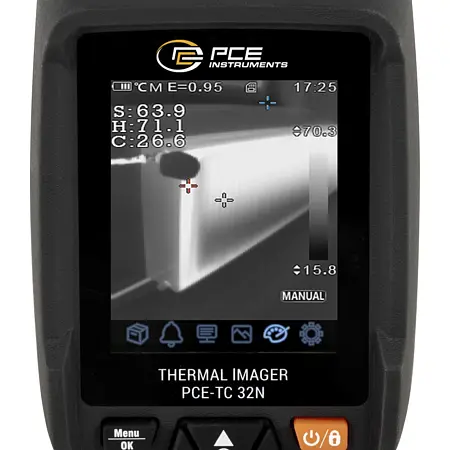

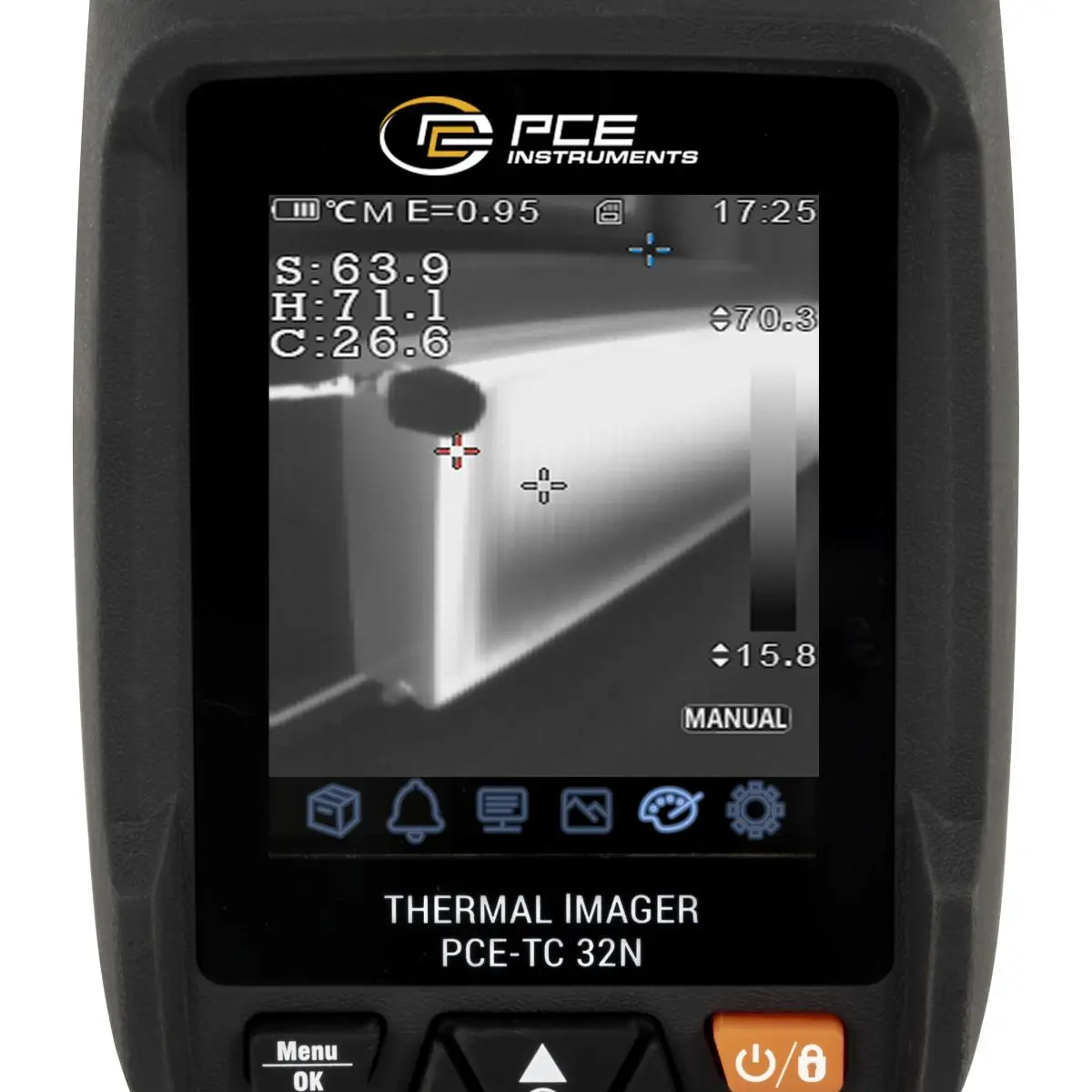

- eight different thermal image representations

- video and photo recording

- optionally with ISO calibration certificate

Specification

Temperature
Measuring range	-20 ... +550 °C
Resolution	0,1 °C
Accuracy	±2 °C at an ambient temperature between 10 ... 35 °C and an object temperature >0 °C

General technical data
Display type	LCD
Display size	2,8 in
Display resolution	240 x 320 pixels
Storage medium	Micro SD card, Internal memory
Storage capacity	32 GB
Memory capacity (additional information)	Image recording: memory capacity >6000 images / video recording: memory capacity 8 GB on micro SD card, 3.4 GB internal memory

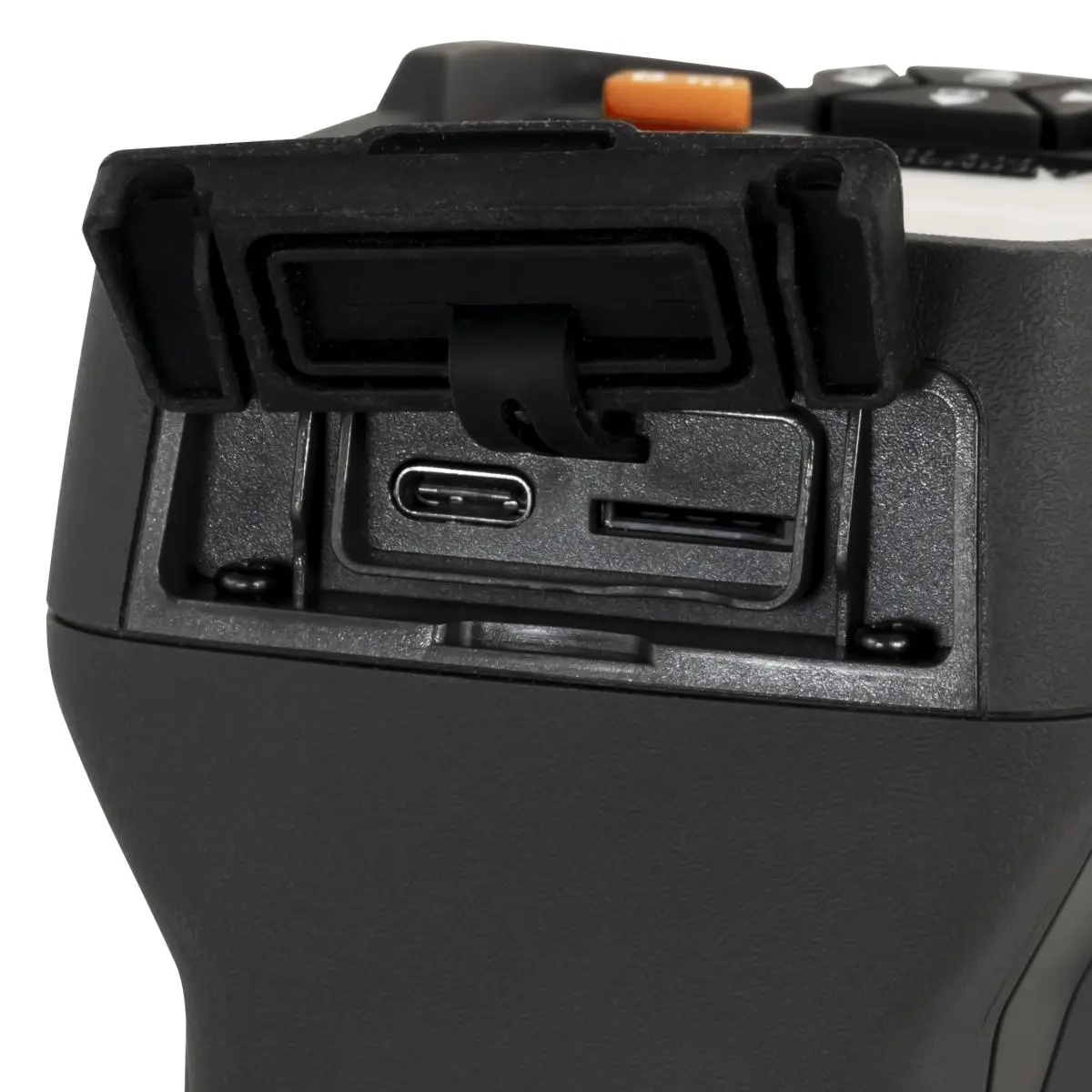

Interface	USB-C, Micro SD card, WiFi
Camera resolution	256 x 192 pixels
Automatic power-off from...to	5 ... 30 min.
Wavelength range	7.5 ... 14 µm
Field of vision (FOV)	50 ° x 37 °

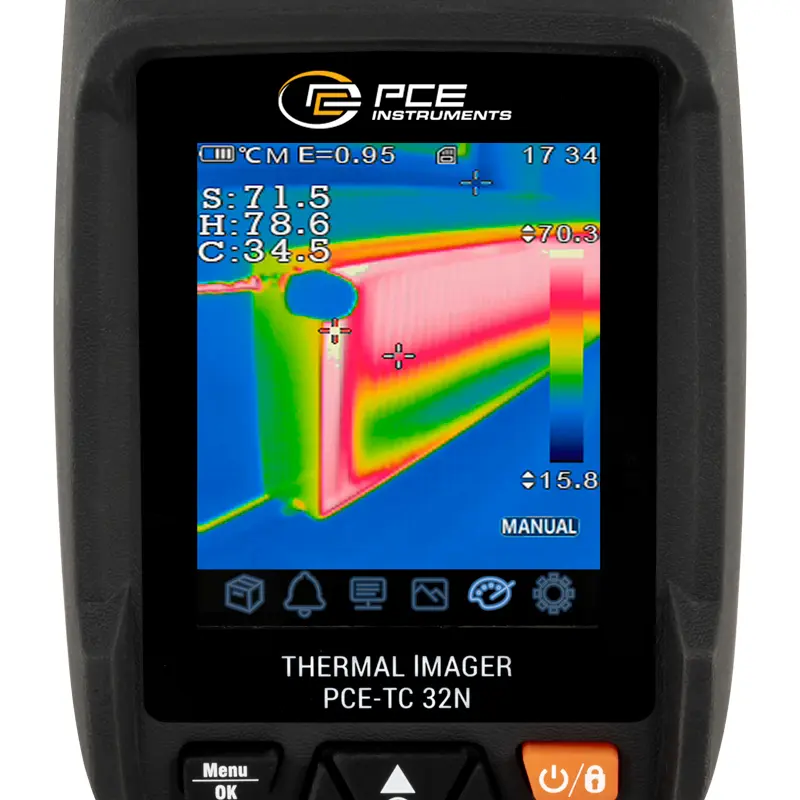

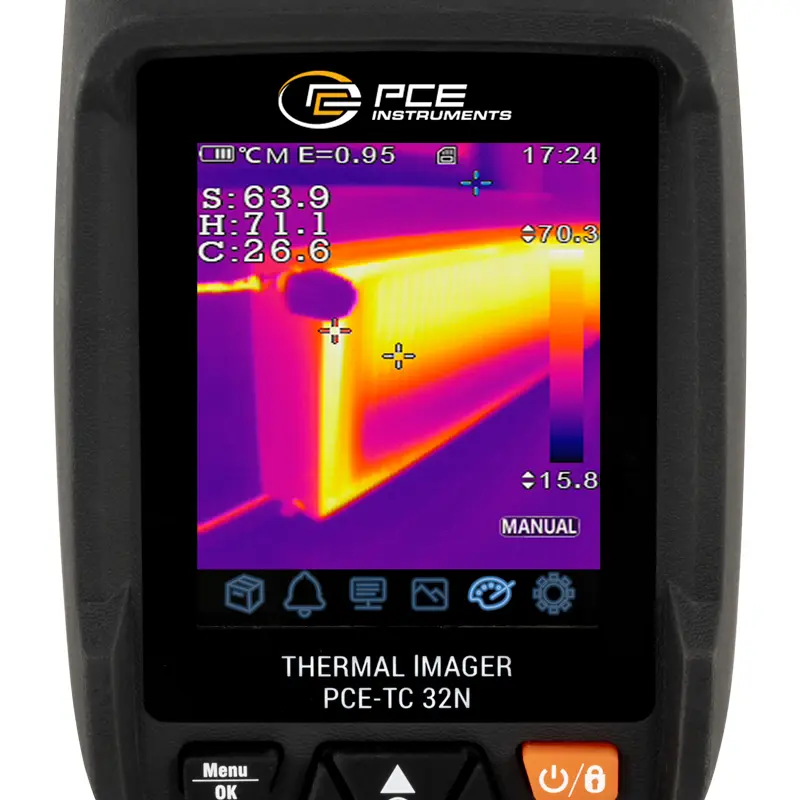

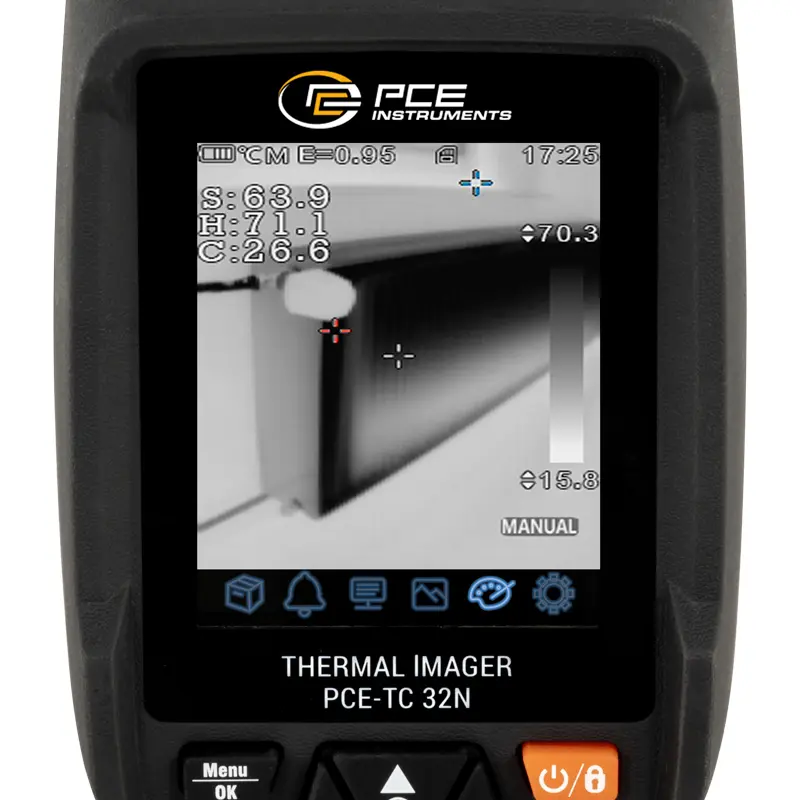

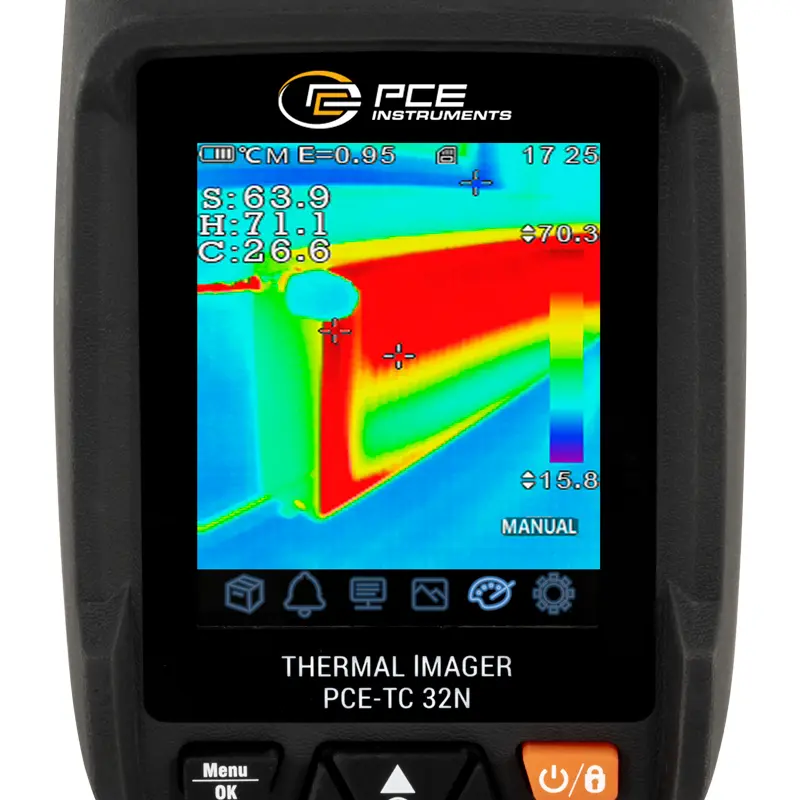

Colour palette	Iron, Rainbow, white-black (+inverted), Hot-cold, Feather, Brown, Blue red
Image / video format	JPEG, mp4
Additional information on depth of field of vision	from 0.5 m
Thermal sensitivity	0,06 °C
Frame rate	25 Hz
Pixel density (IFOD)	7,6 mrad
Menu language	English, English (GB)
Protection class (device)	IP54
Power supply	5V DC, 1 A
(Rechargeable) battery	1 x 3,7 V internal , Lithium-ion battery
Capacity	2600 mAh
Operating conditions	-15 ... 50 °C , 10 ... 90 % RH
Storage conditions	-40 ... 70 °C , 10 ... 90 % RH
Dimensions ( L x W x H )	224 x 77 x 96 mm
Weight	423 g
