Psychrometer PCE-HVAC 3-ICA

Psychrometer PCE-HVAC 3-ICA Incl. ISO Calibration Certificate

Order no.: PCE-HVAC 3-ICA
GTIN (EAN): 4250348726148
352,90 €
423,48 €
price ex. (VAT / delivery)
:
4250348726148
PCE-HVAC 3-ICA
Delivery time:5-7 working days

Description

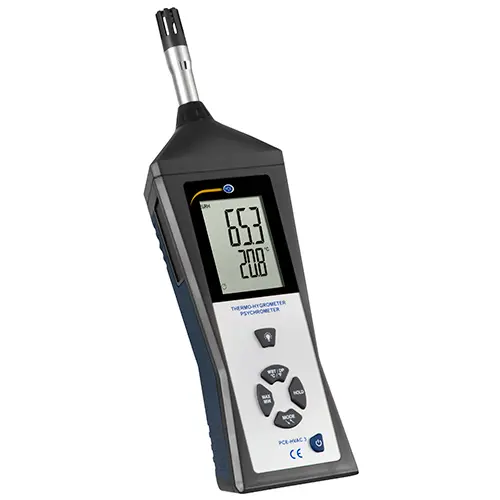

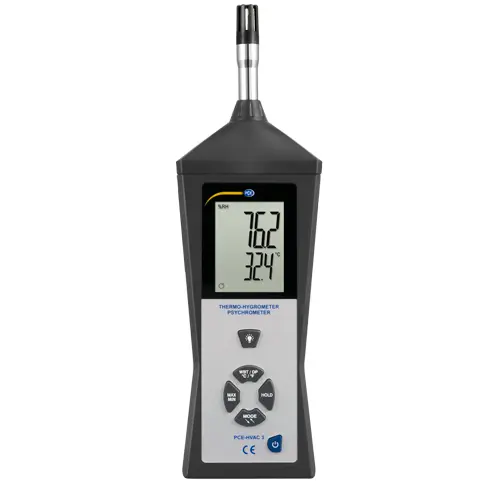

Multifunction Psychrometer with ISO calibration certificate
Measures relative humidity (% RH) and ambient room temperature (°C / °F) / Calculates dew-point and wet-bulb temperatures (°C / °F) / Features hold and extreme value measurement functions

The psychrometer is an environmental tester or diagnostic measuring device used for indoor climate and environmental monitoring. In addition to measuring relative humidity and ambient room / dry-bulb temperature, the meter calculates dew-point and wet-bulb temperatures in degrees Celsius (°C) and Fahrenheit (°F). Thus, heating, ventilation and air conditioning (HVAC) installations and HVAC system performance assessments are key applications of the psychrometer. Measurements of relative humidity and ambient room / dry-bulb temperature are made directly by built-in sensors. Dew-point and wet-bulb temperatures are calculated based on the measurement values transmitted ​​by the sensors.

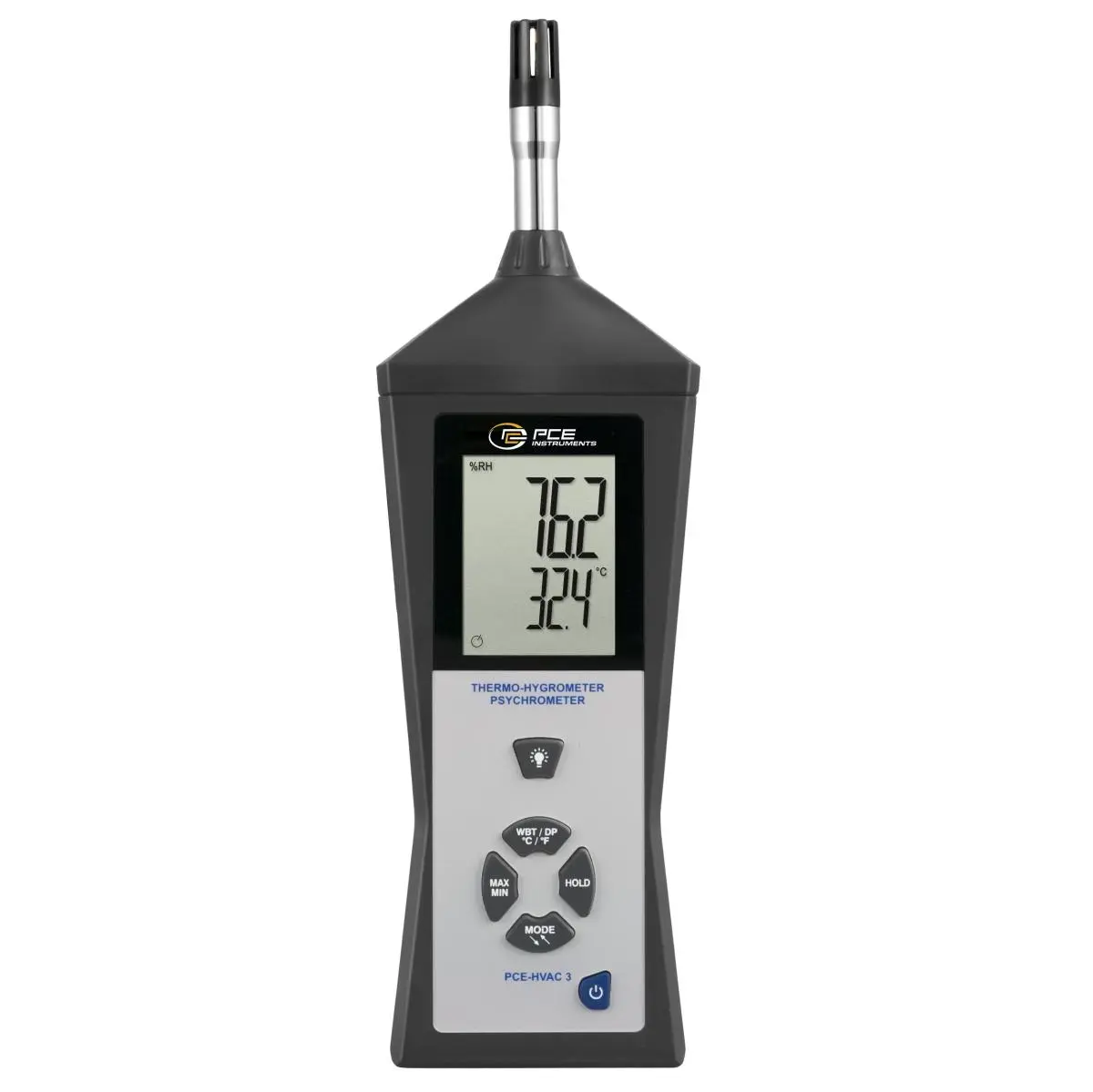

Featuring a large, backlit display and six-button operation, the psychrometer is both easy to read and easy to use. The environmental tester is equipped to take one-time measurements on the spot as well as to monitor climate changes over time. The automatic shutdown function can be disabled when taking long-term measurements. There is also a thread on the back of the environmental tester to allow the measuring instrument to be mounted on a tripod. The extreme value measurement function can be activated during long-term monitoring to determine the minimum or maximum values ​​over a desired period of time.



Highlights

- Ergonomic design

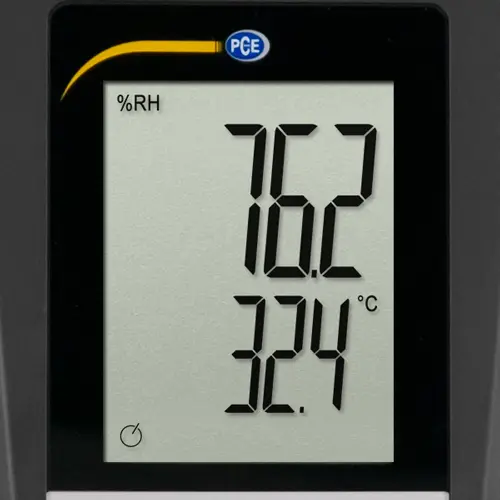

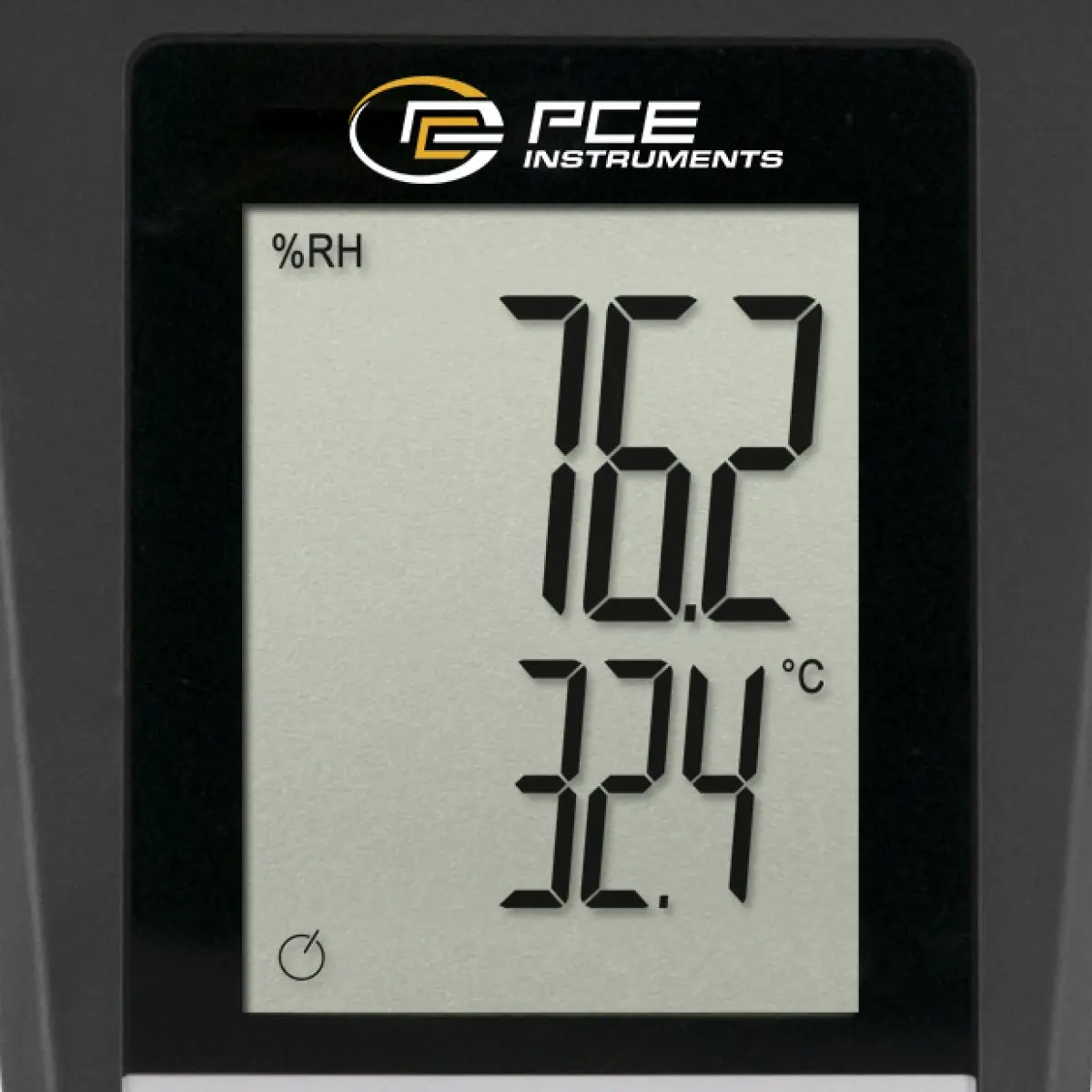

- Large backlit display
- One-handed operation
- Hold and extreme value functions

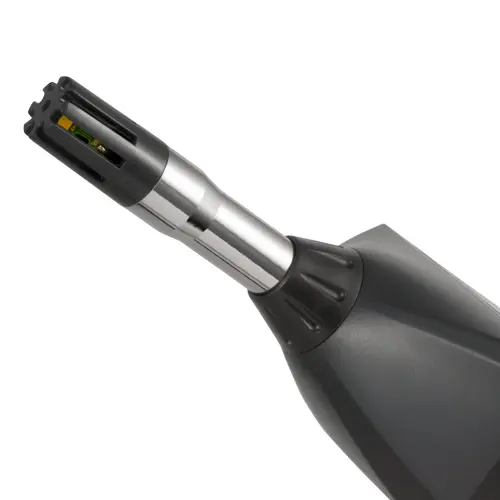

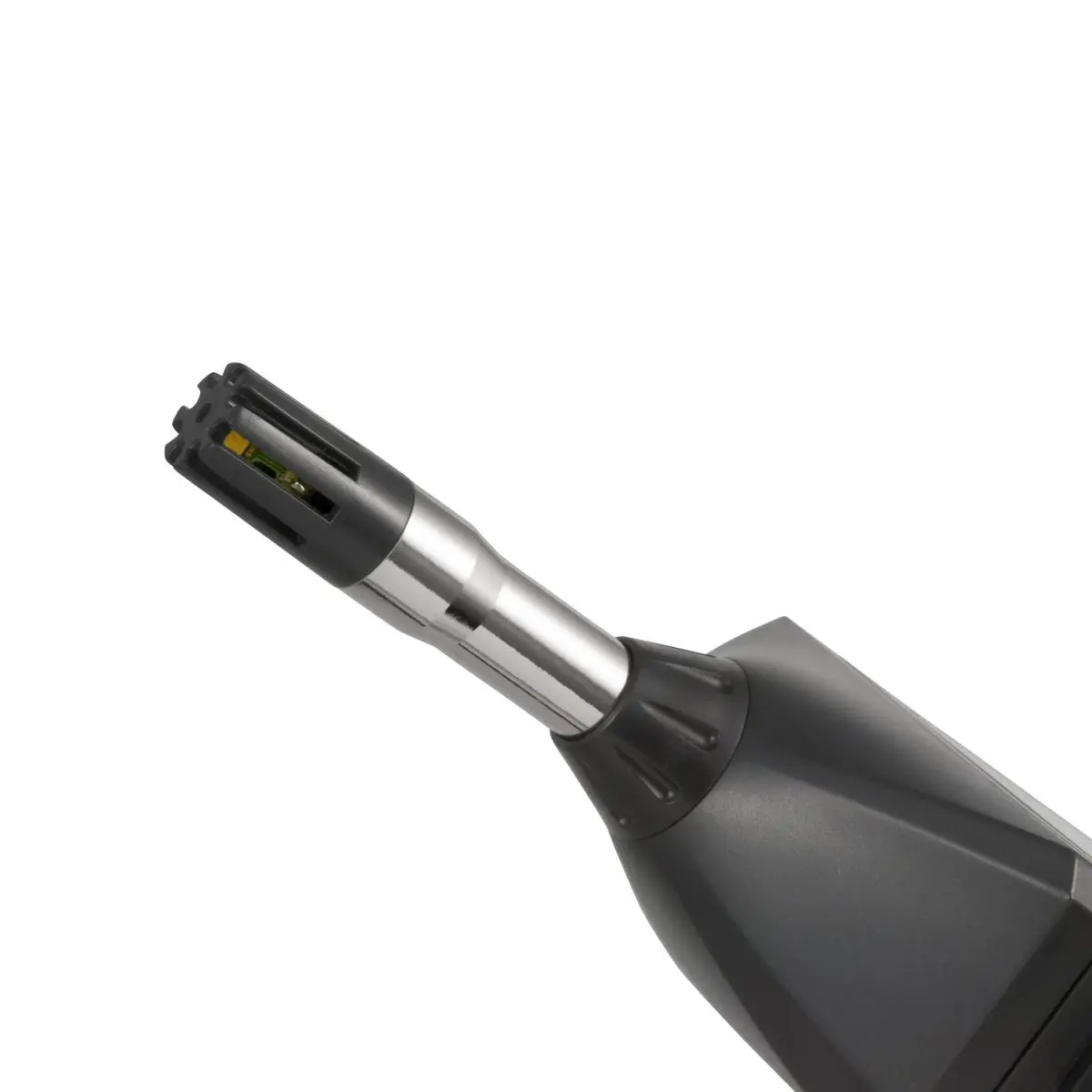

- Built-in sensors measure relative humidity and ambient room / dry-bulb
temperature
- Dew-point temperature and wet-bulb temperature calculation
- Automatic shutdown can be disabled for long-term monitoring

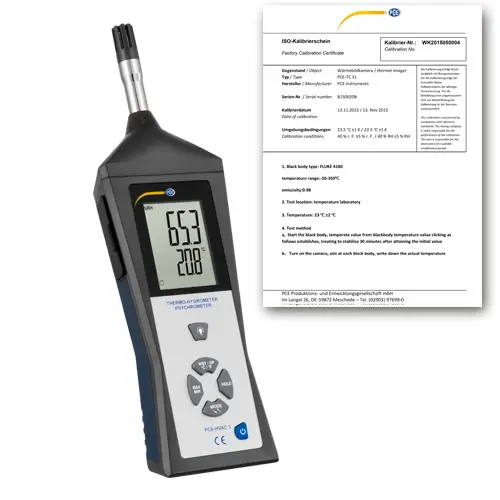

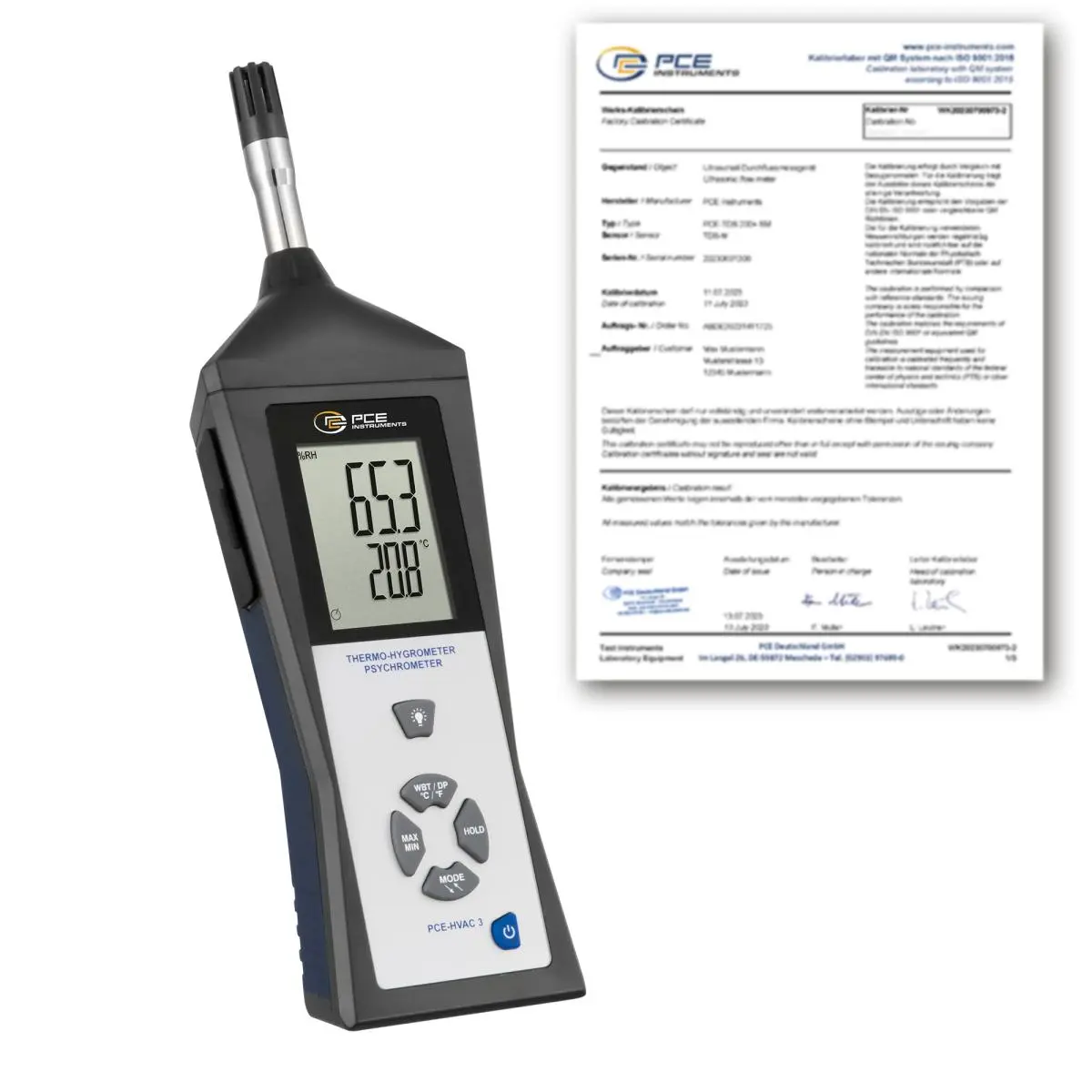

- incl. ISO-Calibration Certificate

Specification

Absolute moisture
Measuring range  0 ... 500 g/m³

Absolute moisture
Measuring range  0 ... 212,5 g/ft³

Wet bulb temperature
Measuring range  0 ... 80 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Wet bulb temperature
Measuring range  32 ... 176 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

Dew point
Measuring range  -30 ... +100 °C
Resolution  0,1 °C
Accuracy  ±1°C

Dew point
Measuring range  -22 ... +212 °F
Resolution  0,18 °F
Accuracy  ±1.8°F

Relative humidity
Measuring range  0 ... 20 %
Resolution  0,1 %
Accuracy  ±4%

Relative humidity
Measuring range  20 ... 40 %
Resolution  0,1 %
Accuracy  ±3%

Relative humidity
Measuring range  40 ... 60 %
Resolution  0,1 %
Accuracy  ±2 %

Relative humidity
Measuring range  60 ... 80 %
Resolution  0,1 %
Accuracy  ±3%

Relative humidity
Measuring range  80 ... 100 %
Resolution  0,1 %
Accuracy  ±4%

Temperature
Measuring range  -30 ... -19,9 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  -20 ... +60 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C

Temperature
Measuring range  60 ... 100 °C
Resolution  0,1 °C
Accuracy  ±1 °C

Temperature
Measuring range  -22 ... +212 °F
Resolution  0,18 °F
Accuracy  ±1.8 °F

General technical data
Measuring functions  MIN, MAX, HOLD
Display type  LCD with backlight
Display size  2,8 in
Response time  15 s
Operating time  48 h
Automatic power-off  10 min
Sensors  Capacitive, Thermistor
Menu language  English, English (GB)
Protection class (device)  IP20
(Rechargeable) battery  1 x 9 V 9V block , Alkali-manganese
Capacity  640 mAh
Operating conditions  0 ... 50 °C , 0 ... 80 % RH
Storage conditions  -40 ... 85 °C , 0 ... 99 % RH
Dimensions ( L x W x H )  300 x 75 x 50 mm
Weight  400 g

Delivery Scope

1 x PCE-HVAC 3-ICA Psychrometer
1 x Battery
1 x User manual

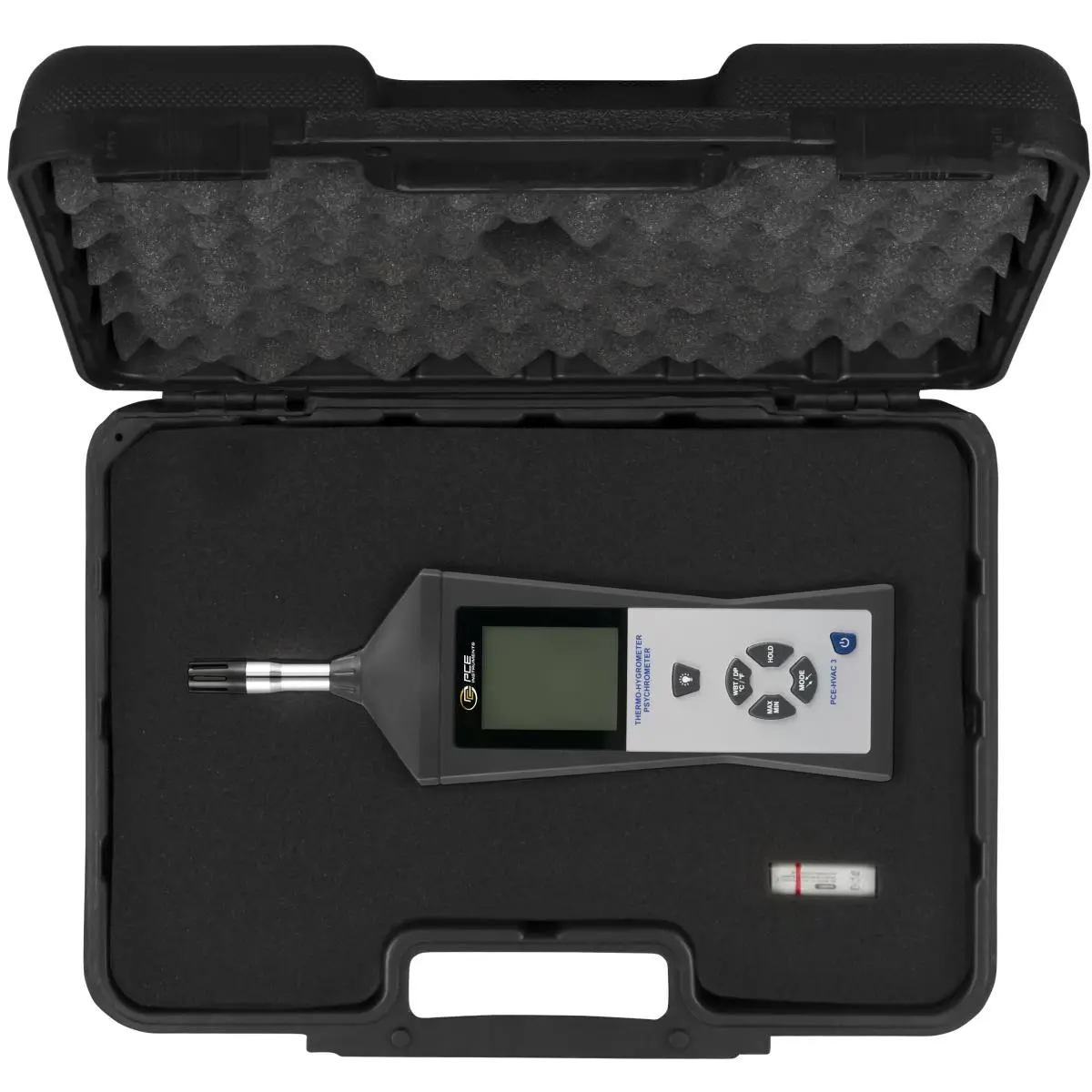

1 x Carrying case

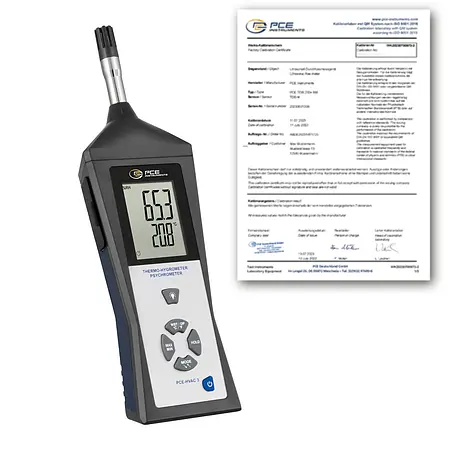

1 x ISO-Calibration Certificate
