Profilometer PCE-RT 11-ICA

Profilometer PCE-RT 11-ICA Incl. ISO Calibration Certificate

Order no.: PCE-RT 11-ICA
GTIN (EAN): 4250348726599
1.625,90 €
1.934,82 €
price ex. (VAT / delivery)
:
4250348726599
PCE-RT 11-ICA
Delivery time:5-7 working days

Description

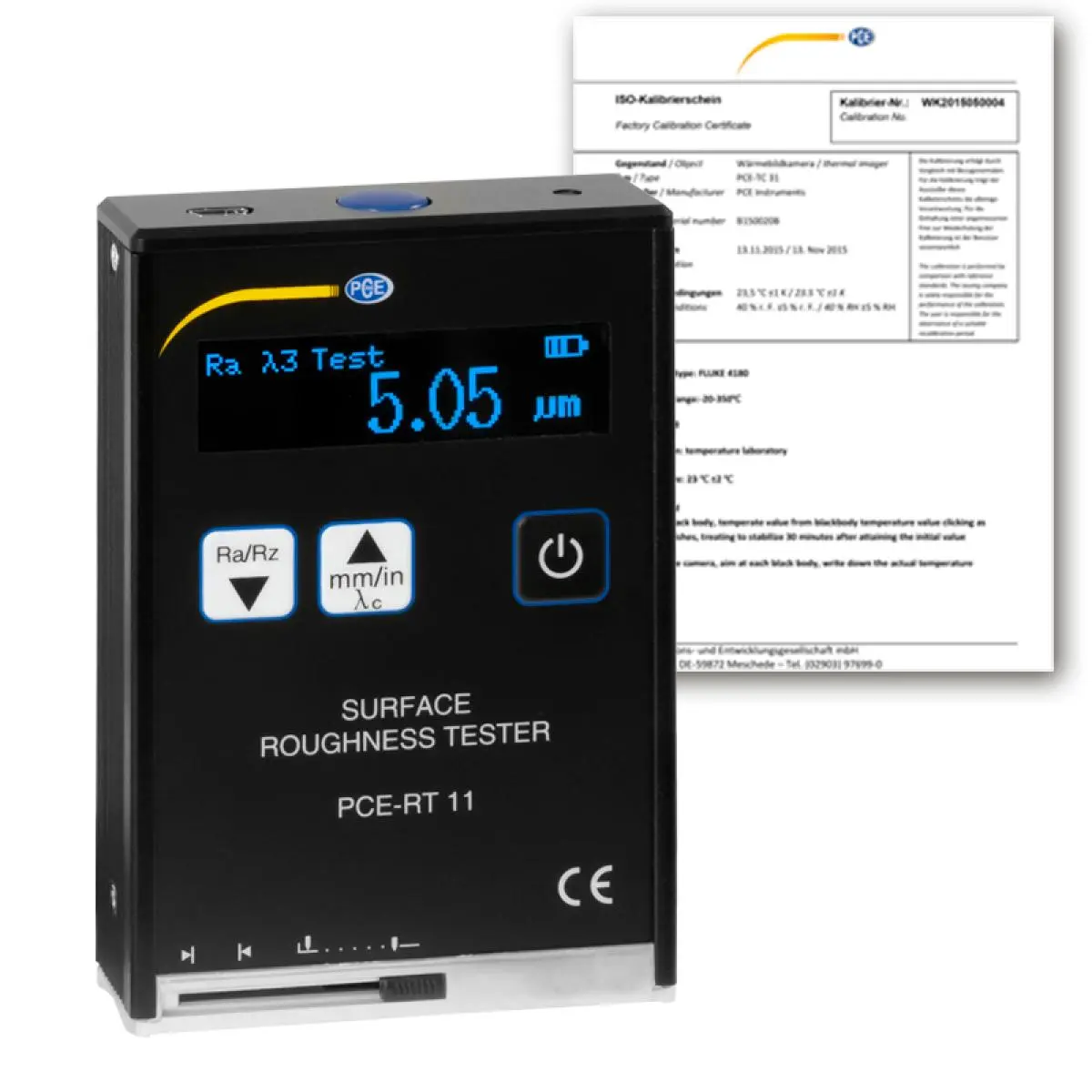

Profilometer PCE-RT 11-ICA incl. ISO calibration certificate
Material tester for accurate determination of roughness according to Ra, Rz, Rq and Rt / With piezoelectric probe / Big OLED display with backlight

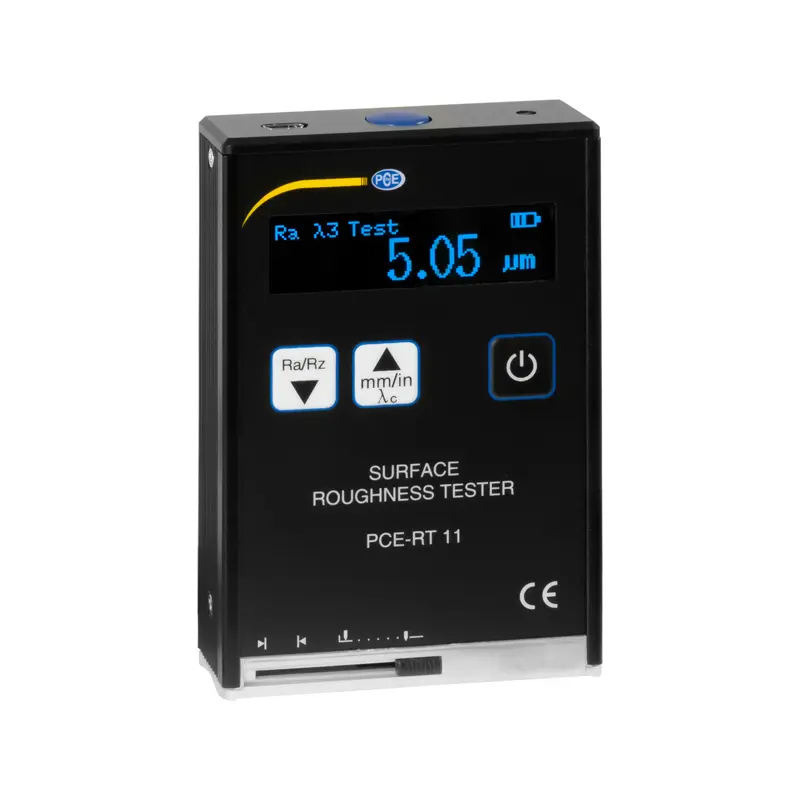

The Profilometer PCE-RT 11-ICA is a portable measuring instrument for determination of surface roughness according to Ra, Rz, Rq and Rt in just one device. The small profilometer is especially designed for fast measuring of roughness. The roughness is a term of surface physics that describes unevenness of surface height. The profilometer works according to the same piezoelectric micro probe principle like the highly accurate laboratory measuring instruments. The easy handling of the profilometer as well as the high repetitive accuracy characterizes this device. After touching the button the piezoelectric micro probe of the profilometer scans the surface within seconds and shows digitally, according to the preselected cut-off length, either the value Ra, Rz, Rq or Rt.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Highlights

- With real time battery display
- USB interface
- Simple calibration
- Also for cylinder and inclined area

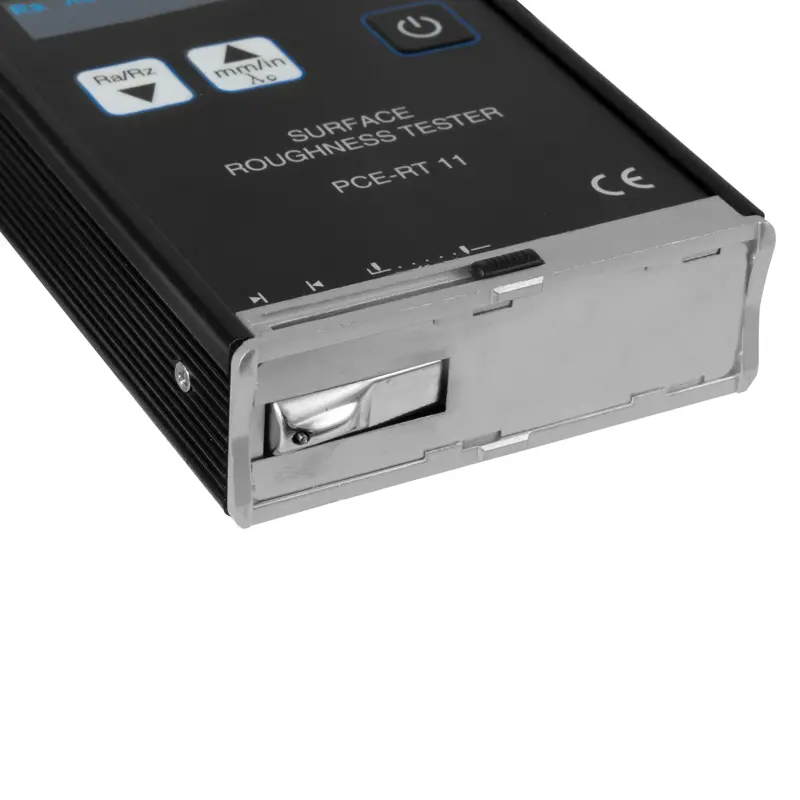

- With slider to protect the probe
- Wide measuring area
- OLED display
- With roughness standard
- Piezoelectric probe
- With backlight
- incl. ISO-Calibration Certificate

Specification

Roughness
Roughness value  Ra, Rq
Measuring range  0,05 ... 10 µm
Resolution  0,01 µm
Accuracy  ±15 %

Roughness
Roughness value  Rz, Rt
Measuring range  0,1 ... 50 µm
Resolution  0,1 µm
Accuracy  ±15 %

General technical data
Measuring functions  Ra, Rz, Rq, Rt
Display type  OLED
Interface  Mini-USB
Sensor  Piezoelectric
Charging time  3 h
Repeatability  12 %

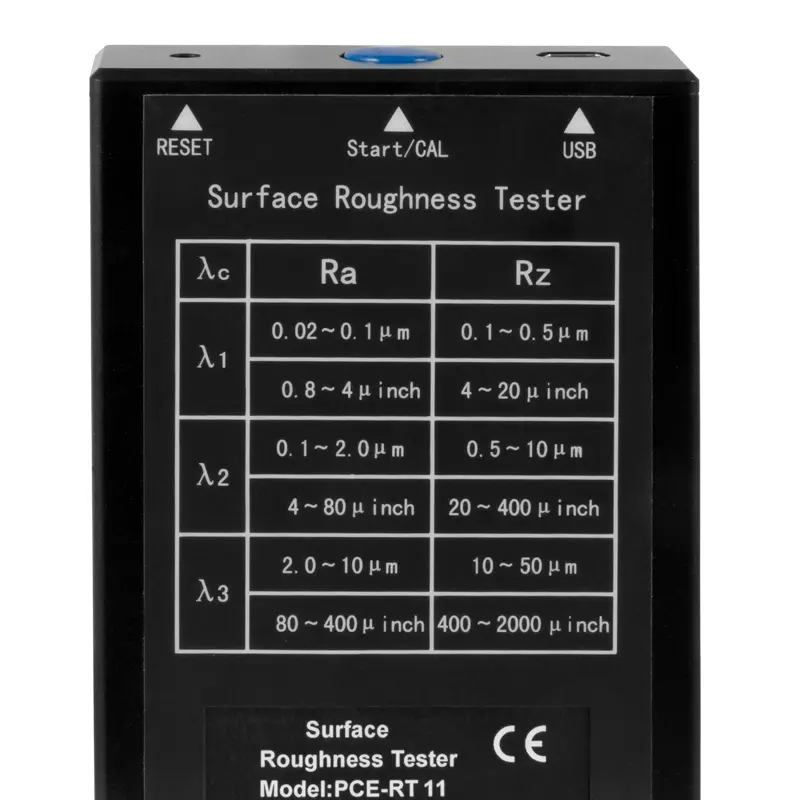

Cut-off wavelength  0.25 mm, 0.8 mm and 2.5 mm
Key  Total scanning distance: 6 mm Scanning speed: 1 mm/s Scanning diamond: 10 µm ±1 Δm Tip radius Probe angle: 90° (+5° or -10°)
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  3.7 V
Connector type  Device-europlug
(Rechargeable) battery  1 x 3,7 V internal , Lithium-ion battery
Capacity  850 mAh
Operating conditions  -20 ... 40 °C , 0 ... 90 % RH
Storage conditions  -20 ... 40 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  106 x 70 x 24 mm
Weight  200 g

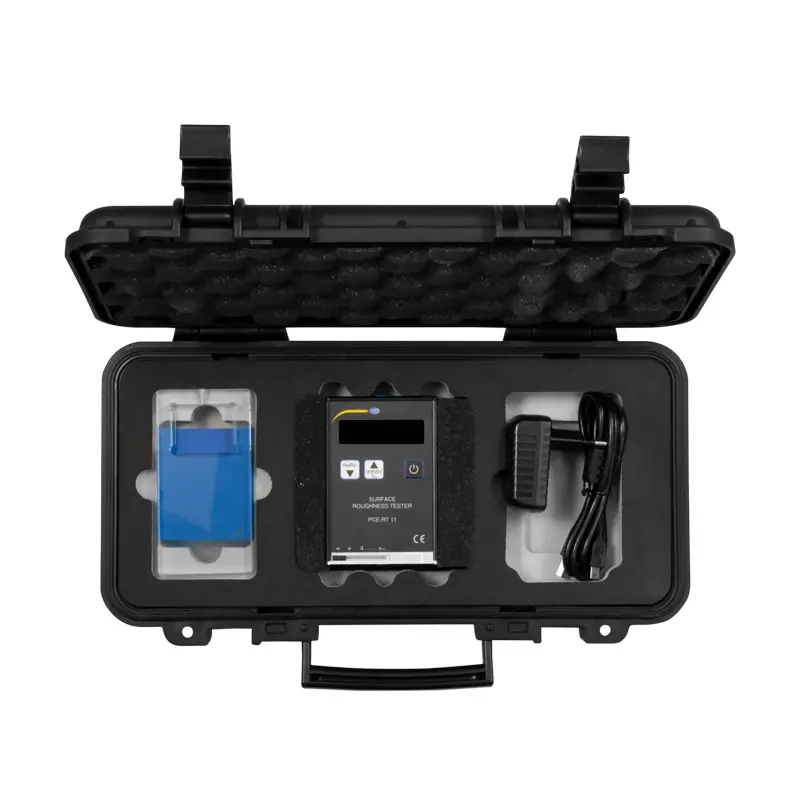

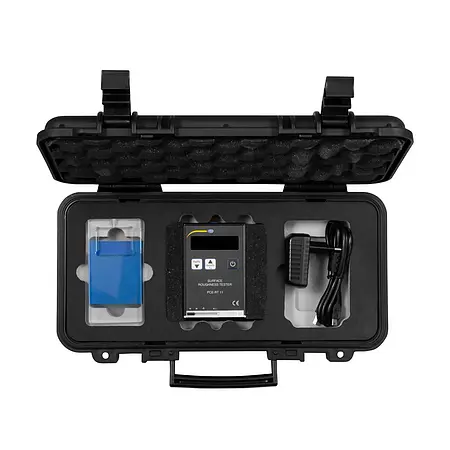

Delivery Scope

1 x Profilometer PCE-RT 11-ICA
1 x Roughness standard
1 x Charger
1 x Case
1 x User’s manual
1 x ISO-Calibration Certificate
