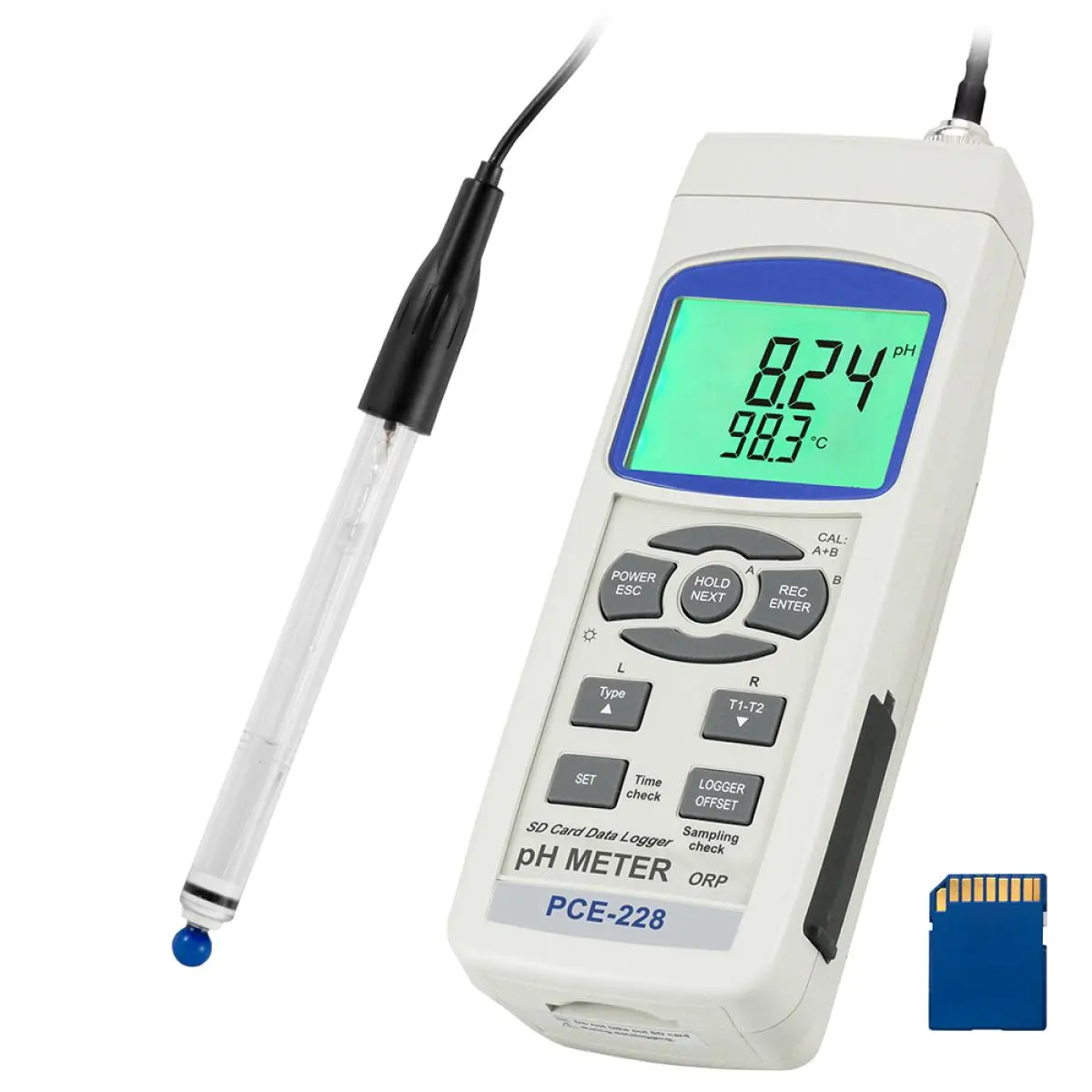

The PCE-228 pH Meter / pH Tester is an easy-to-use handheld device for measuring pH, mV, °C, and °F. With the PCE-228 pH Meter / pH Tester, both temperature and pH values can be directly stored onto an SD card (in Excel format), or transferred to a PC through an RS-232 interface. Optional software and a data cable for the PCE-228 pH Meter / pH Tester are available as optional accessories to transfer data to a computer. Temperature compensation in the PCE-228 pH Meter / pH Tester can be done manually or automatically by way of the temperature sensor which is included.
The pH Meter / pH Tester has two calibration points. The calibration can be done with the trimmer on the side of the device, which is protected under a cover. With this combined device, the user can determine pH value, temperature, or Redox potency (ORP). For the latter measurement parameter, a Redox electrode must be ordered separately from the PCE-228 pH Meter / pH Tester. We recommend the ORP-14 electrode. The pH Meter / pH Tester is powered by a 9V battery, which is included.
| pH | |
| Measuring range | 0 ... 14 pH |
| Resolution | 0,01 pH |
| Accuracy | ±(0.02 pH +2 digits) |
| Redox | |
| Measuring range | -1999 ... +1999 mV |
| Resolution | 1 mV |
| Accuracy | ±(0.5 % +2 digits) |
| Temperature | |
| Measuring range | 0 ... 65 °C |
| Resolution | 0,1 °C |
| Accuracy | ±0.5 °C |

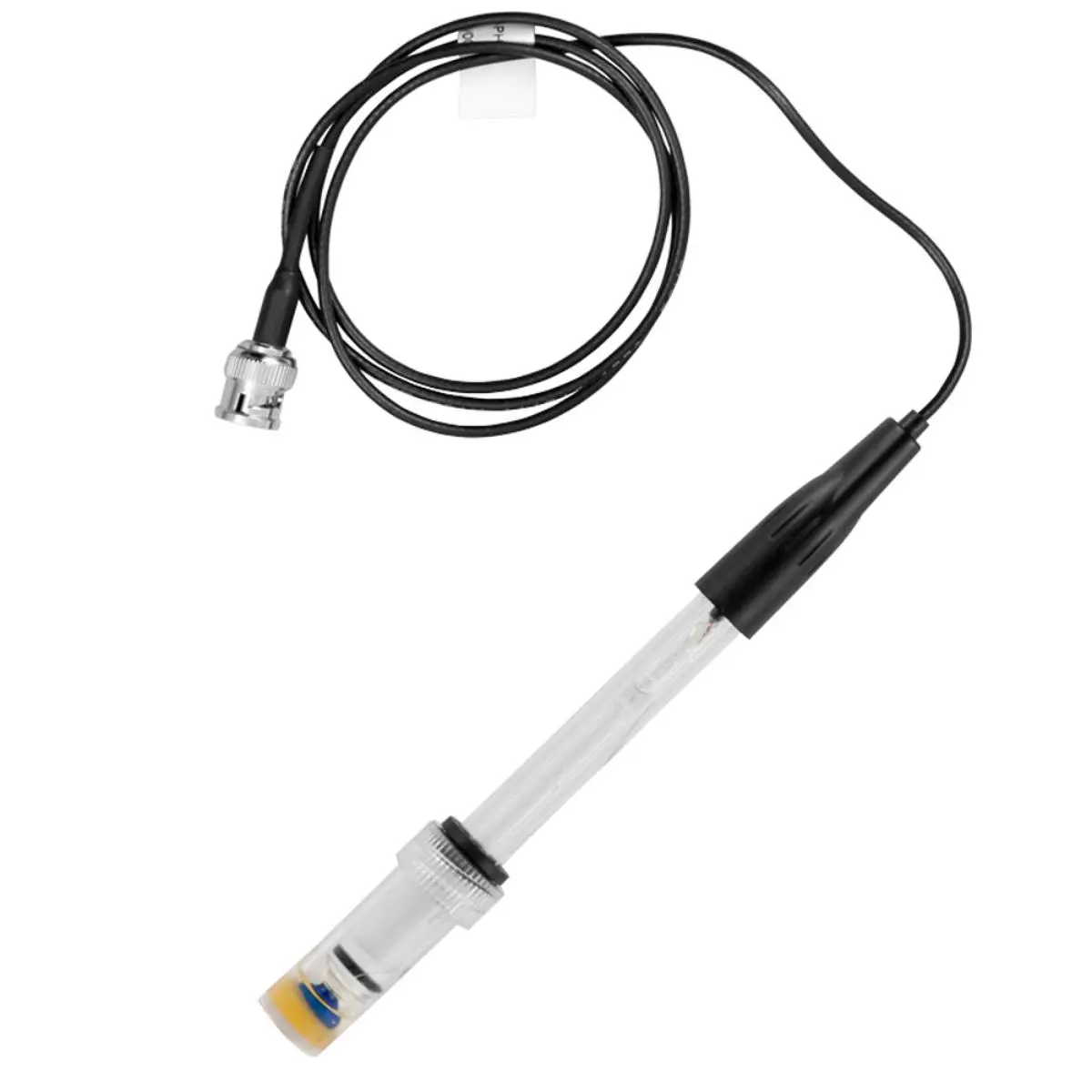

| Electrode | |
| Designation | PCE-PH-HTE |
| Measuring range | 0 ... 14 pH |
| Temperature range | 0 ... 80 °C |
| Application | Aqueous non-corrosive media |
| Reference electrolyte | Ag/AgCl |
| Shank material | Glass |
| Material of diaphragm | Ceramics |
| Shank length | 120 mm |
| Shank diameter | 12 mm |
| Cable length | 1 m |
| Connection | BNC |
| General technical data | |
| Measuring functions | MIN, MAX, HOLD |
| Temperature compensation | - automatic 0 ... 65 °C - manual 0 ... 100 °C with temperature sensor removed |
| Display type | LCD with backlight |
| Display size | 2,6 Inch |
| Storage medium | SD card |
| Storage capacity | 4 GB |
| Memory capacity (additional information) | up to 16 GB SD card possible |
| Storage interval from | 1 s |
| Storage interval to | 9 min. |

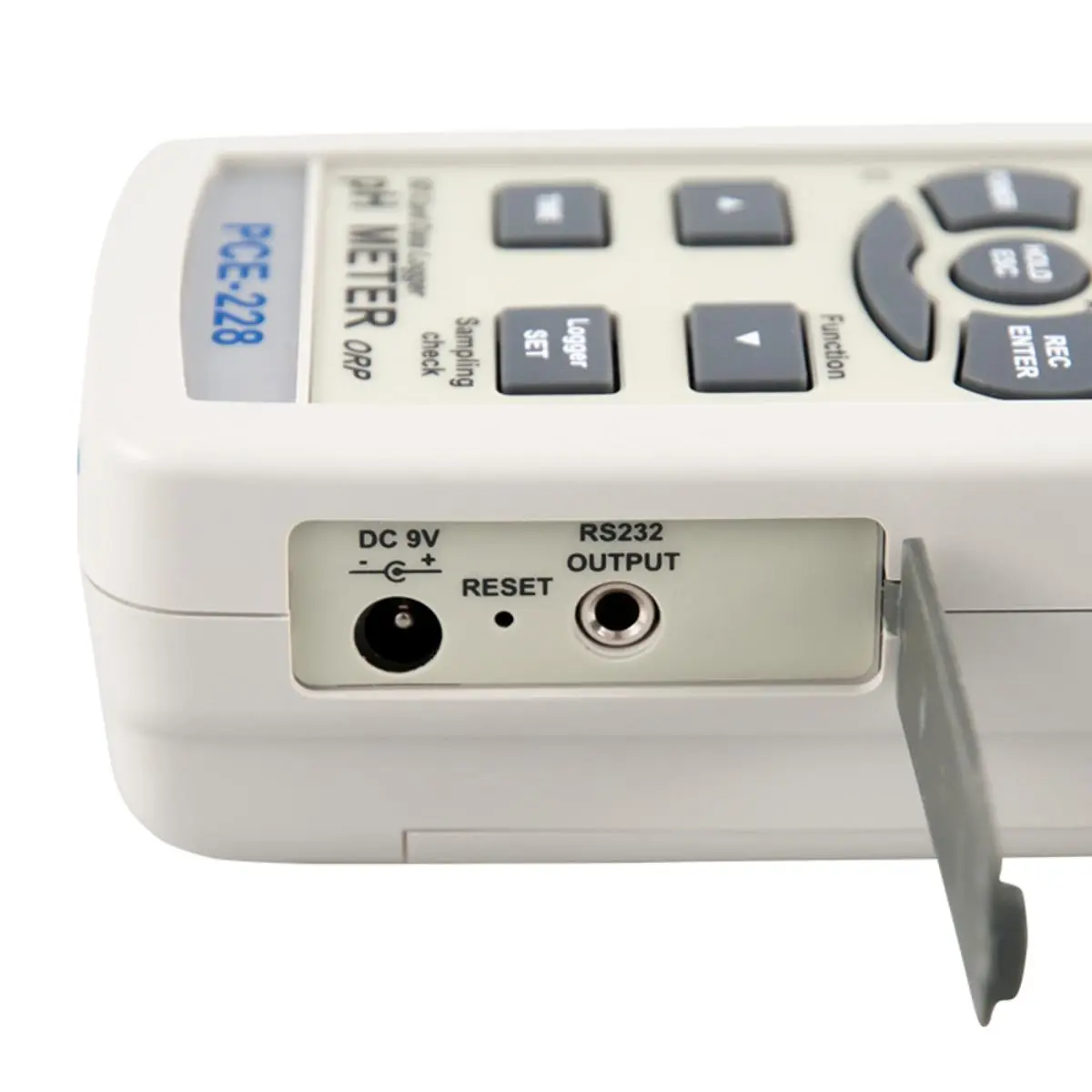

| Interface | RS232 |
| Number of calibration points | 3 |
| Calibration | automatic |
| Menu language | English |
| Protection class (device) | IP20 |
| Power supply | 9 V DC |

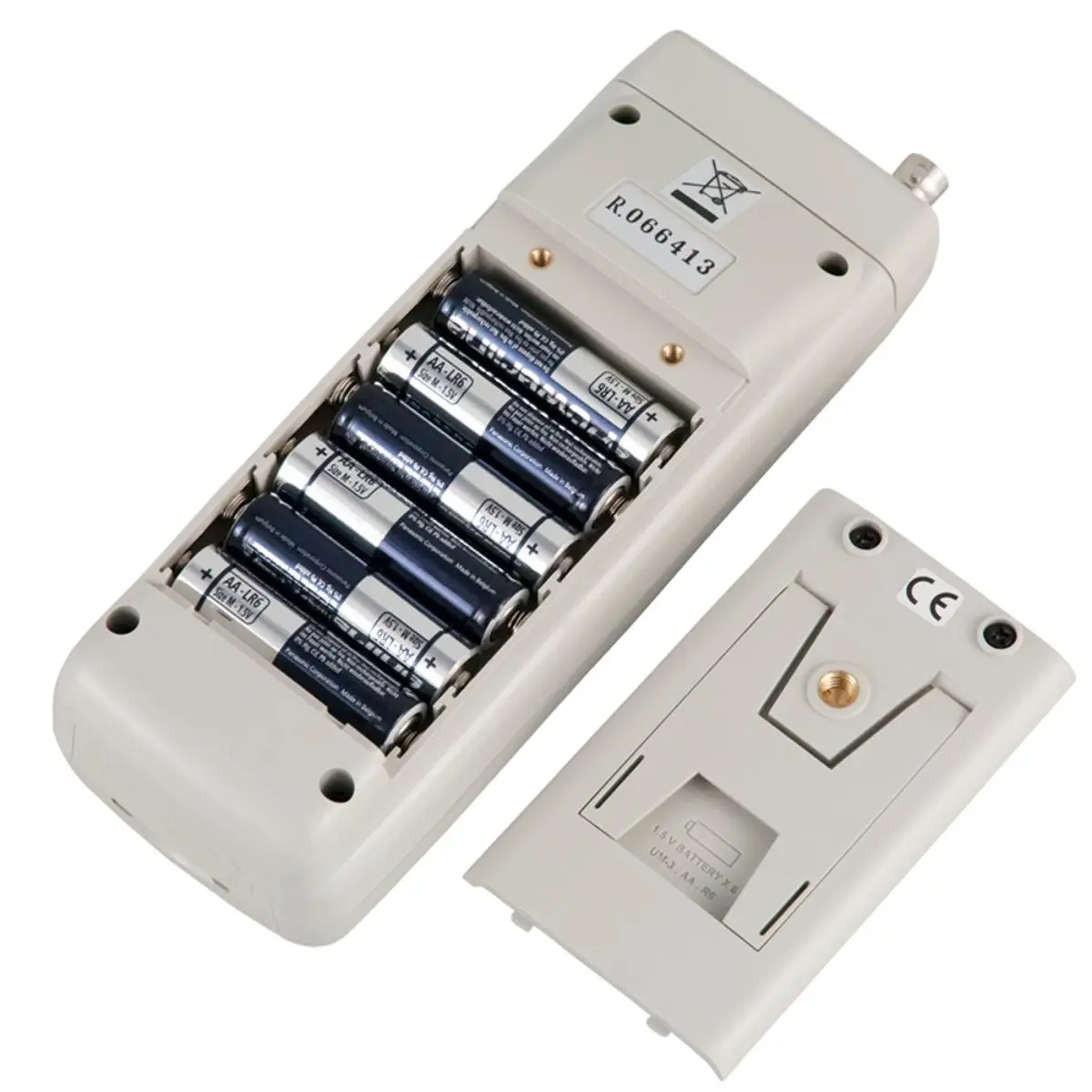

| (Rechargeable) battery | 6 x 1,5 V AA battery , Alkali-manganese |
| Capacity | 3000 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 190 x 68 x 45 mm |
| Weight | 261 g |
