Class I Noise Meter / Sound Meter Calibrator PCE-SC 09-ICA incl. ISO Cal. Cert.

Order no.: PCE-SC 09-ICA

GTIN (EAN): 4250348726674

Accessory

Point DAkkS calibration class 1 CAL-SC-DAkkS (2)

285,90 €

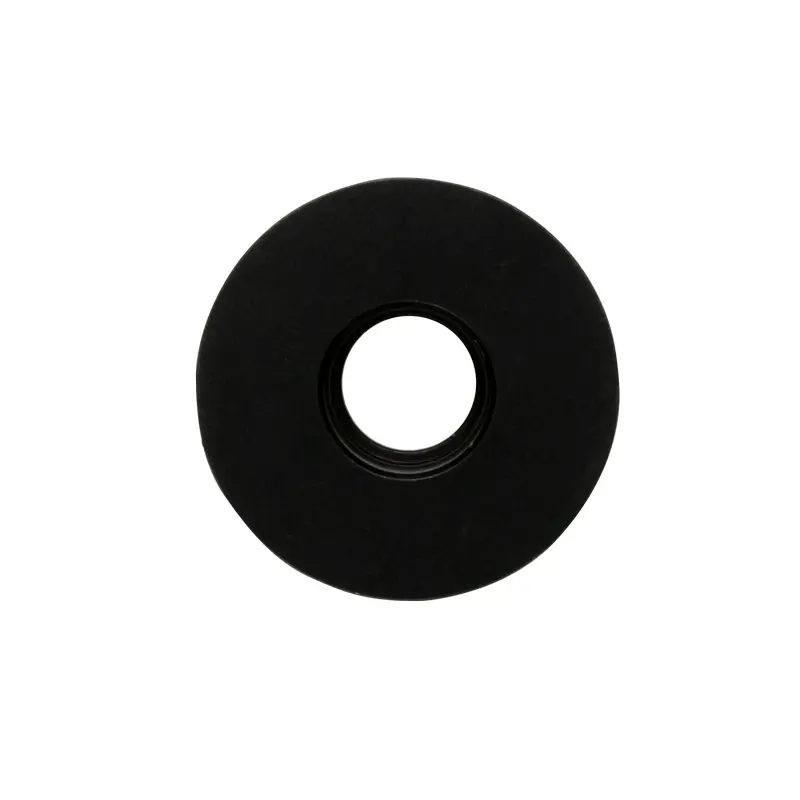

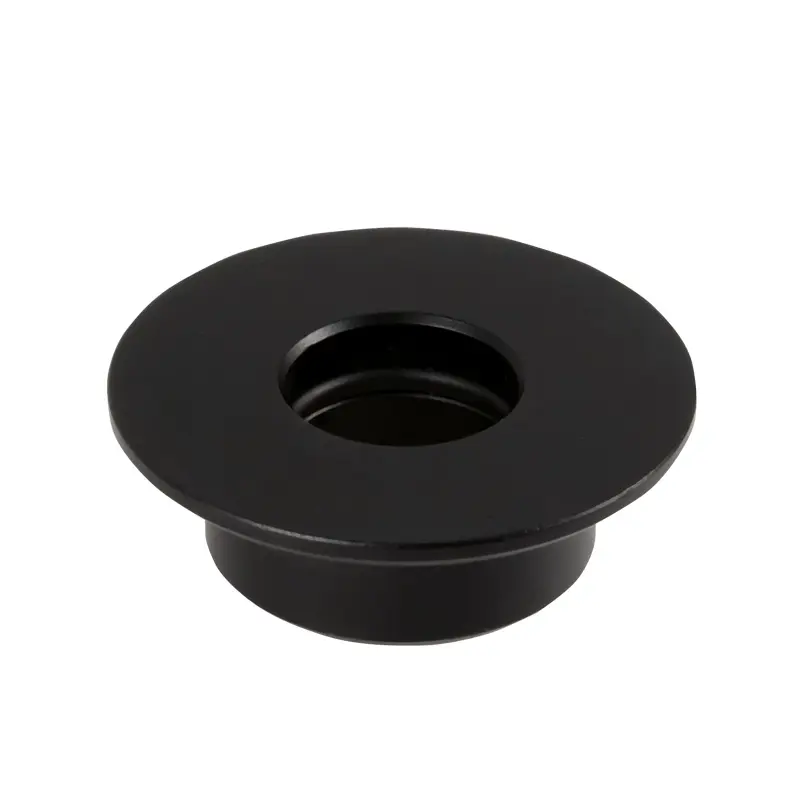

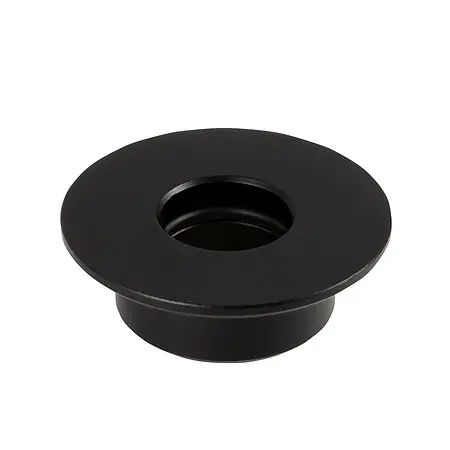

Adapter attachment PCE-SC 09 1/4" adapter

78,90 €

Description

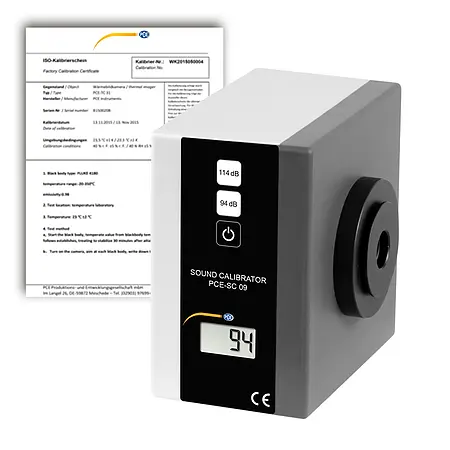

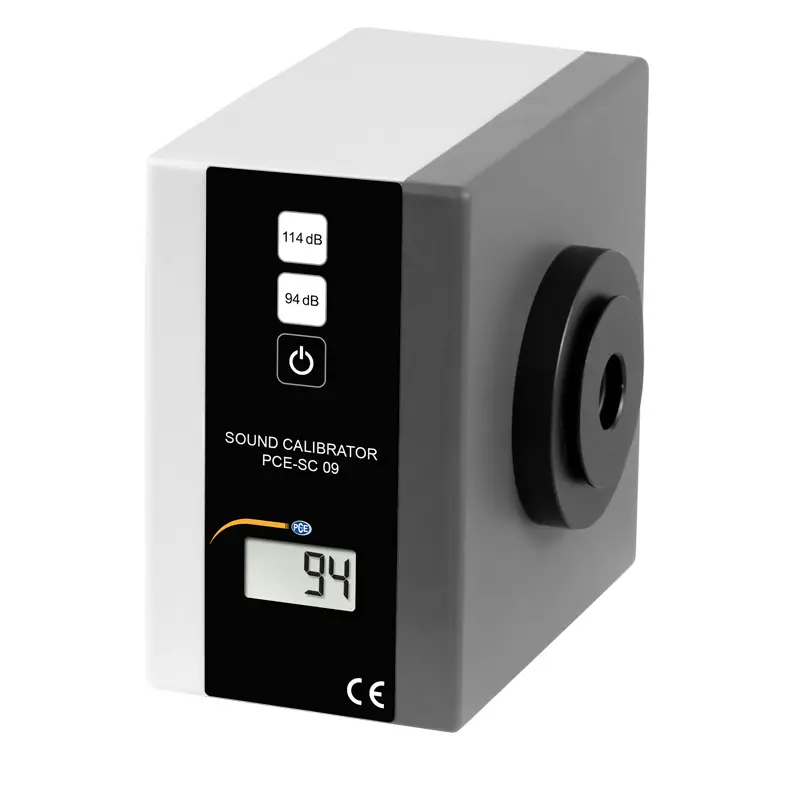

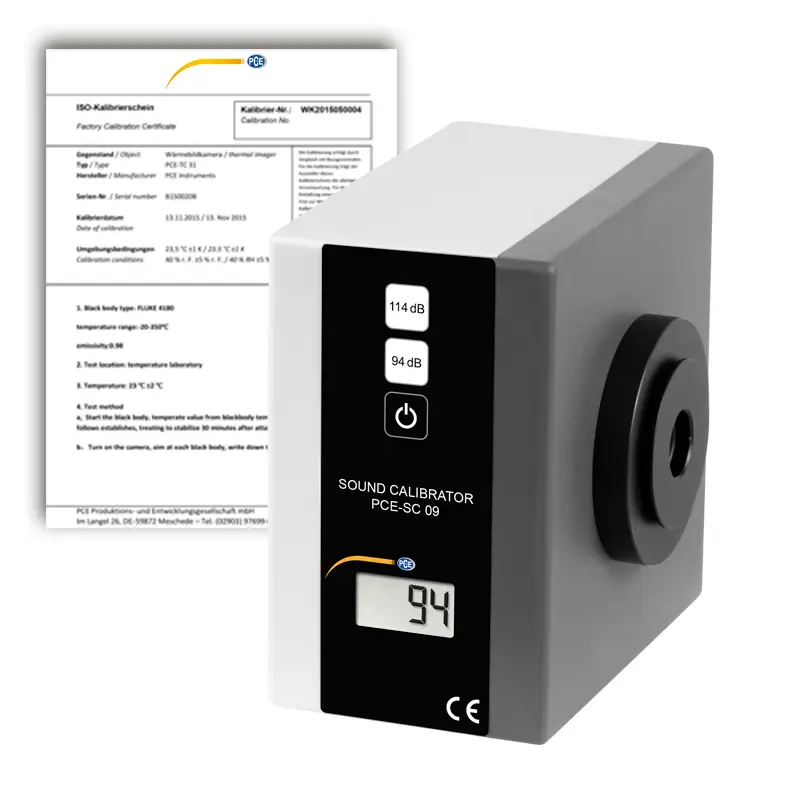

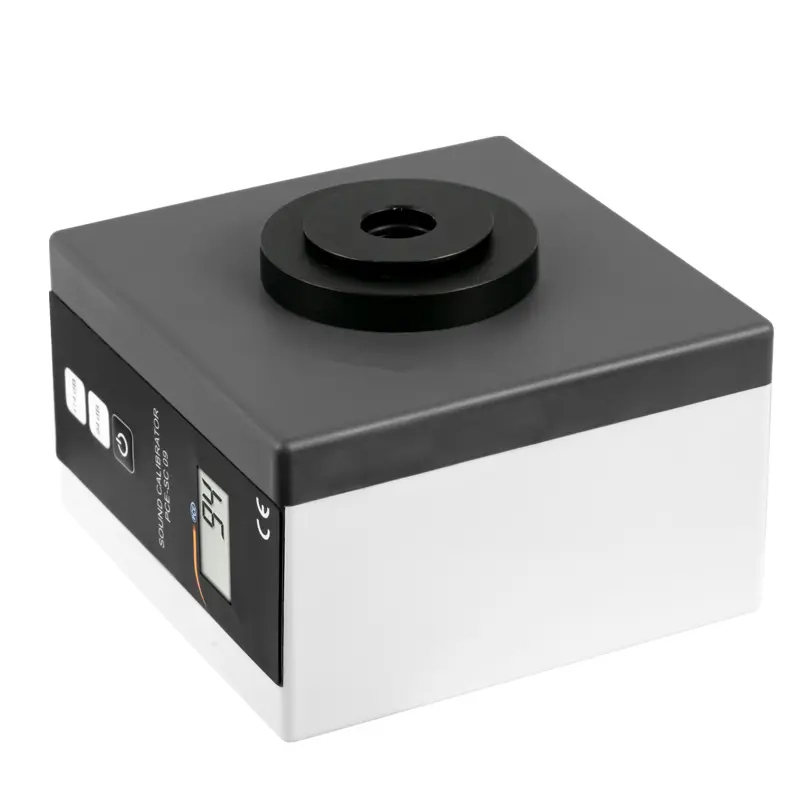

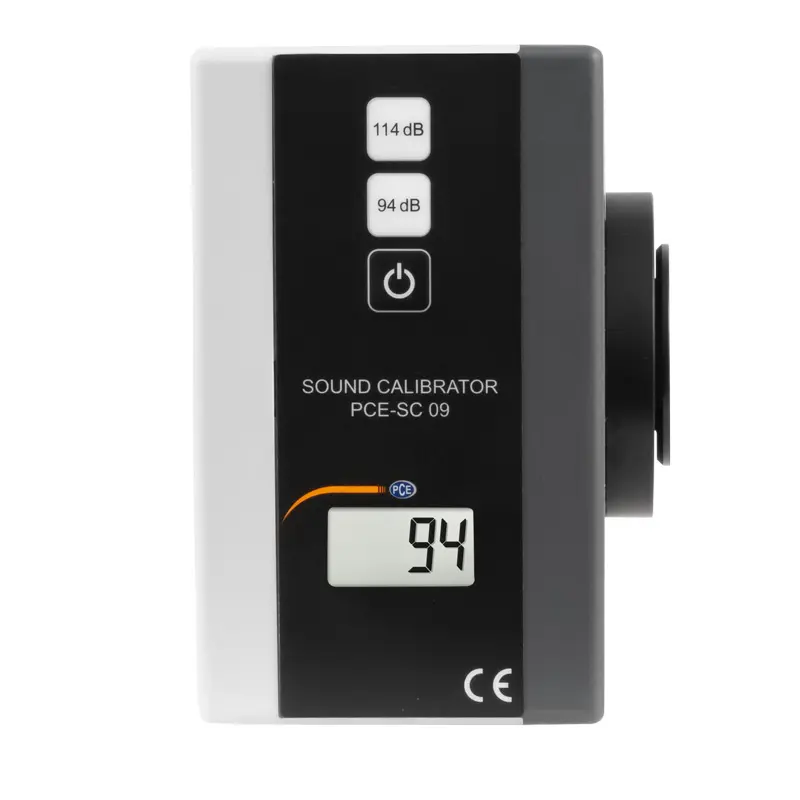

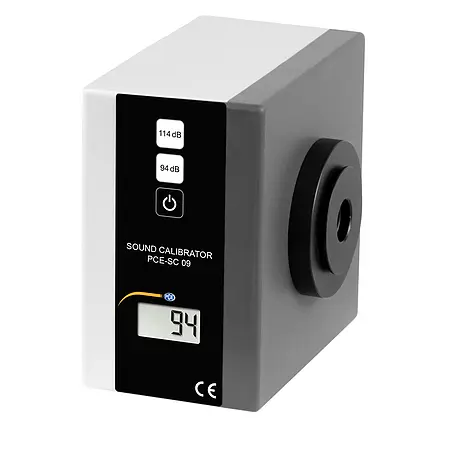

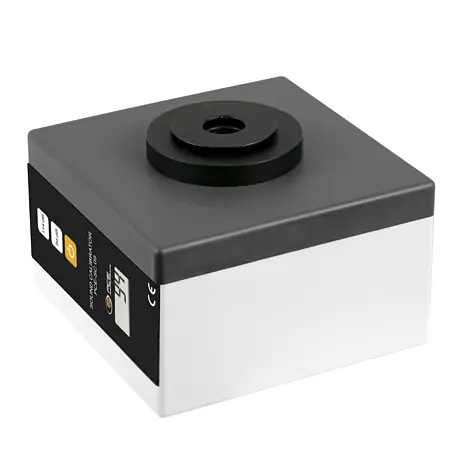

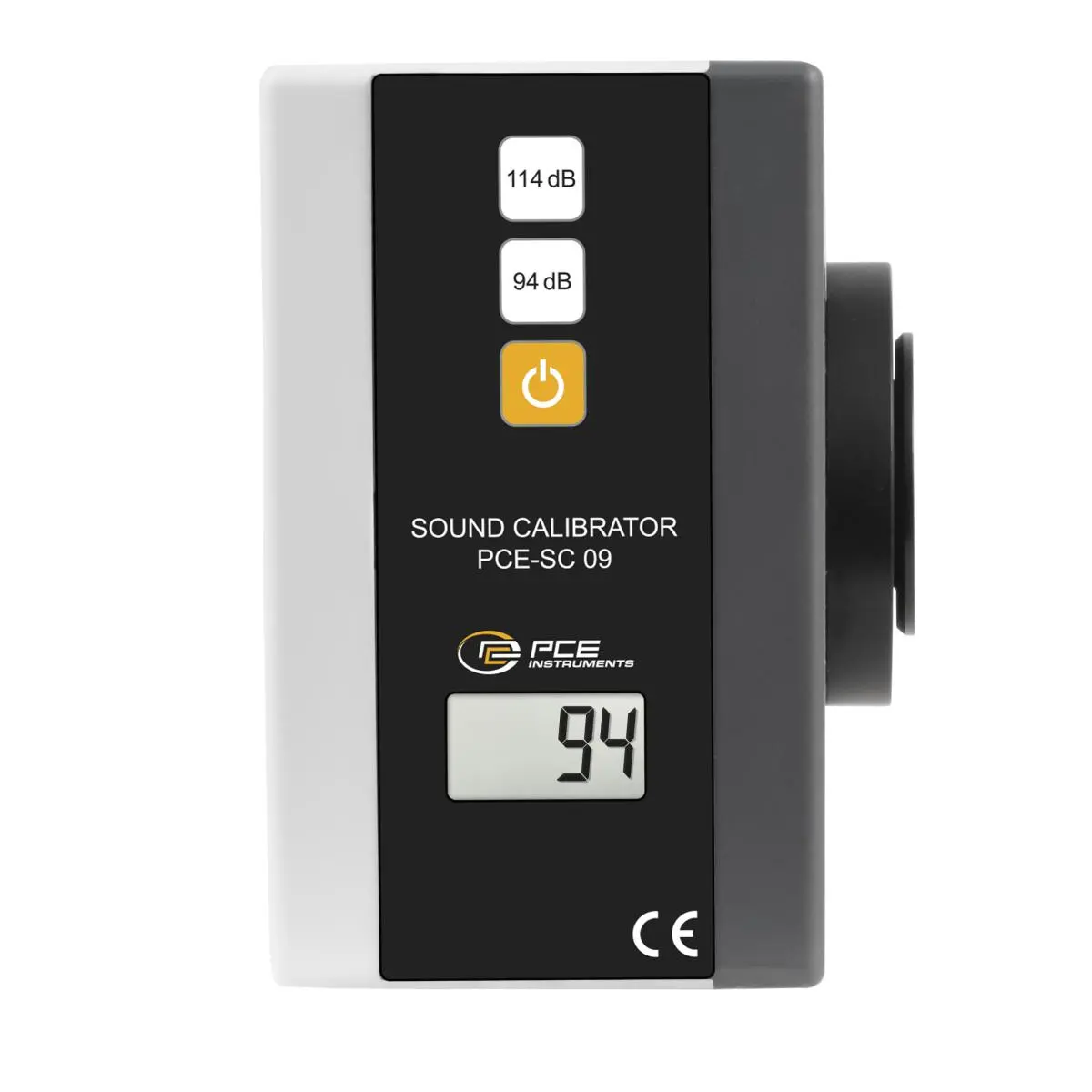

Class I Noise Meter / Sound Meter Calibrator incl. ISO Calibration Certificate
for mobile use / For various evaluation filters / Accuracy IEC 942, class 1 / For microphones with different dimensions

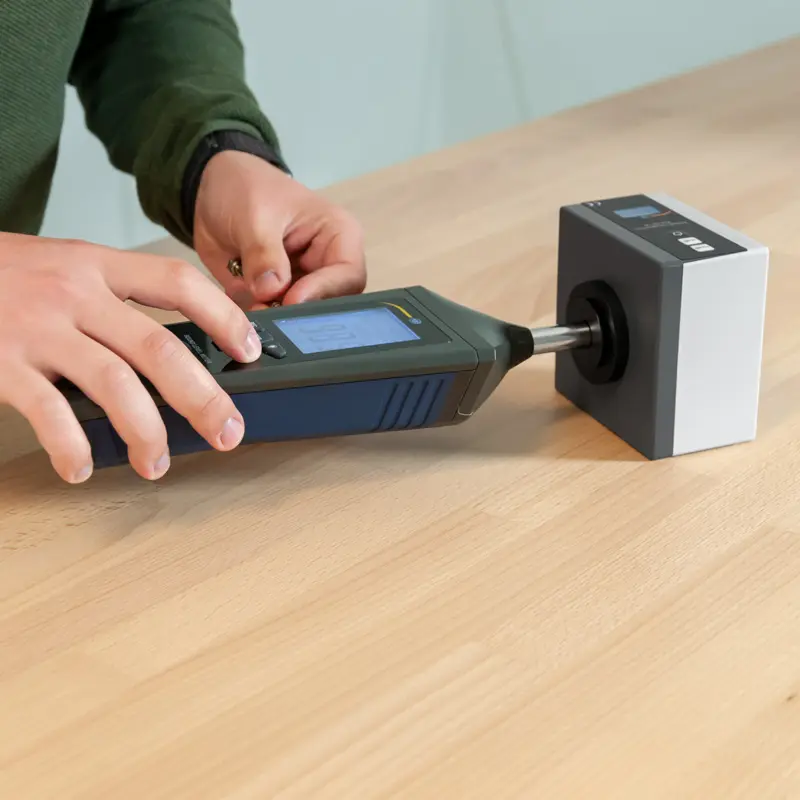

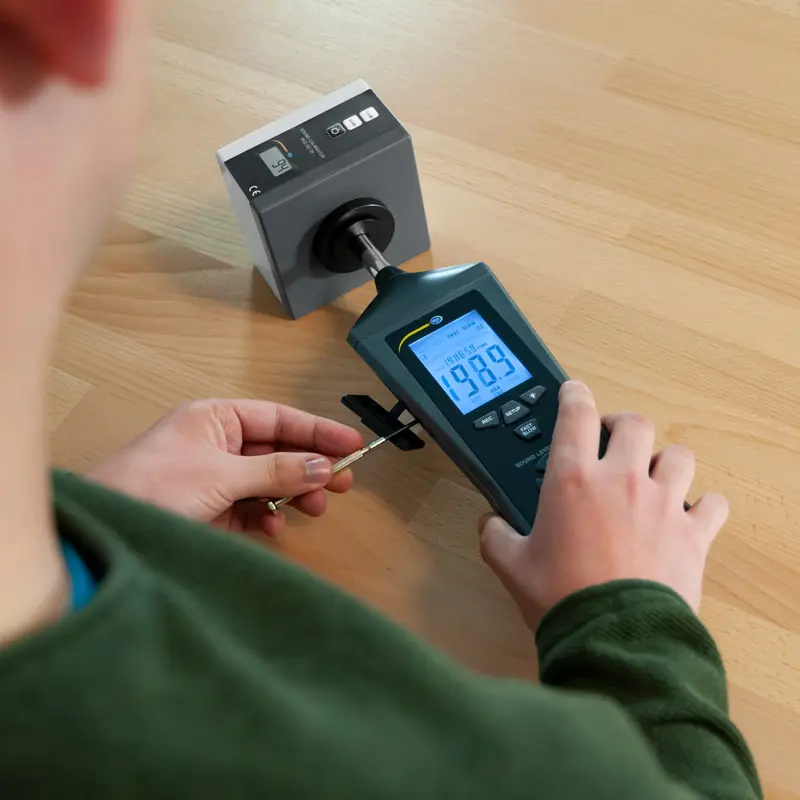

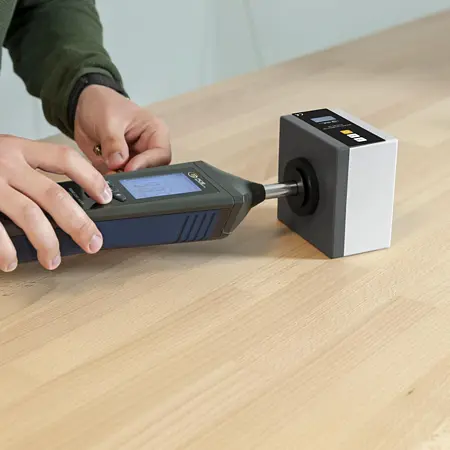

The Noise Meter / Sound Meter Calibrator is a battery powered sound source. With the Sound Meter Calibrator, direct and fast calibrations of sound level meters and other systems for noise measurement can be carried out. Sound level sensors of 1, ½ and ¼ inch can be connected to the Sound Meter Calibrator and checked via the adapter attachments.

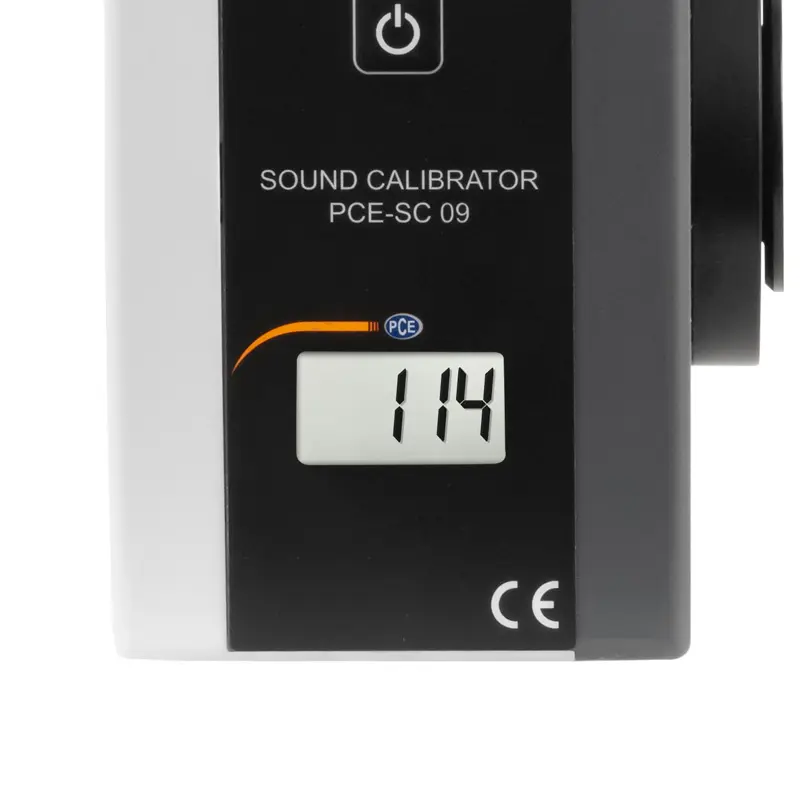

The calibration frequency for the Sound Meter Calibrator is 1000 Hz. This is the reference frequency for the internationally standardized evaluation curves. With this Sound Meter Calibrator you can calibrate sound measuring devices with weighting filters A, B, C, or D. The calibration pressure for this Sound Meter Calibrator is 94 ± 0.3 dB (1 Pa) and 114 ± 0.3 dB (10 Pa). Thus, the Sound Meter Calibrator is used in quality assurance, for example, to test sound level meters or in calibration laboratories.

Highlights

- Sound pressure level 94 and 114 db

- For weighting filters A, B, C, D

- Ready for immediate use

- Accuracy class 1, IEC 942

- Easy handling

- Adapter for various microphones

- incl. ISO-Calibration Certificate

Specification

General technical data
Connections	1 inch
Connections additional information	with adapter: 1/2 inch, 1/4 inch - optional
Frequency weighting	A, C, B, D
Frequency	1000 Hz
Frequency accuracy	±0.01%
Display type	LCD
Standard(s)	IEC 942 (Class 1)
Sound pressure level	94 dB, 114 dB
Sound level accuracy	±0.3 dB (20°C, 760 mm Hg)
Protection class (device)	IP20
Power supply	batteries
(Rechargeable) battery	2 x 1,5 V AA battery , Alkali-manganese
Capacity	3000 mAh
Performance	4,5 Wh
Operating conditions	-10 ... 50 °C , 20 ... 90 % RH
Storage conditions	-40 ... 65 °C , 20 ... 90 % RH
Dimensions ( L x W x H )	100 x 100 x 75 mm
Weight	210 g
