The Noise Dose Meter / Sound Dose Meter PCE-MSL 1 is a simple sound measuring device. The Noise Dose Meter / Sound Dose Meter PCE-MSL 1 is used to quickly determine the ambient volume. In addition to the volume measurement, the decibel meter also has the facility to determine the ambient temperature. The measurement of background noise is important in almost every situation today. For this purpose, it is helpful to use a simple decibel meter that gives the user an initial idea about the possible noise level.

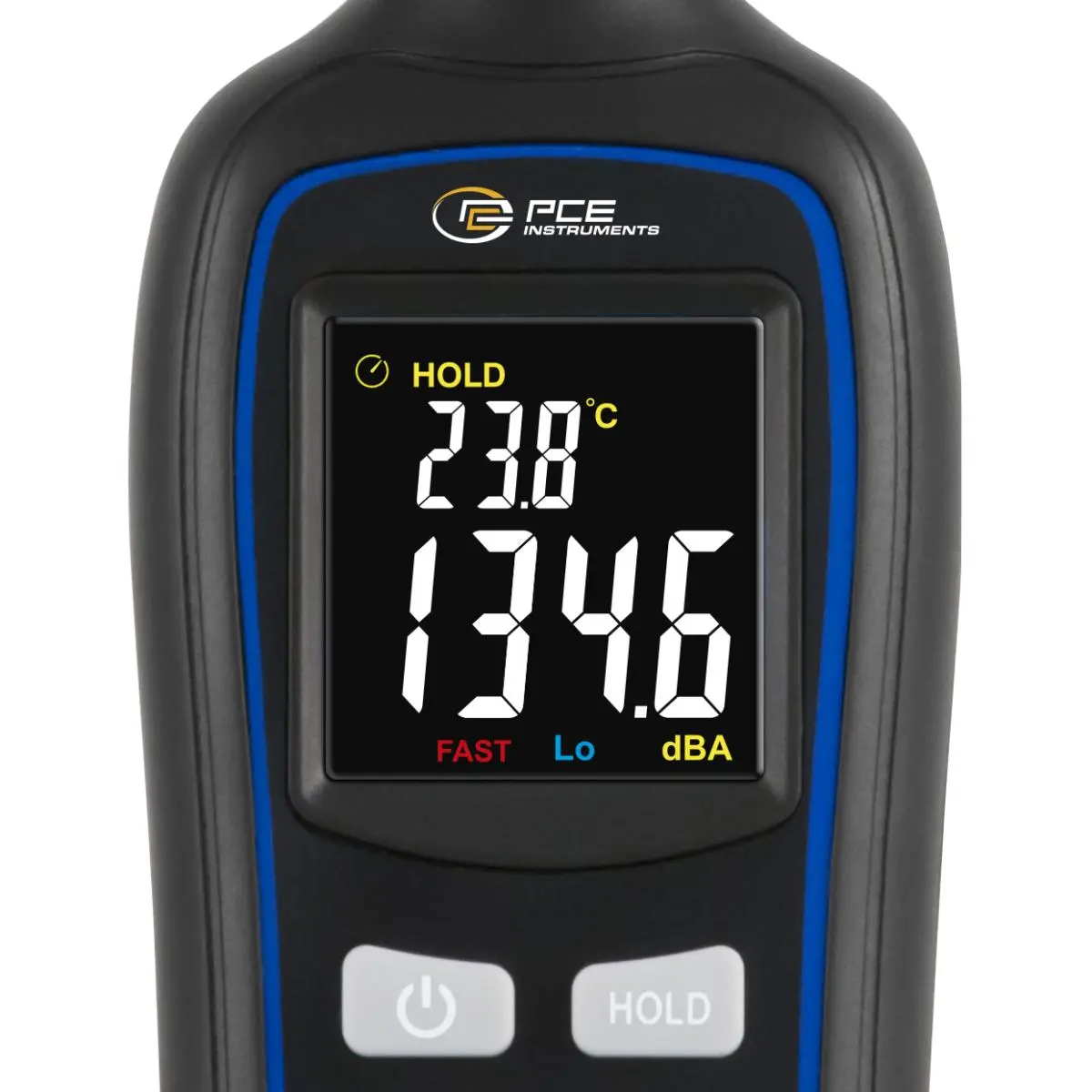

The LC display gives clear results of the measurements made by the sound level meter. A backlight is also integrated into the display. The sound level meter is especially ideal for measurements that need to be non-stationary.
| Sound level | |
| Measuring range | 35 ... 135 dB |
| Resolution | 0,1 dB |
| Accuracy | ±2 dB |
| Temperature | |
| Measuring range | -20 ... +70 °C |
| Resolution | 0,1 °C |
| Accuracy | ±1.5 °C |
| General technical data | |
| Measuring functions | HOLD, MAX, MIN |
| Time weighting | slow (1 s), fast (125 ms) |
| Frequency weighting | A |
| Frequency | 31.5 ... 8000 Hz |
| Display type | LCD with backlight |
| Measuring rate | 3,33 Hz |
| Microphone type | Electret capacitor |
| Operating time | 60 h |
| Automatic power-off | 15 min |
| Dimensions | Microphone diameter 1/2 inch |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| (Rechargeable) battery | 3 x 1,5 V AAA battery , Zinc-manganese dioxide |
| Capacity | 1200 mAh |
| Operating conditions | -20 ... 60 °C , 10 ... 90 % RH |
| Storage conditions | -20 ... 60 °C , 10 ... 75 % RH |
| Dimensions ( L x W x H ) | 144 x 56 x 31 mm |
| Weight | 75 g |
