332,90 €

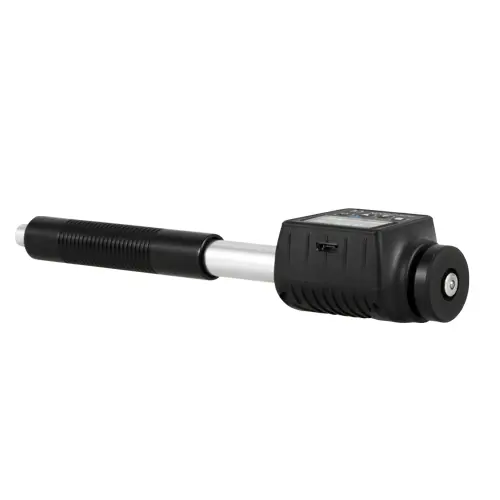

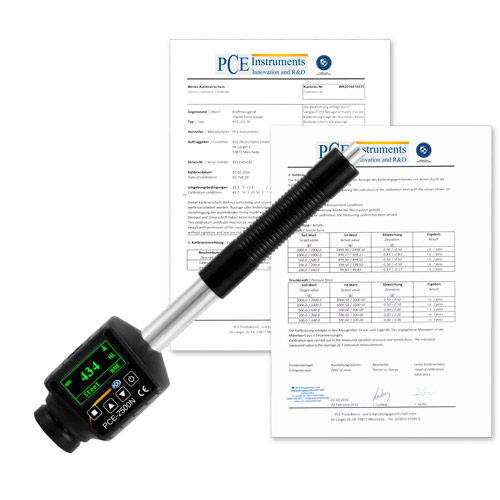

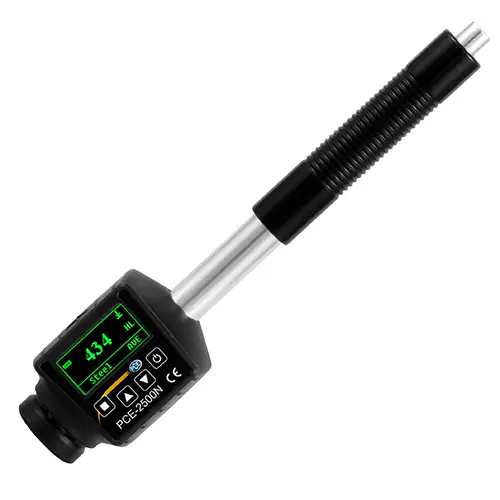

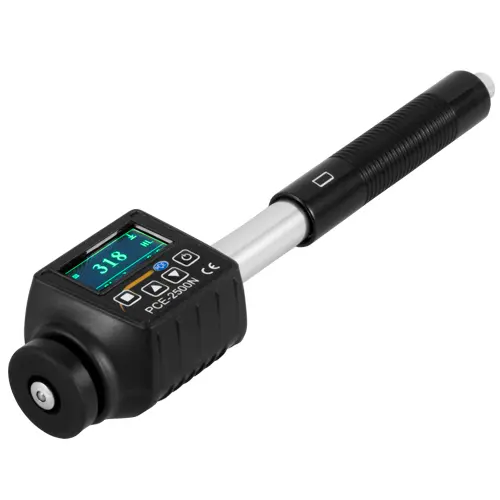

PCE-2500N-ICA Durometer for Metals with ISO Calibration Certificate
Portable handheld pen-sized hardness tester for use with steel, iron, aluminum, brass, bronze, copper and more

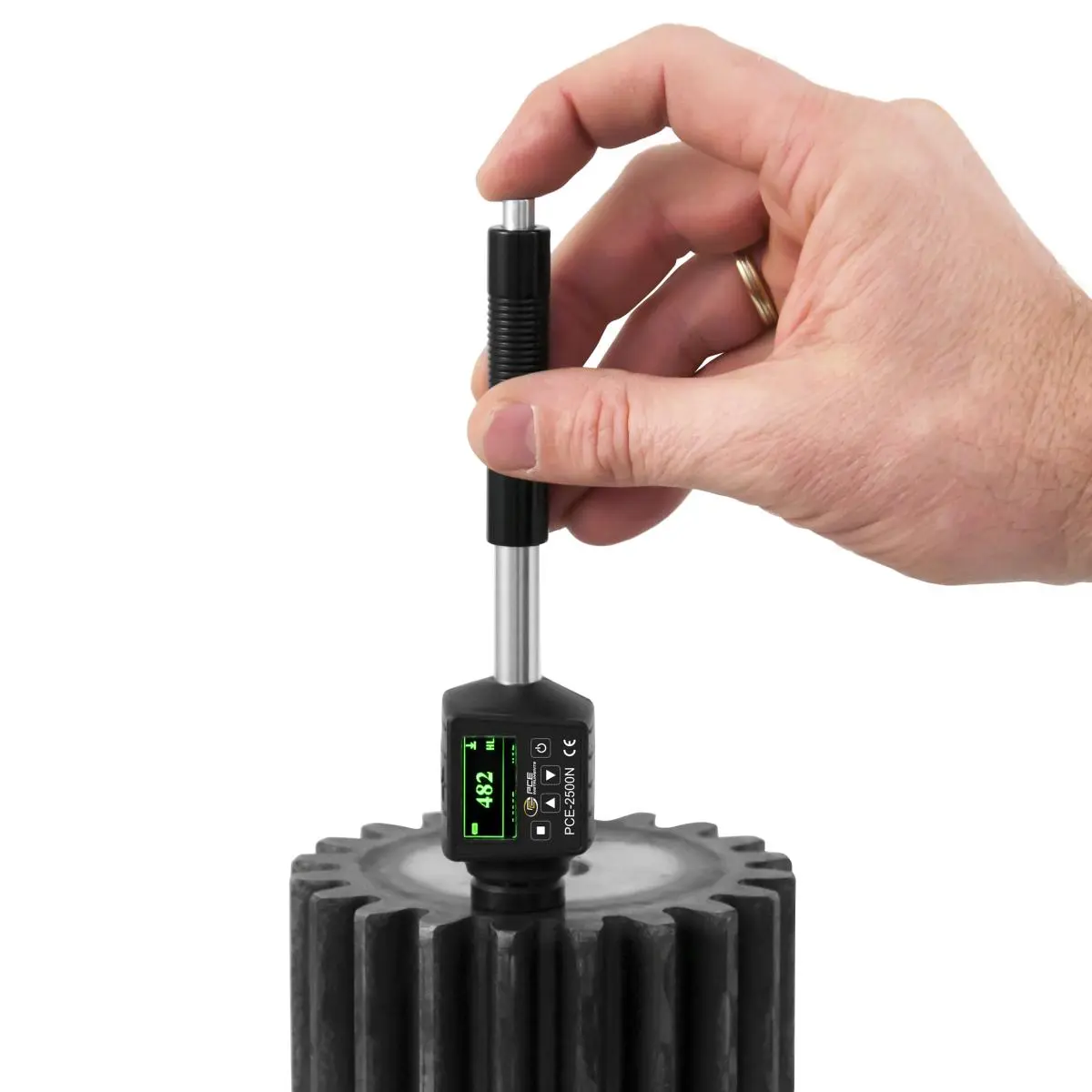

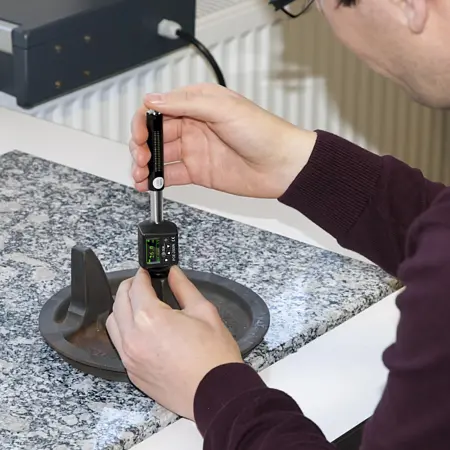

PCE-2500N-ICA is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper. This device comes with an ISO calibration certificate.
| Hardness | |
| Measuring range | 170 ... 960 HLD |
| Resolution | 1 HLD |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 17,9 ... 69,5 HRC |
| Resolution | 0,1 HRC |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 19 ... 683 HB |
| Resolution | 1 HB |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 80 ... 1042 HV |
| Resolution | 1 HV |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 30,6 ... 102,6 HS |
| Resolution | 0,1 HS |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 59,1 ... 88 HRA |
| Resolution | 0,1 HRA |
| Accuracy | ±0.5% |
| Hardness | |
| Measuring range | 3,5 ... 101,7 HRB |
| Resolution | 0,1 HRB |
| Accuracy | ±0.5% |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Measuring principle | Rebound method |

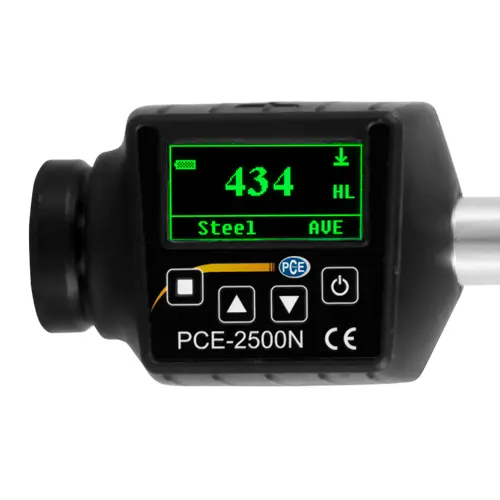

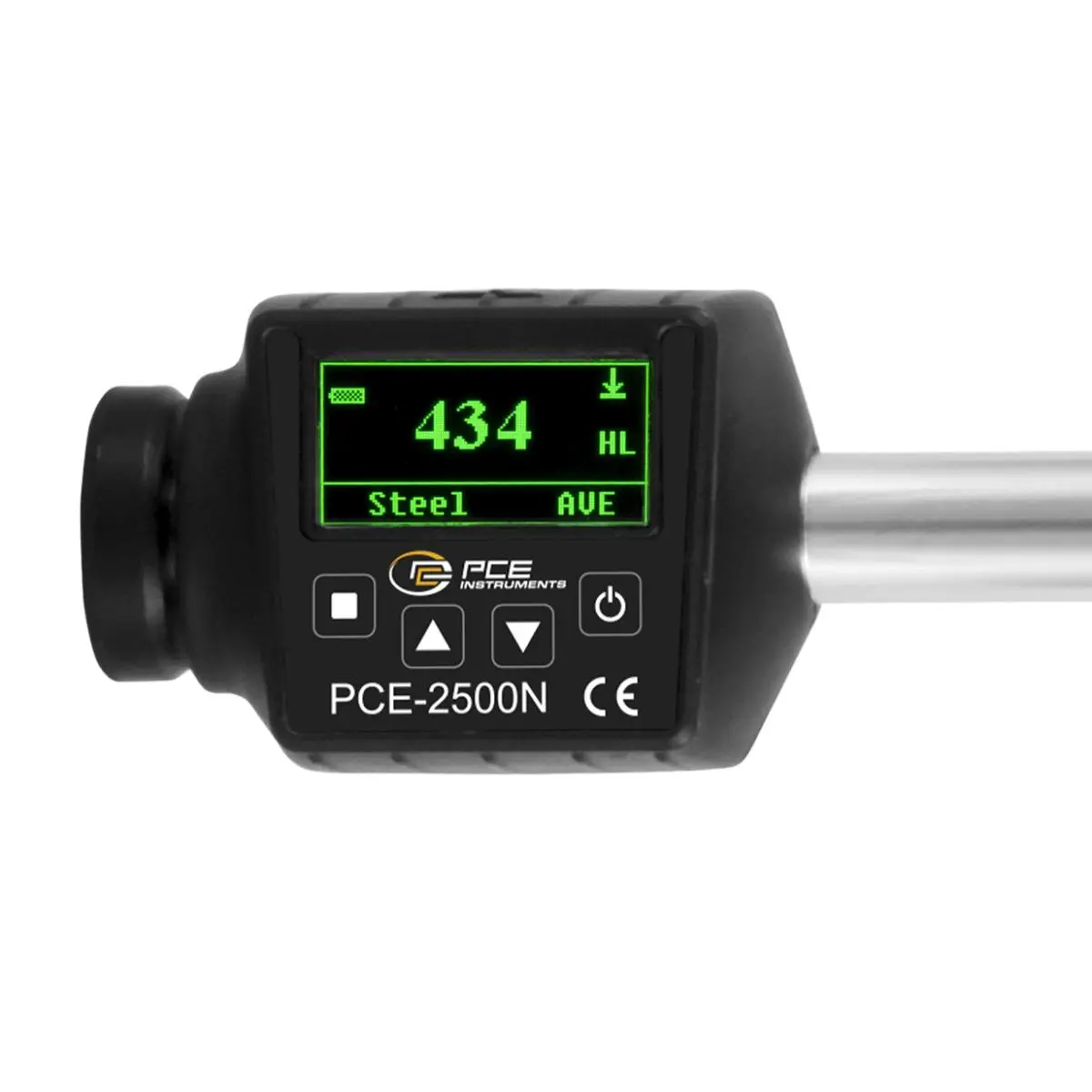

| Display type | OLED |
| Display size | 0,6 Inch |
| Display resolution | 128 x 64 |
| Storage medium | Internal memory |
| Storage capacity | 600 Values |
| Memory capacity (additional information) | 6 files |

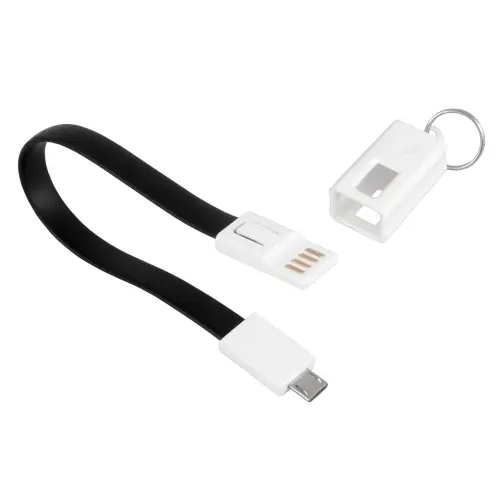

| Interface | Micro-USB |
| Materials | Stainless steel, Steel, Bronze, Brass, Grey cast iron, Cast steel, Spheroidal graphite cast iron, Cast aluminium alloy, Tin bronze, alloyed tool steel |
| Operating time | 10 h |
| Repeatability | 0,8 % |
| Impact device | D-type |
| Hardness scales | HRC, HRB, HRA, HB, HV, HS, HLD |
| Test specimen | Tungsten carbide, hardness-1600 HV, ø 3 mm |
| Menu language | English, Chinese, English (GB) |
| Protection class (device) | IP52 |
| Power supply | 5 V DC |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion battery |
| Capacity | 240 mAh |
| Operating conditions | -10 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | -30 ... 60 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 148 x 32 x 25 mm |
| Weight | 650 g |
