203,90 €

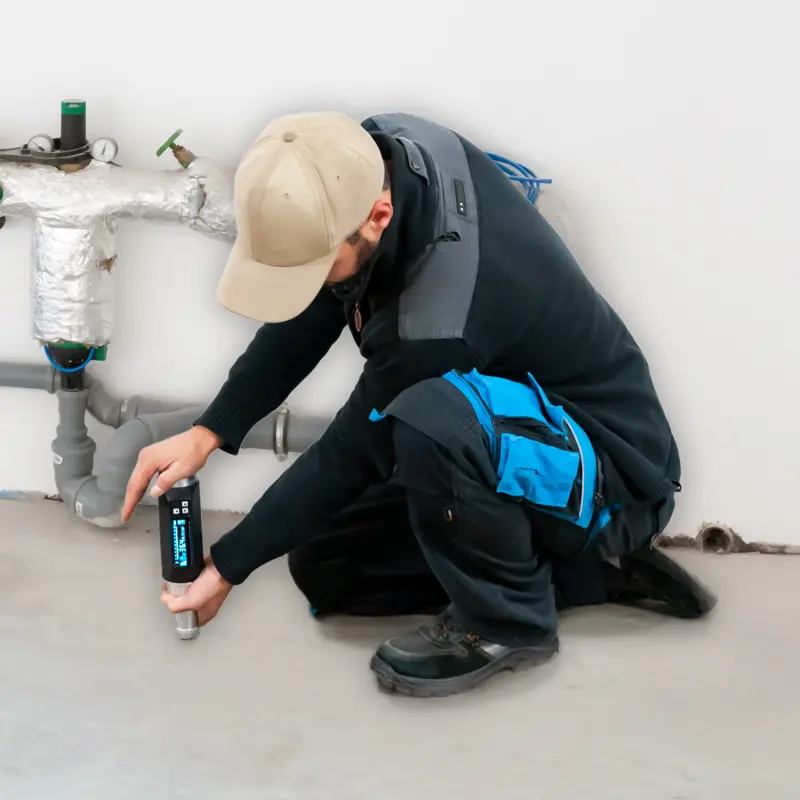

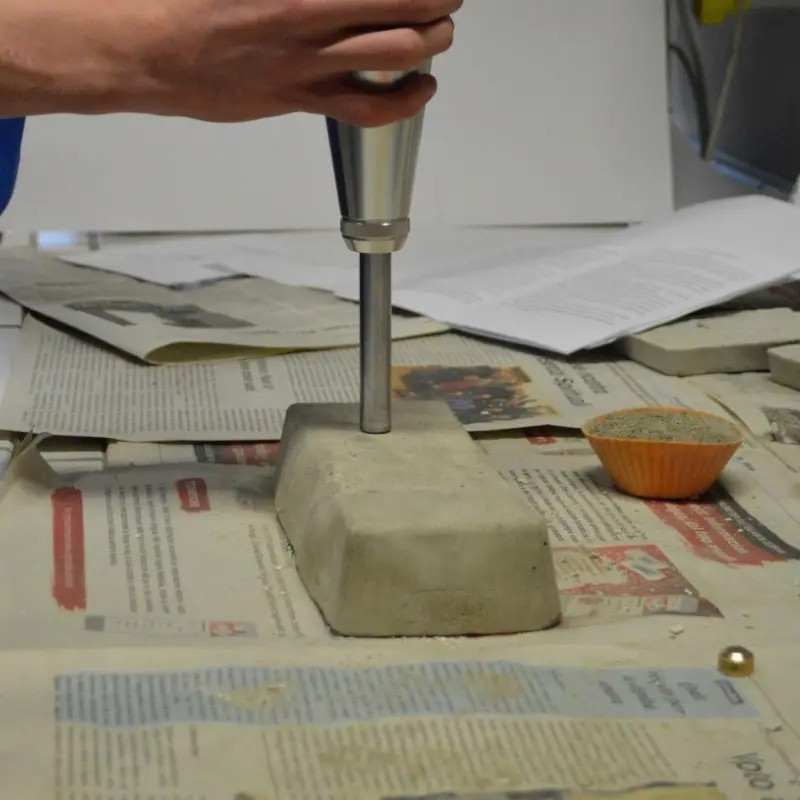

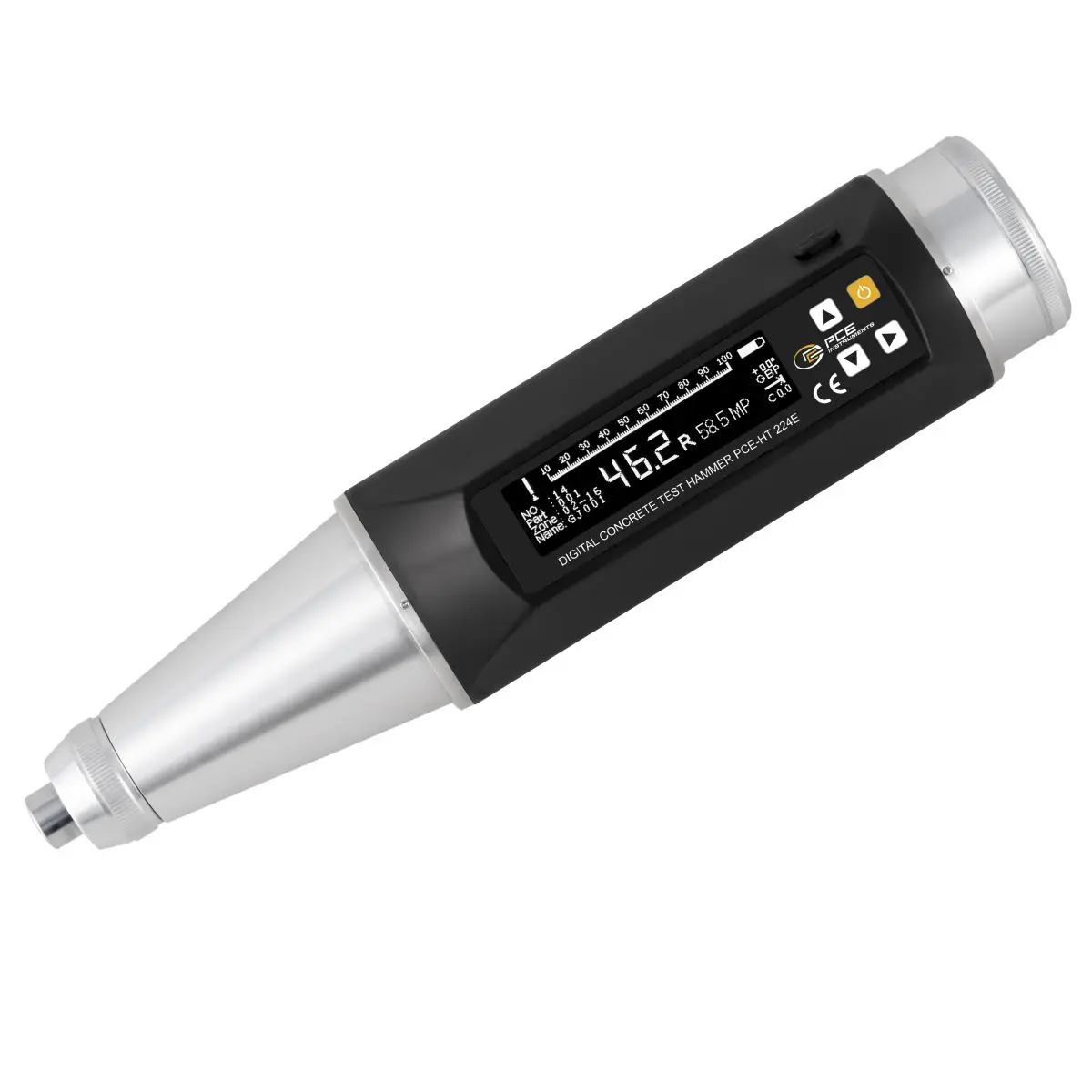

The NDT Tester is a measuring tool for testing the strength of concrete. The NDT Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the NDT Tester. Thus, the NDT Tester finds its essential application in the construction and in the construction sector. The NDT Tester is also suitable for testing the hrdness of rolled paper. The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

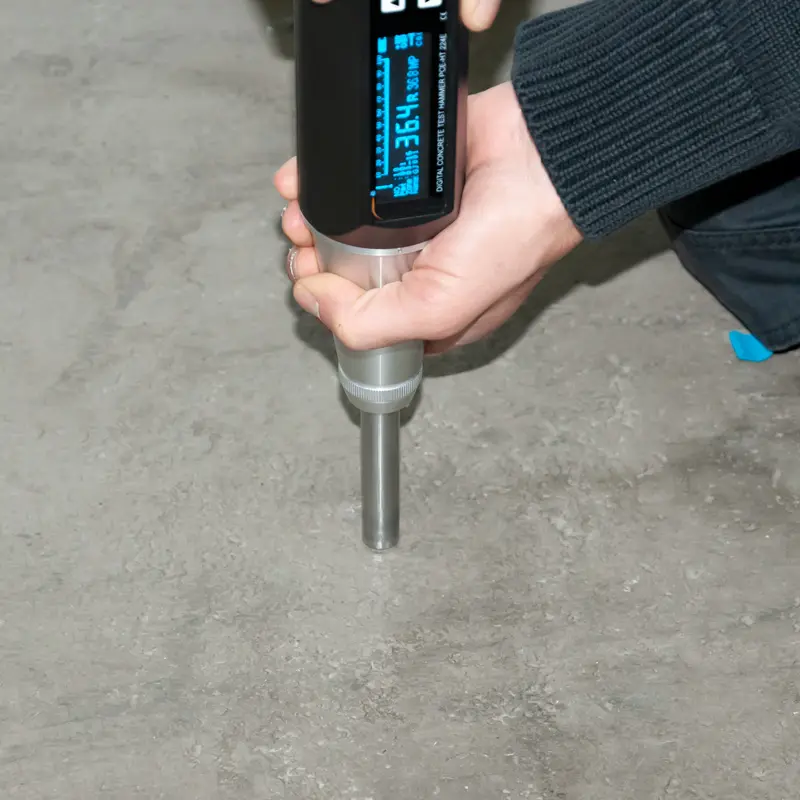

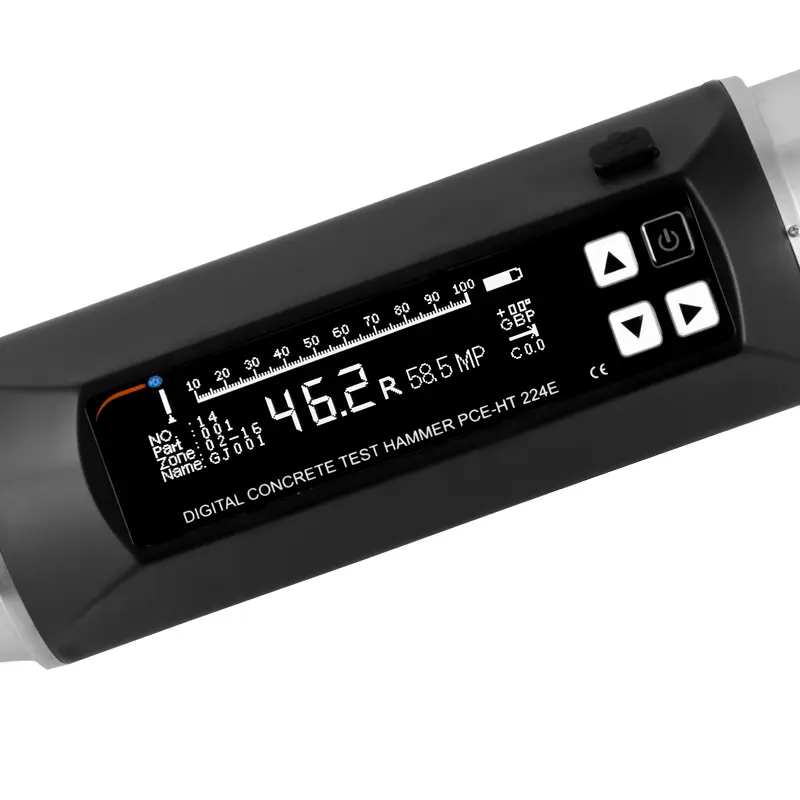

The NDT Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The NDT Tester can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
| Hardness | |
| Measuring range | 10 ... 100 N/mm² |
| Resolution | 0,1 R |
| Accuracy | ±0.1 R |
| General technical data | |
| Units | MPa, N/mm², kgf/mm², psi |
| Display type | OLED |
| Display resolution | 256 x 64 pixels |
| Storage medium | Internal memory |
| Storage capacity | 1000 Data records |
| Memory capacity (additional information) | with 256 measurements each |

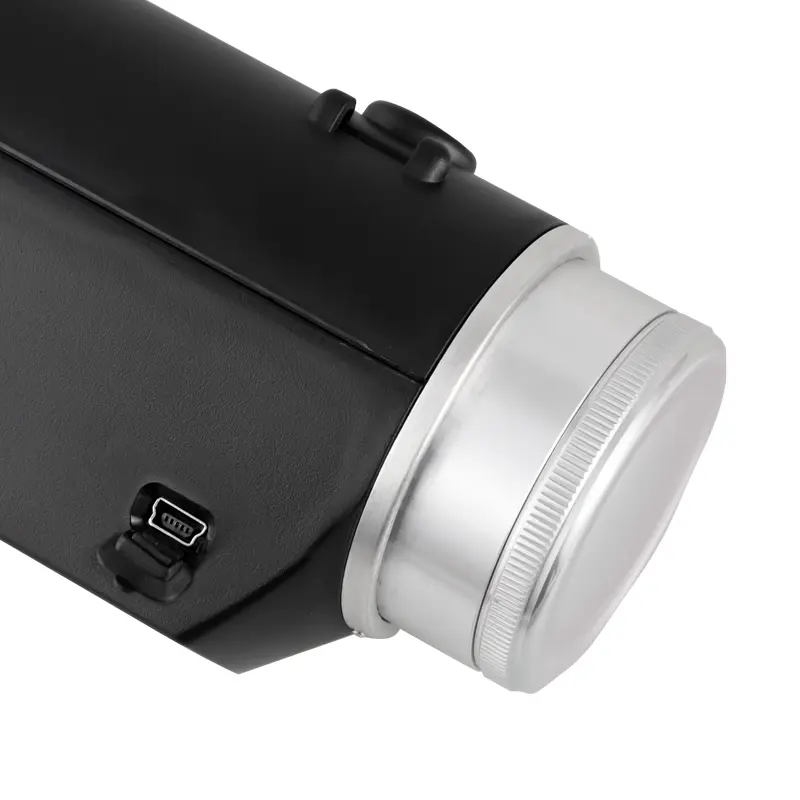

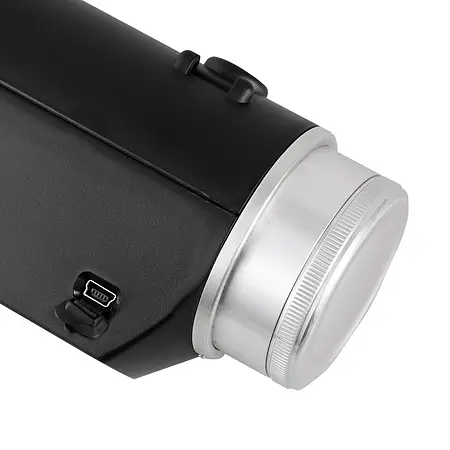

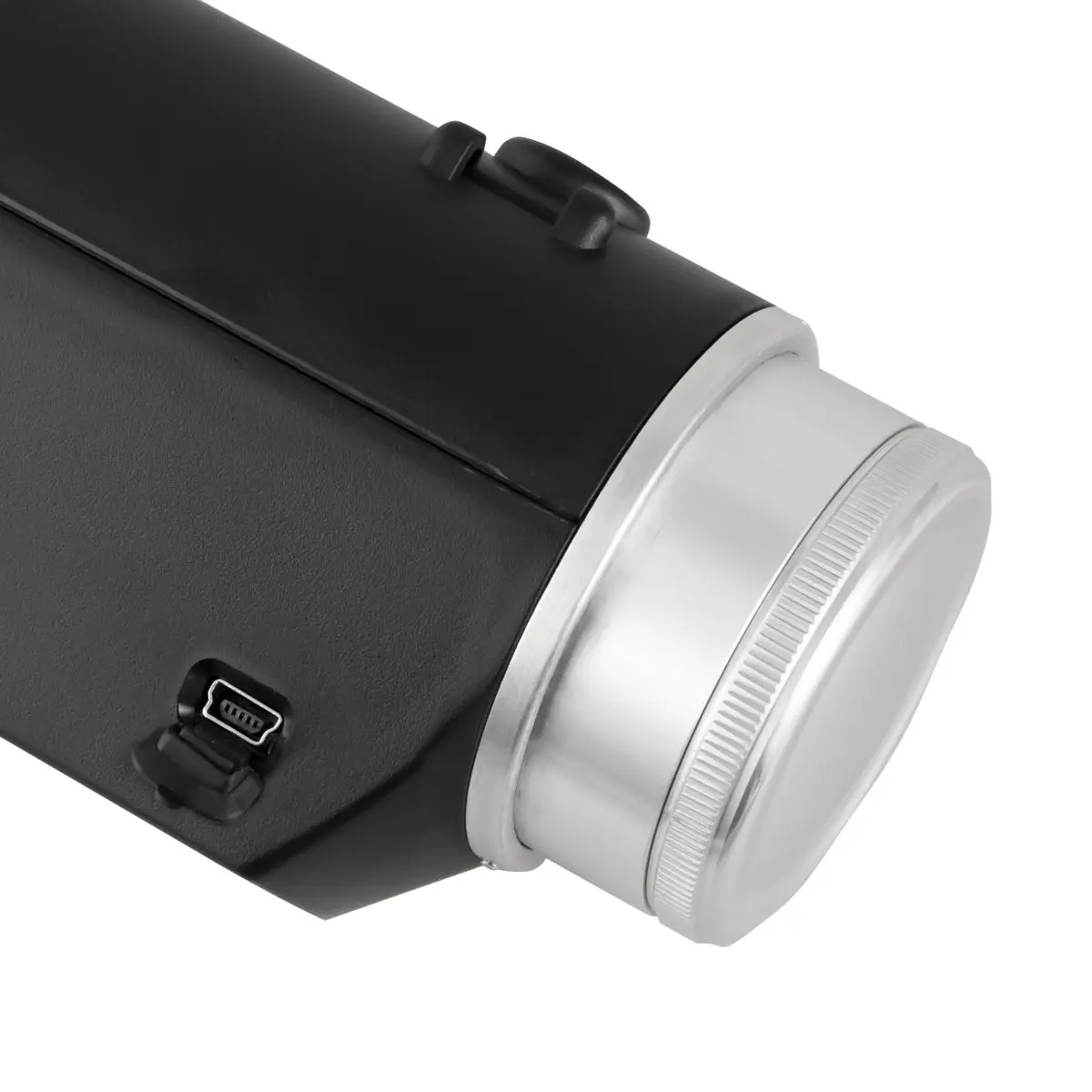

| Interface | Bluetooth, Micro-USB |
| Nominal kinetic energy | 2,207 Nm |
| Menu language | English, English (GB) |
| Protection class (device) | IP42 |
| Power supply | 5V DC, 1A |
| Connector type | Device-europlug |
| (Rechargeable) battery | 1 x 3,7 V internal , Lithium-ion polymer battery |
| Capacity | 1100 mAh |
| Operating conditions | -4 ... 40 °C , 0 ... 80 % RH |
| Storage conditions | -4 ... 40 °C , 0 ... 80 % RH |
| Dimensions ( L x W x H ) | 280 x 75 x 60 mm |
| Weight | 1800 g |
