45,90 €
PCE-MA 100 Moisture Meter
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content

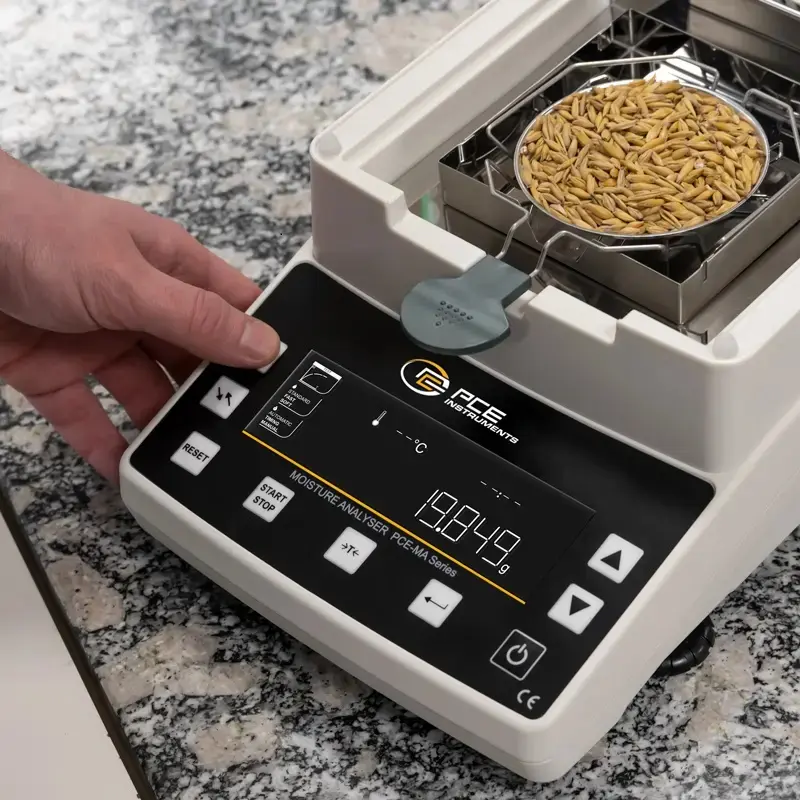

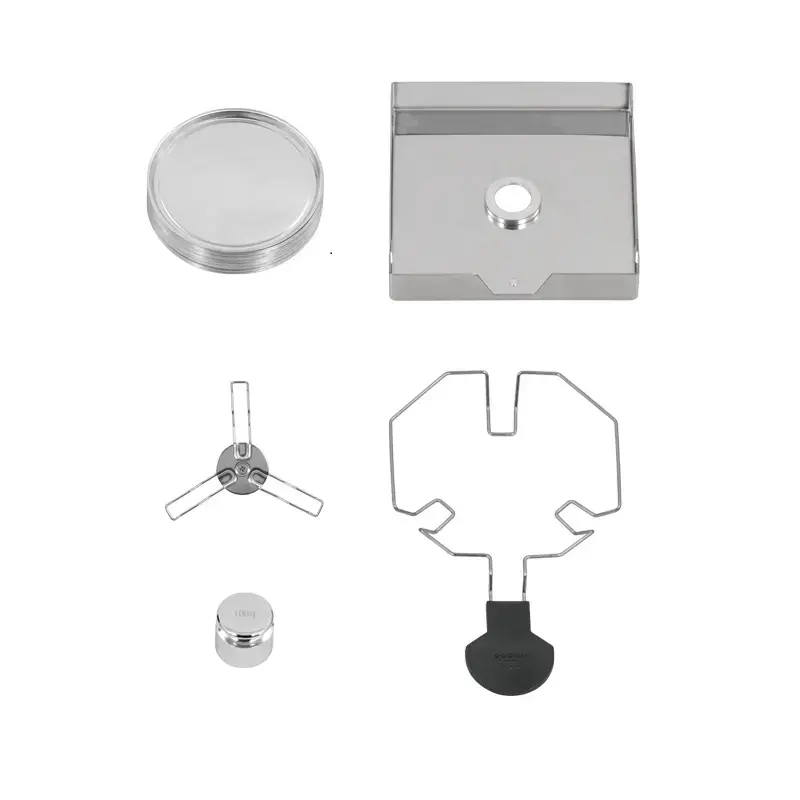

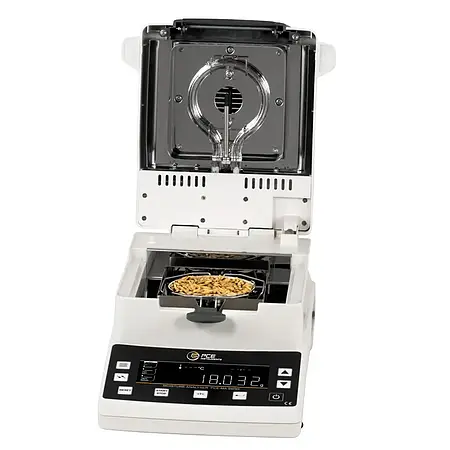

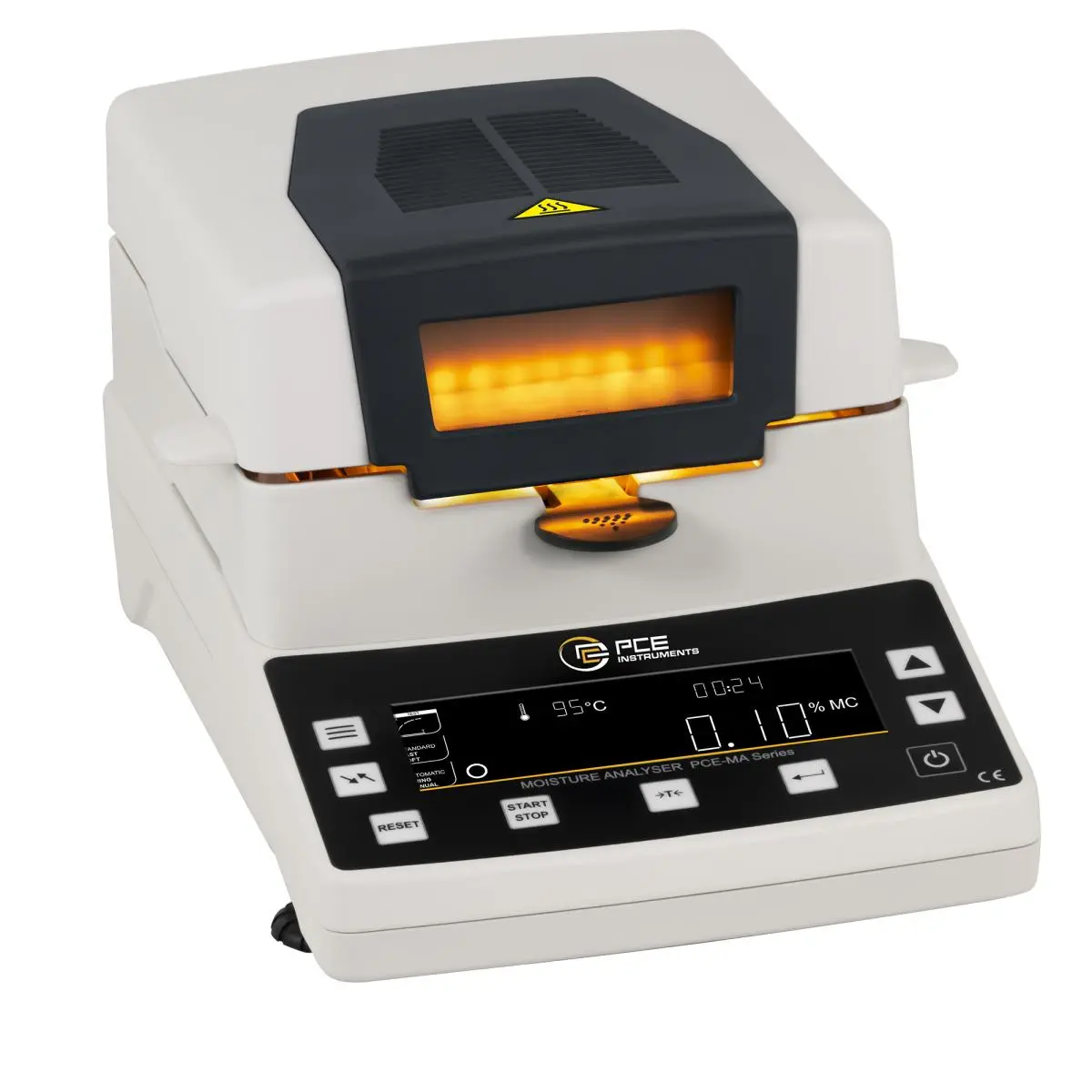

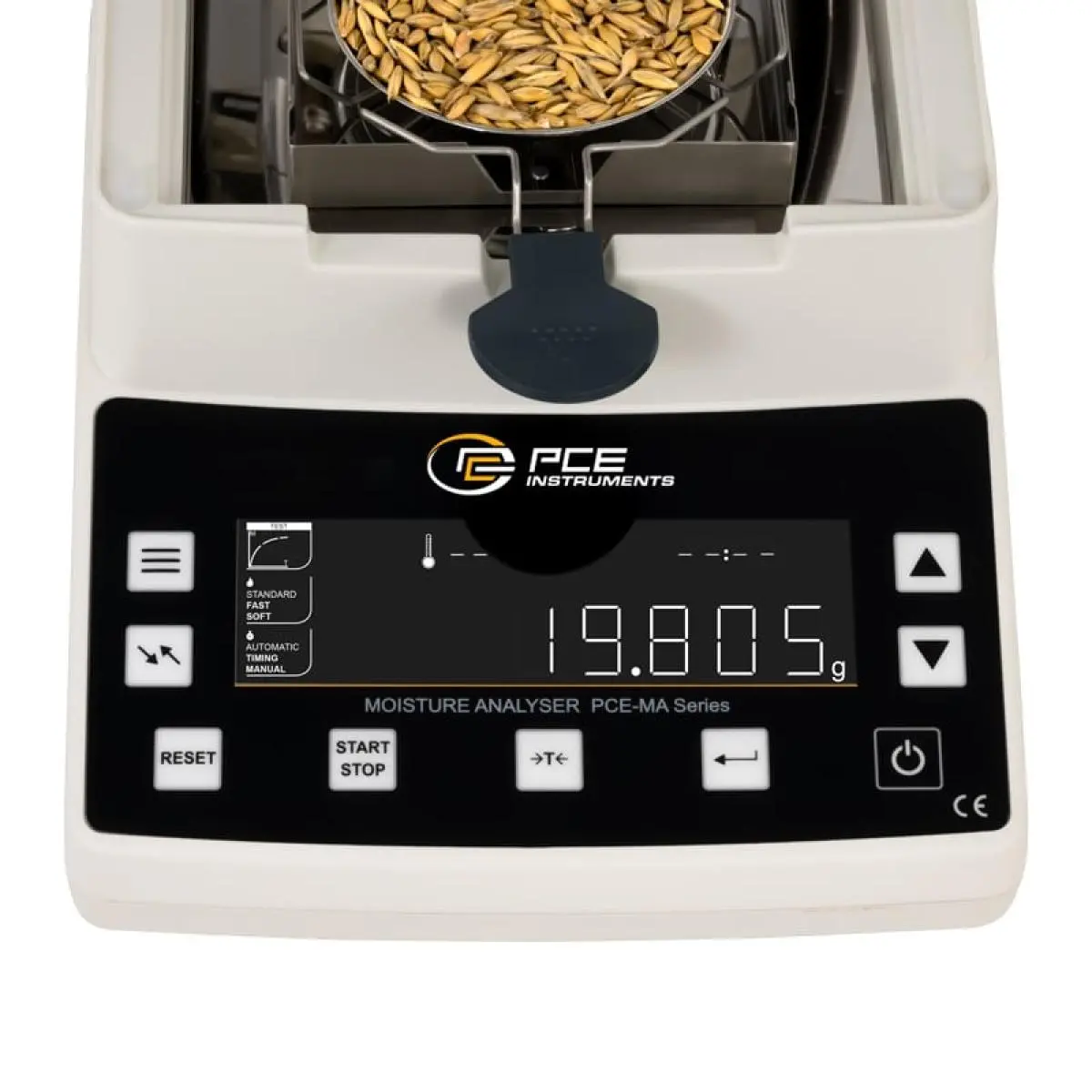

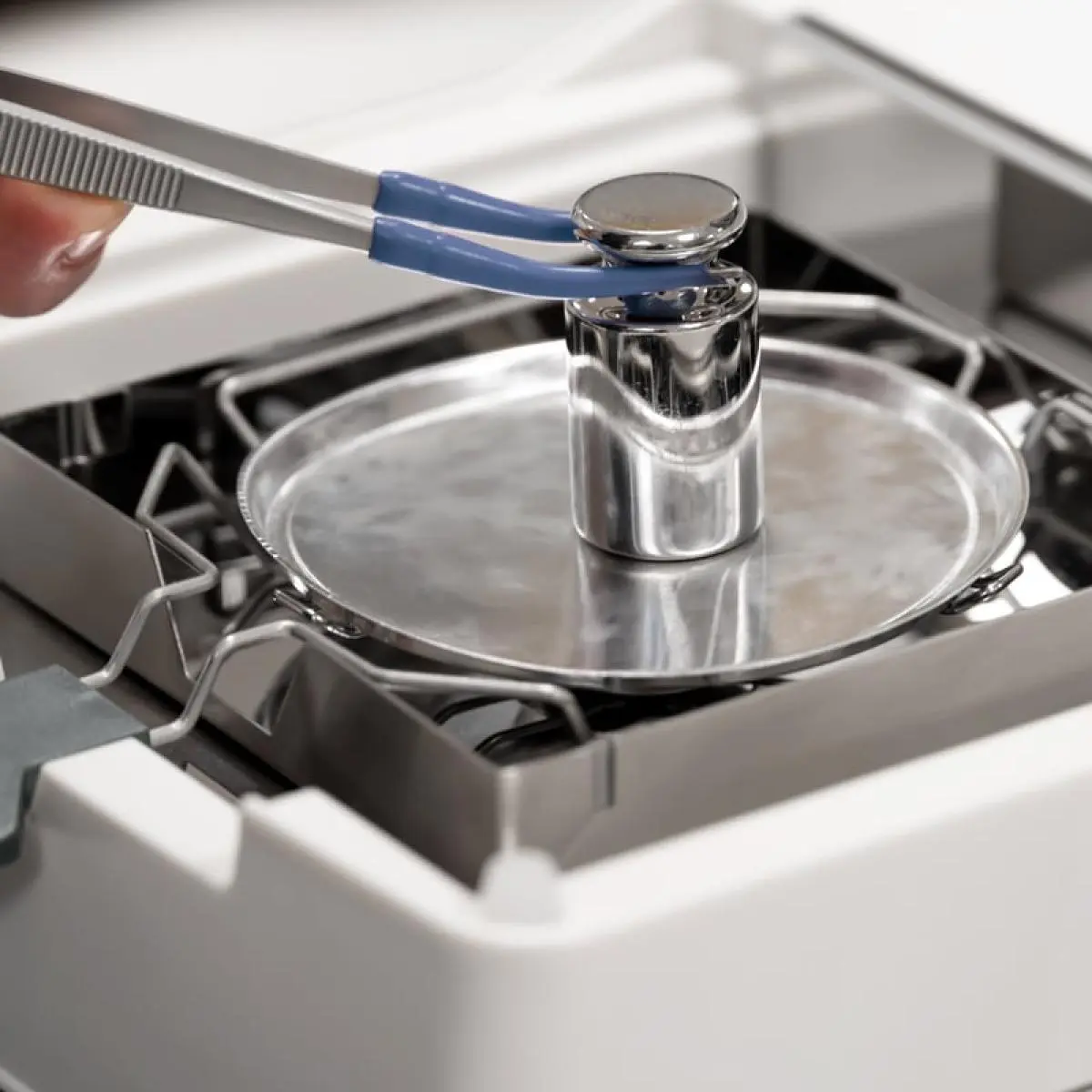

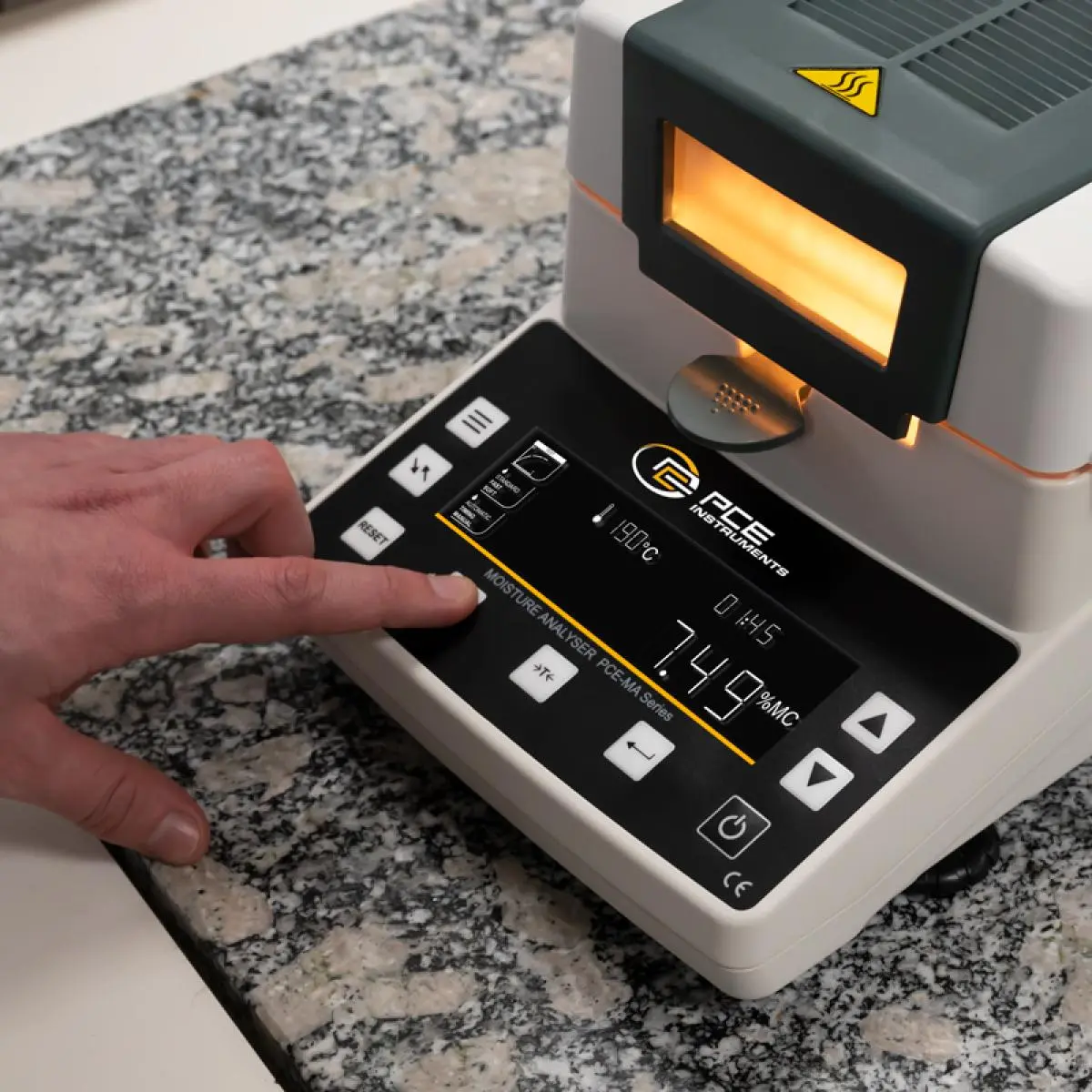

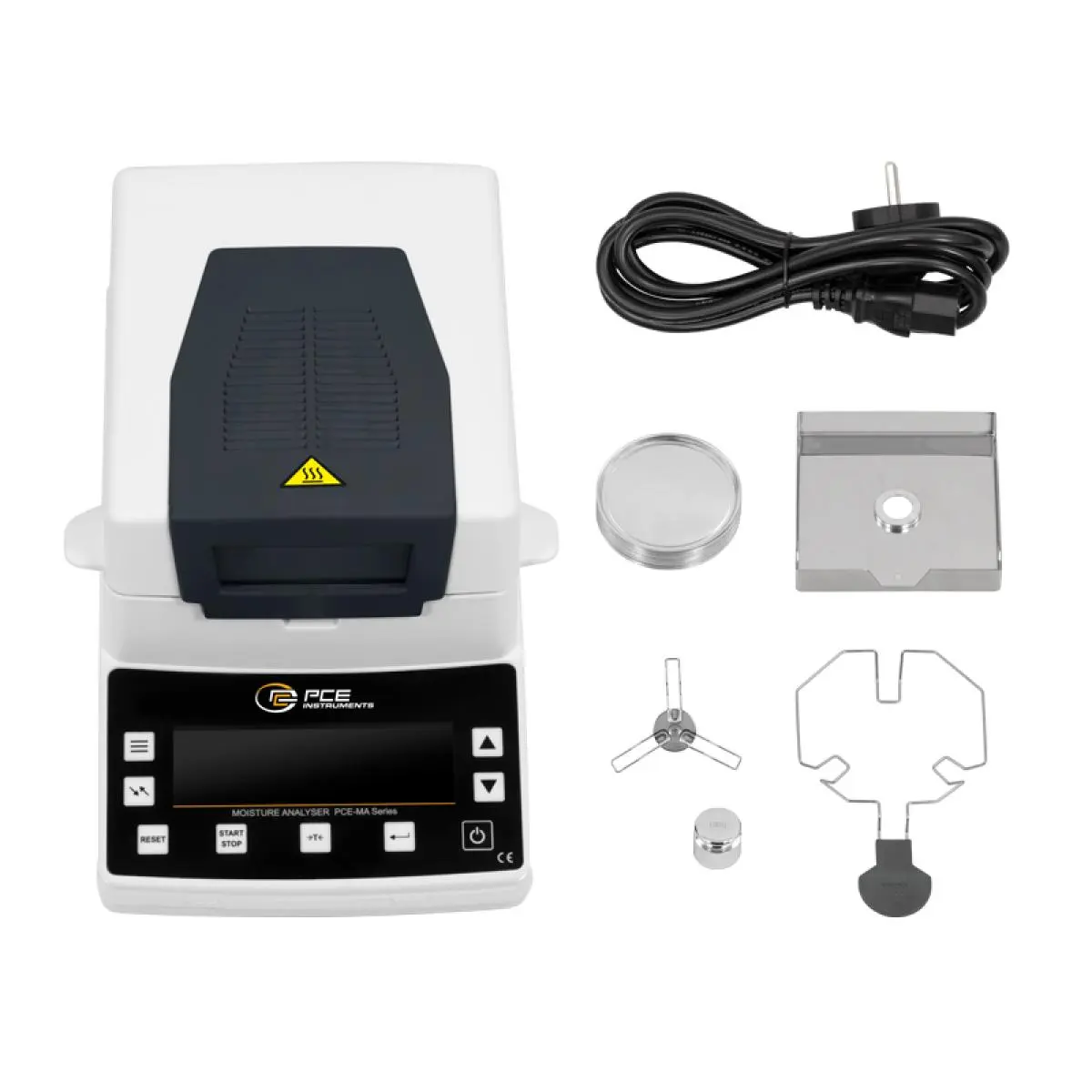

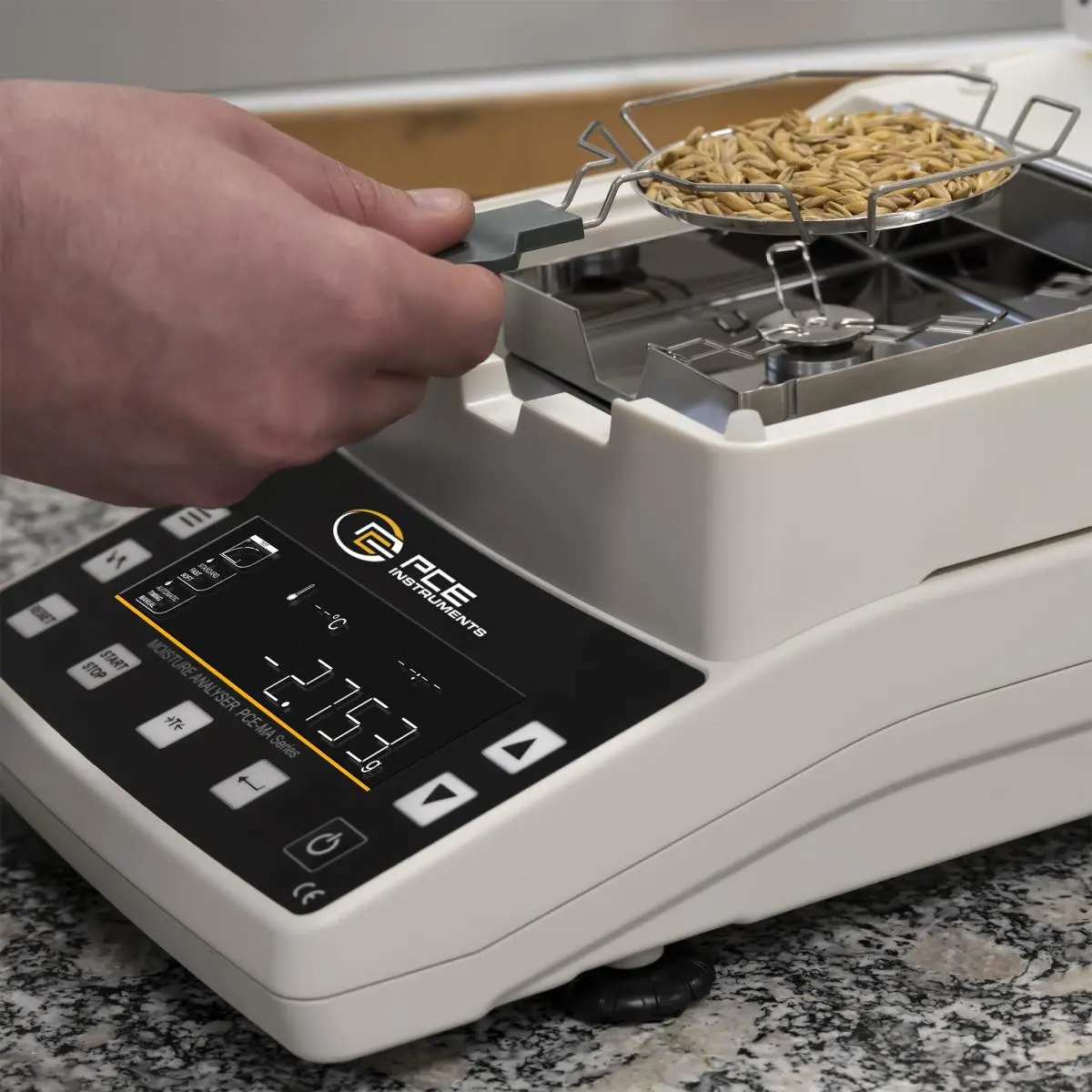

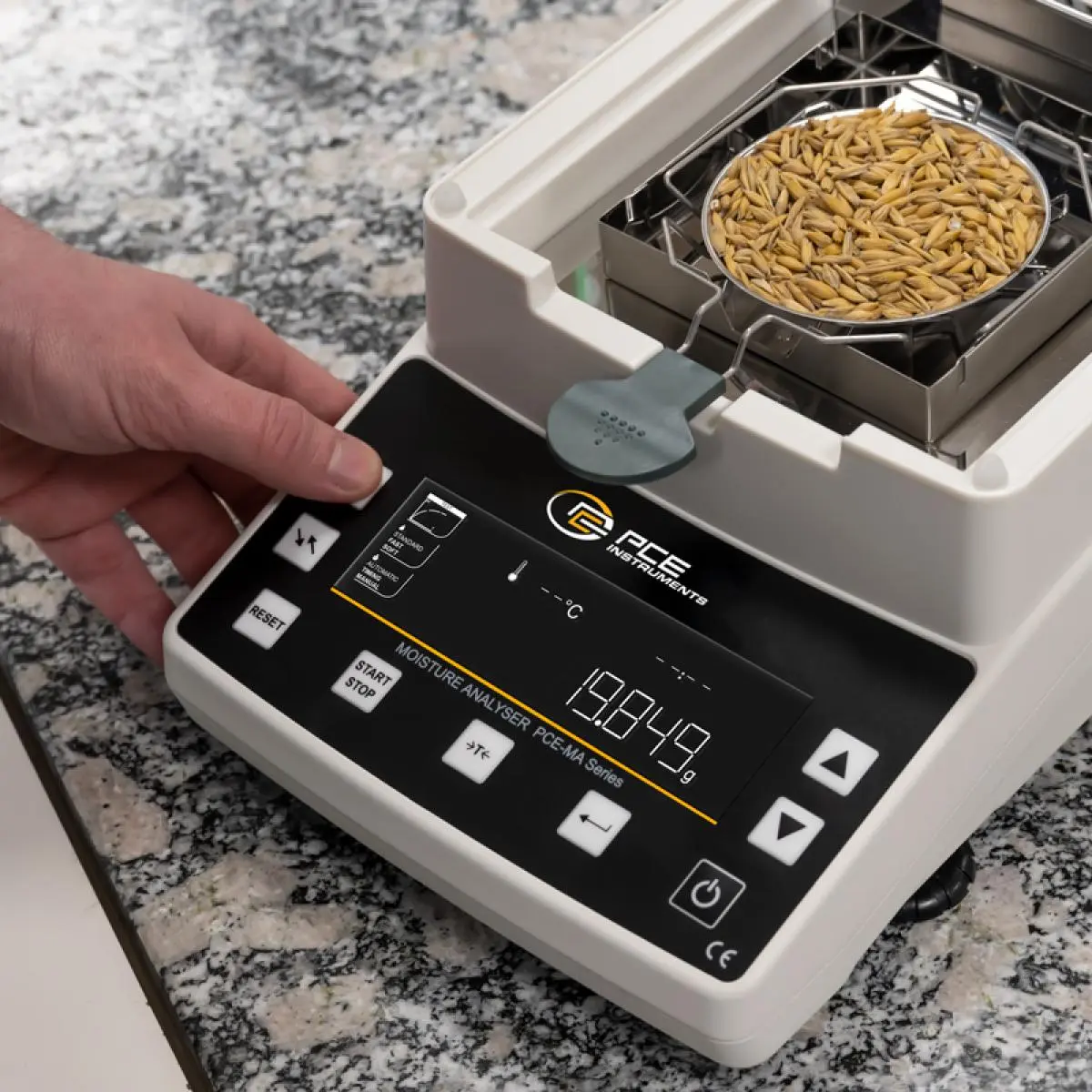

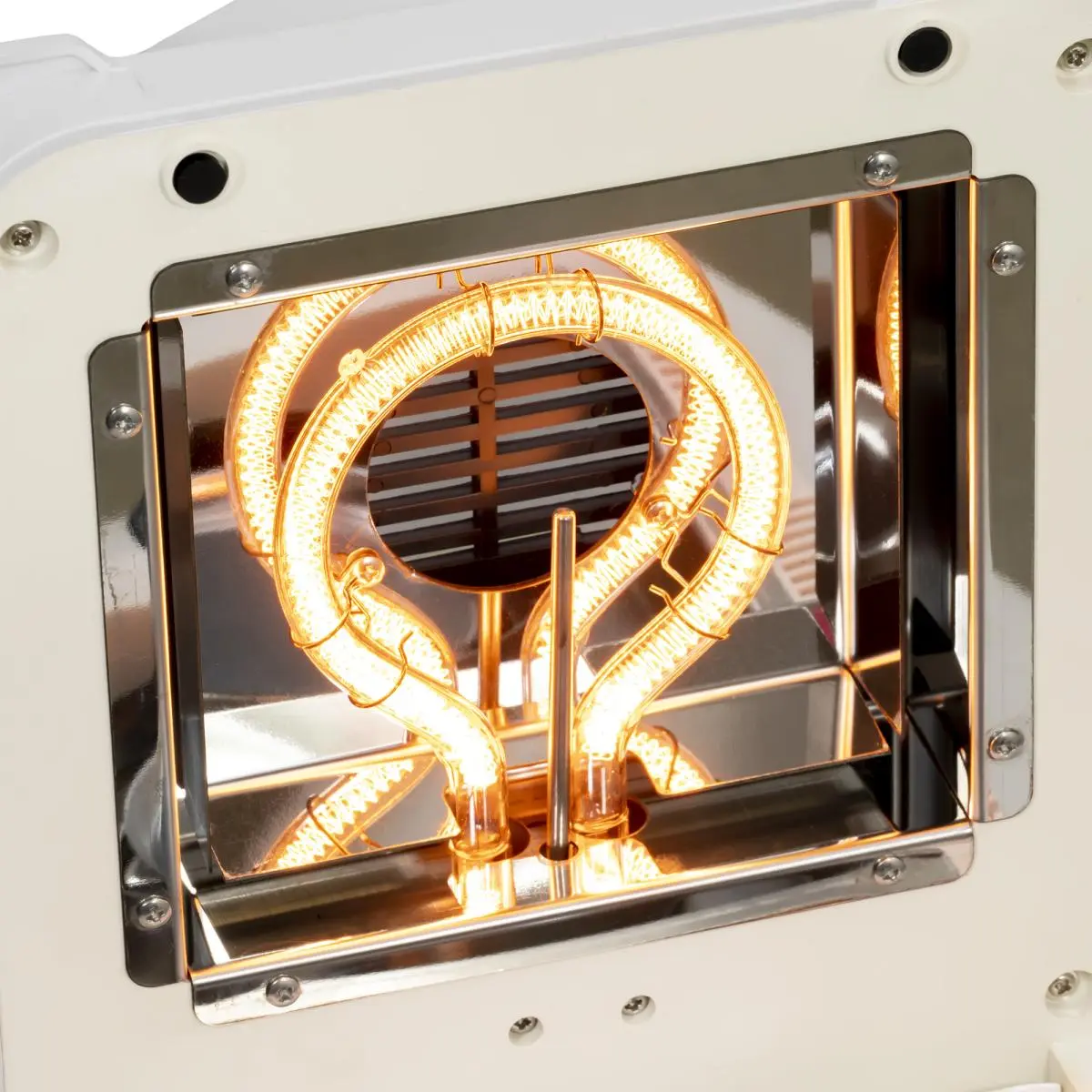

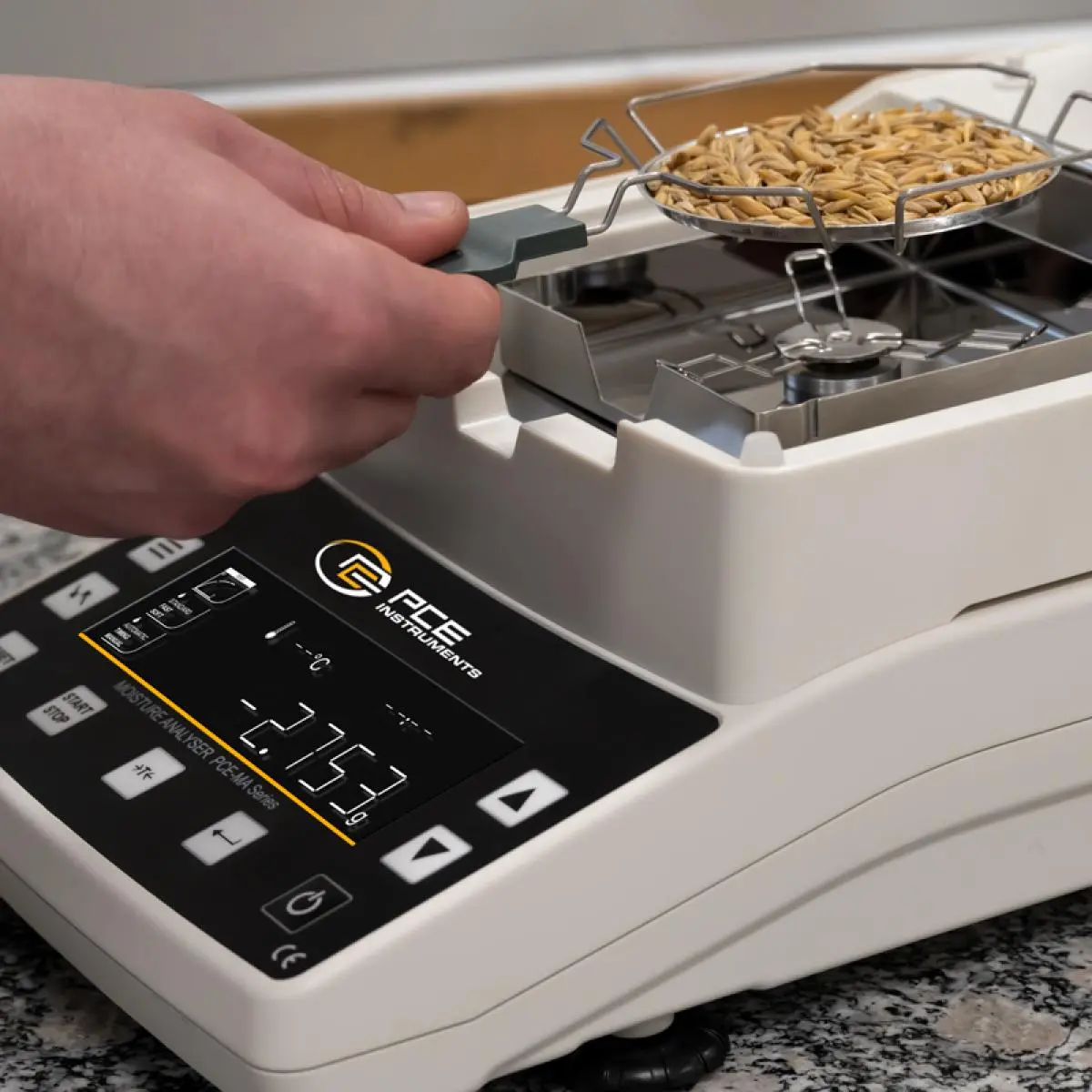

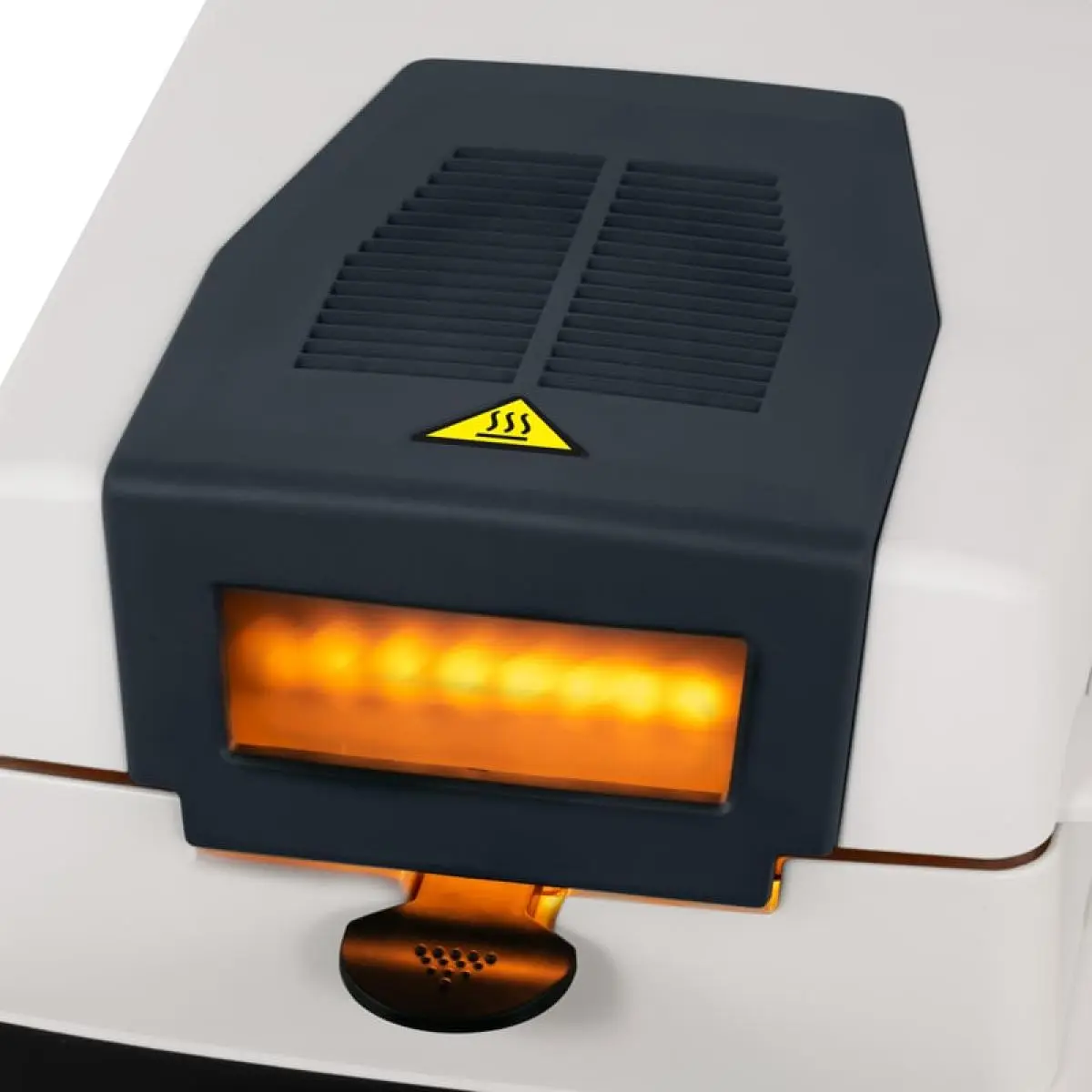

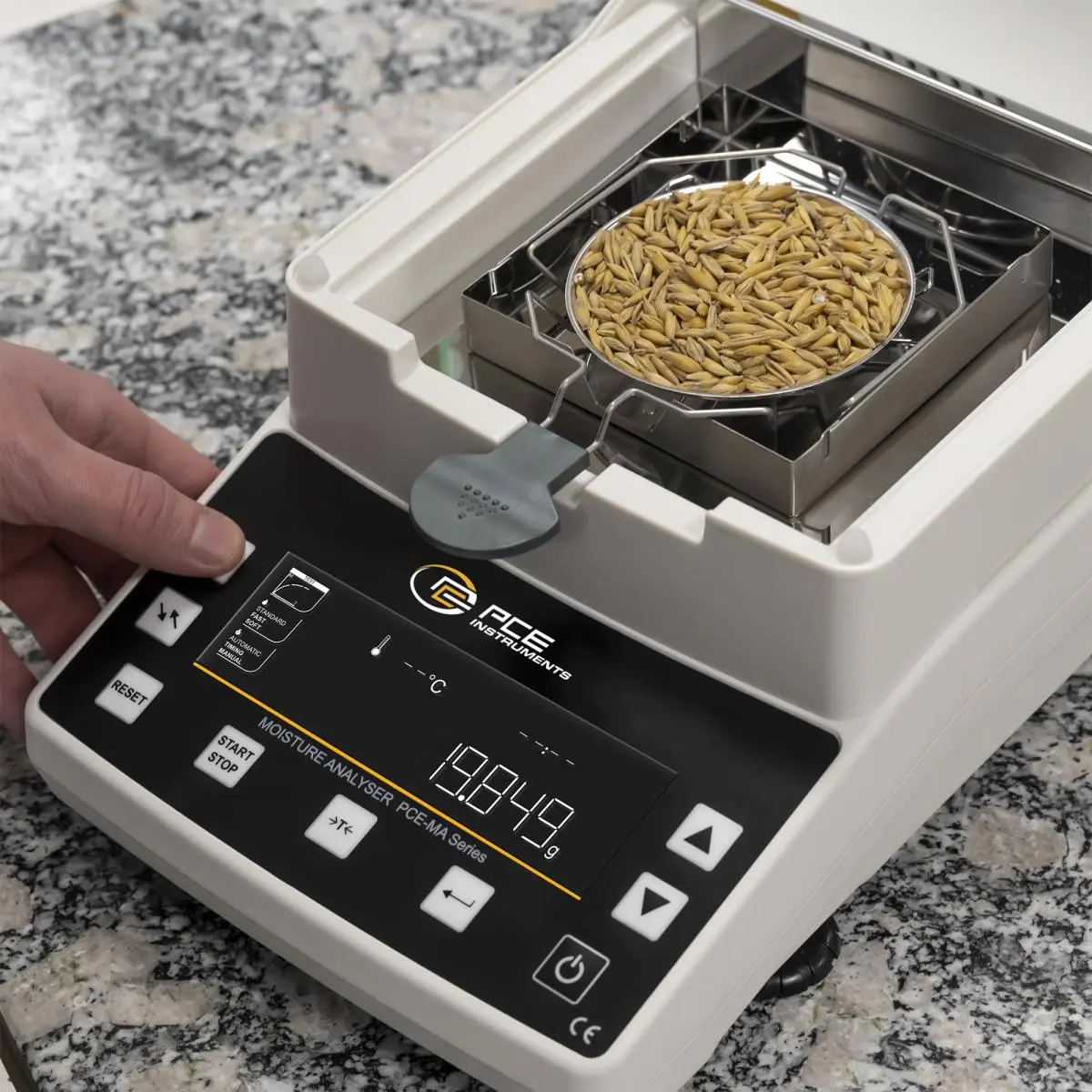

The moisture meter PCE-MA 100 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by a halogen lamp up to 199 °C. In this chamber, the moisture meter dries the material to be weighed, and then calculates the moisture content from the weight difference. The moisture meter can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the moisture meter. Accordingly, the moisture meter is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the moisture meter can be calibrated at any time.
| Absolute moisture | |
| Measuring range | 0 ... 100 % |
| Resolution | 0,01 % |
| Weighing range | |
| Measurement range up to [Max] | 110 g |
| Resolution [d] | 0,001 g |
| Accuracy | ±0.003 g |
| General technical data | |
| Display type | LCD with backlight |
| Digit size [WxH] | H: 17 mm |
| Storage capacity | 15 Programs |

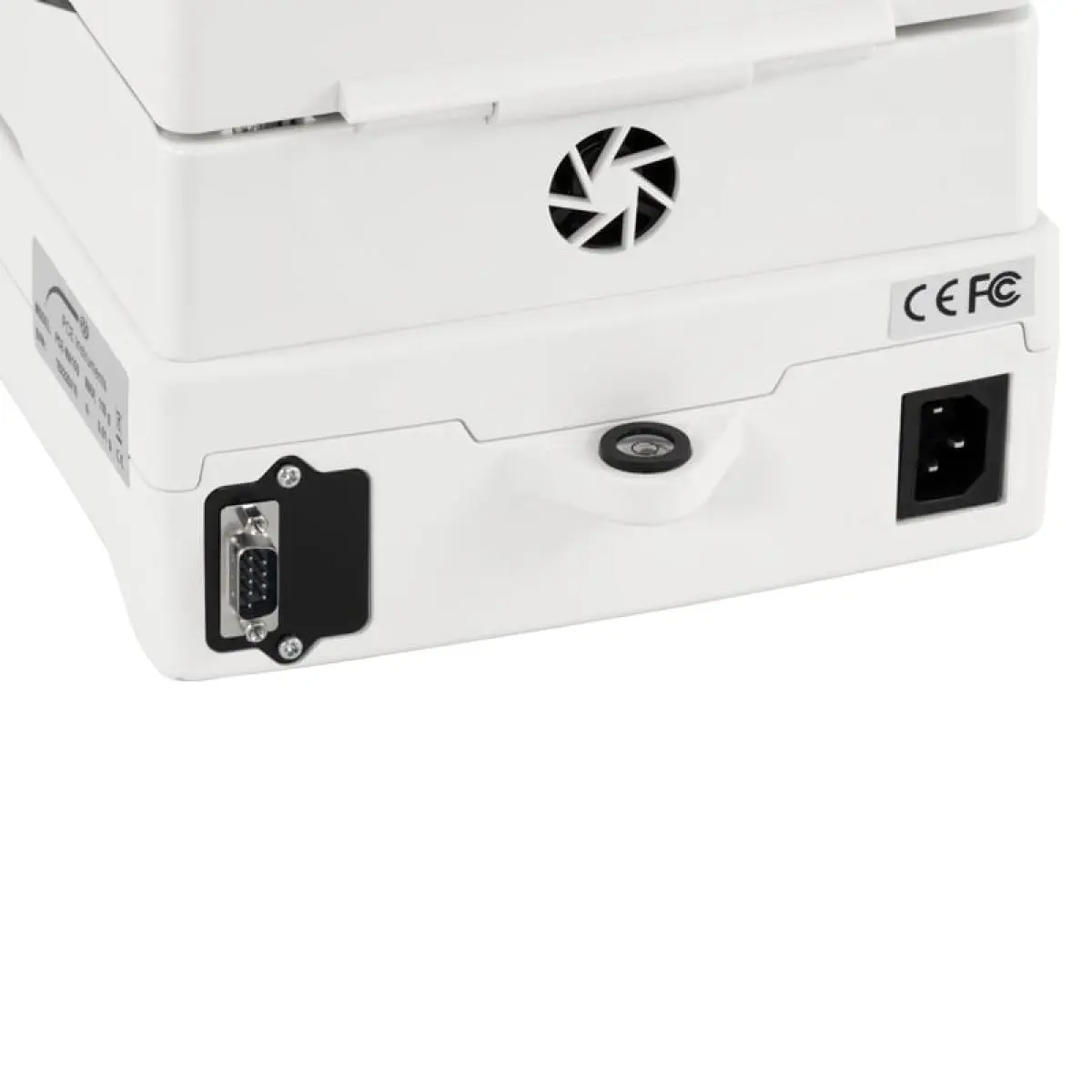

| Interface | RS232 |
| Heating element | Halogen light |
| Heating temperature | 40 ... 199 °C |
| Repeatability | 0,003 g |
| Dimensions | Halogen lamp: Ø 90 mm |
| Drying time | 1 ... 199 min. - adjustable |
| Settling time | 4 s |
| Linearity | 0.003 g |
| Readability | 0,001 g |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | 220 V / 50 Hz |
| Connector type | Cold-device plug |
| Operating conditions | 5 ... 35 °C , 0 ... 75 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 75 % RH |
| Dimensions ( L x W x H ) | 200 x 180 x 380 mm |
| Weight | 4320 g |
