Moisture Meter PCE-CMM 8-ICA

Moisture Meter PCE-CMM 8-ICA incl. ISO Calibration Certificate

Order no.: PCE-CMM 8-ICA
GTIN (EAN): 4250348725271
305,90 €
364,02 €
price ex. (VAT / delivery)
:
4250348725271
PCE-CMM 8-ICA
Delivery time:5-7 working days

Description

Moisture Meter for tabletop operation / Measures temperature, humidity and CO2 content of the air / CO2 measuring range from 0… 9999 ppm / Traffic light function / Touchscreen / USB supply / incl. ISO calibration certificate

With the CO2 meter you can ensure the right climate in your office. In addition to the CO2 content of the air, the CO2 meter measures the relative humidity and room temperature. The CO2 meter shows carbon dioxide concentrations up to 9999 ppm, temperatures from -10… 50 °C, and relative humidity values ​​from 20 … 95%. On the 3.5" display of the CO2 meter, the corresponding values can be read off directly, and the color of the CO2 display changes to provide an objective statement about the quality of the room air based on the CO2 content. This makes it particularly easy to assess the indoor air quality using the CO2 meter. For these reasons, the CO2 meter is particularly suitable for offices, schools, public buildings or hospitals, and in general for all buildings and rooms in which people are present.

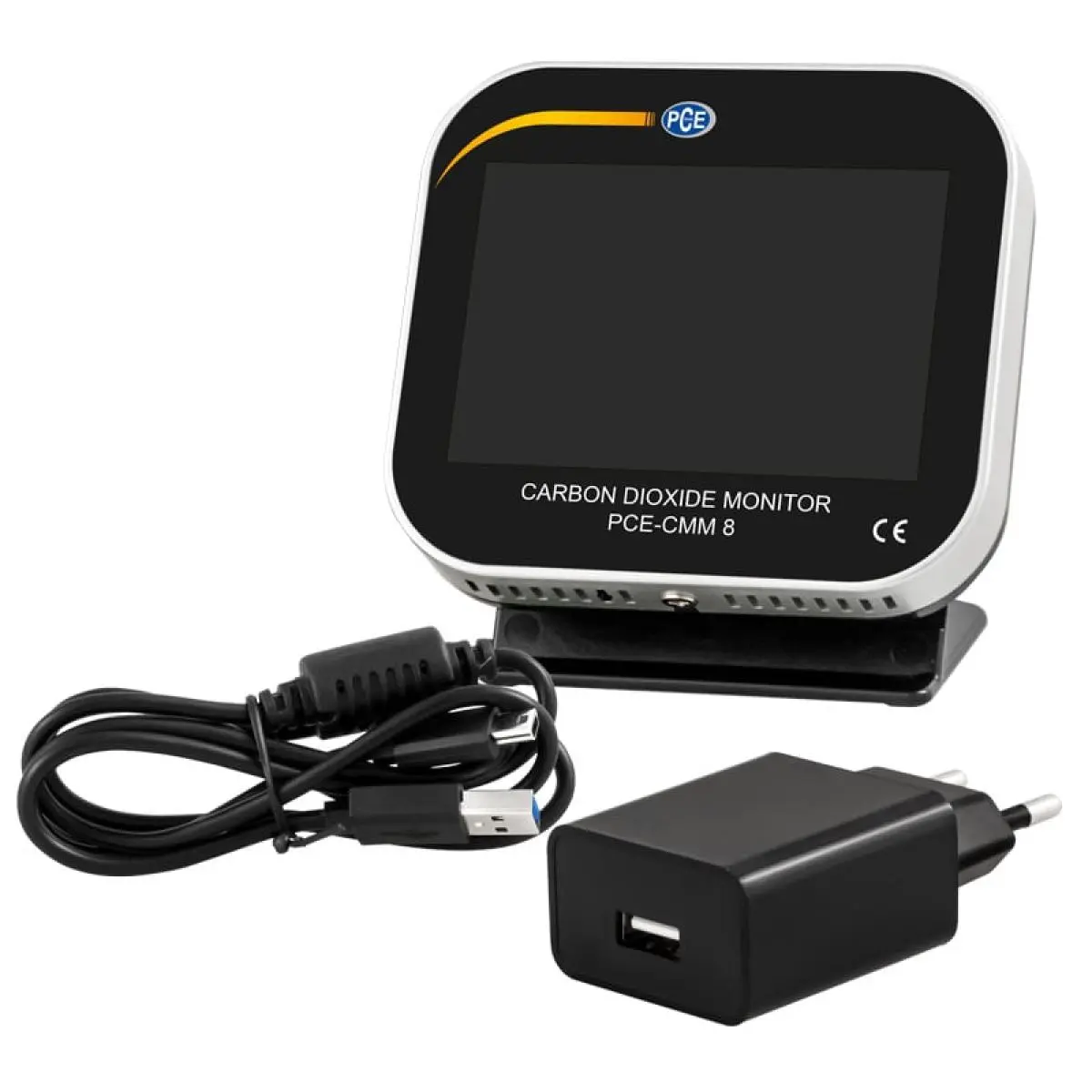

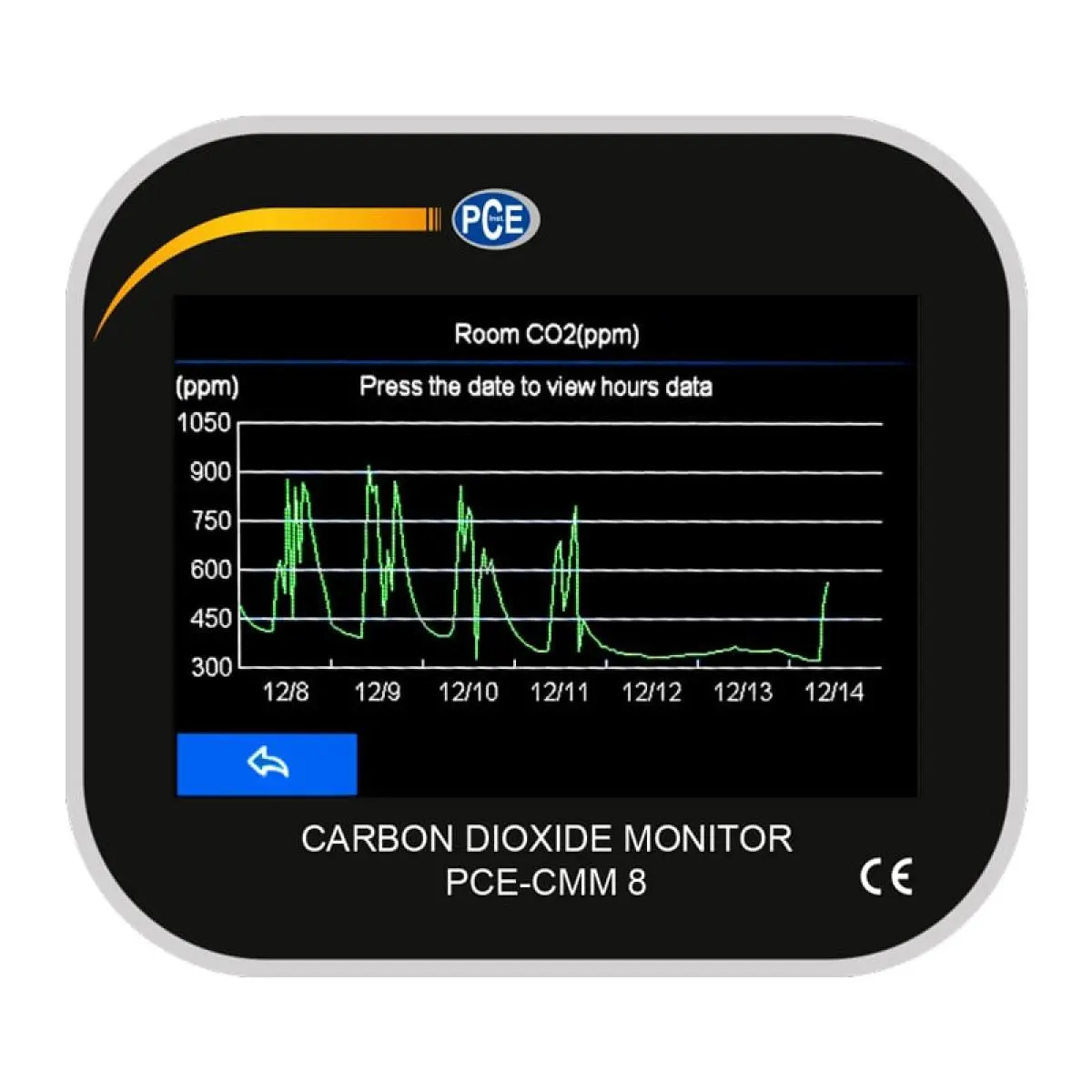

The CO2 meter displays the measured values ​​numerically and graphically on the touchscreen. Operation is intuitive. The menu structure is simple and user friendly. In addition to setting the date and time, the user can parameterize offsets for the measured values ​​of temperature, humidity and the CO2 content. The display can be dimmed automatically, for example at night. The CO2 meter is operated via the mini-USB interface with a 5 V / 2 A power supply unit (not included).


Highlights

- Traffic light function when the limit value is exceeded
- Touch display with lighting
- Numerical display of the CO2 measured value
- Progress display for °C, r.h., CO2
- USB supply
- Maintenance-free NDIR CO2 sensor
- Innovative design
- Measuring range up to 9999 ppm CO2
- incl. ISO-Calibration Certificate

Specification

CO²
Measuring range  0 ... 9999 ppm
Resolution  1 ppm
Accuracy  ±75 ppm or ±5 % v.Mw. (the higher value applies)

Relative humidity
Measuring range  20 ... 95
Resolution  1
Accuracy  ±5 % RH

Temperature
Measuring range  -10 ... +50 °C
Resolution  0,1 °C
Accuracy  ±1 C°

General technical data
Display type  LC touch display
Display size  3,5 in
Storage medium  Internal memory
Memory information  Data is stored for up to 7 days and displayed on the computer via USB cable.
Interface  USB
Sensor  NDIR
Alarm  optical, Acoustic
Menu language  English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Czech, Swedish, Slovenian
Protection class (device)  IP21
Power supply  5V DC
Connector type  Device-europlug
Operating conditions  1 ... 85 °C , 20 ... 85 % RH
Storage conditions  1 ... 85 °C , 20 ... 85 % RH
Dimensions ( L x W x H )  96 x 86 x 32,5 mm
Weight  200 g

Delivery Scope

1 x Moisture Meter PCE-CMM 8-ICA
1 x User manual

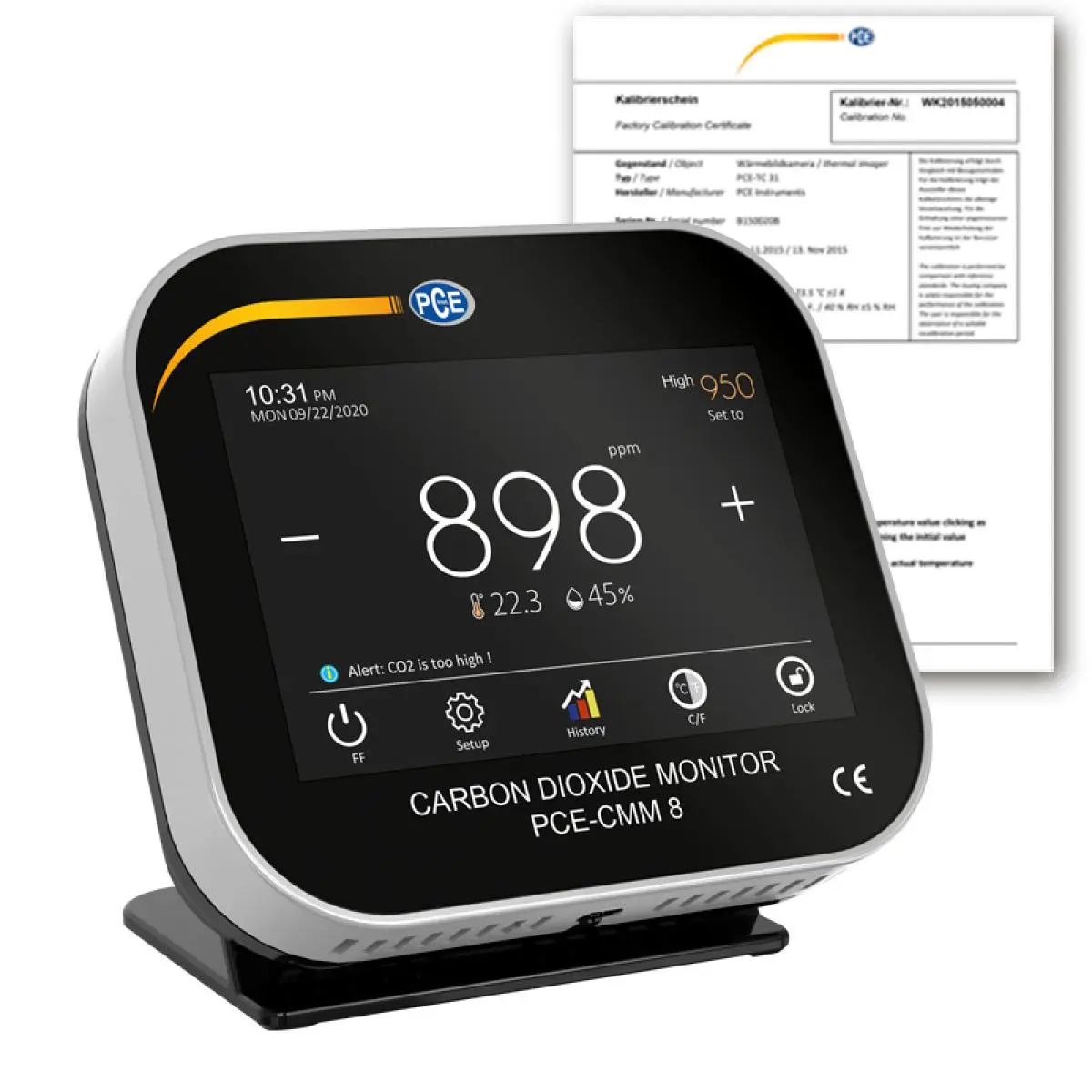

1 x ISO-Calibration Certificate
