The Material Thickness Meter can measure material thicknesses of up to 300 mm. To ensure that the material thickness of a wide variety of homogeneous materials can be measured, it is possible to save the corresponding sound velocity in the Material Thickness Meter. For materials such as steel, aluminium, zinc, silver and gold, the appropriate sound velocities are already saved in the device library. This means that the Material Thickness Meter can be used universally.
Individual maximum and minimum values can be saved using the Material Thickness Meter's limit value function. If the measured value of the sample is outside the limits, the Material Thickness Meter signals this visually. If required, the Material Thickness Meter can also provide an acoustic signal in addition to the visual display. The Material Thickness Meter is therefore used, for example, in quality assurance and incoming goods inspection.

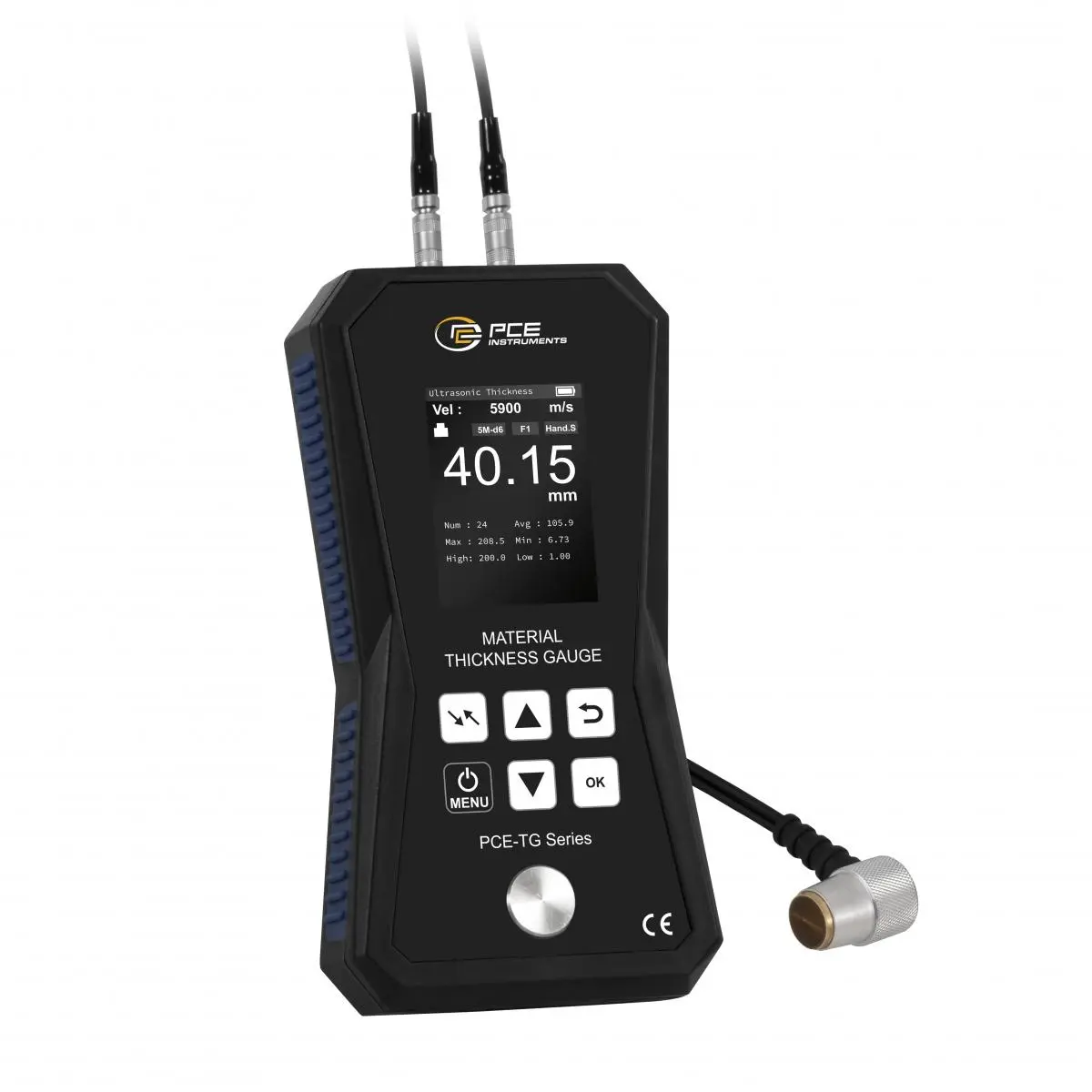

The Material Thickness Meter has a data memory in which the measured values can be recorded. After a measuring procedure, the saved readings can be analysed directly in the Material Thickness Meter. The saved data is displayed as a graph on the Material Thickness Meter. In addition, each individual measuring point can be approached and read in the graph of the Material Thickness Meter. To simplify the analysis of the measured values, the average, the highest and lowest measured values are displayed on the Material Thickness Meter. The Material Thickness Meter can optionally be supplied with an ISO calibration certificate.
Material thickness | |
Measurement range up to | 1,2 ... 99,99 mm |
Resolution | 0,01 mm |
Accuracy | ±0.5 % of Rd +0.05 mm |
Material thickness | |
Measurement range up to | 100 ... 300 mm |
Resolution | 0,1 mm |
Accuracy | ±0.5 % of Rd +0.05 mm |

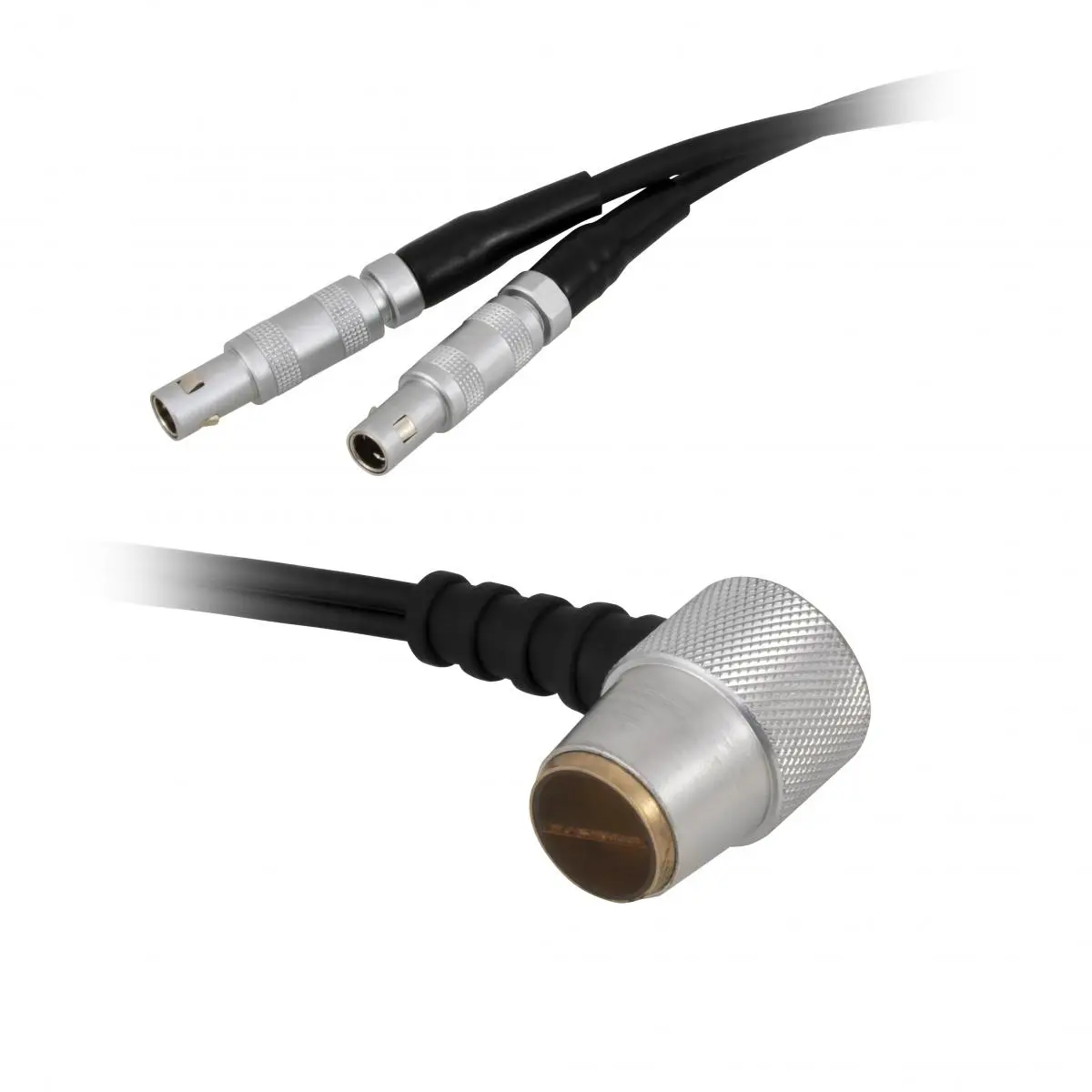

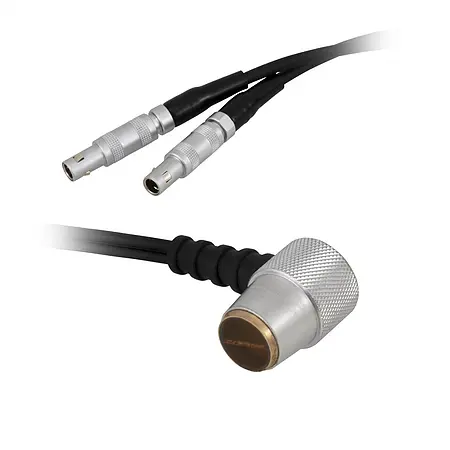

Sensor | |
Designation | PCE-TG 2.5M |
Frequency | 2.5 MHz |
Temperature range | -10 ... 60 °C |
Measurable materials | Steel, aluminium, zinc, silver, gold, metal, plastic, ceramic, glass, other homogeneous materials |
Minimum diameter of pipes | 50 mm |
Dimension | Ø 12 mm x 28.3 mm |
Additional description | Thickness measurement of cast materials |
General technical data | |
Units | mm |
Display type | TFT colour display |
Display size | 2,4 Inch |
Storage medium | Internal memory |
Storage capacity | 1500 Values |
Automatic power-off from...to | 2 ... 30 min. |
Automatic power-off can be deactivated | Yes |
Adjustable sound velocity | 1000 ... 9999 m/s |
Menu language | English, Chinese |
Protection class (device) | IP52 |
(Rechargeable) battery | 3 x 1,5 V AA battery , Alkali-manganese |
Capacity | 3000 mAh |
Operating conditions | 0 ... 40 °C , 0 ... 90 % RH |
Storage conditions | 0 ... 40 °C , 0 ... 90 % RH |
Dimensions ( L x W x H ) | 168 x 87 x 35 mm |
Weight | 230 g |
